Sanken Electric Co., Ltd.
- Sanken Electric Co., Ltd., a leading global supplier of analog power semiconductor products, designs and manufactures a wide range of power management ICs, motor control ICs, LED lighting ICs as well as high quality automotive semiconductor devices and discrete components.
Part Number
Manufacturer
Description
Unit Price
In Stock

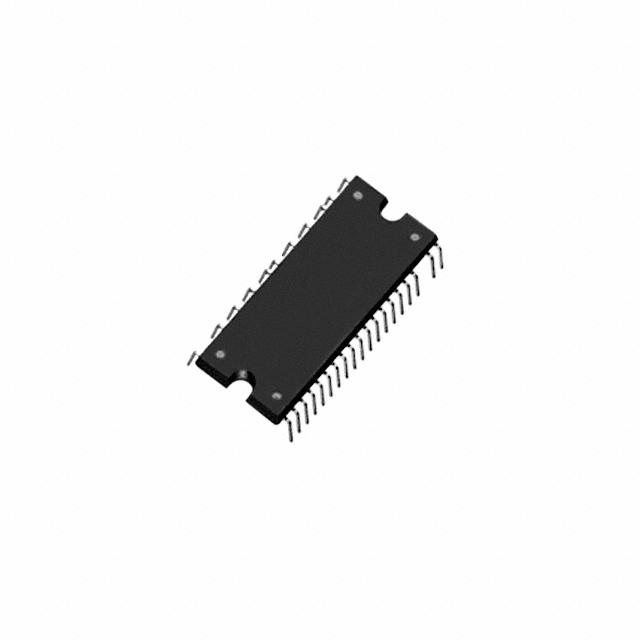

Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 5A
Current - Peak Output : 7.5A
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 400V (Max)
Operating Temperature : -20°C ~ 100°C (TA)
Features : Bootstrap Circuit
Fault Protection : Current Limiting, Over Temperature, UVLO
Mounting Type : Through Hole
Package / Case : 40-DIP (0.657", 16.70mm), 29 Leads
Supplier Device Package : 40-DIP LF2971
0
2147 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Output Configuration : Half Bridge (3)
Applications : AC Motors
Interface : Logic
Load Type : Inductive
Technology : IGBT
Rds On (Typ) : -
Current - Output / Channel : 5A
Current - Peak Output : 7.5A
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 400V (Max)
Operating Temperature : -20°C ~ 100°C (TA)
Features : Bootstrap Circuit
Fault Protection : Current Limiting, Over Temperature, UVLO
Mounting Type : Through Hole
Package / Case : 40-DIP (0.657", 16.70mm), 29 Leads
Supplier Device Package : 40-DIP LF2971
0
1023 in stock

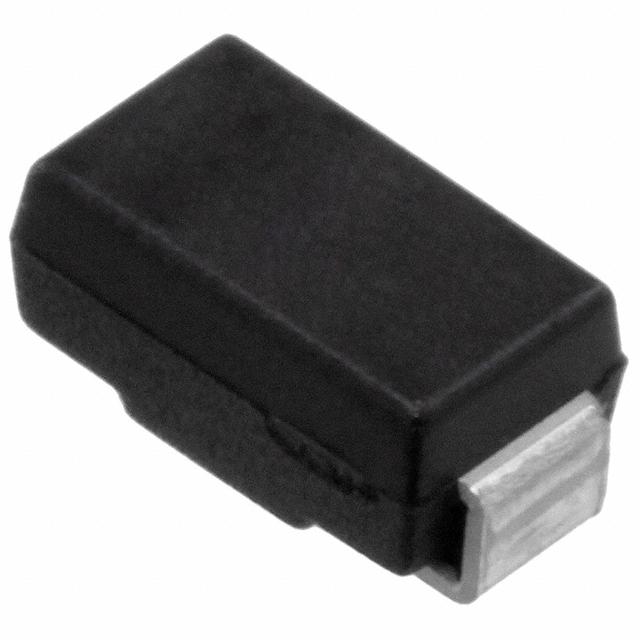

Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 360mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.5mA @ 30V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, J-Lead
Supplier Device Package : SJP
Operating Temperature - Junction : -40°C ~ 125°C
0
949 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 360mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 4.5mA @ 30V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, J-Lead
Supplier Device Package : SJP
Operating Temperature - Junction : -40°C ~ 125°C
0
21003 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 40V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, J-Lead
Supplier Device Package : SJP
Operating Temperature - Junction : -40°C ~ 150°C
0
5504 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 680mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 60V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, J-Lead
Supplier Device Package : SJP
Operating Temperature - Junction : -40°C ~ 150°C
0
7748 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 90V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 90V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, J-Lead
Supplier Device Package : SJP
Operating Temperature - Junction : -40°C ~ 150°C
0
668 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 40V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, J-Lead
Supplier Device Package : SJP
Operating Temperature - Junction : -40°C ~ 150°C
0
9175 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 690mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 60V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, J-Lead
Supplier Device Package : SJP
Operating Temperature - Junction : -40°C ~ 150°C
0
9088 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 90V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 90V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, J-Lead
Supplier Device Package : SJP
Operating Temperature - Junction : -40°C ~ 150°C
0
6281 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 300µA @ 40V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, J-Lead
Supplier Device Package : SJP
Operating Temperature - Junction : -40°C ~ 150°C
0
3007 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 700mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 300µA @ 60V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, J-Lead
Supplier Device Package : SJP
Operating Temperature - Junction : -40°C ~ 150°C
0
932 in stock
