Sanken Electric Co., Ltd.
- Sanken Electric Co., Ltd., a leading global supplier of analog power semiconductor products, designs and manufactures a wide range of power management ICs, motor control ICs, LED lighting ICs as well as high quality automotive semiconductor devices and discrete components.
Part Number
Manufacturer
Description
Unit Price
In Stock

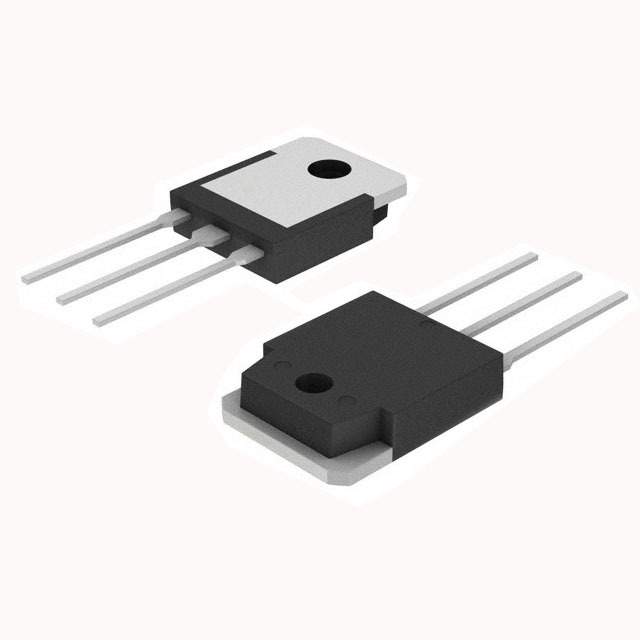

Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : NPN - Darlington
Current - Collector (Ic) (Max) : 15A
Voltage - Collector Emitter Breakdown (Max) : 150V
Vce Saturation (Max) @ Ib, Ic : 2.5V @ 10mA, 10A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 5000 @ 10A, 4V
Power - Max : 130W
Frequency - Transition : 70MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
1427 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : NPN - Darlington
Current - Collector (Ic) (Max) : 6A
Voltage - Collector Emitter Breakdown (Max) : 110V
Vce Saturation (Max) @ Ib, Ic : 2.5V @ 5mA, 5A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 5000 @ 5A, 4V
Power - Max : 60W
Frequency - Transition : 60MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
234 in stock

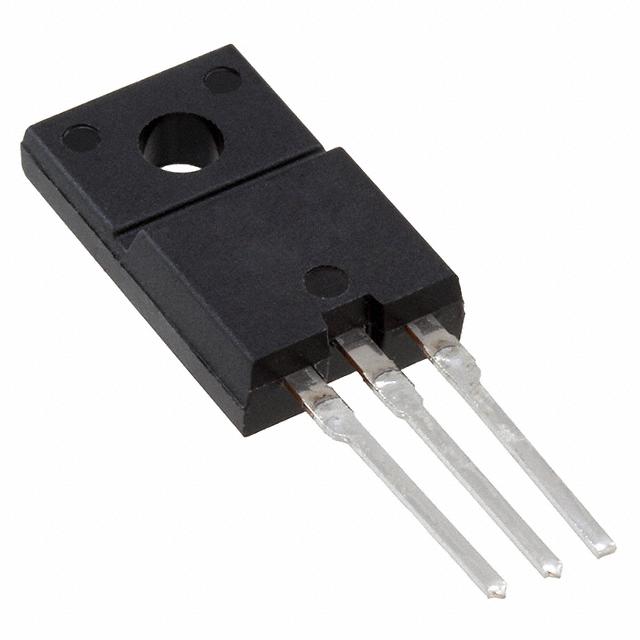

Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : NPN - Darlington
Current - Collector (Ic) (Max) : 6A
Voltage - Collector Emitter Breakdown (Max) : 110V
Vce Saturation (Max) @ Ib, Ic : 2.5V @ 5mA, 5A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 5000 @ 5A, 4V
Power - Max : 30W
Frequency - Transition : 60MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
200 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 800V
Current - Average Rectified (Io) : 500mA
Voltage - Forward (Vf) (Max) @ If : 2V @ 500mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 200ns
Current - Reverse Leakage @ Vr : 10µA @ 800V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Operating Temperature - Junction : -40°C ~ 150°C
0
2889 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 500mA
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 600mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 100ns
Current - Reverse Leakage @ Vr : 100µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Operating Temperature - Junction : -40°C ~ 150°C
0
2407 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 700mA
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 700mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 100ns
Current - Reverse Leakage @ Vr : 100µA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Operating Temperature - Junction : -40°C ~ 150°C
0
2939 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tape & Box (TB)
Alternate Packaging
Series : -
Part Status : Obsolete
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.4V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 10µA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Operating Temperature - Junction : -40°C ~ 150°C
0
6000 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tape & Box (TB)
Alternate Packaging
Series : -
Part Status : Obsolete
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 980mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 50µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Operating Temperature - Junction : -40°C ~ 150°C
0
100 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 980mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
1645 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 980mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 50µA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
10669 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 980mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
5166 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 4V @ 200mA
Speed : Small Signal =
200ns
100µA @ 1000V
-
Through Hole
Axial
-
-40°C ~ 150°C
Reverse Recovery Time (trr) : 200ns
Current - Reverse Leakage @ Vr : 100µA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
2402 in stock
