Sanyo Denki
- Sanyo Denki America is your ultimate source for cutting-edge thermal management solutions. Since 1927, Sanyo Denki has been surpassing the ever-increasing cooling demands of customers all over the world by providing industry-leading reliability and performance. In the 21st century, Sanyo Denki continues to thrive in leading the industry with a commitment to total customer satisfaction and the success of our business partners.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120W
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection, Speed Sensor (Tach)
Noise : -
Power (Watts) : -
RPM : -
Termination : 3 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -
Approvals : -
Weight : -
0
100 in stock
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120W
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -
Approvals : -
Weight : -
0
100 in stock
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120W
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -
Approvals : -
Weight : -
0
100 in stock

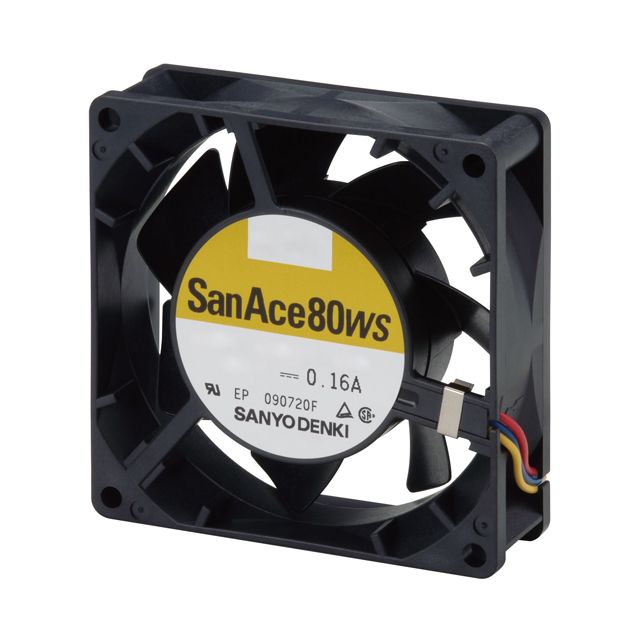

Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 80WS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 33.2 CFM (0.930m鲁/min)
Static Pressure : 0.181 in H2O (45.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 32.0 dB(A)
Power (Watts) : 1.92W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.265 lb (120.2g)
0
34 in stock

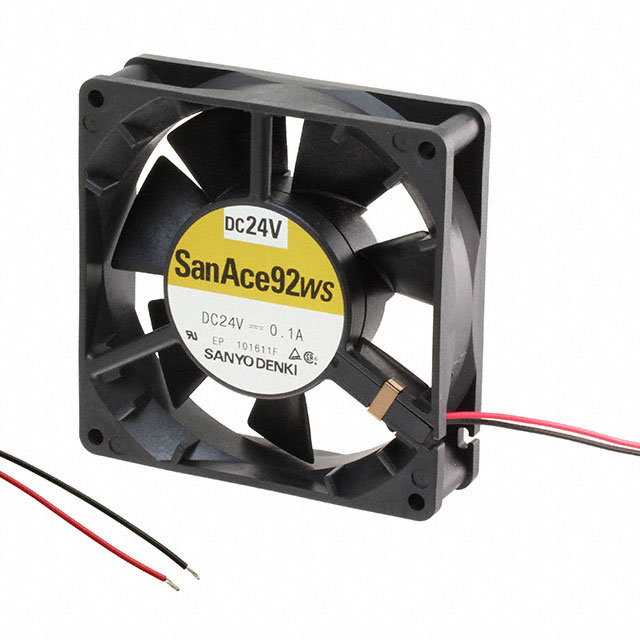

Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 92WS
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 48.7 CFM (1.36m鲁/min)
Static Pressure : 0.181 in H2O (45.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 2.40W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.331 lb (150.14g)
0
38 in stock
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120WS
Part Status : Last Time Buy
Voltage - Rated : 24VDC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.4 CFM (2.87m鲁/min)
Static Pressure : 0.272 in H2O (67.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 39.0 dB(A)
Power (Watts) : 5.52W
RPM : 2600 RPM
Termination : 3 Wire Leads
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : 0.573 lb (259.91g)
0
100 in stock

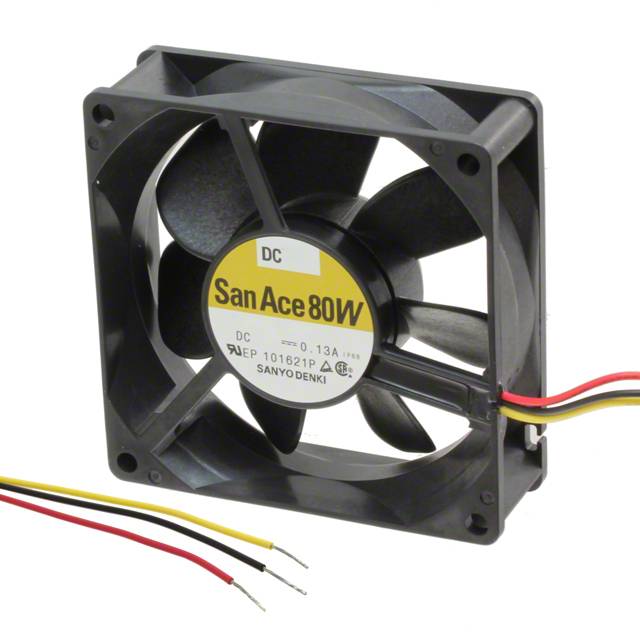

Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 80W
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 81.0 CFM (2.27m鲁/min)
Static Pressure : 0.680 in H2O (169.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 51.0 dB(A)
Power (Watts) : 9.00W
RPM : 6000 RPM
Termination : 4 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
0
21 in stock
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 80W
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 131.0 CFM (3.67m鲁/min)
Static Pressure : 1.770 in H2O (440.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 63.0 dB(A)
Power (Watts) : 36.00W
RPM : 9700 RPM
Termination : 4 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.518 lb (234.96g)
0
16 in stock

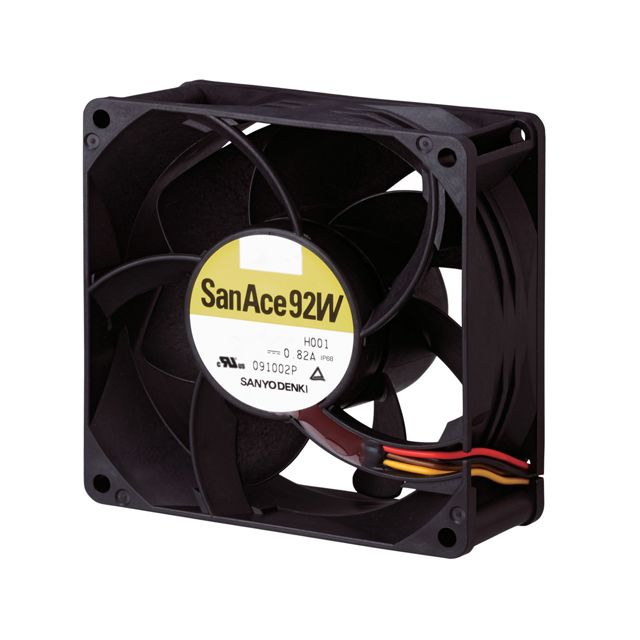

Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 92W
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 178.0 CFM (4.98m鲁/min)
Static Pressure : 1.550 in H2O (385.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 64.0 dB(A)
Power (Watts) : 39.40W
RPM : 8500 RPM
Termination : 4 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.584 lb (264.9g)
0
108 in stock
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120W
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 224.0 CFM (6.27m鲁/min)
Static Pressure : 1.450 in H2O (361.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 64.0 dB(A)
Power (Watts) : 36.00W
RPM : 6400 RPM
Termination : 4 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : -
0
100 in stock
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120W
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 182.4 CFM (5.11m鲁/min)
Static Pressure : 0.950 in H2O (237.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 58.0 dB(A)
Power (Watts) : 19.20W
RPM : 5200 RPM
Termination : 4 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.97 lb (439.98g)
0
338 in stock
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120W
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 224.0 CFM (6.27m鲁/min)
Static Pressure : 1.450 in H2O (361.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 64.0 dB(A)
Power (Watts) : 36.00W
RPM : 6400 RPM
Termination : 4 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, TUV, UL
Weight : 0.97 lb (439.98g)
0
100 in stock
