Sanyo Denki
- Sanyo Denki America is your ultimate source for cutting-edge thermal management solutions. Since 1927, Sanyo Denki has been surpassing the ever-increasing cooling demands of customers all over the world by providing industry-leading reliability and performance. In the 21st century, Sanyo Denki continues to thrive in leading the industry with a commitment to total customer satisfaction and the success of our business partners.
Part Number
Manufacturer
Description
Unit Price
In Stock

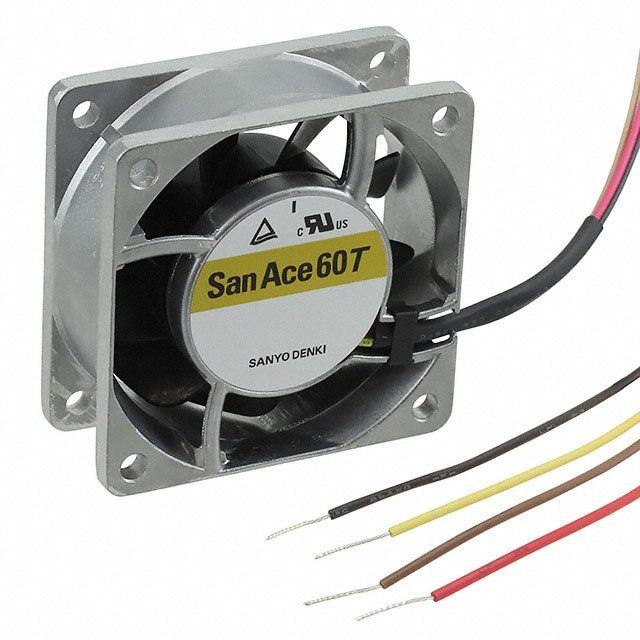

Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 60T
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 44.5 CFM (1.25m鲁/min)
Static Pressure : 0.976 in H2O (243.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 52.0 dB(A)
Power (Watts) : 6.72W
RPM : 10000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 185°F (-40 ~ 85°C)
Approvals : CSA, TUV, UL
Weight : 0.22 lb (99.79g)
0
121 in stock

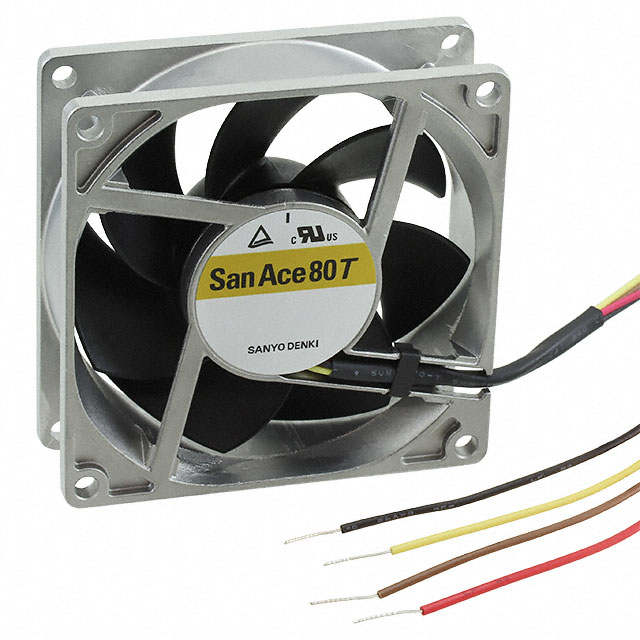

Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 80T
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 65.7 CFM (1.84m鲁/min)
Static Pressure : 0.574 in H2O (143.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 46.0 dB(A)
Power (Watts) : 5.52W
RPM : 6700 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 185°F (-40 ~ 85°C)
Approvals : CSA, TUV, UL
Weight : 0.287 lb (130.18g)
0
124 in stock
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 80T
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 65.7 CFM (1.84m鲁/min)
Static Pressure : 0.574 in H2O (143.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 46.0 dB(A)
Power (Watts) : 5.28W
RPM : 6700 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 185°F (-40 ~ 85°C)
Approvals : CSA, TUV, UL
Weight : 0.287 lb (130.18g)
0
33 in stock

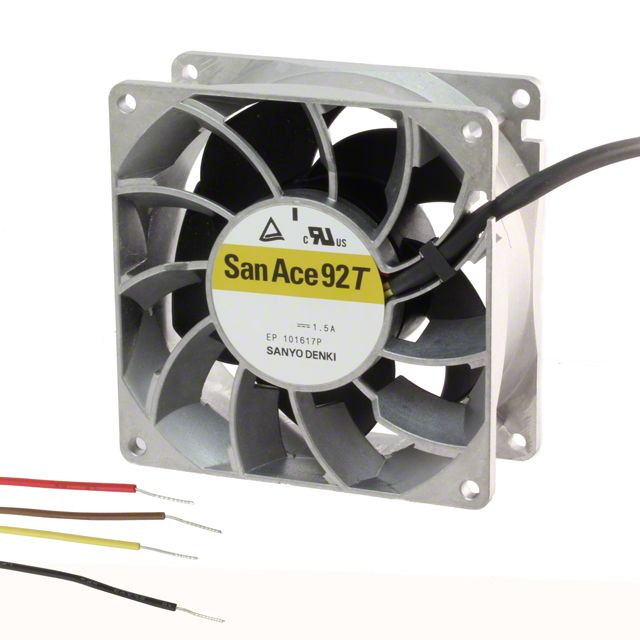

Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 92T
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 116.5 CFM (3.26m鲁/min)
Static Pressure : 1.260 in H2O (313.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 58.0 dB(A)
Power (Watts) : 18.00W
RPM : 8100 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 185°F (-40 ~ 85°C)
Approvals : CSA, TUV, UL
Weight : 0.595 lb (269.89g)
0
16 in stock

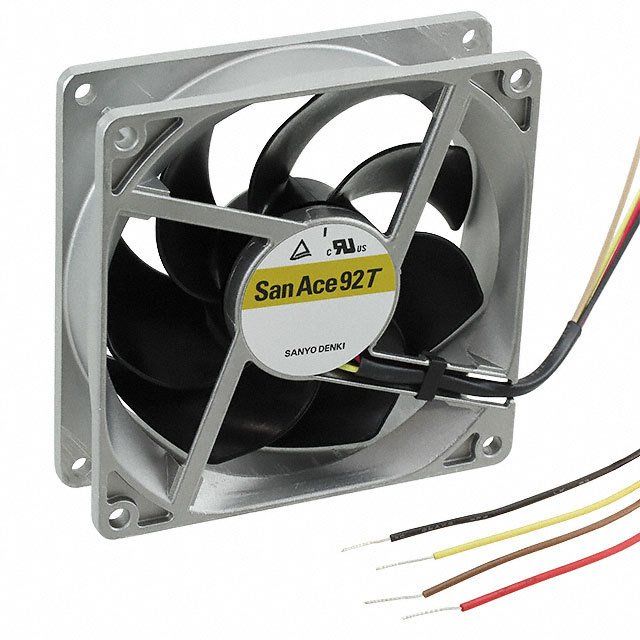

Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 92T
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 77.7 CFM (2.18m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 44.0 dB(A)
Power (Watts) : 5.04W
RPM : 5000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 185°F (-40 ~ 85°C)
Approvals : CSA, TUV, UL
Weight : 0.331 lb (150.14g)
0
100 in stock
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 92T
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 116.5 CFM (3.26m鲁/min)
Static Pressure : 1.260 in H2O (313.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 58.0 dB(A)
Power (Watts) : 18.00W
RPM : 8100 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 185°F (-40 ~ 85°C)
Approvals : CSA, TUV, UL
Weight : 0.595 lb (269.89g)
0
33 in stock
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 92T
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 77.7 CFM (2.18m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 44.0 dB(A)
Power (Watts) : 5.04W
RPM : 5000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 185°F (-40 ~ 85°C)
Approvals : CSA, TUV, UL
Weight : 0.331 lb (150.14g)
0
151 in stock

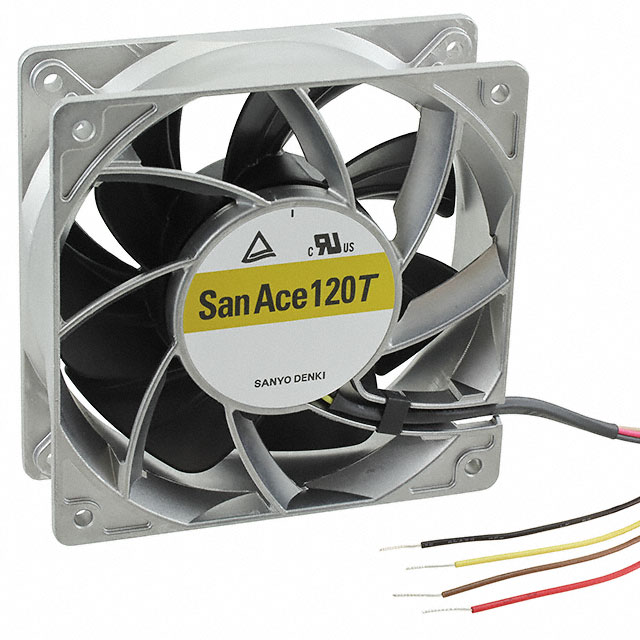

Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120T
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 211.8 CFM (5.93m鲁/min)
Static Pressure : 1.080 in H2O (269.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 58.0 dB(A)
Power (Watts) : 26.40W
RPM : 5600 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 185°F (-40 ~ 85°C)
Approvals : cURus, TUV
Weight : 0.926 lb (420.03g)
0
35 in stock
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120T
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 211.8 CFM (5.93m鲁/min)
Static Pressure : 1.080 in H2O (269.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 58.0 dB(A)
Power (Watts) : 26.40W
RPM : 5600 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 185°F (-40 ~ 85°C)
Approvals : cURus, TUV
Weight : 0.926 lb (420.03g)
0
113 in stock

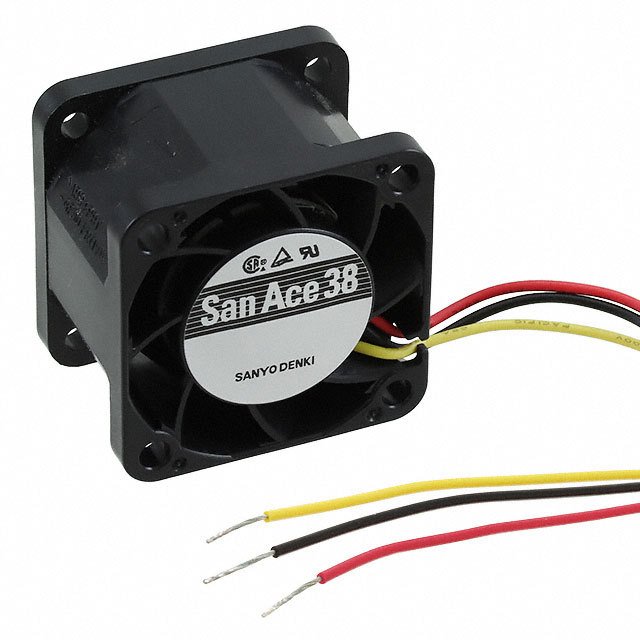

Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 38
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 13.1 CFM (0.367m鲁/min)
Static Pressure : 0.522 in H2O (130.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 43.0 dB(A)
Power (Watts) : 2.52W
RPM : 10500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : 0.111 lb (50.35g)
0
871 in stock
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 38
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 13.1 CFM (0.367m鲁/min)
Static Pressure : 0.522 in H2O (130.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 43.0 dB(A)
Power (Watts) : 2.52W
RPM : 10500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : 0.111 lb (50.35g)
0
126 in stock
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 38
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 17.0 CFM (0.476m鲁/min)
Static Pressure : 0.924 in H2O (230.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection, Speed Sensor (Tach)
Noise : 50.0 dB(A)
Power (Watts) : 4.80W
RPM : 13500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : CSA, TUV, UL
Weight : 0.111 lb (50.35g)
0
571 in stock
