Sharp Microelectronics
- Sharp Microelectronics of the Americas (SMA) drives innovative LCD, optoelectronics, memory, imager, and RF components to market. The world's leading manufacturers of consumer and business technologies look to SMA for the products, expertise, and worldwide support they need to make their visions a reality. SMA, in Camas, Washington, is the microelectronics sales and marketing division of Sharp Electronics Corporation, a wholly owned subsidiary of Sharp Corporation.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sharp Microelectronics
Manufacturer : Sharp Microelectronics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Voltage - Off State : 600V
Static dV/dt (Min) : 100V/µs
Current - LED Trigger (Ift) (Max) : 10mA
Current - On State (It (RMS)) (Max) : 100mA
Current - Hold (Ih) : 3.5mA
Turn On Time : 100µs (Max)
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount

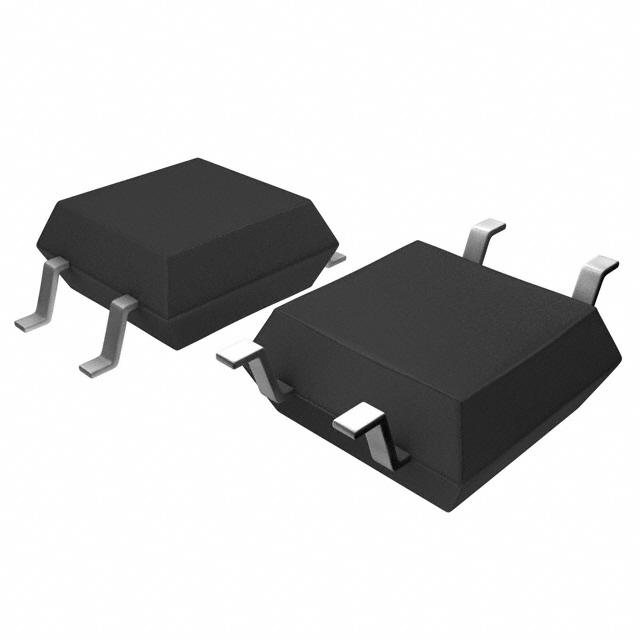

Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
Approvals : BSI, DEMKO, SEMKO, UR, VDE
0
2000 in stock
Sharp Microelectronics
Manufacturer : Sharp Microelectronics
Packaging : Tube
Series : -
Part Status : Obsolete
Output Type : Triac
Zero Crossing Circuit : Yes
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Voltage - Off State : 800V
Static dV/dt (Min) : 500V/µs
Current - LED Trigger (Ift) (Max) : 3mA
Current - On State (It (RMS)) (Max) : 100mA
Current - Hold (Ih) : 3.5mA
Turn On Time : 50µs (Max)
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 15mA
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole

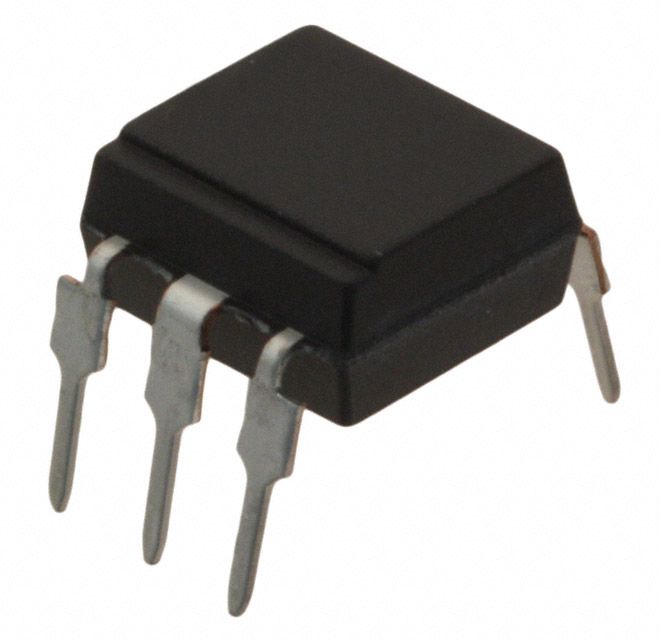

Package / Case : 6-DIP (0.300", 7.62mm), 5 Leads
Supplier Device Package : 6-DIP
Approvals : BSI, DEMKO, SEMKO, UR, VDE
0
711 in stock
Sharp Microelectronics
Manufacturer : Sharp Microelectronics
Packaging : Tube
Series : -
Part Status : Obsolete
Output Type : Triac
Zero Crossing Circuit : Yes
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Voltage - Off State : 800V
Static dV/dt (Min) : 500V/µs
Current - LED Trigger (Ift) (Max) : 3mA
Current - On State (It (RMS)) (Max) : 100mA
Current - Hold (Ih) : 3.5mA
Turn On Time : 50µs (Max)
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 15mA
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm), 5 Leads
Supplier Device Package : 6-DIP
Approvals : BSI, DEMKO, SEMKO, UR
0
1877 in stock
Sharp Microelectronics
Manufacturer : Sharp Microelectronics
Packaging : Tube
Series : -
Part Status : Obsolete
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Voltage - Off State : 600V
Static dV/dt (Min) : 100V/µs
Current - LED Trigger (Ift) (Max) : 7mA
Current - On State (It (RMS)) (Max) : 50mA
Current - Hold (Ih) : 3.5mA
Turn On Time : 100µs (Max)
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Supplier Device Package : 4-SMD
Approvals : CSA, UR, VDE
0
483 in stock
Sharp Microelectronics
Manufacturer : Sharp Microelectronics
Packaging : Tube
Series : -
Part Status : Discontinued at
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Voltage - Off State : 600V
Static dV/dt (Min) : 100V/µs
Current - LED Trigger (Ift) (Max) : 10mA
Current - On State (It (RMS)) (Max) : 50mA
Current - Hold (Ih) : 3.5mA
Turn On Time : 100µs (Max)
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD
Supplier Device Package : 4-SMD
Approvals : CSA, UR, VDE
0
11225 in stock
