Sigma Designs
- Z-Wave is available as a single chip solution with the ZW-0301 representing the third generation of Z-Wave chip technology. The Z-Wave mesh network stack is embedded in the chips, and Flash memory is available to the manufacturer/OEM for their own application software. A set of on-chip peripherals makes the Z-Wave chips true systems on chip solutions. Additional tools are available that simplify the integration with e.g. Microsoft development platforms such as .NET XP-Vista/compact/Micro Framework.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sigma Designs
Manufacturer : Sigma Designs Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Type : TxRx + MCU
RF Family/Standard : General ISM
-
FSK
902MHz ~ 928MHz
9.6kbps
4dBm
-96dBm
32kB Flash, 2kB SRAM
SPI, UART
15
2.1 V ~ 3.6 V
20mA
34mA
-35°C ~ 85°C
52-TQFP
Protocol : -
Modulation : FSK
Frequency : 902MHz ~ 928MHz
Data Rate (Max) : 9.6kbps
Power - Output : 4dBm
Sensitivity : -96dBm
Memory Size : 32kB Flash, 2kB SRAM
Serial Interfaces : SPI, UART
GPIO : 15
Voltage - Supply : 2.1 V ~ 3.6 V
Current - Receiving : 20mA
Current - Transmitting : 34mA
Operating Temperature : -35°C ~ 85°C
Package / Case : 52-TQFP
0
25500 in stock

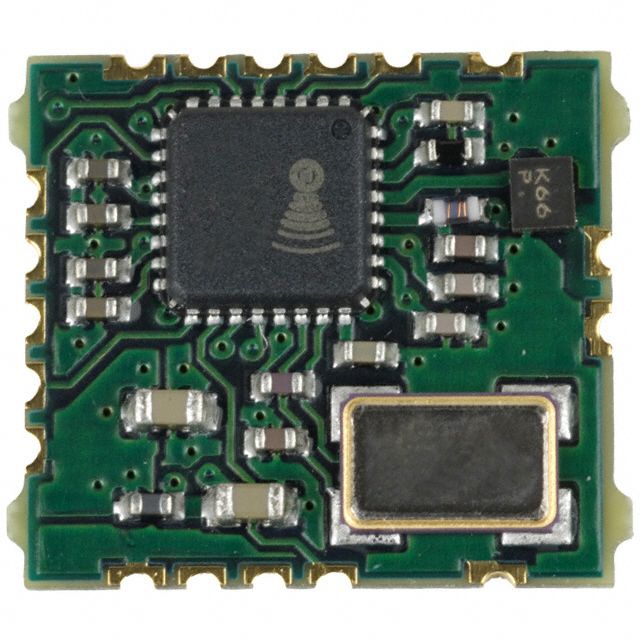

Sigma Designs
Manufacturer : Sigma Designs Inc.
Packaging : Tray
Series : Z-Wave®
Part Status : Obsolete
RF Family/Standard : General ISM
-
FSK
908.42MHz
40kbps
0dBm
-102dBm
SPI, UART
Not Included
ZW0201
-
2.1 V ~ 3.6 V
23mA
36mA
Surface Mount
-15°C ~ 85°C
Module
Protocol : -
Modulation : FSK
Frequency : 908.42MHz
Data Rate : 40kbps
Power - Output : 0dBm
Sensitivity : -102dBm
Serial Interfaces : SPI, UART
Antenna Type : Not Included
Utilized IC / Part : ZW0201
Memory Size : -
Voltage - Supply : 2.1 V ~ 3.6 V
Current - Receiving : 23mA
Current - Transmitting : 36mA
Mounting Type : Surface Mount
Operating Temperature : -15°C ~ 85°C
Package / Case : Module
0
100 in stock

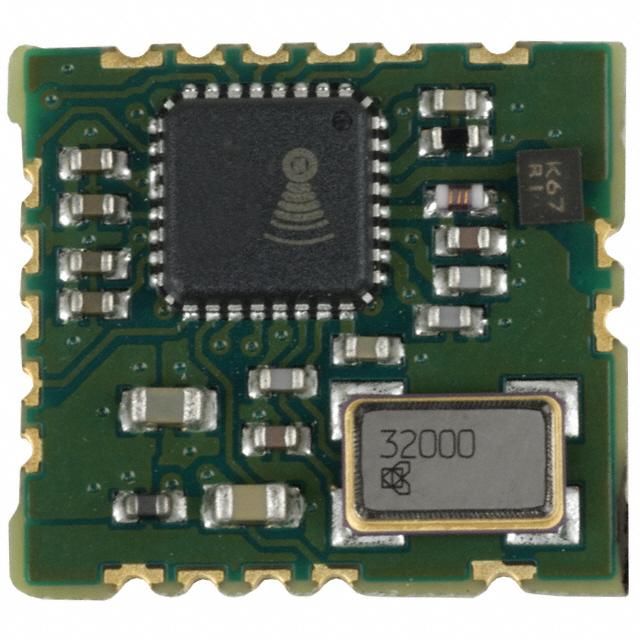

Sigma Designs
Manufacturer : Sigma Designs Inc.
Packaging : Tray
Series : Z-Wave®
Part Status : Obsolete
RF Family/Standard : General ISM
-
FSK
908.42MHz
40kbps
0dBm
-102dBm
SPI, UART
Not Included
ZW0201
-
2.1 V ~ 3.6 V
23mA
36mA
Surface Mount
-15°C ~ 85°C
Module
Protocol : -
Modulation : FSK
Frequency : 908.42MHz
Data Rate : 40kbps
Power - Output : 0dBm
Sensitivity : -102dBm
Serial Interfaces : SPI, UART
Antenna Type : Not Included
Utilized IC / Part : ZW0201
Memory Size : -
Voltage - Supply : 2.1 V ~ 3.6 V
Current - Receiving : 23mA
Current - Transmitting : 36mA
Mounting Type : Surface Mount
Operating Temperature : -15°C ~ 85°C
Package / Case : Module
0
3387 in stock

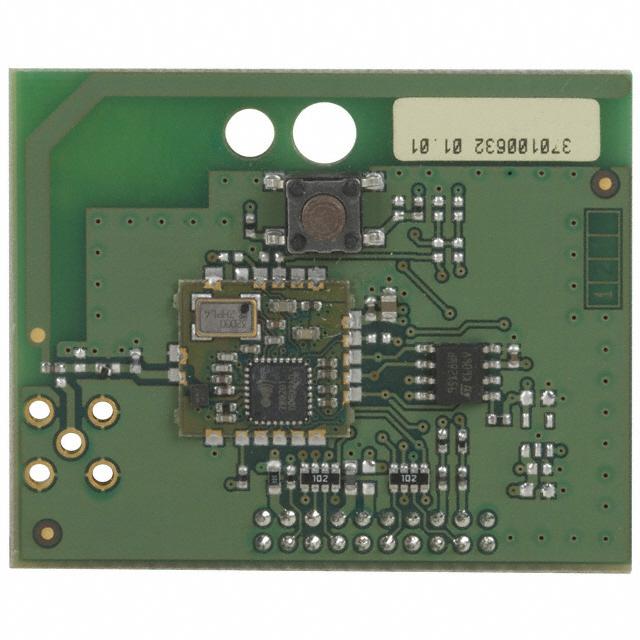

Sigma Designs
Manufacturer : Sigma Designs Inc.
Series : Z-Wave®
Part Status : Obsolete
Type : Transceiver, Z-Wave
Frequency : 908.42MHz
For Use With/Related Products : ZM2120C-EW (US)
Supplied Contents : Board(s)
0
40 in stock

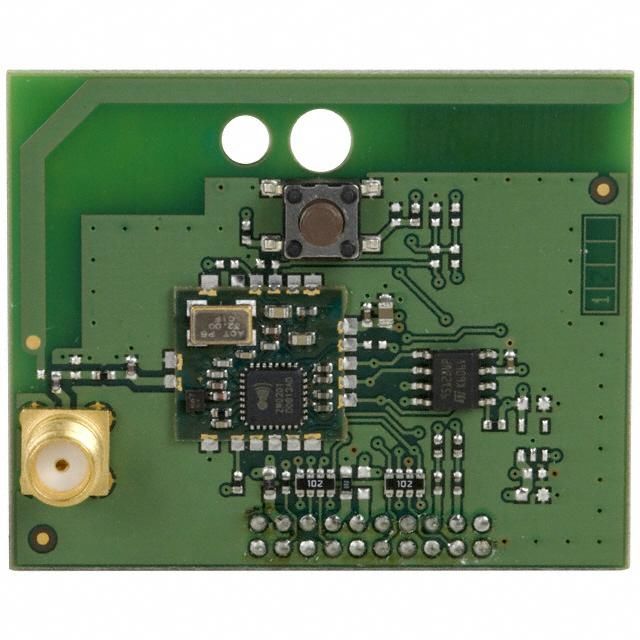

Sigma Designs
Manufacturer : Sigma Designs Inc.
Series : Z-Wave®
Part Status : Obsolete
Type : Transceiver, Z-Wave
Frequency : 908.42MHz
For Use With/Related Products : ZM2120C-E (US)
Supplied Contents : Board(s)
0
100 in stock
Sigma Designs
Manufacturer : Sigma Designs Inc.
Series : Z-Wave®
Part Status : Obsolete
Type : Transceiver, Z-Wave
Frequency : 868.42MHz
For Use With/Related Products : ZM2120C-EW (EU)
Supplied Contents : Board(s)
0
15 in stock

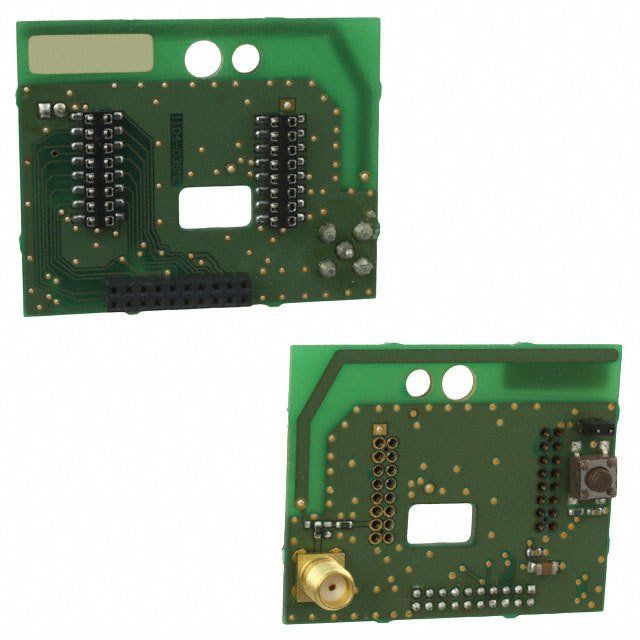

Sigma Designs
Manufacturer : Sigma Designs Inc.
Series : -
Part Status : Obsolete
Type : Transceiver, Z-Wave
Frequency : -
For Use With/Related Products : -
Supplied Contents : Board(s)
0
100 in stock
Sigma Designs
Manufacturer : Sigma Designs Inc.
Series : -
Part Status : Obsolete
Type : -
Applications : -
Edition : -
License Length : -
License - User Details : -
Operating System : -
For Use With/Related Products : -
Media Delivery Type : CD/DVD
0
100 in stock

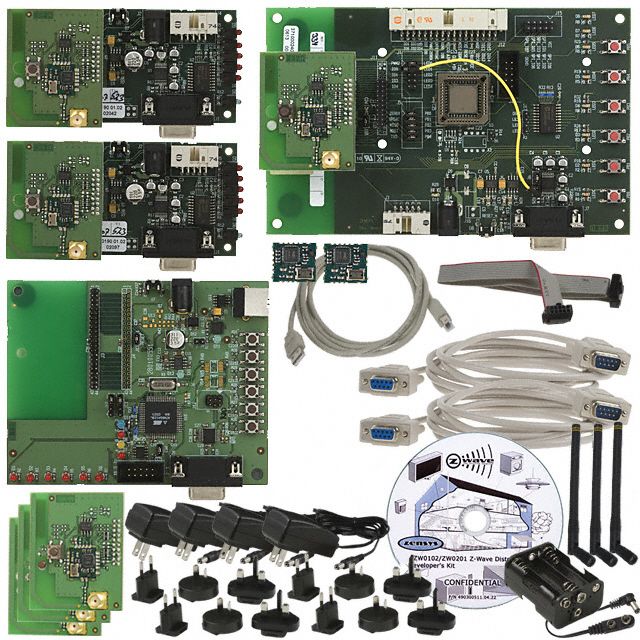

Sigma Designs
Manufacturer : Sigma Designs Inc.
Series : -
Part Status : Obsolete
Type : Transceiver, Z-Wave
Frequency : -
For Use With/Related Products : Zensys RF Modules
Supplied Contents : Board(s), Cable(s), Power Supply, Accessories
0
100 in stock
Sigma Designs
Manufacturer : Sigma Designs Inc.
Series : -
Part Status : Obsolete
Type : Transceiver, Z-Wave
Frequency : -
For Use With/Related Products : Zensys RF Modules
Supplied Contents : Board(s), Cable(s), Power Supply, Accessories
0
100 in stock

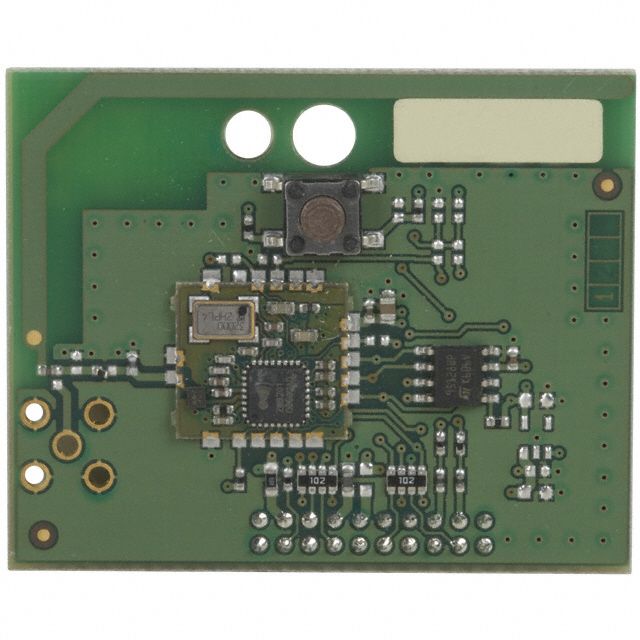

Sigma Designs
Manufacturer : Sigma Designs Inc.
Series : Z-Wave®
Part Status : Obsolete
Type : Transceiver, Z-Wave
Frequency : 868.42MHz
For Use With/Related Products : ZM3120C-E (EU)
Supplied Contents : Board(s)
0
100 in stock

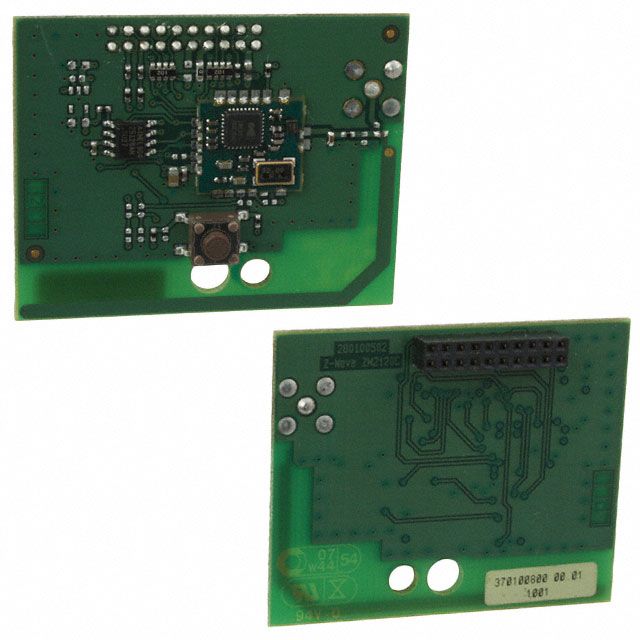

Sigma Designs
Manufacturer : Sigma Designs Inc.
Series : Z-Wave®
Part Status : Obsolete
Type : Transceiver, Z-Wave
Frequency : 908.42MHz
For Use With/Related Products : ZM3120C-E (US)
Supplied Contents : Board(s)
0
100 in stock
