SMC Diode Solutions

- Sangdest Microelectronic (Nanjing) Co., Ltd (SMC) was founded in 1997. SMC's products (formerly sold under the Sensitron Semiconductor brand name) are sold for a variety of applications in the commercial market including LCD displays, telecom equipment, power supplies, industrial, and aircraft industries which have demanding reliability and quality requirements.

SMC manufactures and designs their own products which are widely accepted in both domestic and international markets. SMC follows rigorous qualification standards from large aerospace, communication, and consumer electronics suppliers that are known world-wide for both their superior products and within the industry for their exceptionally demanding supplier qualification teams. SMC is ISO9001, ISO14001 and TS16949 qualified.

SMC's staff is dedicated to consistently meeting our customer's high expectations by delivering quality products with on-time delivery. Please challenge our team to meet your unique requirements.

Part Number
Manufacturer
Description
Unit Price
In Stock

12CWQ03FNTR 12CWQ03FNTR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) (per Diode) : -
Voltage - Forward (Vf) (Max) @ If : 470mV @ 6A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 3mA @ 30V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
9 in stock

12CWQ04FNTR 12CWQ04FNTR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : -
Voltage - Forward (Vf) (Max) @ If : 530mV @ 6A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 40V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
12169 in stock

12CWQ06FNTR 12CWQ06FNTR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : -
Voltage - Forward (Vf) (Max) @ If : 610mV @ 6A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 3mA @ 60V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
34410 in stock

12CWQ10FNTR 12CWQ10FNTR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : -
Voltage - Forward (Vf) (Max) @ If : 800mV @ 6A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 100V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
40312 in stock

12CWQ15FNTR 12CWQ15FNTR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) (per Diode) : -
Voltage - Forward (Vf) (Max) @ If : 890mV @ 6A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 150V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
1591 in stock

12CWQ20FNTR 12CWQ20FNTR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : -
Voltage - Forward (Vf) (Max) @ If : 890mV @ 6A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 200V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
1490 in stock

12TQ045 12TQ045

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 560mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 45V
Capacitance @ Vr, F : 900pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -55°C ~ 150°C
0
57 in stock

12TQ100 12TQ100

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 840mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 550µA @ 100V
Capacitance @ Vr, F : 500pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -55°C ~ 175°C
0
726 in stock

12TQ150 12TQ150

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 860mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 150V
Capacitance @ Vr, F : 500pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -55°C ~ 175°C
0
1763 in stock

12TQ200 12TQ200

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 920mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 550µA @ 200V
Capacitance @ Vr, F : 300pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -55°C ~ 175°C
0
1888 in stock

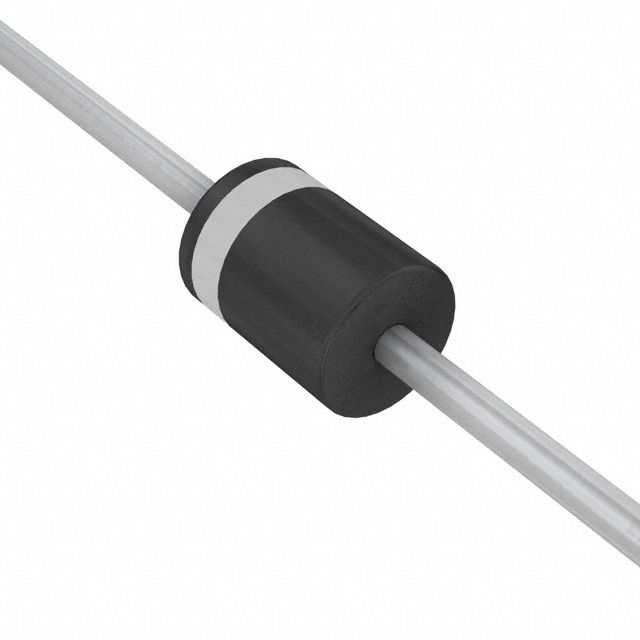

15KPA24ATR  15KPA24ATR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 24V
Voltage - Breakdown (Min) : 26.81V
Voltage - Clamping (Max) @ Ipp : 40.7V
Current - Peak Pulse (10/1000µs) : 371A
Power - Peak Pulse : 15000W (15kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : P600, Axial
Supplier Device Package : P600
0
799 in stock

15KPA30CATR  15KPA30CATR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 30V
Voltage - Breakdown (Min) : 33.51V
Voltage - Clamping (Max) @ Ipp : 50.7V
Current - Peak Pulse (10/1000µs) : 297.8A
Power - Peak Pulse : 15000W (15kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : P600, Axial
Supplier Device Package : P600
0
2185 in stock
