SMC Diode Solutions
- Sangdest Microelectronic (Nanjing) Co., Ltd (SMC) was founded in 1997. SMC's products (formerly sold under the Sensitron Semiconductor brand name) are sold for a variety of applications in the commercial market including LCD displays, telecom equipment, power supplies, industrial, and aircraft industries which have demanding reliability and quality requirements.
SMC manufactures and designs their own products which are widely accepted in both domestic and international markets. SMC follows rigorous qualification standards from large aerospace, communication, and consumer electronics suppliers that are known world-wide for both their superior products and within the industry for their exceptionally demanding supplier qualification teams. SMC is ISO9001, ISO14001 and TS16949 qualified.
SMC's staff is dedicated to consistently meeting our customer's high expectations by delivering quality products with on-time delivery. Please challenge our team to meet your unique requirements.
Part Number
Manufacturer
Description
Unit Price
In Stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : -
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 800mV
Current - Gate Trigger (Igt) (Max) : 200µA
Voltage - On State (Vtm) (Max) : 1.5V
Current - On State (It (AV)) (Max) : -
Current - On State (It (RMS)) (Max) : 2A
Current - Hold (Ih) (Max) : 5mA
Current - Off State (Max) : 5µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 20A @ 50Hz
SCR Type : Sensitive Gate
Operating Temperature : -40°C ~ 110°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
100 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : -
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 800mV
Current - Gate Trigger (Igt) (Max) : 200µA
Voltage - On State (Vtm) (Max) : 1.5V
Current - On State (It (AV)) (Max) : -
Current - On State (It (RMS)) (Max) : 4A
Current - Hold (Ih) (Max) : 6mA
Current - Off State (Max) : 5µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 30A @ 50Hz
SCR Type : Sensitive Gate
Operating Temperature : -40°C ~ 110°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
100 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Bulk
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 30V
Voltage - Breakdown (Min) : 33.3V
Voltage - Clamping (Max) @ Ipp : 48.8V
Current - Peak Pulse (10/1000µs) : 618A
Power - Peak Pulse : 30000W (30kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SPD-4
Supplier Device Package : SPD-4
0
113 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Bulk
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 78V
Voltage - Breakdown (Min) : 86.7V
Voltage - Clamping (Max) @ Ipp : 126V
Current - Peak Pulse (10/1000µs) : 240A
Power - Peak Pulse : 30000W (30kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SPD-4
Supplier Device Package : SPD-4
0
48 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 75ns
Current - Reverse Leakage @ Vr : 3µA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
Operating Temperature - Junction : -55°C ~ 150°C
0
47303 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : -
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 5µA @ 400V
Capacitance @ Vr, F : 15pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -65°C ~ 150°C
0
100 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 5µA @ 400V
Capacitance @ Vr, F : 15pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
0
53168 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 75ns
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : 15pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
0
17231 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Single Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 1kV
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 2A
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 4-ESIP
Supplier Device Package : D3K
0
1365 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Single Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 600V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 2A
Current - Reverse Leakage @ Vr : 5µA @ 600V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 4-ESIP
Supplier Device Package : D3K
0
1398 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Single Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 1kV
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 3A
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 4-ESIP
Supplier Device Package : D3K
0
1329 in stock

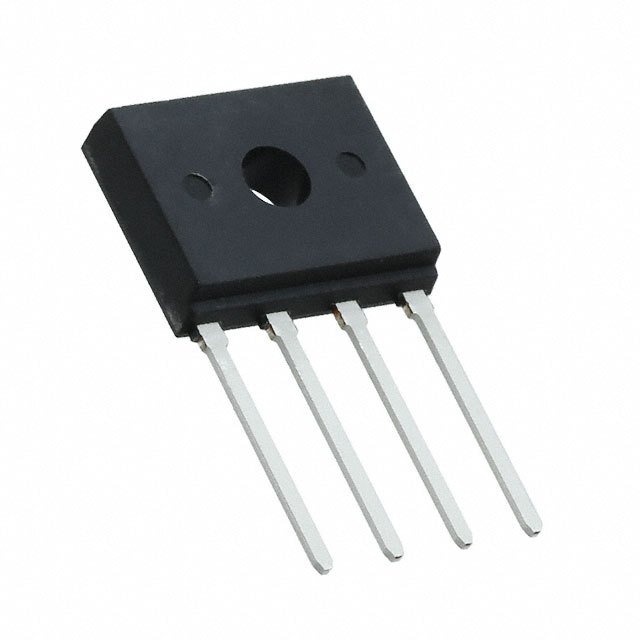

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Single Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 600V
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 3A
Current - Reverse Leakage @ Vr : 5µA @ 600V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 4-ESIP
Supplier Device Package : D3K
0
2889 in stock
