Spectra Symbol

- Spectra Symbol created the breakthrough form-factor of Membrane Sensor Technology, with 0.5 mm height, and has revolutionized how OEMs can use full-travel position feedback. These inexpensive full-travel sensors range from 12.5 mm to 1,000 mm in stock. Included in the Spectra Symbol product line are the Flex Sensor, medical-grade SoftPot, narrow ThinPot, high temp. HotPot and contactless MagnetoPot Sensors.

Part Number
Manufacturer
Description
Unit Price
In Stock

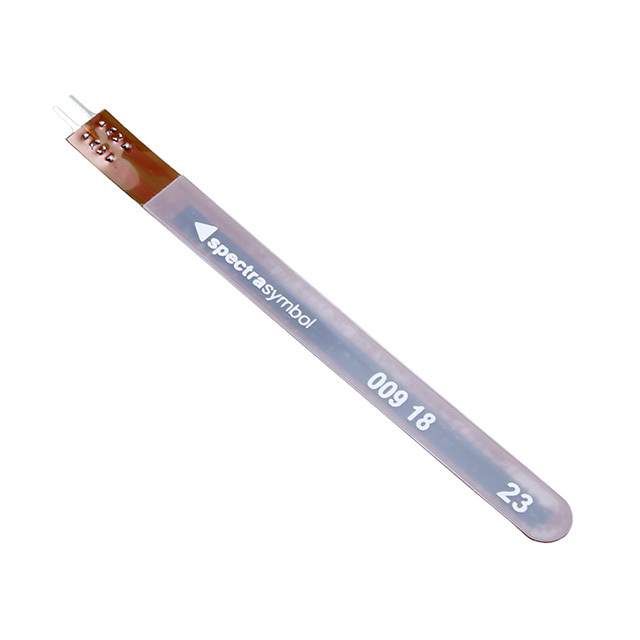

Picture of FS2-L-055-103-ST

FS2-L-055-103-ST FS2-L-055-103-ST

Spectra Symbol
Manufacturer : Spectra Symbol
Packaging : Bulk
Series : FS
Part Status : Active
For Measuring : Linear Position
Technology : Resistive
Rotation Angle - Electrical, Mechanical : -
Linear Range : 0 ~ 95.25mm (0 ~ 3.75")
Output : Resistive
Output Signal : -
Actuator Type : Flexible Membrane - Linear
Linearity : -
Resistance : 10 kOhms
Resistance Tolerance : ±30%
Voltage - Supply : -
Mounting Type : Custom
Termination Style : Solder Tab
Operating Temperature : -35°C ~ 80°C
Package / Case : Sensor Strip
Supplier Device Package : -
0
422 in stock

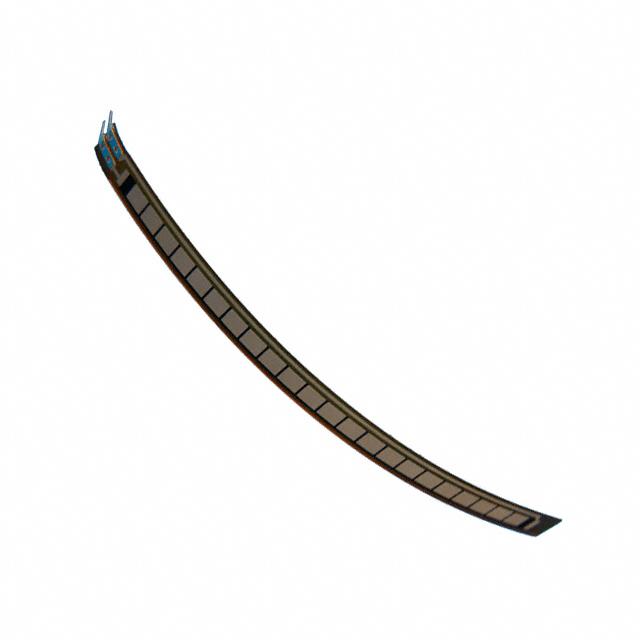

Picture of FS-L-0095-103-ST

FS-L-0095-103-ST FS-L-0095-103-ST

Spectra Symbol
Manufacturer : Spectra Symbol
Series : -
Pattern Type : -
Strain Range : -
Resistance : 10 kOhms
Resistance Tolerance : ±30%
Length - Active : 3.75" (95.25mm)
Length - Overall Pattern : -
Length - Overall : 4.41" (112.0mm)
Width - Active : -
Width - Overall Pattern : -
Width - Overall : 0.25" (6.35mm)
Operating Temperature : -35°C ~ 80°C
0
537 in stock
Picture of HP-L-0200-103-1%-RH

HP-L-0200-103-1%-RH HP-L-0200-103-1%-RH

Spectra Symbol
Manufacturer : Spectra Symbol
Packaging : Bulk
Series : HotPot
Part Status : Active
For Measuring : Linear Position
Technology : Resistive
Rotation Angle - Electrical, Mechanical : -
Linear Range : 0 ~ 200.00mm (0 ~ 7.87")
Output : Resistive
Output Signal : -
Actuator Type : Flexible Membrane - Linear
Linearity : ±1%
Resistance : 10 kOhms
Resistance Tolerance : ±20%
Voltage - Supply : -
Mounting Type : Custom
Termination Style : Connector
Operating Temperature : -40°C ~ 85°C
Package / Case : Sensor Strip
Supplier Device Package : -
0
61 in stock

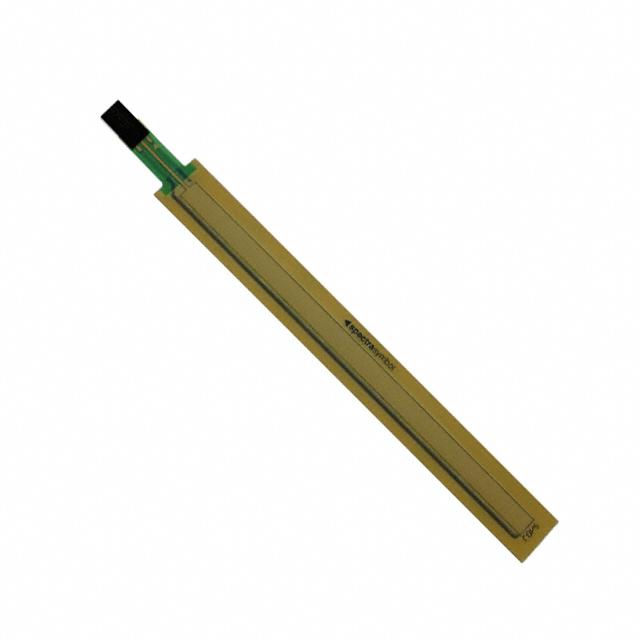

Picture of HP-L-0500-203-3%-RH

HP-L-0500-203-3%-RH HP-L-0500-203-3%-RH

Spectra Symbol
Manufacturer : Spectra Symbol
Packaging : Bulk
Series : HotPot
Part Status : Active
For Measuring : Linear Position
Technology : Resistive
Rotation Angle - Electrical, Mechanical : -
Linear Range : 0 ~ 500.00mm (0 ~ 19.68")
Output : Resistive
Output Signal : -
Actuator Type : Flexible Membrane - Linear
Linearity : ±3%
Resistance : 20 kOhms
Resistance Tolerance : ±20%
Voltage - Supply : -
Mounting Type : Custom
Termination Style : Connector
Operating Temperature : -40°C ~ 85°C
Package / Case : Sensor Strip
Supplier Device Package : -
0
34 in stock

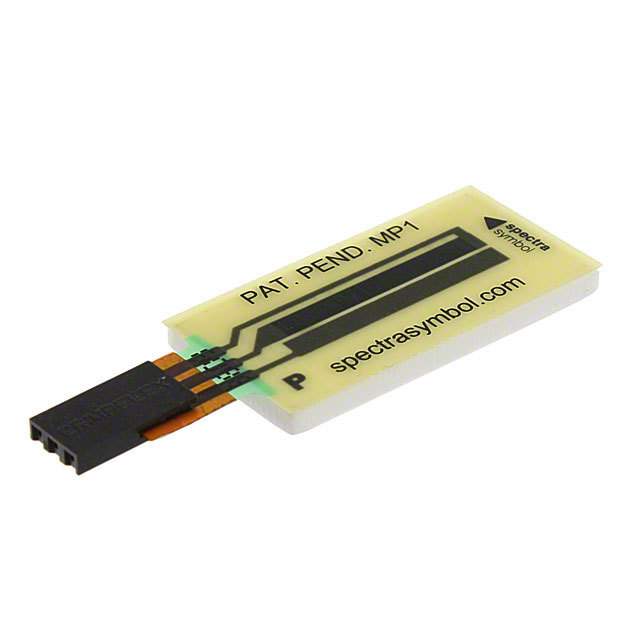

Picture of MP1-L-0025-103-5%-RH

MP1-L-0025-103-5%-RH MP1-L-0025-103-5%-RH

Spectra Symbol
Manufacturer : Spectra Symbol
Series : MagnetoPots
Part Status : Active
Output Type : Resistive
Type : Potentiometer
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : -
Must Release : -
Operating Temperature : 85°C (TA)
Package / Case : Cantilever Piezo Film (Wafer)
0
15 in stock

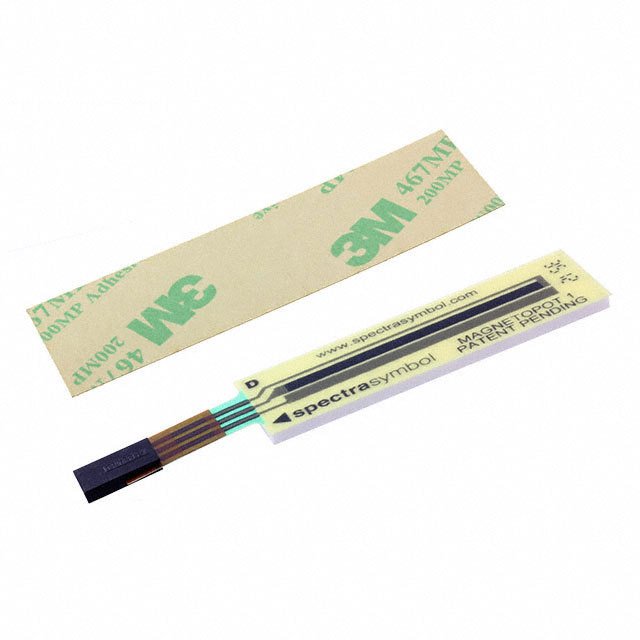

Picture of MP1-L-0050-103-5%-RH

MP1-L-0050-103-5%-RH MP1-L-0050-103-5%-RH

Spectra Symbol
Manufacturer : Spectra Symbol
Series : MagnetoPots
Part Status : Active
Output Type : Resistive
Type : Potentiometer
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : -
Must Release : -
Operating Temperature : 85°C (TA)
Package / Case : Cantilever Piezo Film (Wafer)
0
41 in stock

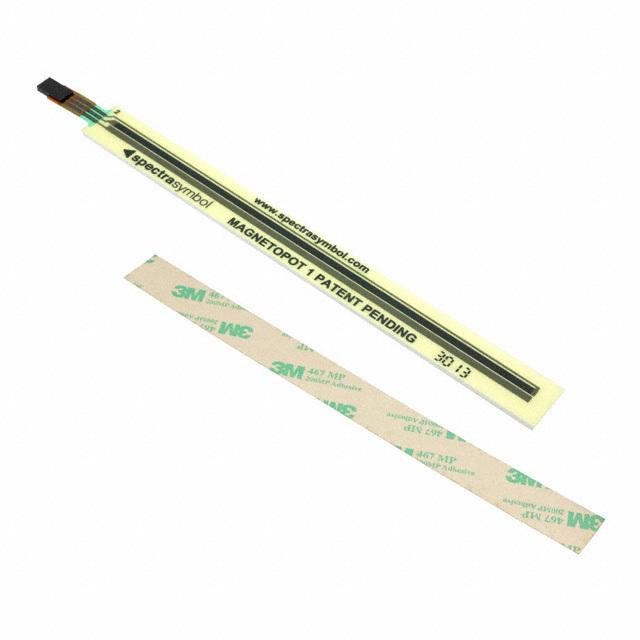

Picture of MP1-L-0100-103-5%-RH

MP1-L-0100-103-5%-RH MP1-L-0100-103-5%-RH

Spectra Symbol
Manufacturer : Spectra Symbol
Series : MagnetoPots
Part Status : Active
Output Type : Resistive
Type : Potentiometer
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : -
Must Release : -
Operating Temperature : 85°C (TA)
Package / Case : Cantilever Piezo Film (Wafer)
0
42 in stock
Picture of MP1-L-0150-103-5%-RH

MP1-L-0150-103-5%-RH MP1-L-0150-103-5%-RH

Spectra Symbol
Manufacturer : Spectra Symbol
Series : MagnetoPots
Part Status : Active
Output Type : Resistive
Type : Potentiometer
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : -
Must Release : -
Operating Temperature : 85°C (TA)
Package / Case : Cantilever Piezo Film (Wafer)
0
100 in stock
Picture of MP1-L-0200-103-5%-RH

MP1-L-0200-103-5%-RH MP1-L-0200-103-5%-RH

Spectra Symbol
Manufacturer : Spectra Symbol
Series : MagnetoPots
Part Status : Active
Output Type : Resistive
Type : Potentiometer
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : -
Must Release : -
Operating Temperature : 85°C (TA)
Package / Case : Cantilever Piezo Film (Wafer)
0
22 in stock

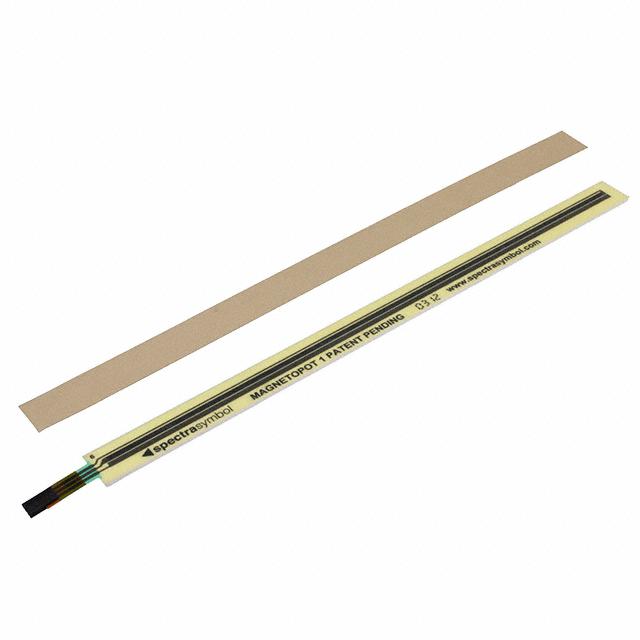

Picture of MP1-L-0300-103-5%-RH

MP1-L-0300-103-5%-RH MP1-L-0300-103-5%-RH

Spectra Symbol
Manufacturer : Spectra Symbol
Series : MagnetoPots
Part Status : Active
Output Type : Resistive
Type : Potentiometer
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : -
Must Release : -
Operating Temperature : 85°C (TA)
Package / Case : Cantilever Piezo Film (Wafer)
0
34 in stock
Picture of MP1-L-0500-203-5%-RH

MP1-L-0500-203-5%-RH MP1-L-0500-203-5%-RH

Spectra Symbol
Manufacturer : Spectra Symbol
Series : MagnetoPots
Part Status : Active
Output Type : Resistive
Type : Potentiometer
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : -
Must Release : -
Operating Temperature : 85°C (TA)
Package / Case : Cantilever Piezo Film (Wafer)
0
9 in stock

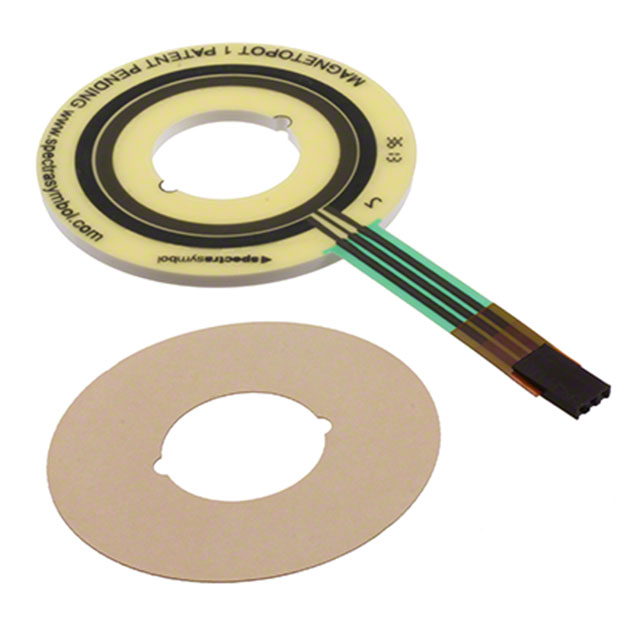

Picture of MP1-R-0046-353-103-5%-RH

MP1-R-0046-353-103-5%-RH MP1-R-0046-353-103-5%-RH

Spectra Symbol
Manufacturer : Spectra Symbol
Series : MagnetoPots
Part Status : Active
Output Type : Resistive
Type : Potentiometer
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : -
Must Release : -
Operating Temperature : 85°C (TA)
Package / Case : Cantilever Piezo Film (Wafer)
0
27 in stock
