Standex-Meder Electronics

- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.

Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.


Part Number

Manufacturer

Description

Unit Price

In Stock

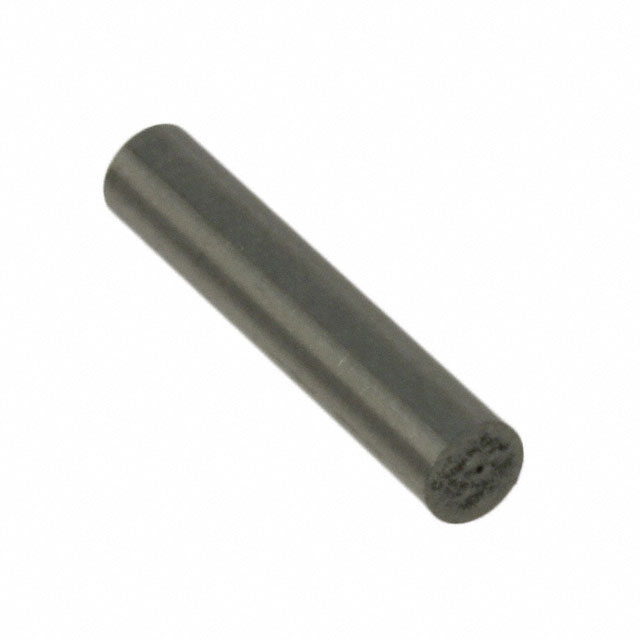

4003004015

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Series : -
Part Status : Active
Shape : Cylindrical
Magnetization : Axial
Material : Alnico 5 (AlNiCo)
Finish : -
Grade : -
Gauss Strength : -
Size : 0.098" Dia x 0.500" H (2.50mm x 12.7mm)
Operating Temperature : -

706 in stock

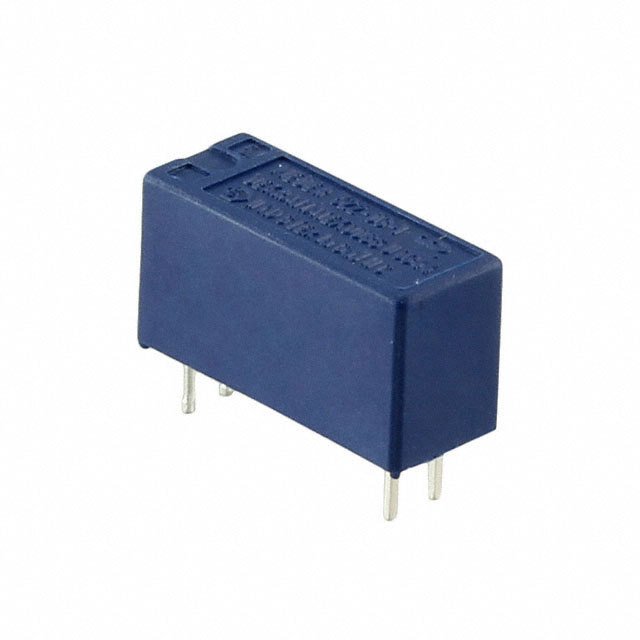

522-03-I

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 4000VDC
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 5.5µs, 4.2µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 32V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.100", 2.54mm)
Supplier Device Package : -

925 in stock

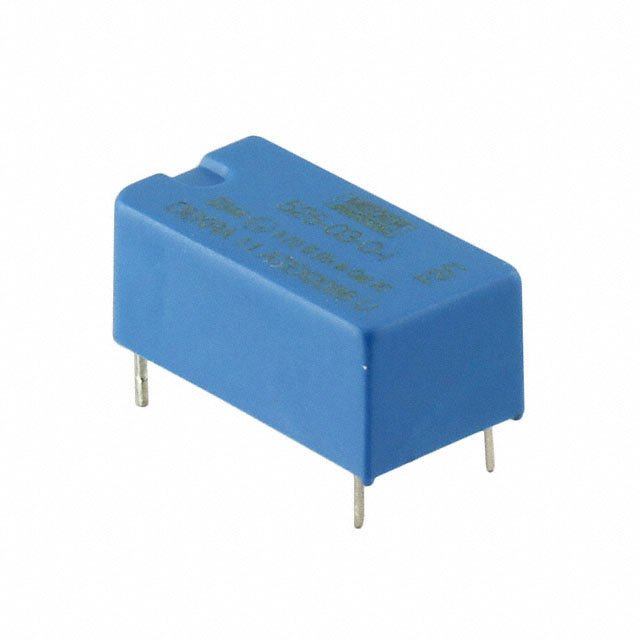

525-03-0-I

Standex-Meder Electronics

118 in stock

567-70-1-I

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 4000VDC
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 500ns, 500ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 15V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -20°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Supplier Device Package : -

29 in stock

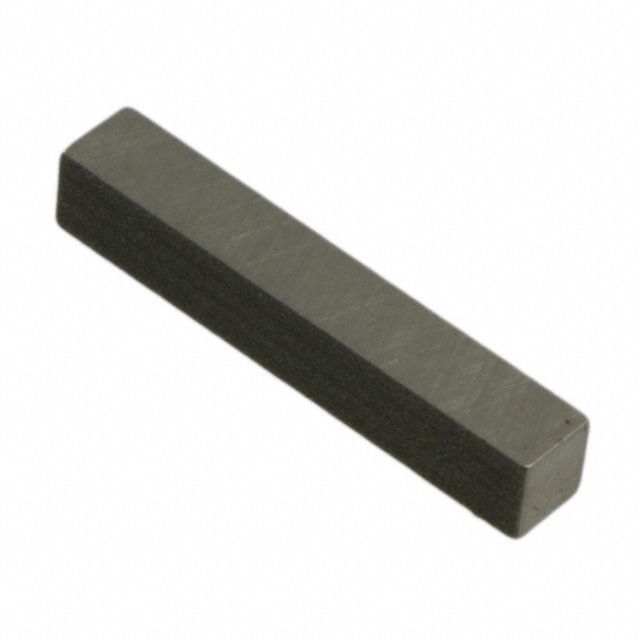

ALNICO500 19X3.2X3.2MM

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Series : -
Part Status : Active
Shape : Rectangular
Magnetization : Axial
Material : Alnico 5 (AlNiCo)
Finish : -
Grade : -
Gauss Strength : -
Size : 0.126" Sq x 0.748" H (3.20mm x 19.0mm)
Operating Temperature : 450°C (TA)

668 in stock

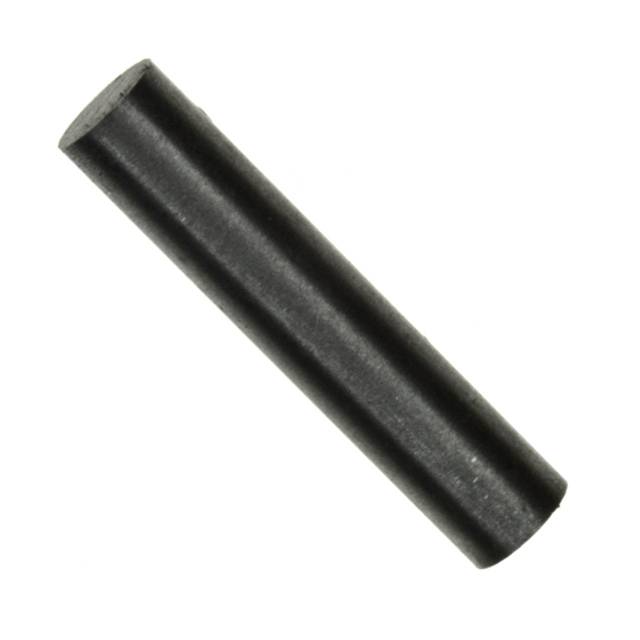

ALNICO500 4X19MM

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Series : -
Part Status : Active
Shape : Cylindrical
Magnetization : Axial
Material : Alnico 5 (AlNiCo)
Finish : -
Grade : -
Gauss Strength : -
Size : 0.157" Dia x 0.748" H (4.00mm x 19.0mm)
Operating Temperature : 450°C (TA)

1745 in stock

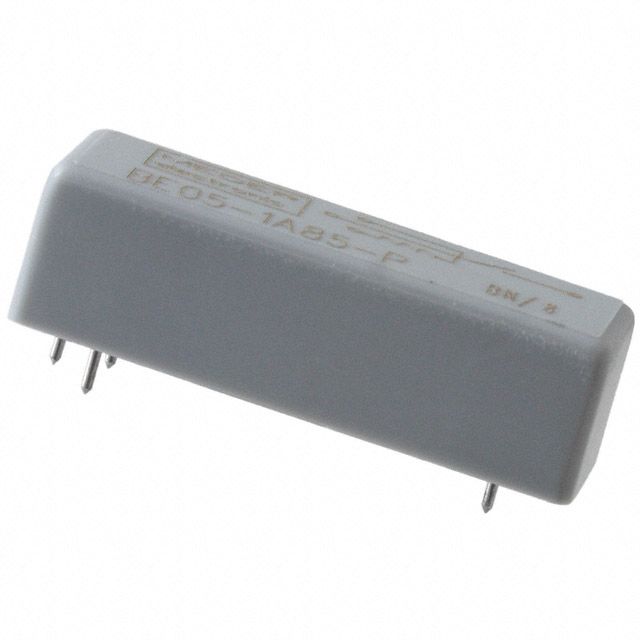

BE05-2A85-P

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : BE
Part Status : Active
Coil Type : Non Latching
Coil Current : 71.4mA
Coil Voltage : 5VDC
Contact Form : DPST-NO (2 Form A)
Contact Rating (Current) : 1A
Switching Voltage : 1000VAC, 1000VDC - Max
Turn On Voltage (Max) : 3.5 VDC
Turn Off Voltage (Min) : 0.75 VDC
Operate Time : 1ms
Release Time : 0.1ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C

534 in stock

BE05-2A88-P

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : BE
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 71.4mA
Coil Voltage : 5VDC
Contact Form : DPST-NO (2 Form A)
Contact Rating (Current) : 1A
Switching Voltage : 1000VAC, 1000VDC - Max
Turn On Voltage (Max) : 3.5 VDC
Turn Off Voltage (Min) : 0.75 VDC
Operate Time : -
Release Time : -
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -

100 in stock

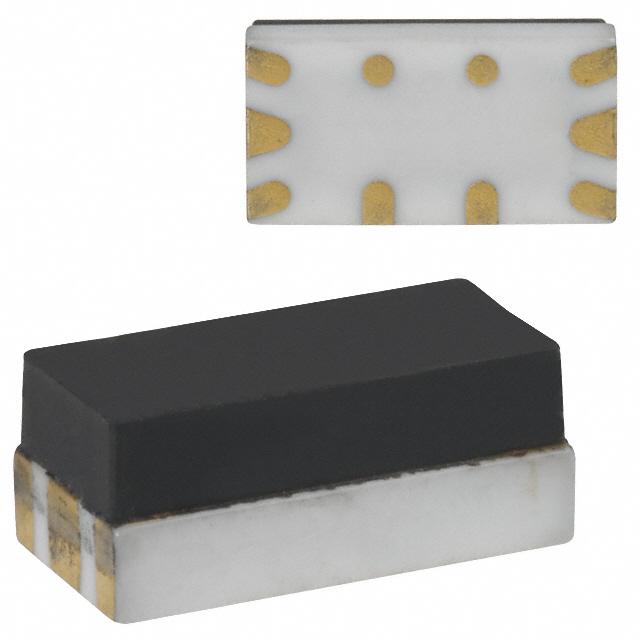

CRF05-1A

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CRF
Part Status : Active
Coil Type : Non Latching
Coil Current : 33.3mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 500mA
Switching Voltage : 170VAC, 170VDC - Max
Turn On Voltage (Max) : 3.75 VDC
Turn Off Voltage (Min) : 0.75 VDC
Operate Time : 0.1ms
Release Time : 0.02ms
Features : -
Mounting Type : Surface Mount
Termination Style : SMD (SMT) Tab
Operating Temperature : -40°C ~ 125°C

2109 in stock

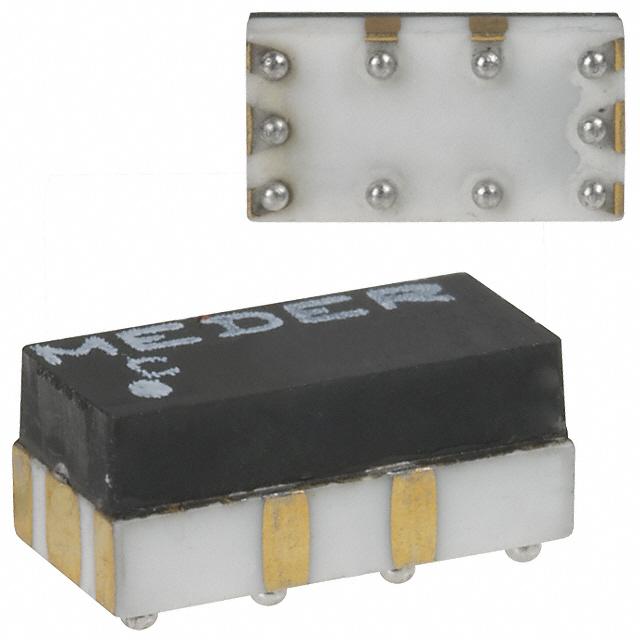

CRF05-1AS

Standex-Meder Electronics

679 in stock

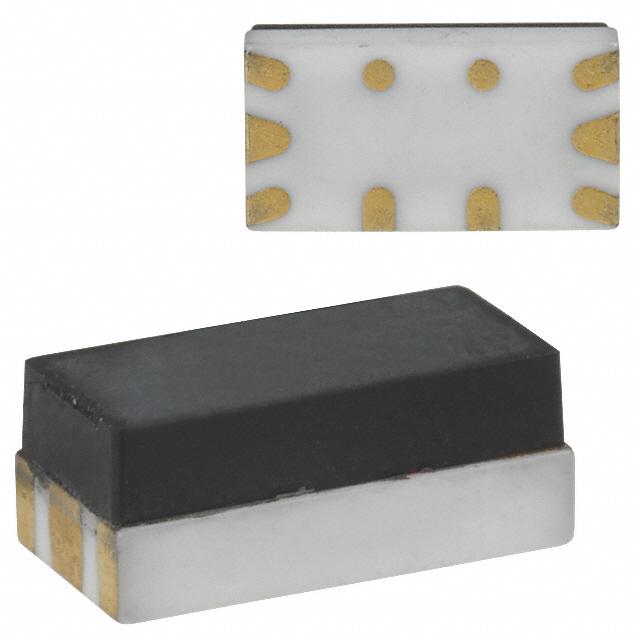

CRR05-1A

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CRR
Part Status : Active
Coil Type : Non Latching
Coil Current : 33.3mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 500mA
Switching Voltage : 170VAC, 170VDC - Max
Turn On Voltage (Max) : 3.75 VDC
Turn Off Voltage (Min) : 0.75 VDC
Operate Time : 0.6ms
Release Time : 0.05ms
Features : -
Mounting Type : Surface Mount
Termination Style : SMD (SMT) Tab
Operating Temperature : -40°C ~ 125°C

19837 in stock

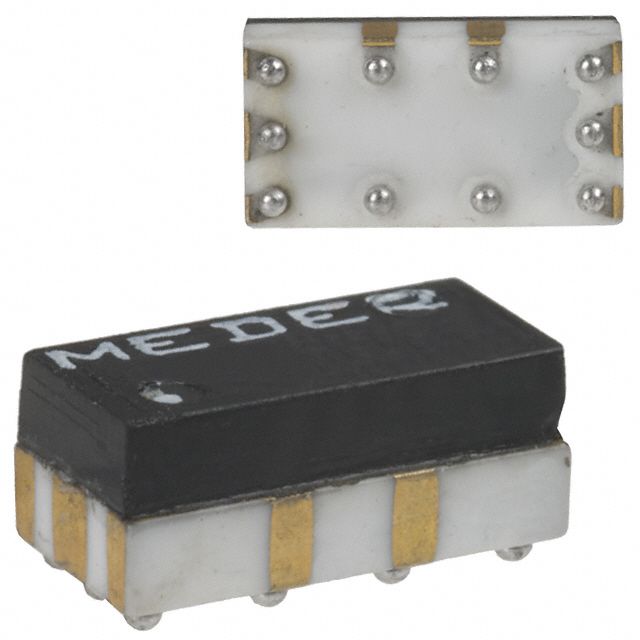

CRR05-1AS

Standex-Meder Electronics

Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CRR
Part Status : Active
Coil Type : Non Latching
Coil Current : 33.3mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 500mA
Switching Voltage : 170VAC, 170VDC - Max
Turn On Voltage (Max) : 3.75 VDC
Turn Off Voltage (Min) : 0.75 VDC
Operate Time : 0.1ms
Release Time : 0.02ms
Features : -
Mounting Type : Surface Mount
Termination Style : BGA
Operating Temperature : -40°C ~ 125°C

1474 in stock
