Standex-Meder Electronics
- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.
Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.
Part Number
Manufacturer
Description
Unit Price
In Stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : SIL
Part Status : Active
Coil Type : Non Latching
Coil Current : 12.0mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 500mA
Switching Voltage : 200VAC, 200VDC - Max
Turn On Voltage (Max) : 8.4 VDC
Turn Off Voltage (Min) : 1.8 VDC
Operate Time : 0.7ms
Release Time : 0.1ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
721 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : SIL HV
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 24.0mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 1A
Switching Voltage : 1000VAC, 1000VDC - Max
Turn On Voltage (Max) : 8.4 VDC
Turn Off Voltage (Min) : 1.8 VDC
Operate Time : 1.1ms
Release Time : 0.1ms
Features : Diode
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : SIL
Part Status : Active
Coil Type : Non Latching
Coil Current : 12.0mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 500mA
Switching Voltage : 200VAC, 200VDC - Max
Turn On Voltage (Max) : 16.8 VDC
Turn Off Voltage (Min) : 3.6 VDC
Operate Time : 0.7ms
Release Time : 0.1ms
Features : Diode
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
259 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : SIL
Part Status : Active
Coil Type : Non Latching
Coil Current : 12.0mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 500mA
Switching Voltage : 200VAC, 200VDC - Max
Turn On Voltage (Max) : 16.8 VDC
Turn Off Voltage (Min) : 3.6 VDC
Operate Time : 0.7ms
Release Time : 0.1ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
116 in stock

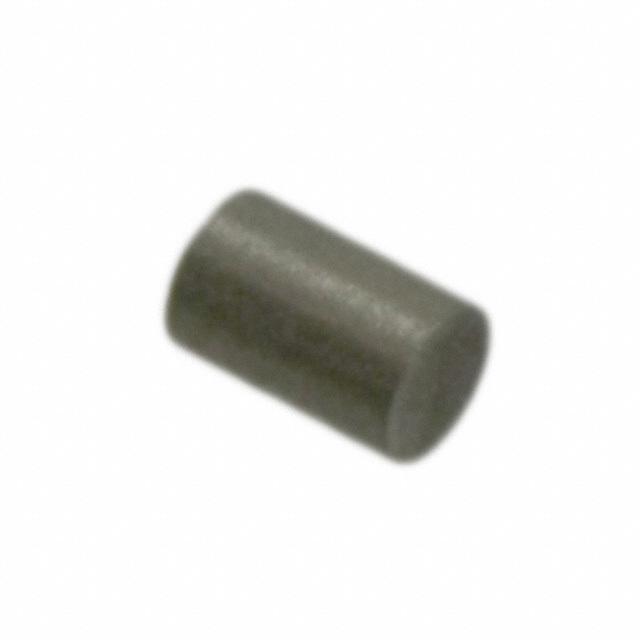

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : -
Part Status : Active
Shape : Cylindrical
Magnetization : Axial
Material : Samarium Cobalt (SmCo5)
Finish : -
Grade : -
Gauss Strength : -
Size : 0.074" Dia x 0.118" H (1.88mm x 3.00mm)
Operating Temperature : 250°C (TA)
0
3613 in stock

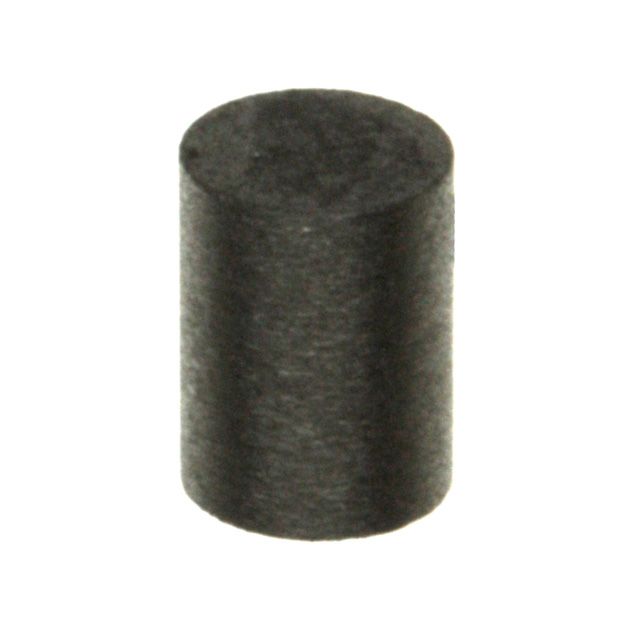

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : -
Part Status : Active
Shape : Cylindrical
Magnetization : Axial
Material : Samarium Cobalt (SmCo5)
Finish : -
Grade : -
Gauss Strength : -
Size : 0.118" Dia x 0.157" H (3.00mm x 4.00mm)
Operating Temperature : 250°C (TA)
0
5366 in stock

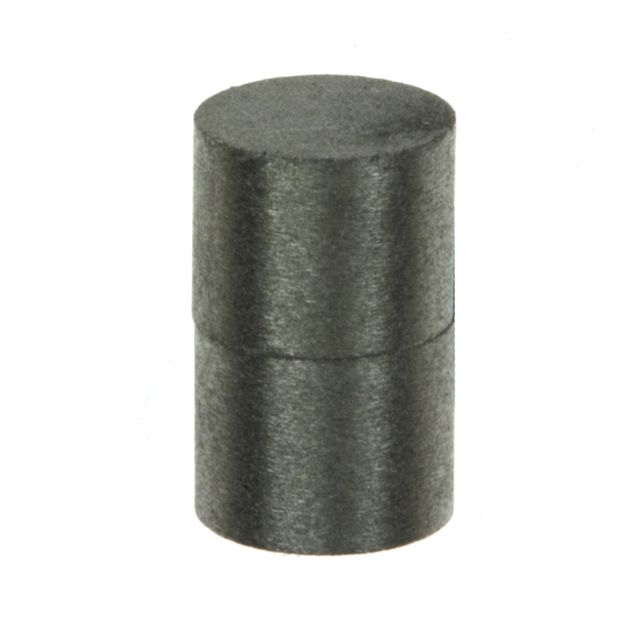

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : -
Part Status : Active
Shape : Cylindrical
Magnetization : Axial
Material : Samarium Cobalt (SmCo5)
Finish : -
Grade : -
Gauss Strength : -
Size : 0.197" Dia x 0.157" H (5.00mm x 4.00mm)
Operating Temperature : 250°C (TA)
0
490 in stock

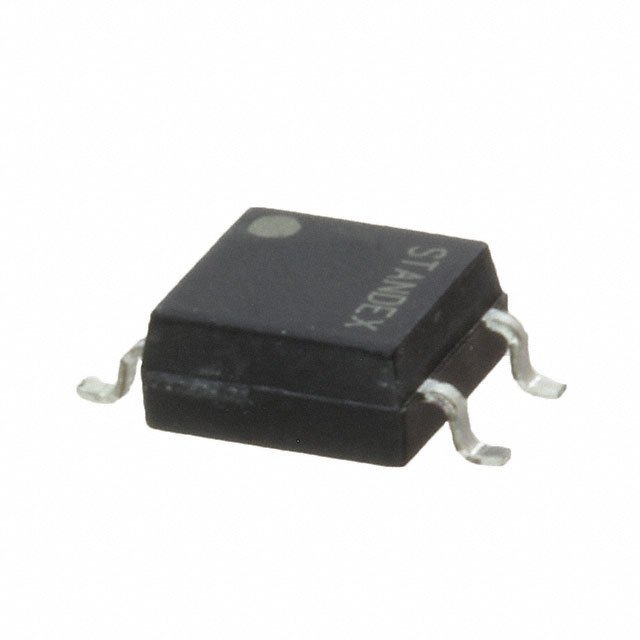

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : 21
Part Status : Active
Mounting Type : Surface Mount
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.17VDC
Voltage - Load : 0V ~ 40V
Load Current : 250mA
On-State Resistance (Max) : 1.2 Ohms
Termination Style : Gull Wing
Package / Case : 4-SOP (0.173", 4.40mm)
Supplier Device Package : 4-SOP
0
300 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : 23
Part Status : Active
Mounting Type : Surface Mount
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.17VDC
Voltage - Load : 0V ~ 250V
Load Current : 170mA
On-State Resistance (Max) : 15 Ohms
Termination Style : Gull Wing
Package / Case : 4-SOP (0.173", 4.40mm)
Supplier Device Package : 4-SOP
0
300 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : 30
Part Status : Active
Mounting Type : Surface Mount
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.17VDC
Voltage - Load : 0V ~ 400V
Load Current : 100mA
On-State Resistance (Max) : 24 Ohms
Termination Style : Gull Wing
Package / Case : 4-SOP (0.173", 4.40mm)
Supplier Device Package : 4-SOP
0
274 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : 31
Part Status : Active
Mounting Type : Surface Mount
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.17VDC
Voltage - Load : 0V ~ 350V
Load Current : 120mA
On-State Resistance (Max) : 24 Ohms
Termination Style : Gull Wing
Package / Case : 4-SOP (0.173", 4.40mm)
Supplier Device Package : 4-SOP
0
100 in stock

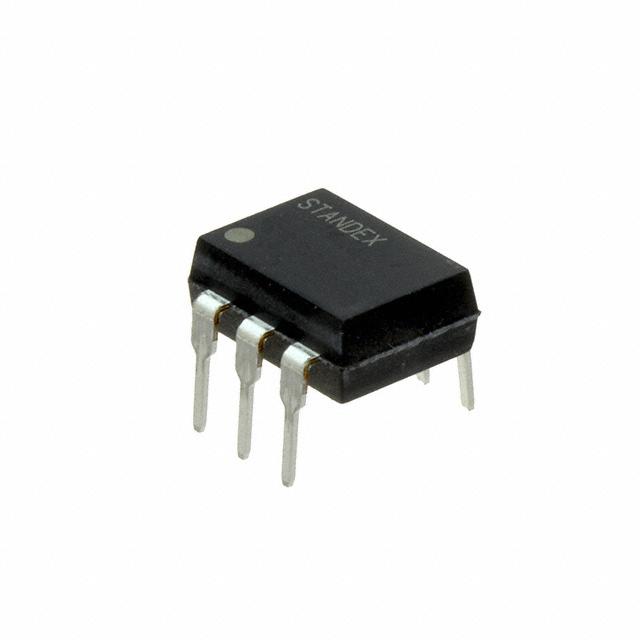

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : 36
Part Status : Active
Mounting Type : Through Hole
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.17VDC
Voltage - Load : 0V ~ 60V
Load Current : 2.5A
On-State Resistance (Max) : 200 Ohms
Termination Style : PC Pin
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
150 in stock
