Stanley Electric
- Stanley Electric is the global leader in the design and manufacturer of LEDs offering a wide range of LEDs recognized to be the brightest in the world featuring a remarkable variety in spatial distribution, package styles and color variations.
In addition, Stanley offers a variety of other optoelectronic products including LCDs and CFLs to support the most demanding instrumental panel backlighting needs. Whether you need LEDs, LCDs, or CFLs, Stanley Electric is a one-stop resource for your optoelectronic components demand.
After serving as a sales office of II Stanley in Michigan, Stanley Electric was given an expanded role in 1998 as a dedicated subsidiary of optoelectronic components for Stanley Electric of Japan. The need to meet a growing market in North and South America paved the way for Stanley Electric to develop fully extended engineering capabilities, a state-of-the-art warehouse facility, and a sales support center tied up with its nationwide field support teams. This intricate support network allows Stanley Electric to take its customers from lighting design to prototype development to delivery.
Part Number
Manufacturer
Description
Unit Price
In Stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Bulk
Series : -
Part Status : Obsolete
Color : Red
Configuration : Standard
Lens Color : Red
Lens Transparency : Clear
Millicandela Rating : 1800mcd
Lens Style : Round with Domed Top
Lens Size : 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) : 1.9V
Current - Test : 20mA
Viewing Angle : 10°
Mounting Type : Through Hole
Wavelength - Dominant : 626nm
Wavelength - Peak : 635nm
Features : -
Package / Case : Radial
Supplier Device Package : 5mm Round
Size / Dimension : -
Height (Max) : 8.80mm
0
100 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Green, Red
Configuration : Independent
Lens Color : -
Lens Transparency : -
Millicandela Rating : 60mcd Green, 50mcd Red
Lens Style : Rectangle with Flat Top
Lens Size : 1.10mm x 1.50mm
Voltage - Forward (Vf) (Typ) : 3.1V Green, 1.85V Red
Current - Test : 10mA Green, 10mA Red
Viewing Angle : -
Mounting Type : Surface Mount
Wavelength - Dominant : 525nm Green, 626nm Red
Wavelength - Peak : 522nm Green, 635nm Red
Features : -
Package / Case : 0606 (1616 Metric)
Supplier Device Package : -
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 0.80mm
0
100 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1211C
Part Status : Active
Color : Red, Yellow-Green
Configuration : Independent
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 30mcd Red, 12mcd Yellow-Green
Lens Style : Rectangle with Flat Top
Lens Size : 1.50mm x 1.20mm
Voltage - Forward (Vf) (Typ) : 1.85V Red, 1.95V Yellow-Green
Current - Test : 5mA Red, 5mA Yellow-Green
Viewing Angle : 115°, 140° Red, 115°, 140° Yellow-Green
Mounting Type : Surface Mount
Wavelength - Dominant : 626nm Red, 570nm Yellow-Green
Wavelength - Peak : -
Features : -
Package / Case : 0606 (1616 Metric)
Supplier Device Package : -
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 0.80mm
0
80 in stock

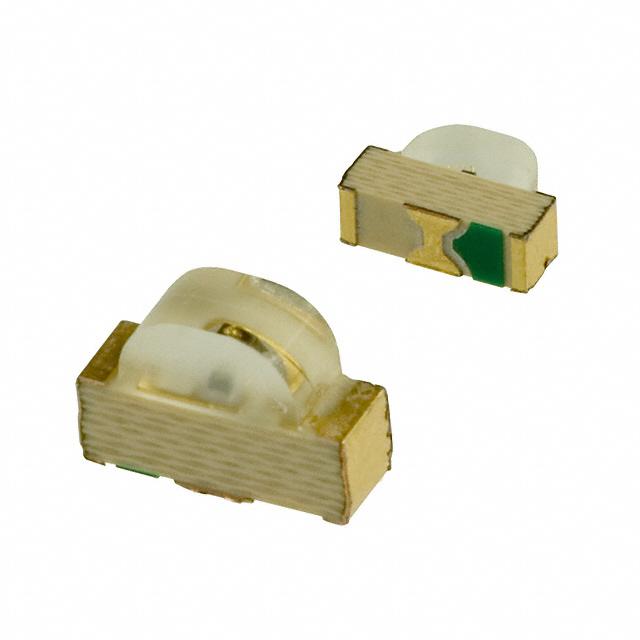

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 1101F
Part Status : Obsolete
Color : Yellow
Configuration : Standard
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 65mcd
Lens Style : Rectangle with Domed Top
Lens Size : 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ) : 1.9V
Current - Test : 20mA
Viewing Angle : 140°, 130°
Mounting Type : Surface Mount, Right Angle
Wavelength - Dominant : 590nm
Wavelength - Peak : 592nm
Features : -
Package / Case : 2-SMD, No Lead
Supplier Device Package : -
Size / Dimension : 3.00mm L x 2.00mm W
Height (Max) : 1.00mm
0
100 in stock

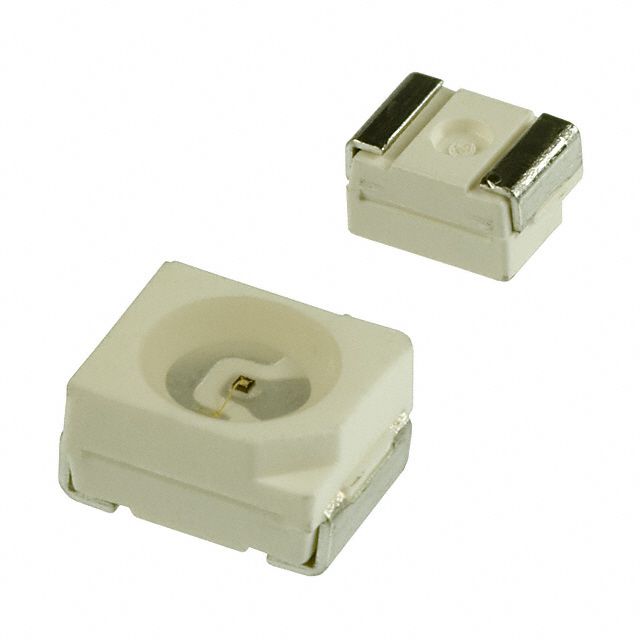

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Yellow
Configuration : Standard
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 150mcd
Lens Style : Round with Flat Top
Lens Size : 2.40mm Dia
Voltage - Forward (Vf) (Typ) : 2V
Current - Test : 20mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 587nm
Wavelength - Peak : 588nm
Features : -
Package / Case : 2-PLCC
Supplier Device Package : 2-PLCC
Size / Dimension : 3.20mm L x 2.80mm W
Height (Max) : 2.10mm
0
100 in stock

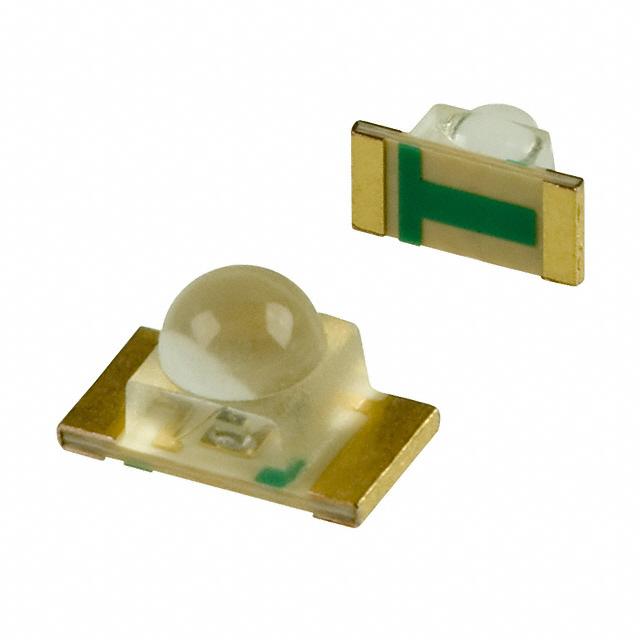

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tape & Reel (TR)
Series : 1105W
Part Status : Obsolete
Color : Yellow
Configuration : Standard
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 180mcd
Lens Style : Round with Domed Top
Lens Size : 1.60mm Dia
Voltage - Forward (Vf) (Typ) : 1.9V
Current - Test : 20mA
Viewing Angle : 50°
Mounting Type : Surface Mount, Bottom Entry
Wavelength - Dominant : 590nm
Wavelength - Peak : 592nm
Features : -
Package / Case : 1206 (3216 Metric)
Supplier Device Package : 3216 Type
Size / Dimension : 3.20mm L x 1.60mm W
Height (Max) : 2.05mm
0
100 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1105W
Part Status : Active
Color : Yellow
Configuration : Standard
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 180mcd
Lens Style : Round with Domed Top
Lens Size : 1.60mm Dia
Voltage - Forward (Vf) (Typ) : 1.9V
Current - Test : 20mA
Viewing Angle : 50°
Mounting Type : Surface Mount
Wavelength - Dominant : 590nm
Wavelength - Peak : 592nm
Features : -
Package / Case : 1206 (3216 Metric)
Supplier Device Package : 3216 Type
Size / Dimension : 3.20mm L x 1.60mm W
Height (Max) : 2.05mm
0
9843 in stock

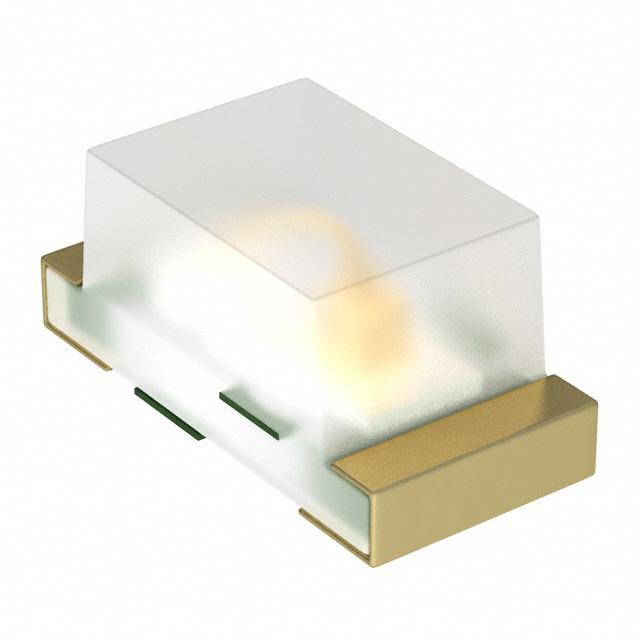

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 1111C
Part Status : Obsolete
Color : Yellow
Configuration : Standard
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 65mcd
Lens Style : Rectangle with Flat Top
Lens Size : 1.10mm x 0.80mm
Voltage - Forward (Vf) (Typ) : 1.9V
Current - Test : 20mA
Viewing Angle : 140°, 150°
Mounting Type : Surface Mount
Wavelength - Dominant : 590nm
Wavelength - Peak : 592nm
Features : -
Package / Case : 0603 (1608 Metric)
Supplier Device Package : 1608
Size / Dimension : 1.60mm L x 0.80mm W
Height (Max) : 0.80mm
0
100 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tape & Reel (TR)
Series : 1112C
Part Status : Obsolete
Color : Yellow
Configuration : Standard
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 50mcd
Lens Style : Rectangle with Flat Top
Lens Size : 1.10mm x 0.80mm
Voltage - Forward (Vf) (Typ) : 1.9V
Current - Test : 20mA
Viewing Angle : 132°, 149°
Mounting Type : Surface Mount
Wavelength - Dominant : 590nm
Wavelength - Peak : 592nm
Features : -
Package / Case : 0603 (1608 Metric)
Supplier Device Package : 1608
Size / Dimension : 1.60mm L x 0.80mm W
Height (Max) : 0.55mm
0
100 in stock

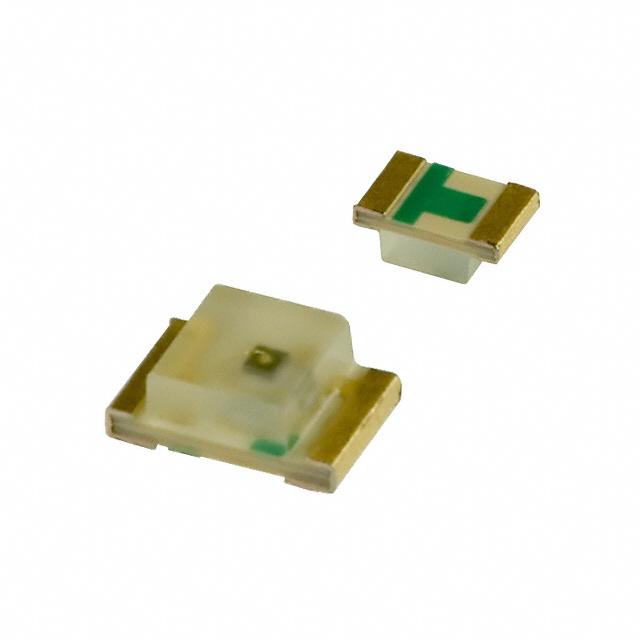

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 1112H
Part Status : Last Time Buy
Color : Yellow
Configuration : Standard
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 65mcd
Lens Style : Rectangle with Flat Top
Lens Size : 1.20mm x 1.25mm
Voltage - Forward (Vf) (Typ) : 1.9V
Current - Test : 20mA
Viewing Angle : 148°, 145°
Mounting Type : Surface Mount
Wavelength - Dominant : 590nm
Wavelength - Peak : 592nm
Features : -
Package / Case : 0805 (2012 Metric)
Supplier Device Package : 2125
Size / Dimension : 2.00mm L x 1.25mm W
Height (Max) : 0.90mm
0
12000 in stock

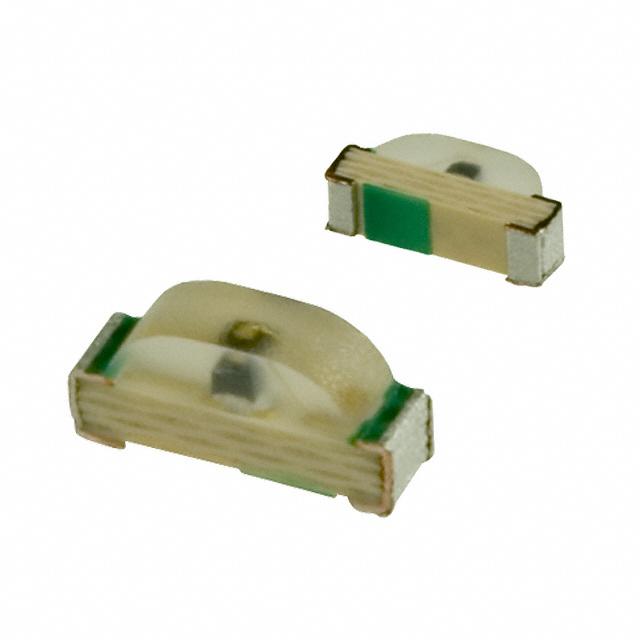

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1113F
Part Status : Active
Color : Yellow
Configuration : Standard
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 65mcd
Lens Style : Rectangle with Domed Top
Lens Size : 1.70mm x 0.60mm
Voltage - Forward (Vf) (Typ) : 1.9V
Current - Test : 20mA
Viewing Angle : 134°, 150°
Mounting Type : Surface Mount, Right Angle
Wavelength - Dominant : 590nm
Wavelength - Peak : 592nm
Features : -
Package / Case : 0805 (2012 Metric)
Supplier Device Package : -
Size / Dimension : 2.10mm L x 1.00mm W
Height (Max) : 0.60mm
0
20211 in stock

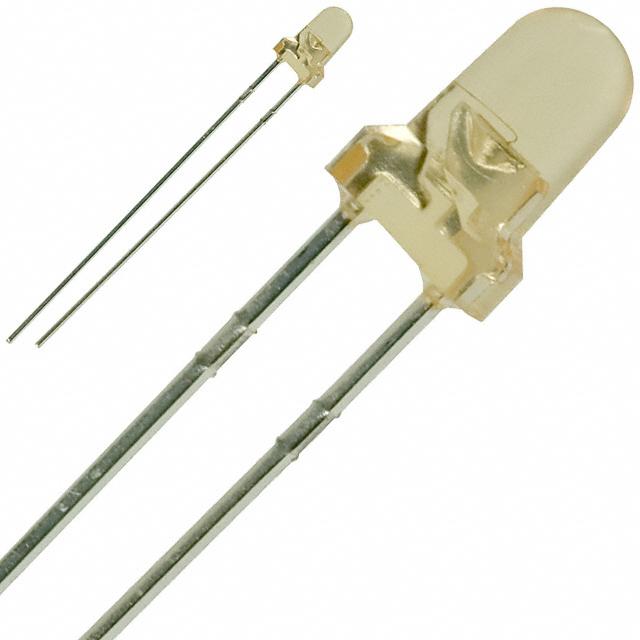

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Bulk
Series : -
Part Status : Active
Color : Yellow
Configuration : Standard
Lens Color : Yellow
Lens Transparency : Clear
Millicandela Rating : 720mcd
Lens Style : Round with Domed Top
Lens Size : 3mm, T-1
Voltage - Forward (Vf) (Typ) : 1.9V
Current - Test : 20mA
Viewing Angle : -
Mounting Type : Through Hole
Wavelength - Dominant : 590nm
Wavelength - Peak : 592nm
Features : -
Package / Case : Radial
Supplier Device Package : 3mm Round
Size / Dimension : -
Height (Max) : 5.90mm
0
90 in stock
