Sullins Connector Solutions
- Sullins Connector Solutions headquartered in San Marcos, CA, has been a world leader in the design, engineering, and manufacturing of high-quality edge cards and headers since 1971.
Sullins Connector Solutions provides the industry’s widest selection of UL/CUL approved edge cards, and additionally offers product development services together with engineering support. Sullins Connector Solutions' edge cards, headers, bi-level, high density, and high temperature connectors are widely specified for use in mission-critical applications by a broad spectrum of leading industrial, commercial, military and consumer products manufacturers. Sullins Connector Solutions' connectors and interconnect systems are offered through a global network of sales representatives and distributors.
Part Number
Manufacturer
Description
Unit Price
In Stock

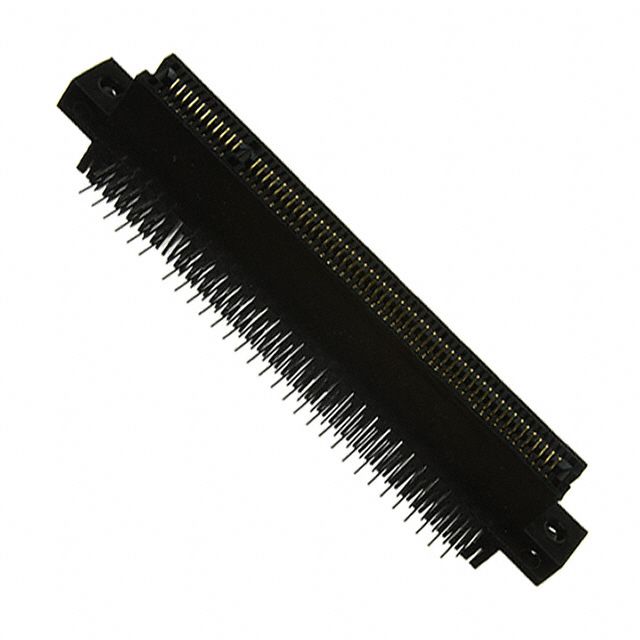

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : PCI 5V 32 Bit
Gender : Female
Number of Positions/Bay/Row : 11; 49
Number of Positions : 120
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.050" (1.27mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole, Right Angle
Termination : Solder, Staggered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows
Color : Black
Flange Feature : Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
0
31 in stock

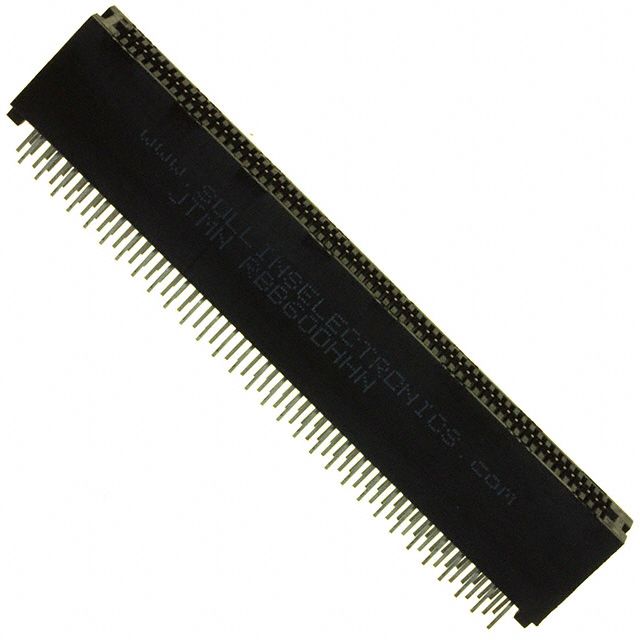

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 60
Number of Positions : 120
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.050" (1.27mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder, Staggered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows
Color : Black
Flange Feature : -
Operating Temperature : -65°C ~ 125°C
0
85 in stock

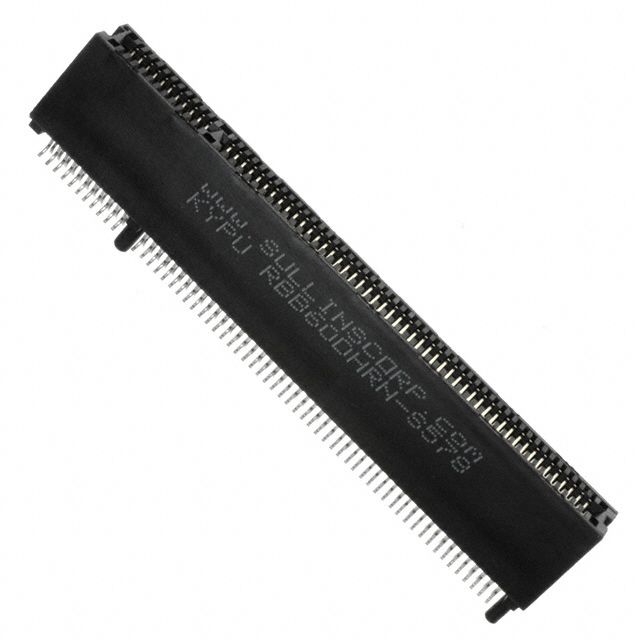

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : PCI 3.3V, 5V 32 Bit (Universal)
Gender : Female
Number of Positions/Bay/Row : 11; 49
Number of Positions : 120
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.050" (1.27mm)
Read Out : Dual
Features : Card Extender
Mounting Type : Board Edge, Straddle Mount
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows
Color : Black
Flange Feature : -
Operating Temperature : -65°C ~ 125°C
0
544 in stock

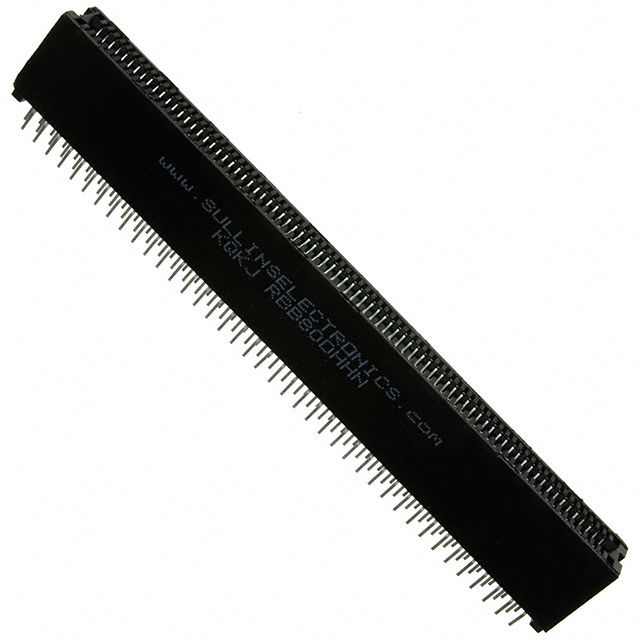

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 80
Number of Positions : 160
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.050" (1.27mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder, Staggered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows
Color : Black
Flange Feature : -
Operating Temperature : -65°C ~ 125°C
0
5 in stock
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 5
Number of Positions : 10
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : Board Lock
Mounting Type : Surface Mount
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows
Color : Black
Flange Feature : -
Operating Temperature : -65°C ~ 125°C
0
18 in stock

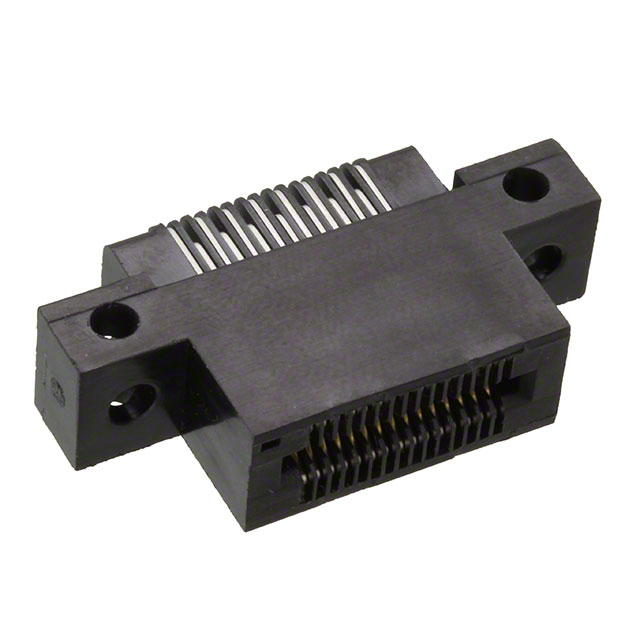

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 15
Number of Positions : 30
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole, Right Angle
Termination : Solder, Staggered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows
Color : Black
Flange Feature : Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
0
73 in stock

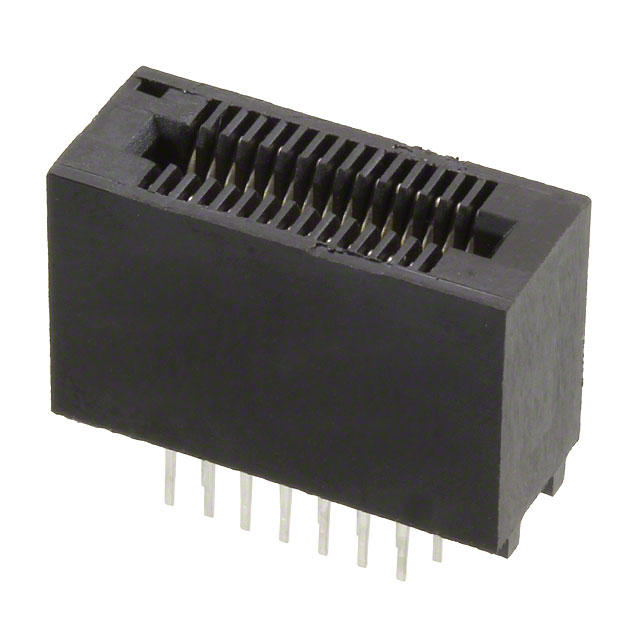

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 15
Number of Positions : 30
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder, Staggered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows
Color : Black
Flange Feature : -
Operating Temperature : -65°C ~ 125°C
0
14 in stock

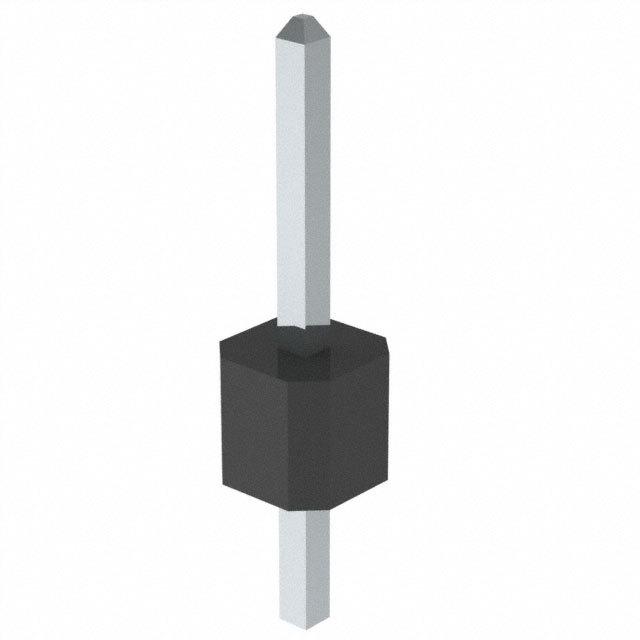

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : -
Number of Positions : 1
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : 0.450" (11.43mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -65°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
595 in stock

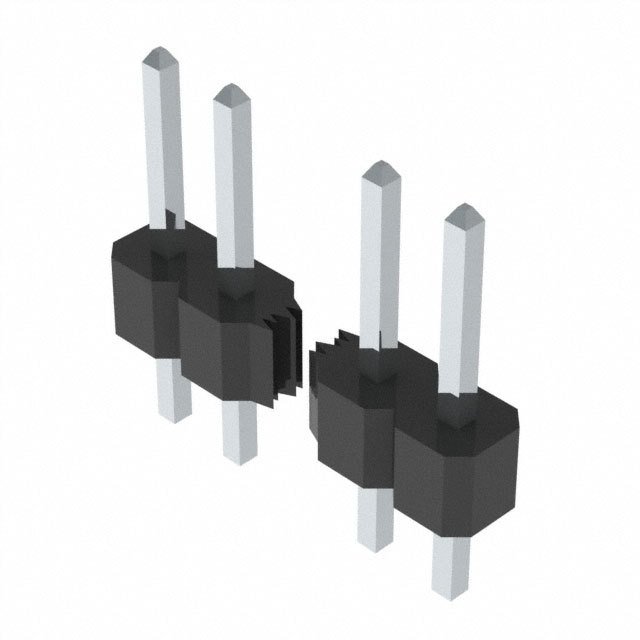

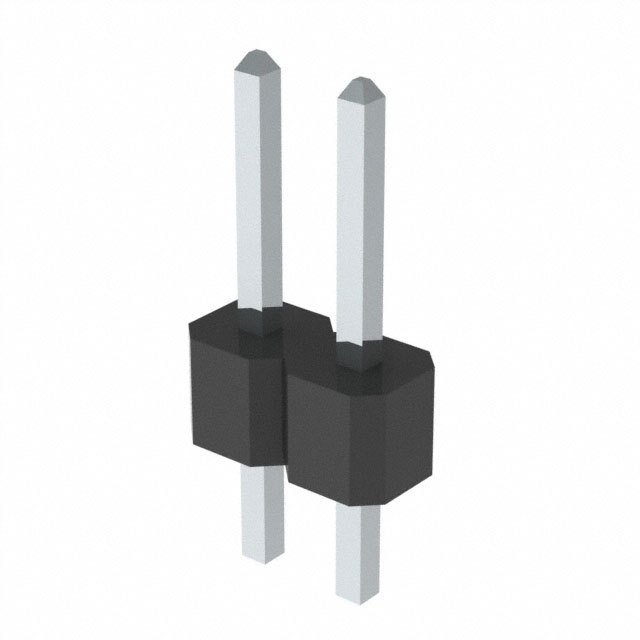

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : 0.450" (11.43mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -65°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
6465 in stock

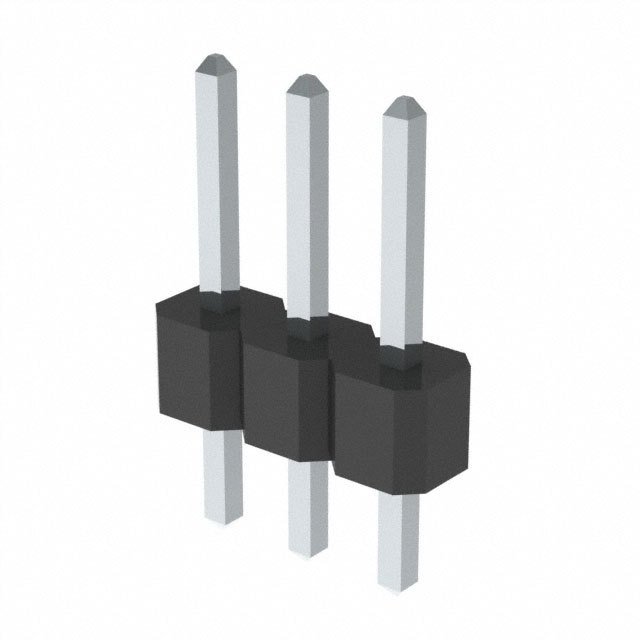

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : 0.450" (11.43mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -65°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
4812 in stock

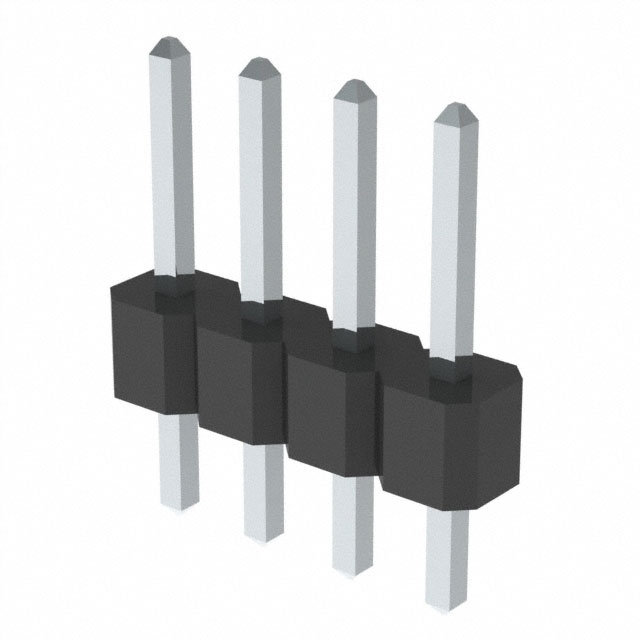

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : 0.450" (11.43mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -65°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
1940 in stock
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : 0.450" (11.43mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -65°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : -
0
3181 in stock
