Sullins Connector Solutions
- Sullins Connector Solutions headquartered in San Marcos, CA, has been a world leader in the design, engineering, and manufacturing of high-quality edge cards and headers since 1971.
Sullins Connector Solutions provides the industry’s widest selection of UL/CUL approved edge cards, and additionally offers product development services together with engineering support. Sullins Connector Solutions' edge cards, headers, bi-level, high density, and high temperature connectors are widely specified for use in mission-critical applications by a broad spectrum of leading industrial, commercial, military and consumer products manufacturers. Sullins Connector Solutions' connectors and interconnect systems are offered through a global network of sales representatives and distributors.
Part Number
Manufacturer
Description
Unit Price
In Stock

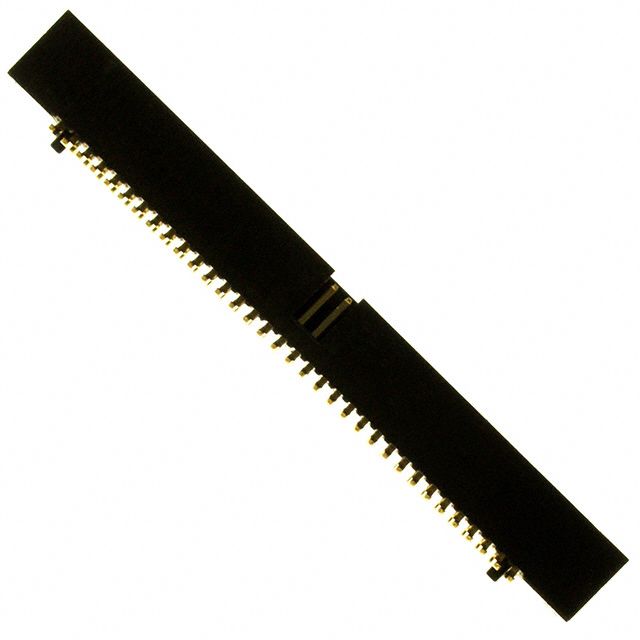

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SBH41
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 68
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.228" (5.80mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : Board Guide, Keying Slot
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -
0
301 in stock

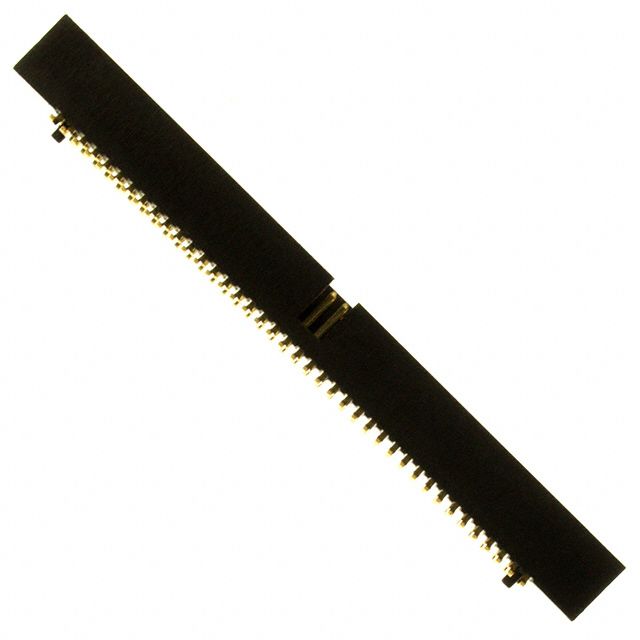

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SBH41
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.050" (1.27mm)
Number of Positions : 80
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.228" (5.80mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polyamide (PA9T), Nylon 9T
Features : Board Guide, Keying Slot
Operating Temperature : -40°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -
0
100 in stock

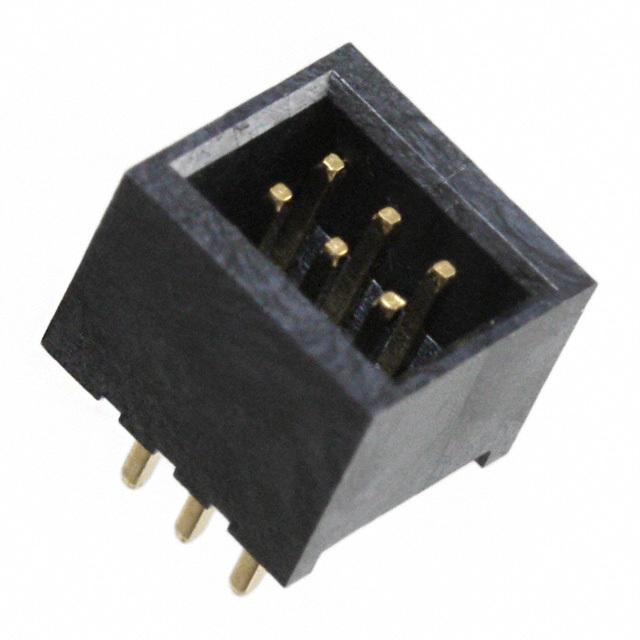

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SBH51
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.134" (3.40mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : Board Guide
Operating Temperature : -40°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A per Contact
Voltage Rating : -
0
1100 in stock
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SBH51
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : -
Insulation Height : 0.134" (3.40mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -40°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A per Contact
Voltage Rating : -
0
534 in stock

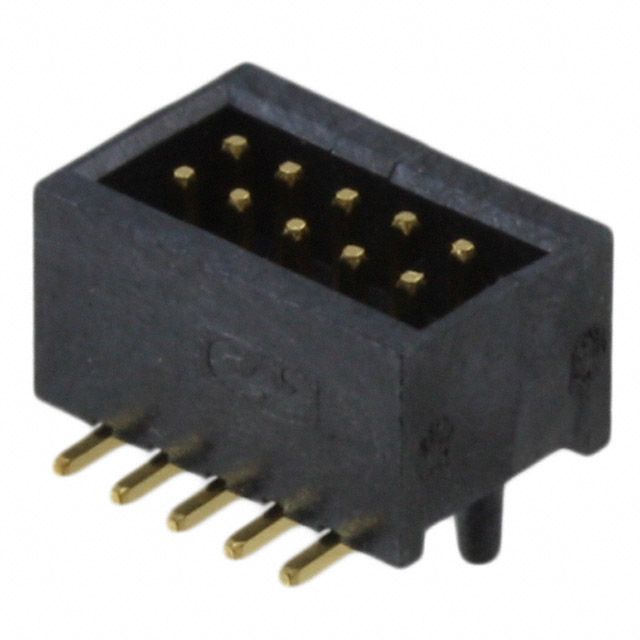

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SBH51
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.134" (3.40mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : Board Guide
Operating Temperature : -40°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A per Contact
Voltage Rating : -
0
67 in stock

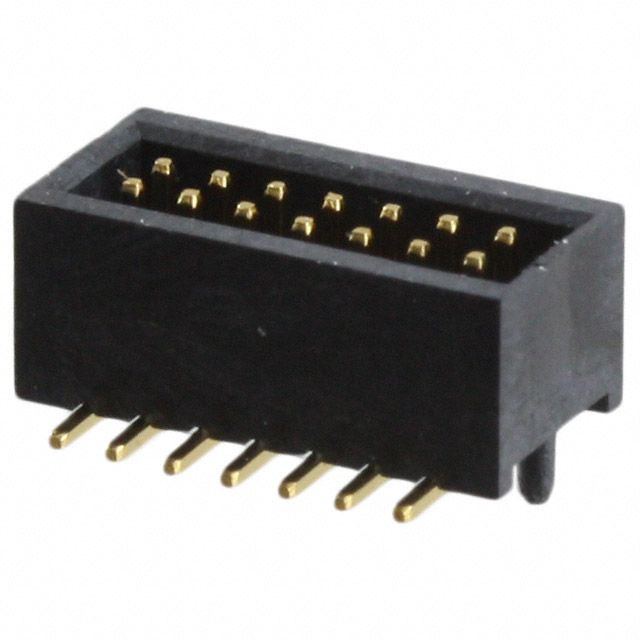

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SBH51
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : -
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.134" (3.40mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : Board Guide
Operating Temperature : -40°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A per Contact
Voltage Rating : -
0
992 in stock
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : 100
Part Status : Obsolete
Connector Style : D-Sub
Connector Type : Receptacle, Female Sockets
Number of Positions : 9
Number of Rows : 2
Shell Size, Connector Layout : 1 (DE, E)
Contact Type : Signal
Mounting Type : Free Hanging (In-Line)
Flange Feature : Housing/Shell (Unthreaded)
Termination : Solder Cup
Features : -
Shell Material, Finish : Steel, Tin Plated
Contact Finish : Gold
Contact Finish Thickness : Flash
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Current Rating : 3A
0
100 in stock
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : 100
Part Status : Obsolete
Connector Style : D-Sub
Connector Type : Receptacle, Female Sockets
Number of Positions : 9
Number of Rows : 2
Shell Size, Connector Layout : 1 (DE, E)
Contact Type : Signal
Mounting Type : Free Hanging (In-Line)
Flange Feature : Housing/Shell (Unthreaded)
Termination : Solder Cup
Features : -
Shell Material, Finish : Steel, Tin Plated
Contact Finish : Gold
Contact Finish Thickness : 15.0µin (0.38µm)
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Current Rating : 3A
0
100 in stock
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : 100
Part Status : Obsolete
Connector Style : D-Sub
Connector Type : Receptacle, Female Sockets
Number of Positions : 9
Number of Rows : 2
Shell Size, Connector Layout : 1 (DE, E)
Contact Type : Signal
Mounting Type : Free Hanging (In-Line)
Flange Feature : Housing/Shell (Unthreaded)
Termination : Solder Cup
Features : -
Shell Material, Finish : Steel, Tin Plated
Contact Finish : Gold
Contact Finish Thickness : Flash
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Current Rating : 3A
0
100 in stock
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : 100
Part Status : Obsolete
Connector Style : D-Sub
Connector Type : Receptacle, Female Sockets
Number of Positions : 9
Number of Rows : 2
Shell Size, Connector Layout : 1 (DE, E)
Contact Type : Signal
Mounting Type : Free Hanging (In-Line)
Flange Feature : Housing/Shell (Unthreaded)
Termination : Solder Cup
Features : -
Shell Material, Finish : Steel, Tin Plated
Contact Finish : Gold
Contact Finish Thickness : Flash
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Current Rating : 3A
0
100 in stock
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : 100
Part Status : Obsolete
Connector Style : D-Sub
Connector Type : Receptacle, Female Sockets
Number of Positions : 9
Number of Rows : 2
Shell Size, Connector Layout : 1 (DE, E)
Contact Type : Signal
Mounting Type : Free Hanging (In-Line)
Flange Feature : Mating Side (4-40)
Termination : Solder Cup
Features : -
Shell Material, Finish : Steel, Tin Plated
Contact Finish : Gold
Contact Finish Thickness : Flash
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Current Rating : 3A
0
100 in stock
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : 100
Part Status : Obsolete
Connector Style : D-Sub
Connector Type : Receptacle, Female Sockets
Number of Positions : 9
Number of Rows : 2
Shell Size, Connector Layout : 1 (DE, E)
Contact Type : Signal
Mounting Type : Free Hanging (In-Line)
Flange Feature : Mating Side, Female Screwlock (4-40)
Termination : Solder Cup
Features : -
Shell Material, Finish : Steel, Tin Plated
Contact Finish : Gold
Contact Finish Thickness : Flash
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Current Rating : 3A
0
100 in stock
