Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 125CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 2.2µH
Tolerance : ±20%
Current Rating : 20A
Current - Saturation : 34A
Shielding : Shielded
DC Resistance (DCR) : 4.2 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.530" L x 0.496" W (13.45mm x 12.60mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 125CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 33µH
Tolerance : ±20%
Current Rating : 6A
Current - Saturation : 7.2A
Shielding : Shielded
DC Resistance (DCR) : 57 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.530" L x 0.496" W (13.45mm x 12.60mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 125CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 3.3µH
Tolerance : ±20%
Current Rating : 17A
Current - Saturation : 27A
Shielding : Shielded
DC Resistance (DCR) : 7.8 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.530" L x 0.496" W (13.45mm x 12.60mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 125CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 47µH
Tolerance : ±20%
Current Rating : 4.5A
Current - Saturation : 6.3A
Shielding : Shielded
DC Resistance (DCR) : 97.2 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.530" L x 0.496" W (13.45mm x 12.60mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 125CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 14A
Current - Saturation : 22A
Shielding : Shielded
DC Resistance (DCR) : 10 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.530" L x 0.496" W (13.45mm x 12.60mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
100 in stock

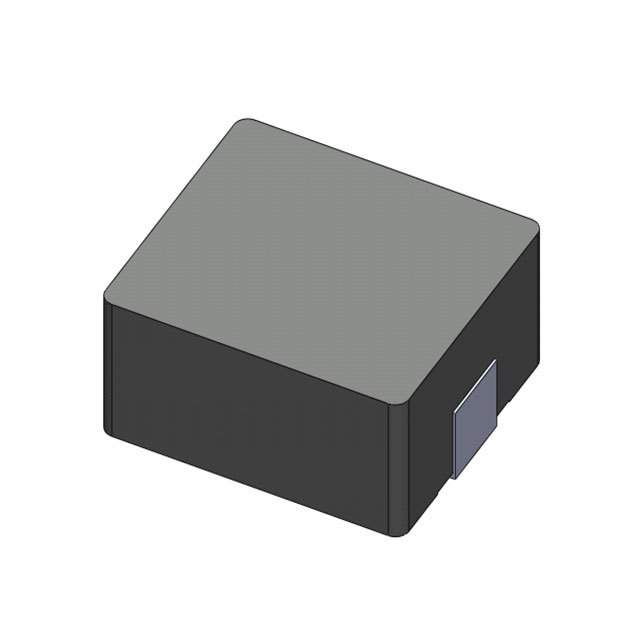

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 125CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 6.8µH
Tolerance : ±20%
Current Rating : 11A
Current - Saturation : 17A
Shielding : Shielded
DC Resistance (DCR) : 18 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.530" L x 0.496" W (13.45mm x 12.60mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
1000 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 125CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 8.2µH
Tolerance : ±20%
Current Rating : 10A
Current - Saturation : 15A
Shielding : Shielded
DC Resistance (DCR) : 19 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.530" L x 0.496" W (13.45mm x 12.60mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 125CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 360nH
Tolerance : ±20%
Current Rating : 40A
Current - Saturation : 80A
Shielding : Shielded
DC Resistance (DCR) : 0.95 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.530" L x 0.496" W (13.45mm x 12.60mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 125CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 470nH
Tolerance : ±20%
Current Rating : 37A
Current - Saturation : 62A
Shielding : Shielded
DC Resistance (DCR) : 1.1 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.530" L x 0.496" W (13.45mm x 12.60mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 125CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 680nH
Tolerance : ±20%
Current Rating : 33A
Current - Saturation : 60A
Shielding : Shielded
DC Resistance (DCR) : 1.3 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.530" L x 0.496" W (13.45mm x 12.60mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 125CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 820nH
Tolerance : ±20%
Current Rating : 31A
Current - Saturation : 50A
Shielding : Shielded
DC Resistance (DCR) : 1.8 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.530" L x 0.496" W (13.45mm x 12.60mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : -
Applications : -
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : 36 ~ 75V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 40µH @ 100kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.492" (12.50mm)
Footprint : -
Style : -
0
382 in stock
