Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock

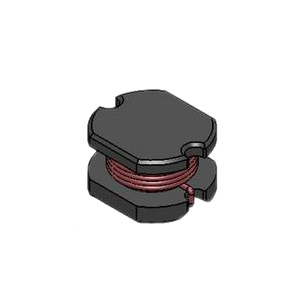

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CD30D22
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 1.42A
Current - Saturation : 1.49A
Shielding : Unshielded
DC Resistance (DCR) : 140 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.138" L x 0.118" W (3.50mm x 3.00mm)
Height - Seated (Max) : 0.098" (2.50mm)
0
3935 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CD43
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 1.04A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 182 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
1557 in stock

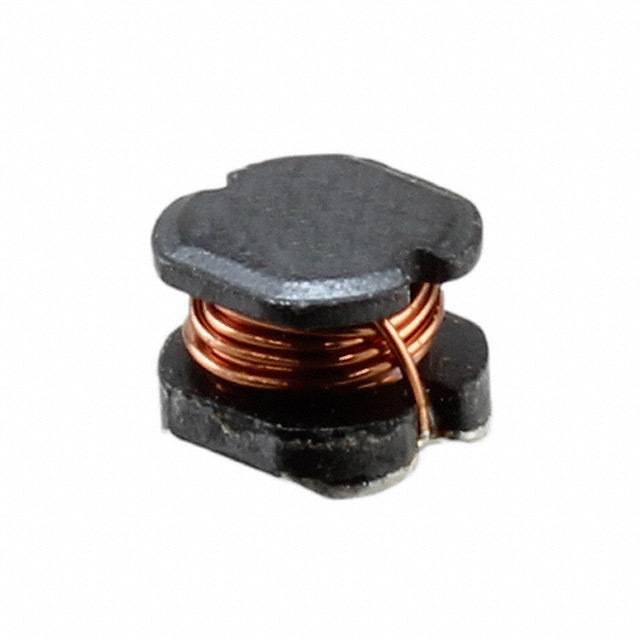

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CD43
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±10%
Current Rating : 440mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 844 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
790 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CD43
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 68µH
Tolerance : ±10%
Current Rating : 370mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.117 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
4485 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CD54
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 1.44A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) : 0.191" (4.85mm)
0
9071 in stock

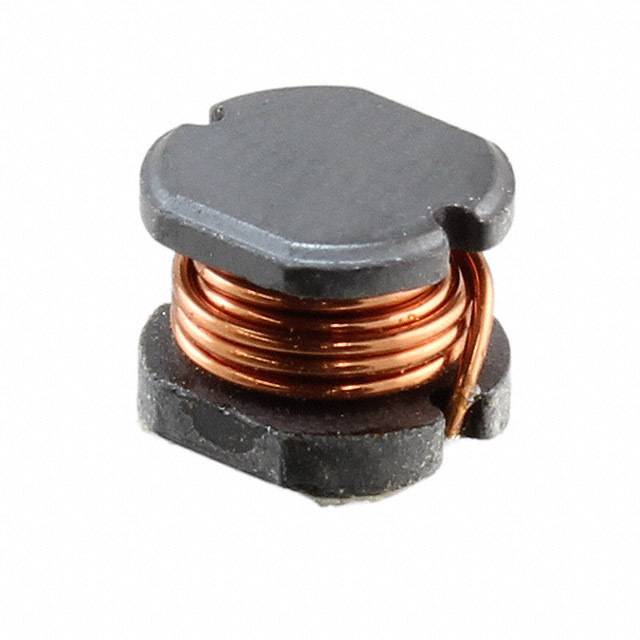

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CD54
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±10%
Current Rating : 520mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 700 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) : 0.191" (4.85mm)
0
1196 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CD54
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±20%
Current Rating : 1.3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 140 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) : 0.191" (4.85mm)
0
1596 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CD54
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 1.11A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 180 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) : 0.191" (4.85mm)
0
10726 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CD54
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 39µH
Tolerance : ±15%
Current Rating : 800mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 320 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) : 0.191" (4.85mm)
0
3457 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CD54
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±15%
Current Rating : 720mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 370 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) : 0.191" (4.85mm)
0
1727 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CD73
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±20%
Current Rating : 850mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 170 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -30°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
1500 in stock

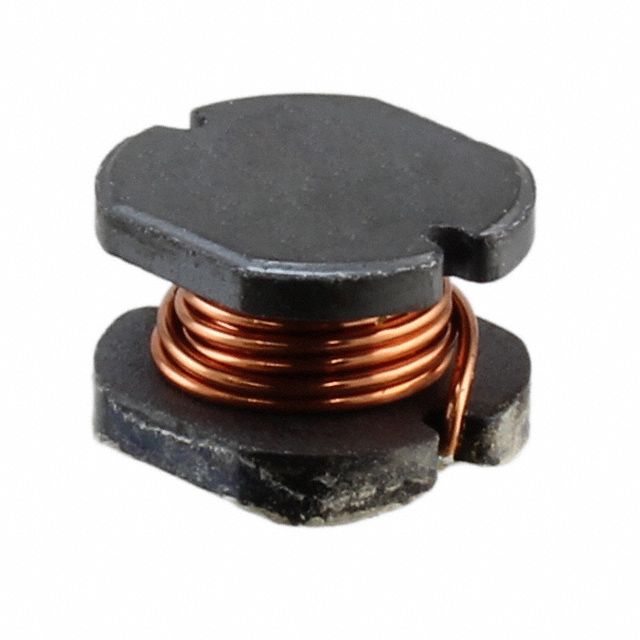

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CD75
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±10%
Current Rating : 2.3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 70 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
0
2015 in stock
