Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock

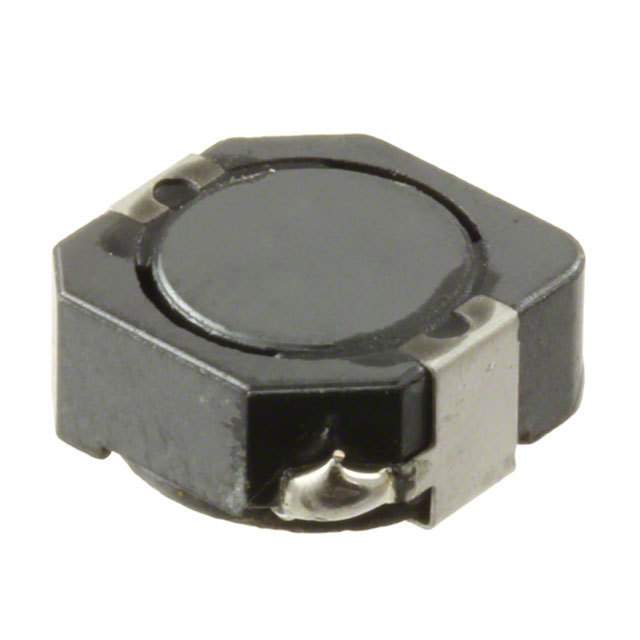

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH105R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±30%
Current Rating : 6.5A
Current - Saturation : 7.8A
Shielding : Shielded
DC Resistance (DCR) : 10.4 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max) : 0.201" (5.10mm)
0
2673 in stock

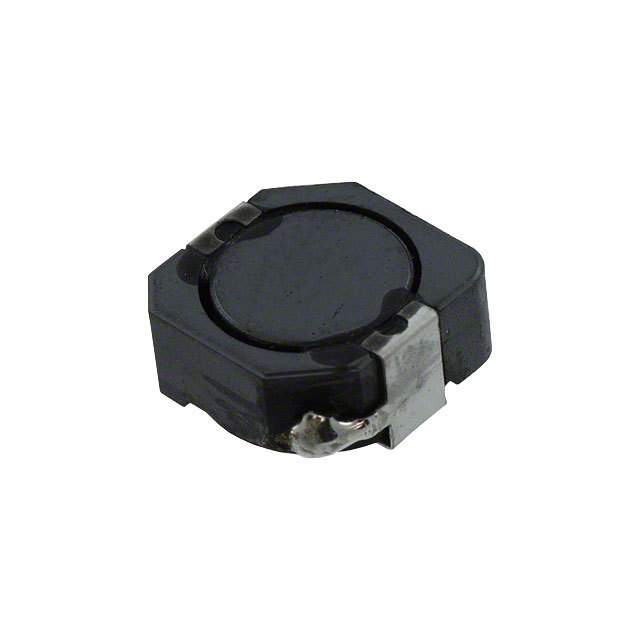

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH105R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±30%
Current Rating : 2A
Current - Saturation : 2A
Shielding : Shielded
DC Resistance (DCR) : 130 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max) : 0.205" (5.20mm)
0
1990 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH105R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±30%
Current Rating : 6.1A
Current - Saturation : 6.4A
Shielding : Shielded
DC Resistance (DCR) : 12.3 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max) : 0.201" (5.10mm)
0
1989 in stock

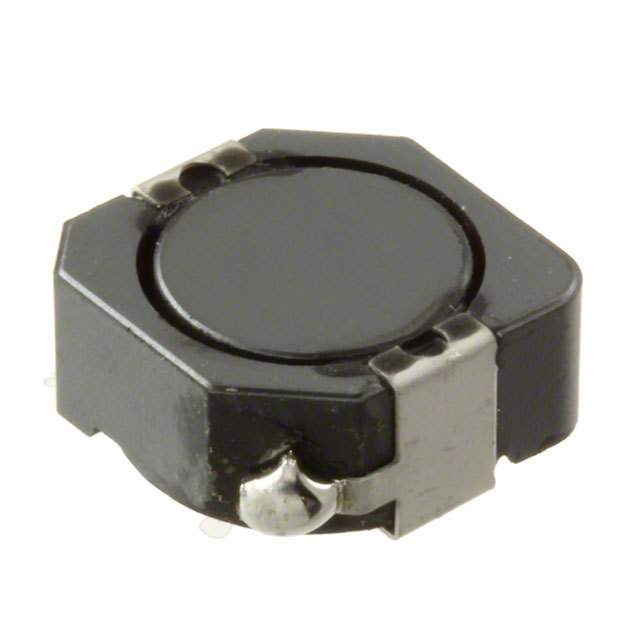

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH105R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 6.8µH
Tolerance : ±30%
Current Rating : 5.4A
Current - Saturation : 5.4A
Shielding : Shielded
DC Resistance (DCR) : 18 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max) : 0.201" (5.10mm)
0
4904 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH105R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 82µH
Tolerance : ±30%
Current Rating : 1.45A
Current - Saturation : 1.5A
Shielding : Shielded
DC Resistance (DCR) : 227 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max) : 0.201" (5.10mm)
0
221 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH124
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 4.5A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 28 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
754 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH124
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 2.9A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 66 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
785 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH124
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±20%
Current Rating : 2.7A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 97 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
813 in stock

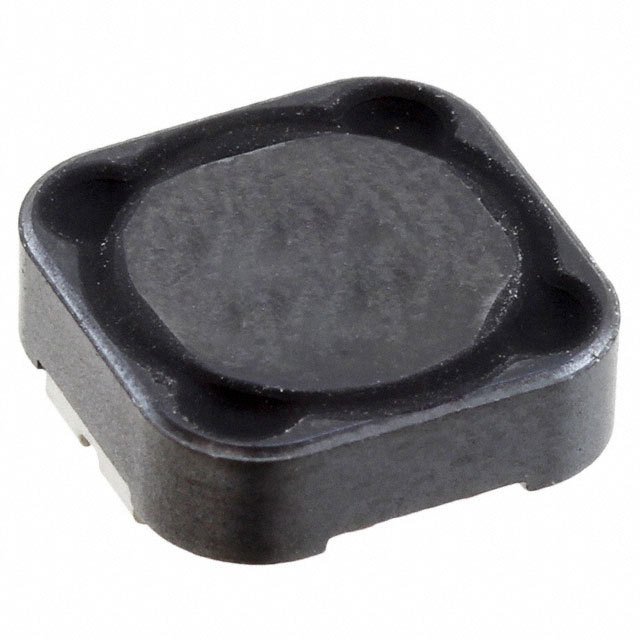

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH124
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.9µH
Tolerance : ±20%
Current Rating : 6.5A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 15 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
276 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH124
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 68µH
Tolerance : ±20%
Current Rating : 1.5A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 220 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
661 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH124
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 6.8µH
Tolerance : ±20%
Current Rating : 4.9A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 23 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3485 in stock

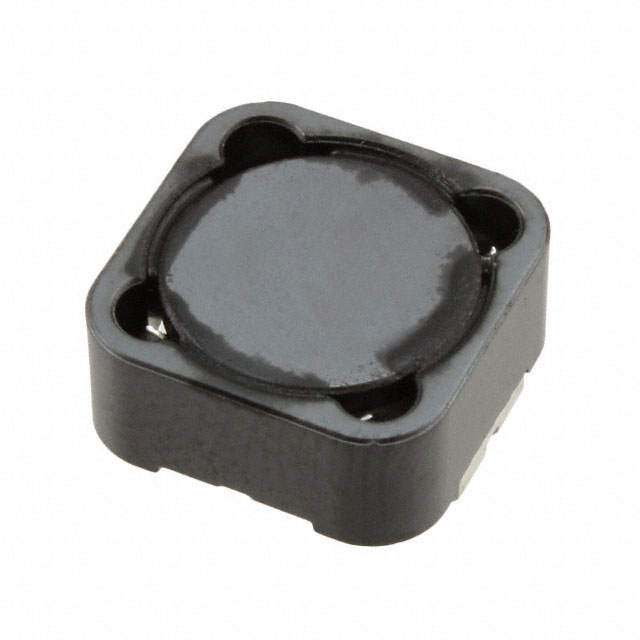

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH125/LD
Part Status : Active
Type : -
Material - Core : -
Inductance : 10µH
Tolerance : ±30%
Current Rating : 4.6A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 29 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
0
131 in stock
