Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock

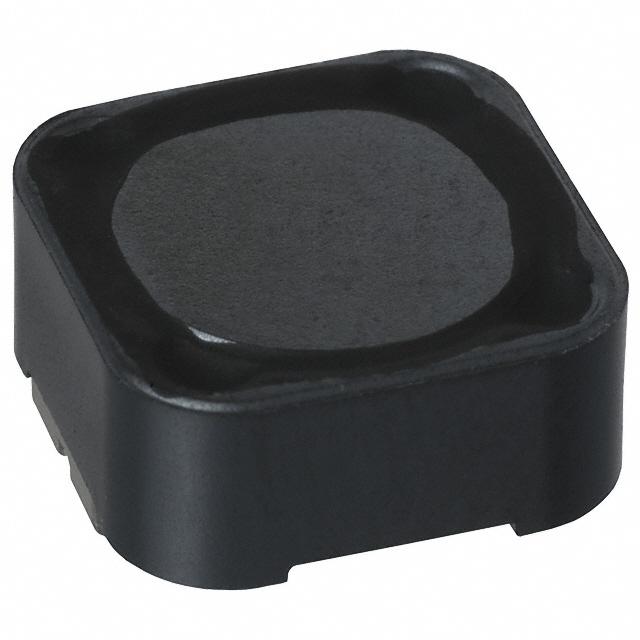

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH125
Part Status : Active
Type : -
Material - Core : -
Inductance : 82µH
Tolerance : ±20%
Current Rating : 1.4A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 140 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
0
139 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH127/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 6.7A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 19.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
1099 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH127/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±20%
Current Rating : 2.1A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 151 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
14503 in stock

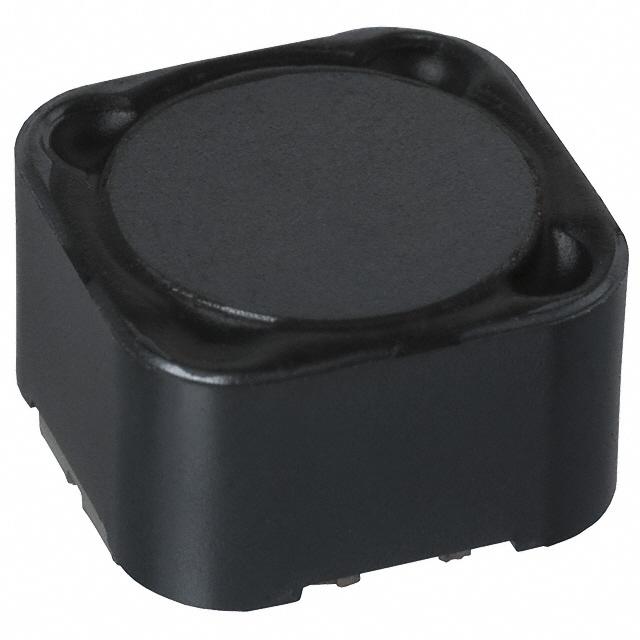

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH127/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±20%
Current Rating : 700mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.5 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
2662 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH127/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 12µH
Tolerance : ±20%
Current Rating : 6.45A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 21.3 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
1682 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH127/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±20%
Current Rating : 5.65A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 26.4 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
29209 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH127/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 150µH
Tolerance : ±20%
Current Rating : 1.8A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 227 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
3000 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH127/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 18µH
Tolerance : ±20%
Current Rating : 5.1A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 28 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
3574 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH127/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±30%
Current Rating : 14A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 6.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
699 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH127/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 4.7A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 36.4 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
259 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH127/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±20%
Current Rating : 1.45A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 338 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
2632 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH127/LD
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 27µH
Tolerance : ±20%
Current Rating : 4.2A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 41.6 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
0
5697 in stock
