- Taitien is a leading global manufacturer of frequency control products and offers a wide range of quartz crystals, oscillators, VCXOs, TCXOs, OCXOs, precision crystals, and thickness monitor crystals. The company is ISO 9001 and TS 16949 certified, with design and application engineering resources in Taiwan, China, and The United States.

Taitien was founded in 1976, as one of the original manufacturers of the tuning fork. In the early 1990s, Taitien became a primary VCXO supplier for major telecommunication companies. In the following years, Taitien invested significant resources into R&D, becoming one of the leading producers of surface mount oscillators with CMOS and LVPECL outputs. To this day, Taitien continues to operate as a top tier manufacturer in the FCP industry, offering leading edge solutions to its customers worldwide.


Part Number

Manufacturer

Description

Unit Price

In Stock

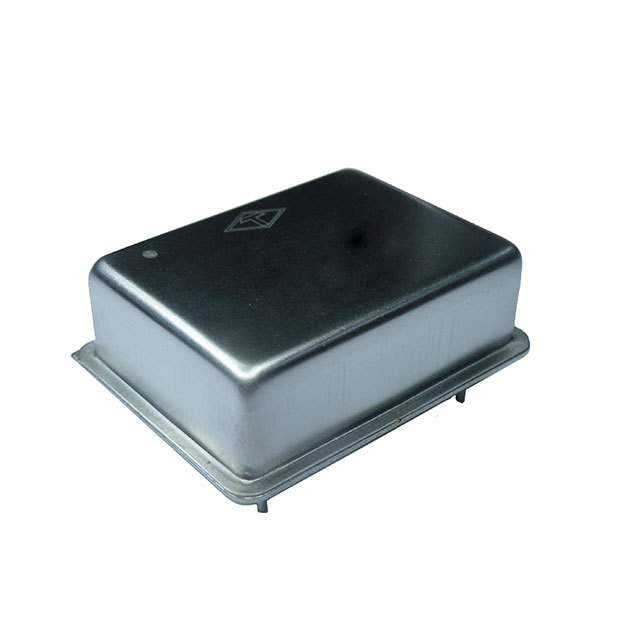

NI-10M-2803

Taitien

Manufacturer : Taitien
Packaging : Bulk
Series : NI-10M-2800
Part Status : Active
Base Resonator : Crystal
Type : OCXO
Frequency : 10MHz
Function : -
Output : LVTTL
Voltage - Supply : 12V
Frequency Stability : ±3ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 400mA
Ratings : -
Mounting Type : Through Hole
Package / Case : 6-DIP (1.000", 25.40mm), 5 Leads
Size / Dimension : 1.430" L x 1.070" W (36.32mm x 27.18mm)
Height - Seated (Max) : 0.500" (12.70mm)

9 in stock

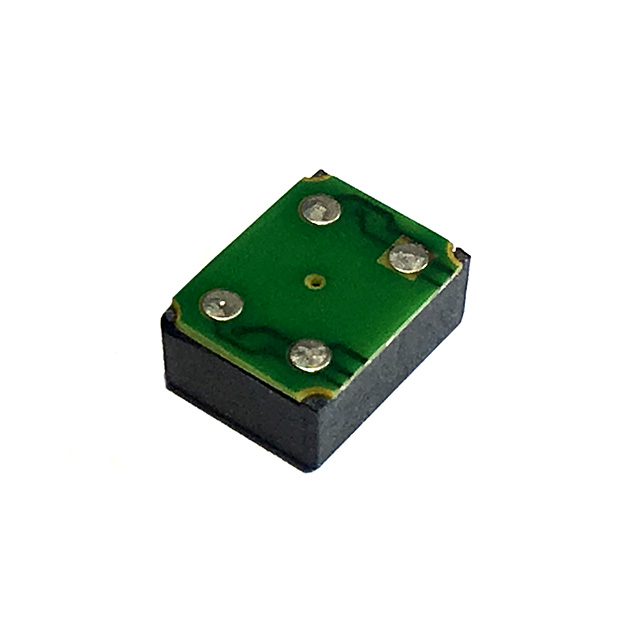

NNENCLJNNF-10.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : NN
Part Status : Active
Base Resonator : Crystal
Type : OCXO
Frequency : 10MHz
Function : -
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±20ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 350mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.382" L x 0.295" W (9.70mm x 7.50mm)
Height - Seated (Max) : 0.161" (4.10mm)

100 in stock

NNENCLJNNF-20.000000

Taitien

Manufacturer : Taitien
Packaging : Strip
Series : NN
Part Status : Active
Base Resonator : Crystal
Type : OCXO
Frequency : 20MHz
Function : -
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±20ppb
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 350mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.382" L x 0.295" W (9.70mm x 7.50mm)
Height - Seated (Max) : 0.161" (4.10mm)

40 in stock

OCETDCJANF-12.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OC
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 12MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±25ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 10mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.059" (1.50mm)

500 in stock

OCETDCJTNF-50.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OC
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 50MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±25ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 20mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.059" (1.50mm)

265 in stock

OCETDLJANF-25.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OC
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 25MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±25ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 10mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.059" (1.50mm)

5939 in stock

OCETDLJTNF-50.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OC
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 50MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±25ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 20mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.059" (1.50mm)

1112 in stock

OCETGCJANF-0.032768

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OC
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 32.768kHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 1mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.059" (1.50mm)

417 in stock

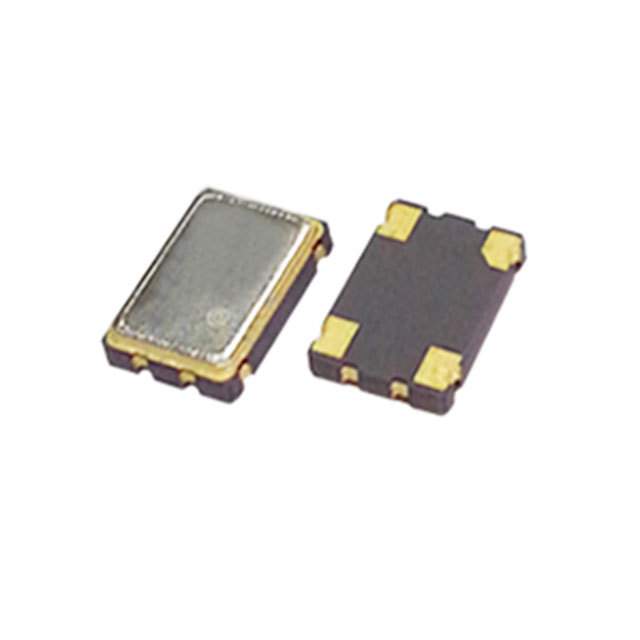

OCETGCJANF-33.333000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OC
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 33.333MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 20mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.059" (1.50mm)

500 in stock

OCETGCJTNF-48.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OC
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 48MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Absolute Pull Range (APR) : -
Operating Temperature : -20°C ~ 70°C
Current - Supply (Max) : 20mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.059" (1.50mm)

650 in stock

OCETGLJANF-26.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OC
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 26MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 10mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.059" (1.50mm)

453 in stock

OCETGLJANF-27.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OC
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 27MHz
Function : Enable/Disable
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±50ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 10mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) : 0.059" (1.50mm)

493 in stock
