Taiwan Semiconductor
- Recognized for more than 37 years for its core competence in discrete power rectifiers, Taiwan Semiconductor has expanded its product portfolio to include trench schottkys, analog ICs, LED driver ICs, power transistors and MOSFETs, and now provides a complete solution from one source. Taiwan Semiconductor products are used in a vast array of applications in the electronics industry, including automotive, computer, consumer, industrial, telecom and photovoltaic.
Through strategic expansion of innovative manufacturing capabilities, and its focus on pioneering efficient semiconductor solutions, Taiwan Semiconductor is committed to being the right choice for a successful and lasting business relationship and offers these key advantages:
- Broad selection of semiconductor products from one source
- Modern, efficient, and customer-oriented logistics processes
- Maximum flexibility including customer specific requirements
- Maximum level of quality and performance for customer applications
Part Number
Manufacturer
Description
Unit Price
In Stock
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 90 mOhm @ 6A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.3nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 500pF @ 15V
FET Feature : -
Power Dissipation (Max) : 25W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount

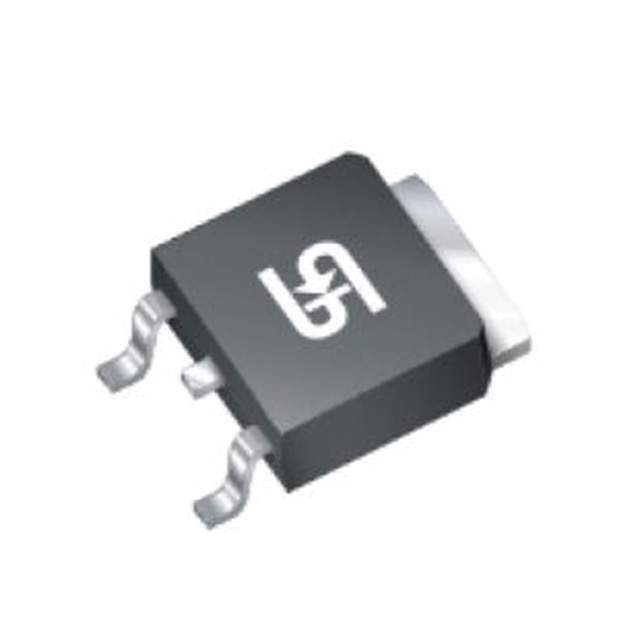

Supplier Device Package : TO-252, (D-Pak)
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
3162 in stock
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 90 mOhm @ 6A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.3nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 500pF @ 15V
FET Feature : -
Power Dissipation (Max) : 25W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount

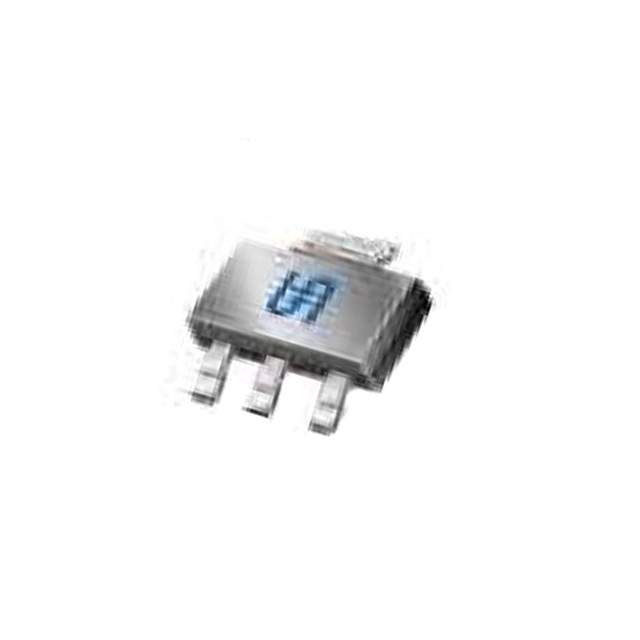

Supplier Device Package : SOT-223
Package / Case : TO-261-4, TO-261AA
0
9997 in stock
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Tube
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 90 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.3nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1480pF @ 50V
FET Feature : -
Power Dissipation (Max) : 50W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-251 (IPAK)
Package / Case : TO-251-3 Stub Leads, IPak
0
3696 in stock
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 90 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.3nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1480pF @ 50V
FET Feature : -
Power Dissipation (Max) : 50W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252, (D-Pak)
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
7200 in stock
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 155 mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 540pF @ 30V
FET Feature : -
Power Dissipation (Max) : 3W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount

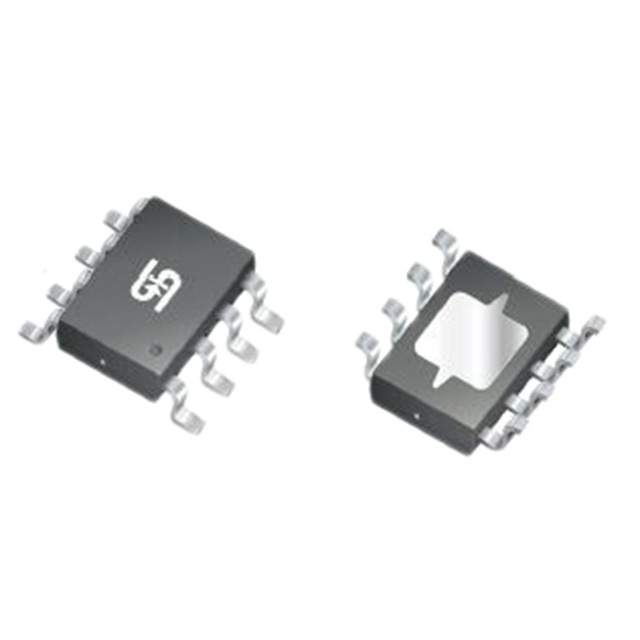

Supplier Device Package : 8-SOP
Package / Case : 8-SOIC (0.154", 3.90mm Width)
0
4934 in stock
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 5.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 60 mOhm @ 5.3A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 27nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 551.57pF @ 15V
FET Feature : -
Power Dissipation (Max) : 5.3W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP
Package / Case : 8-SOIC (0.154", 3.90mm Width)
0
4997 in stock
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 6.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 95 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.3nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1480pF @ 50V
FET Feature : -
Power Dissipation (Max) : 9W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-223
Package / Case : TO-261-4, TO-261AA
0
10000 in stock
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 6A (Tc)
Rds On (Max) @ Id, Vgs : 30 mOhm @ 6A, 10V
Vgs(th) (Max) @ Id : 600mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 562pF @ 8V
Power - Max : 1.6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
0
3461 in stock
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4.7A (Tc)
Rds On (Max) @ Id, Vgs : 60 mOhm @ 4.7A, 4.5V
Vgs(th) (Max) @ Id : 1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 640pF @ 10V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
0
3898 in stock
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Tube
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 9A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 72nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 2470pF @ 25V
FET Feature : -
Power Dissipation (Max) : 89W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole

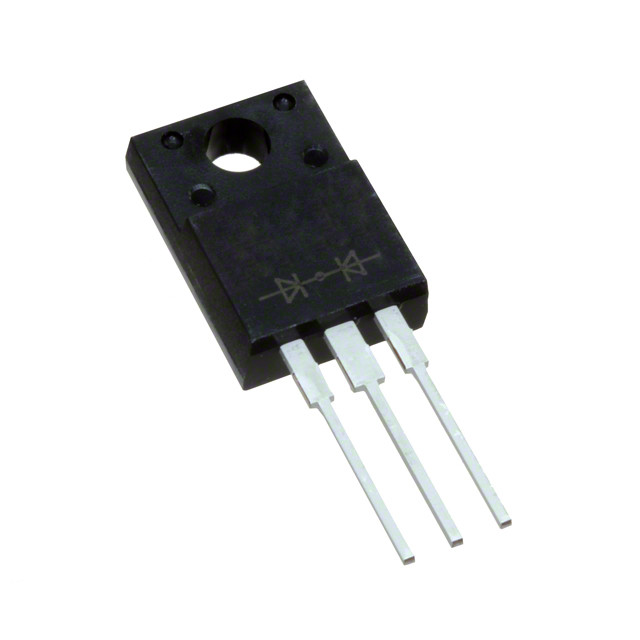

Supplier Device Package : ITO-220
Package / Case : TO-220-3 Full Pack, Isolated Tab
0
980 in stock
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Tube
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 9A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 72nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 2470pF @ 25V
FET Feature : -
Power Dissipation (Max) : 89W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole

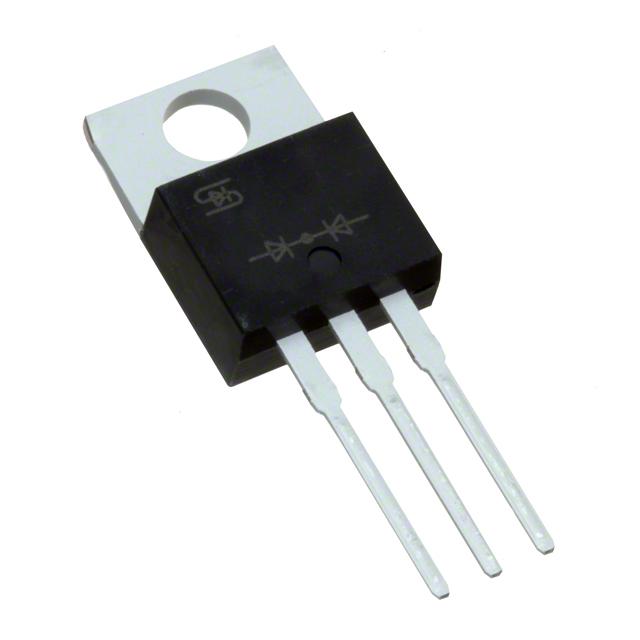

Supplier Device Package : TO-220
Package / Case : TO-220-3
0
976 in stock
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : -
Series : *
Part Status : Active
FET Type : -
Technology : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : -
Supplier Device Package : -
Package / Case : -
0
100 in stock
