Talema

- Established in 1975, Talema has grown rapidly as a manufacturer of leading-edge toroidal transformers. Today, its workforce numbers more than 1,200, and the company is proud of their strong technical engineering expertise. The Irish headquarters, as well as Talema branch offices across East, West, and Central Europe, Scandinavia, Australia, and the Far East handle marketing, sales, and after-sales services. The United States business is handled by Talema Group LLC. Approximately 15% of Nuvotem Talema staff is assigned to these services.


Part Number

Manufacturer

Description

Unit Price

In Stock

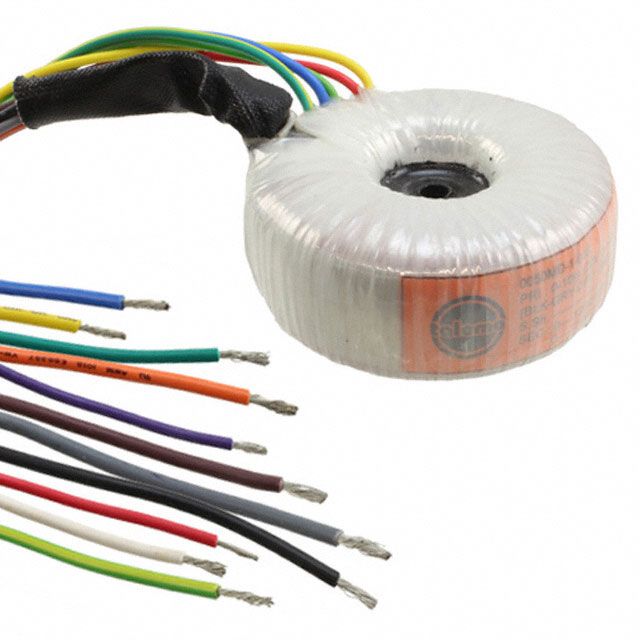

0050MD-1-003

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 420mA, Series 210mA
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 81.00mm Dia x 38.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 1.8 lbs (816.5g)

13 in stock

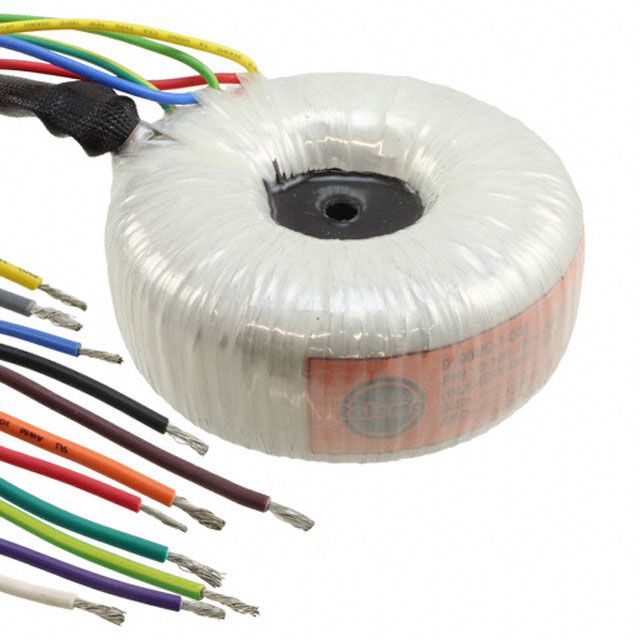

0100MD-1-003

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 830mA, Series 420mA
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 99.00mm Dia x 41.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 2.4 lbs (1.1kg)

42 in stock

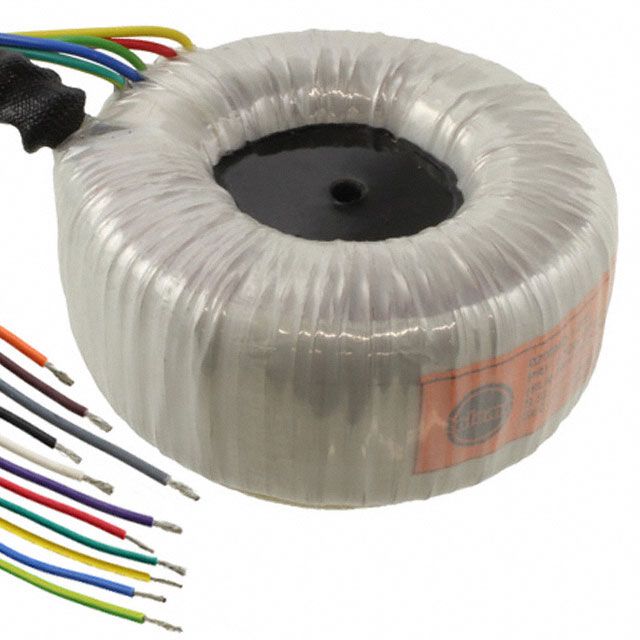

0200MD-1-003

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 1.67A, Series 830mA
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 200 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 117.00mm Dia x 56.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 5 lbs (2.3kg)

100 in stock

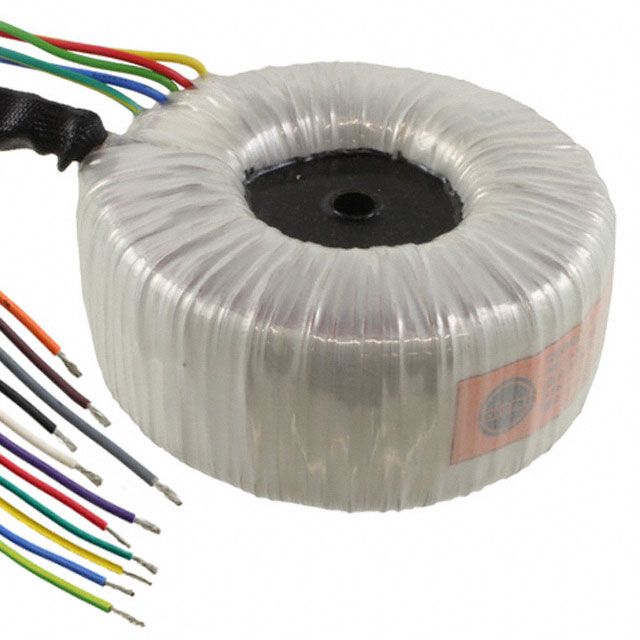

0300MD-1-003

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 2.5A, Series 1.25A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 300 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 127.00mm Dia x 62.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 6.2 lbs (2.8kg)

100 in stock

0300MD-1-004

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 2.5A, Series 1.25A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 300 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 127.00mm Dia x 62.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 6.2 lbs (2.8kg)

100 in stock

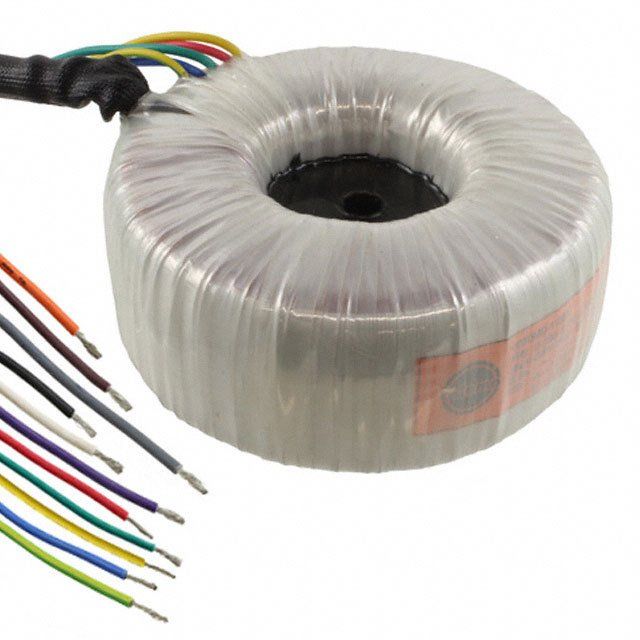

0350MD-1-003

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 2.92A, Series 1.46A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 350 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 132.00mm Dia x 58.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 6.7 lbs (3kg)

100 in stock

0350MD-1-004

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 2.92A, Series 1.46A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 350 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 132.00mm Dia x 58.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 6.7 lbs (3kg)

100 in stock

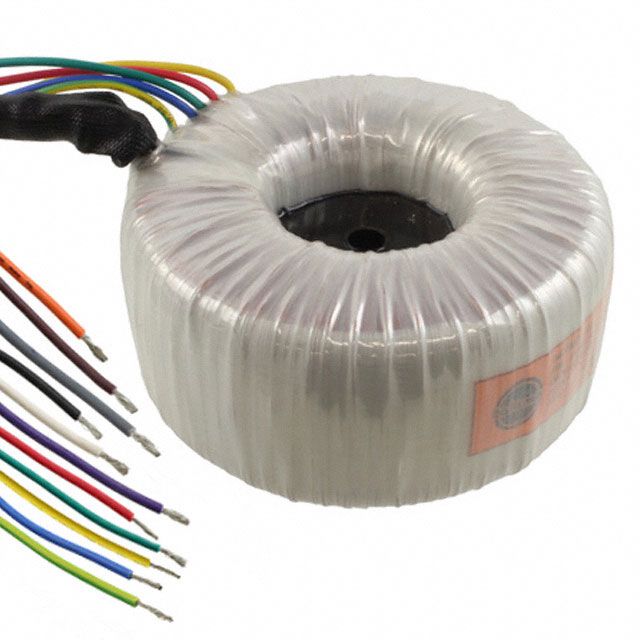

0400MD-1-003

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 3.33A, Series 1.67A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 400 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 132.00mm Dia x 64.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 7.5 lbs (3.4kg)

100 in stock

0400MD-1-004

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 3.33A, Series 1.67A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 400 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 132.00mm Dia x 64.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 7.5 lbs (3.4kg)

100 in stock

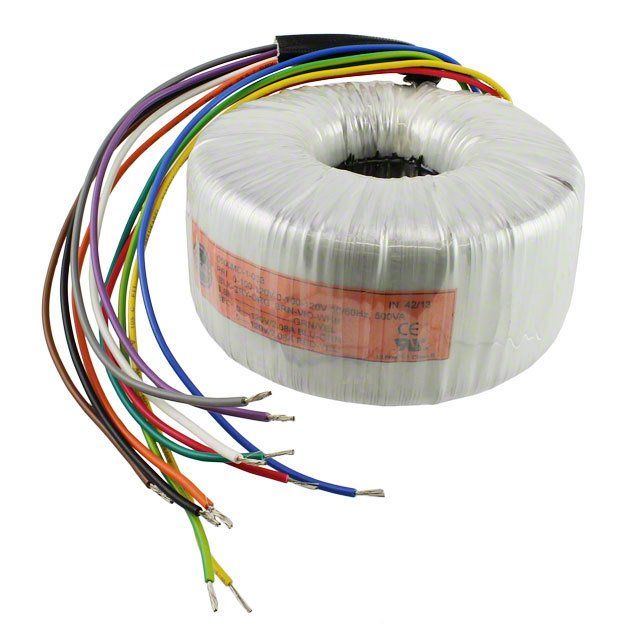

0500MD-1-003

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 4.17A, Series 2.08A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 134.00mm Dia x 70.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 9.4 lbs (4.3kg)

100 in stock

0500MD-1-004

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 4.17A, Series 2.08A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 134.00mm Dia x 70.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 9.4 lbs (4.3kg)

100 in stock

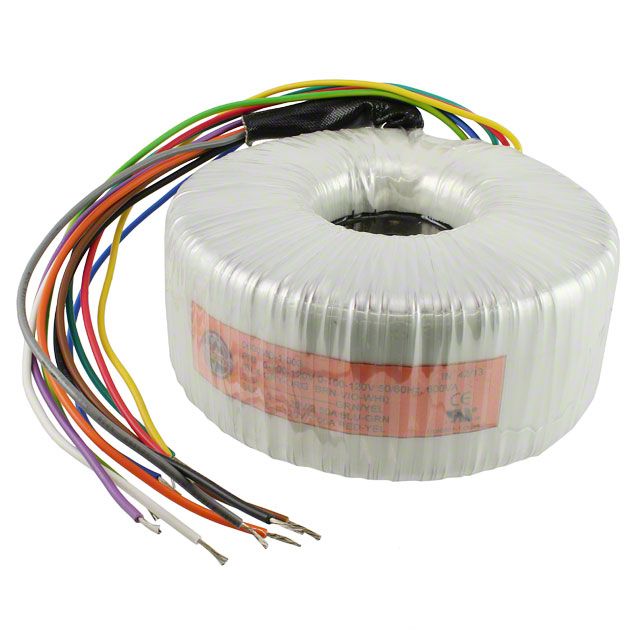

0600MD-1-003

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 5A, Series 2.5A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 600 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 150.00mm Dia x 70.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 11 lbs (5kg)

9 in stock
