TDK Corporation
TDK Corporation (Tokyo Denkikagaku Kogyo) was established in December 1935 with the aim of becoming the world's first commercial manufacturer of the magnetic material ferrite. TDK, since then, has continued ceaselessly to turn out a variety of products and services making use of its materials technology, centering on ferrite and ceramics, and processing technology, which draws out the properties of materials to the maximum degree. The founding spirit of TDK, "contribute to culture and industry through creativity," continues to this day to pulsate throughout the company.
Part Number
Manufacturer
Description
Unit Price
In Stock

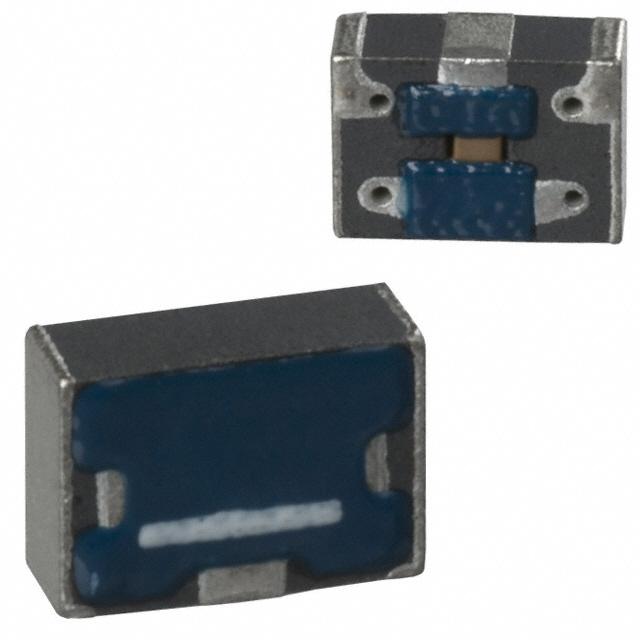

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ACH
Part Status : Not For New Designs
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 25dB @ 75MHz ~ 160MHz
Resistance - Channel (Ohms) : 0.06
Current : 2A
Values : -
ESD Protection : No
Operating Temperature : -40°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 50V
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), 3 PC Pad
Size / Dimension : 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height : 0.138" (3.50mm)
0
100 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ACH
Part Status : Not For New Designs
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 25dB @ 20MHz ~ 85MHz
Resistance - Channel (Ohms) : 0.06
Current : 2A
Values : -
ESD Protection : No
Operating Temperature : -40°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 50V
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), 3 PC Pad
Size / Dimension : 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height : 0.138" (3.50mm)
0
16000 in stock

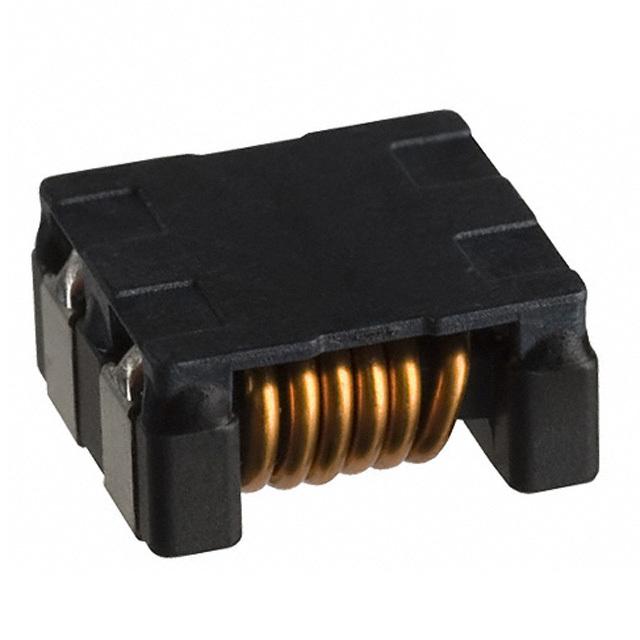

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 1 kOhms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 14 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.472" L x 0.433" W (12.00mm x 11.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad
0
69656 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 700 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 6 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.472" L x 0.433" W (12.00mm x 11.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad
0
48968 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM-V
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 700 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 6 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.472" L x 0.433" W (12.00mm x 11.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 J-Lead
0
24877 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : ACM
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 4 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.591" L x 0.512" W (15.00mm x 13.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock

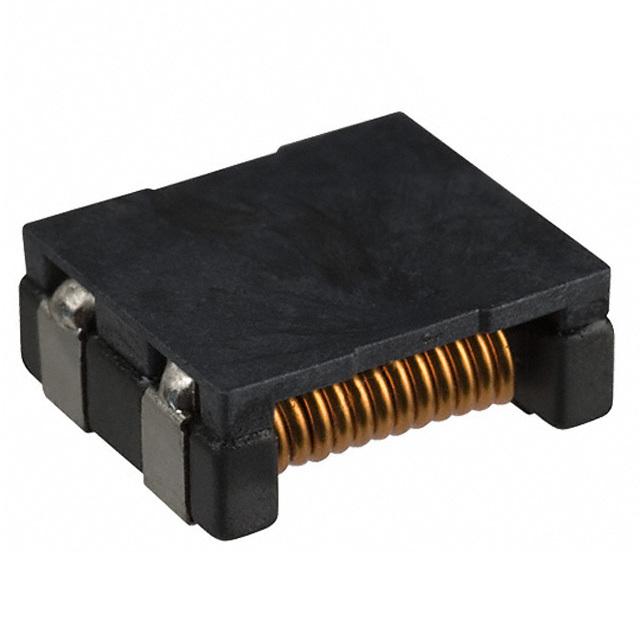

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : ACM
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 550 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 4 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.591" L x 0.512" W (15.00mm x 13.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 550 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 4 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.591" L x 0.512" W (15.00mm x 13.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad
0
3395 in stock

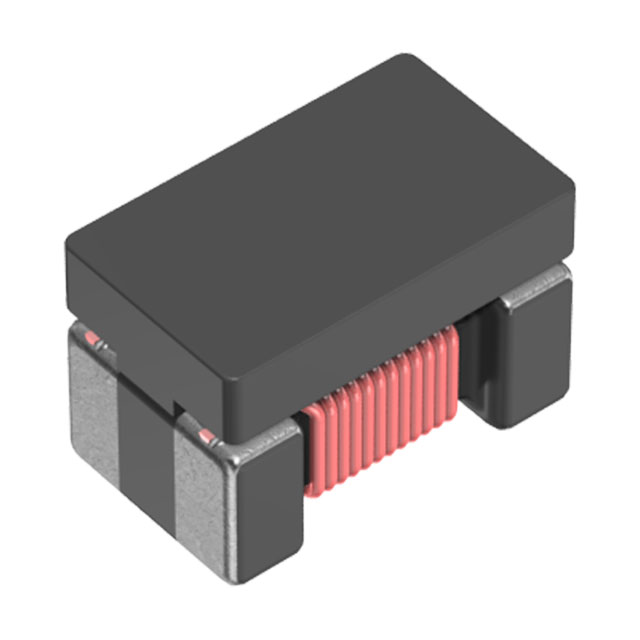

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 120 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 370mA
DC Resistance (DCR) (Max) : 220 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) : 0.051" (1.30mm)
Package / Case : Horizontal, 4 PC Pad
0
1361 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 120 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 370mA
DC Resistance (DCR) (Max) : 220 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) : 0.051" (1.30mm)
Package / Case : Horizontal, 4 PC Pad
0
94641 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 200 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 350mA
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) : 0.051" (1.30mm)
Package / Case : Horizontal, 4 PC Pad
0
15306 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 200 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 350mA
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) : 0.051" (1.30mm)
Package / Case : Horizontal, 4 PC Pad
0
76634 in stock
