Tensility International Corporation

- Tensility is a custom cable assemblies company that supports engineers, OEMs, and distribution throughout the world. Tensility's business practices and philosophies are inspired from the properties of the cable itself: strength, purity, and flexibility.

Tensility’s core strengths are in two major product lines: dc power cables and audio cables. Digi-Key’s line of Tensility cables covers most standard applications. However, Tensility specializes in creating a cable specifically designed for a customer’s application. If a cord is too short or long, or the connector needs to be modified, Tensility will facilitate the process of specifying the exact cable for any application.

Tensility also supplies a wide variety of more unusual cables, from customized overmolded wire harnesses to highly complex assemblies. Since each product is built to order, including the cables built for Digi-Key to complement their connector products, understanding and executing a customer’s needs is Tensility’s top priority.

Part Number
Manufacturer
Description
Unit Price
In Stock

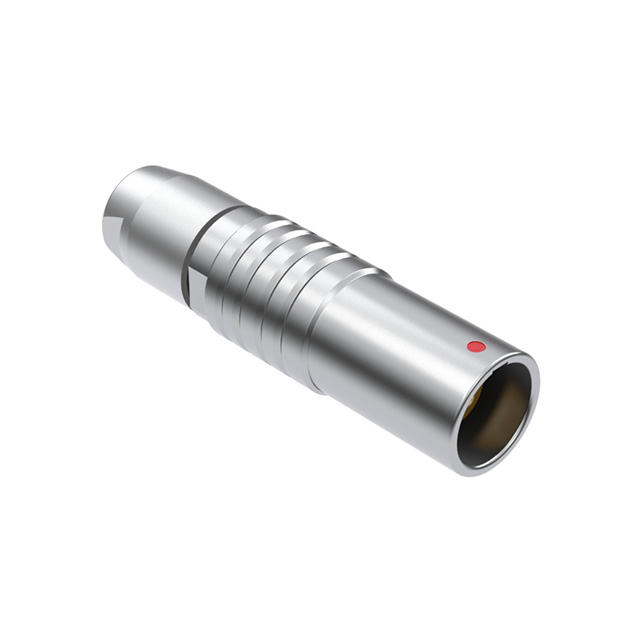

51-00026.52  51-00026.52

Tensility International Corporation
Manufacturer : Tensility International Corp
Packaging : Bulk
Series : PPL7
Part Status : Active
Connector Type : Receptacle, Female Sockets
Number of Positions : 7
Shell Size - Insert : -
Shell Size, MIL : -
Mounting Type : Free Hanging (In-Line)
Mounting Feature : -
Termination : Solder Cup
Fastening Type : Push-Pull
Orientation : 0
Shell Material : Brass
Shell Finish : Nickel
Contact Finish - Mating : Gold
Color : Silver
Ingress Protection : IP50 - Dust Protected
Material Flammability Rating : UL94 V-0
Features : Backshell
Shielding : -
Current Rating : 2.5A
Voltage Rating : 300V
0
100 in stock

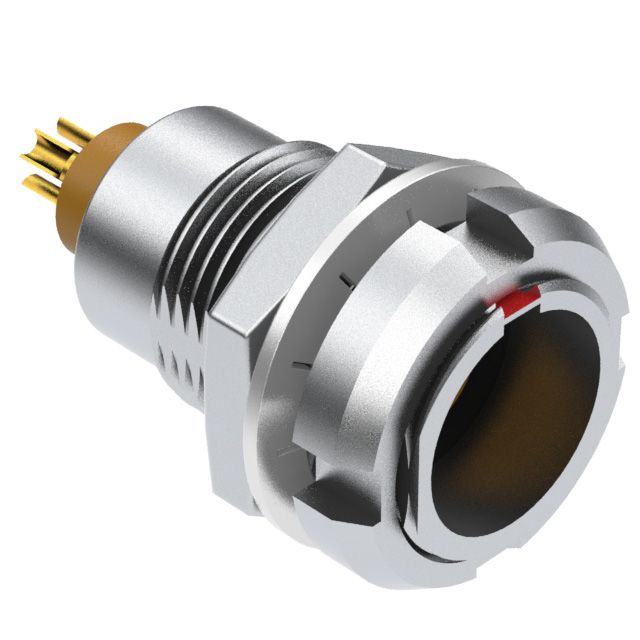

51-00027  51-00027

Tensility International Corporation
Manufacturer : Tensility International Corp
Packaging : Bulk
Series : PPL7
Part Status : Active
Connector Type : Receptacle, Female Sockets
Number of Positions : 7
Shell Size - Insert : -
Shell Size, MIL : -
Mounting Type : Panel Mount
Mounting Feature : Front and Rear Side Nut
Termination : Solder Cup
Fastening Type : Push-Pull
Orientation : 0
Shell Material : Brass
Shell Finish : Nickel
Contact Finish - Mating : Gold
Color : Silver
Ingress Protection : IP50 - Dust Protected
Material Flammability Rating : UL94 V-0
Features : -
Shielding : -
Current Rating : 2.5A
Voltage Rating : 300V
0
99 in stock

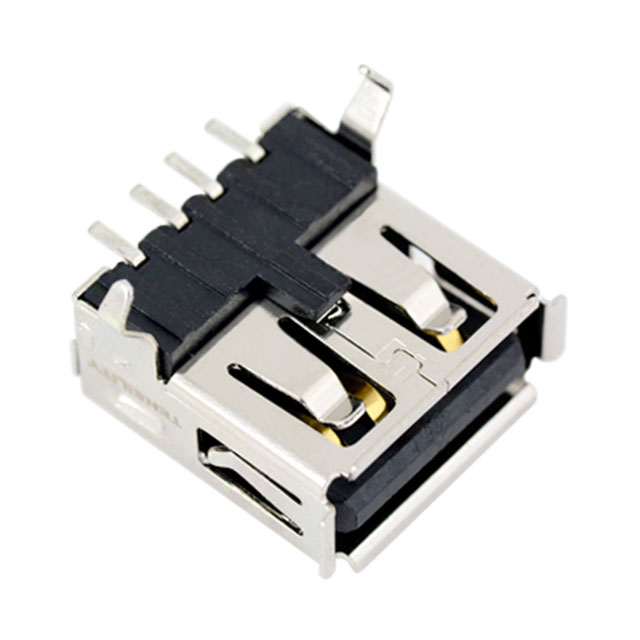

54-00003 54-00003

Tensility International Corporation
Manufacturer : Tensility International Corp
Packaging : Tray
Series : -
Part Status : Active
Connector Type : USB - A
Number of Contacts : 4
Gender : Receptacle
Specifications : -
Mounting Type : Surface Mount, Right Angle
Mounting Feature : Horizontal
Termination : Solder
Features : Board Lock
Ingress Protection : -
Operating Temperature : -40°C ~ 85°C
Number of Ports : 1
Current Rating : 3A
Voltage - Rated : 30VDC
Mating Cycles : 1500
Shielding : Unshielded
0
82 in stock

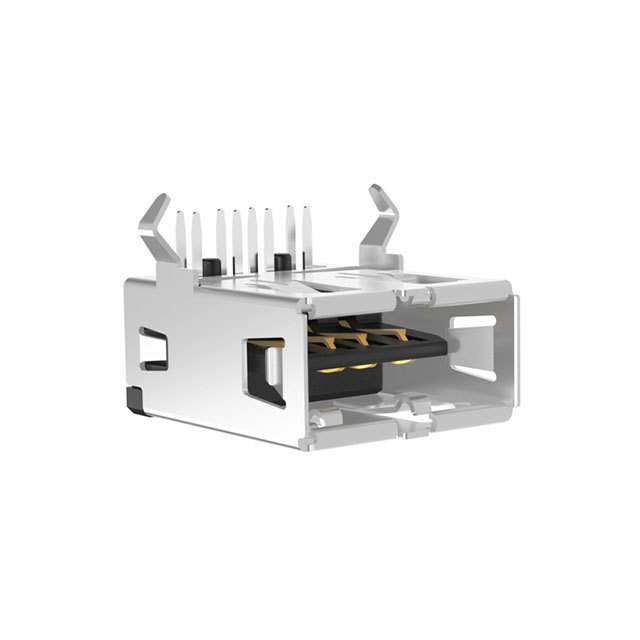

54-00030 54-00030

Tensility International Corporation
Manufacturer : Tensility International Corp
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : USB - A
Number of Contacts : 8
Gender : Receptacle
Specifications : USB 2.0
Mounting Type : Through Hole, Right Angle
Mounting Feature : Horizontal, Reversible
Termination : Solder
Features : Board Lock
Ingress Protection : -
Operating Temperature : -25°C ~ 85°C
Number of Ports : 1
Current Rating : 1A
Voltage - Rated : 30V
Mating Cycles : 1500
Shielding : Unshielded
0
376 in stock

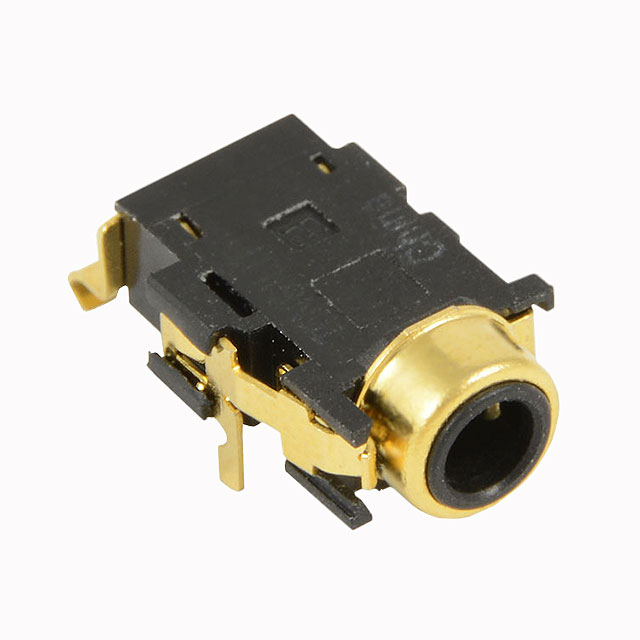

54-00032  54-00032

Tensility International Corporation
Manufacturer : Tensility International Corp
Packaging : Tray
Series : -
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : 6 Conductor
Industry Recognized Mating Diameter : 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter : 0.144" (3.66mm)
Number of Positions/Contacts : 6 Conductors, 6 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Through Hole, Right Angle
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
0
4287 in stock

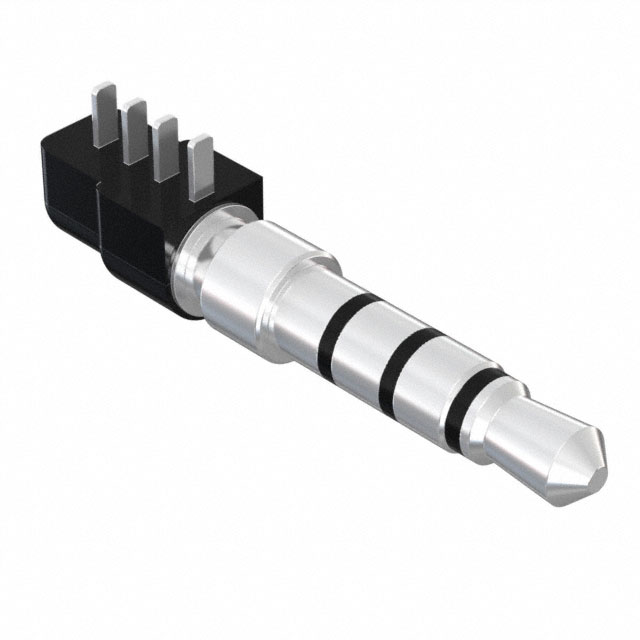

54-00035  54-00035

Tensility International Corporation
Manufacturer : Tensility International Corp
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Phone Plug
Gender : Male
Signal Lines : Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter : 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter : 0.138" (3.50mm)
Number of Positions/Contacts : 4 Conductors, 4 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Through Hole, Right Angle
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
0
5972 in stock

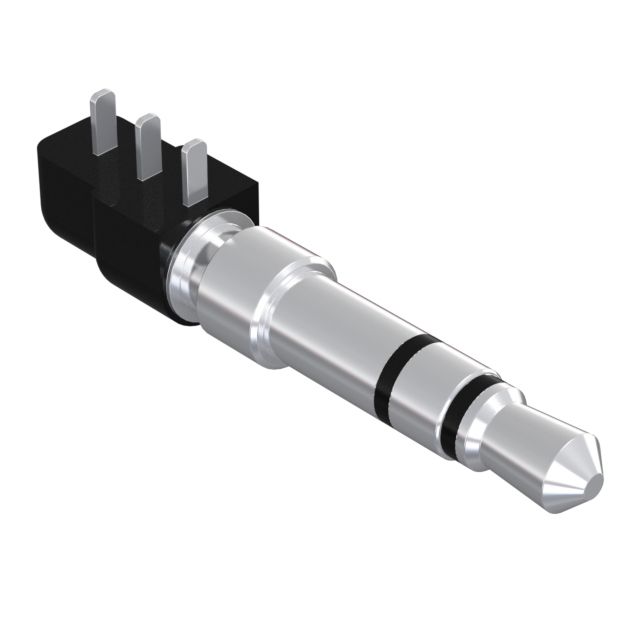

54-00036  54-00036

Tensility International Corporation
Manufacturer : Tensility International Corp
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Phone Plug
Gender : Male
Signal Lines : Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter : 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter : 0.138" (3.50mm)
Number of Positions/Contacts : 3 Conductors, 3 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Through Hole, Right Angle
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
0
7741 in stock

54-00060  54-00060

Tensility International Corporation
Manufacturer : Tensility International Corp
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.00mm ID (0.039"), 3.50mm OD (0.138")
Actual Diameter : 0.039" (1.00mm ID), 0.146" (3.70mm OD)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Panel Mount
Mounting Feature : Bulkhead - Rear Side Nut
Termination : Solder
Shielding : Unshielded
Features : Mounting Hardware
Insulation Color : -
Voltage - Rated : 48VDC
Current Rating : 5.5A
Mating Length/Depth : -
Ingress Protection : -
0
2426 in stock

54-00061  54-00061

Tensility International Corporation
Manufacturer : Tensility International Corp
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.35mm ID (0.053"), 3.50mm OD (0.138")
Actual Diameter : 0.051" (1.30mm ID), 0.146" (3.70mm OD)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Panel Mount
Mounting Feature : Bulkhead - Rear Side Nut
Termination : Solder
Shielding : Unshielded
Features : Mounting Hardware
Insulation Color : -
Voltage - Rated : 48VDC
Current Rating : 7A
Mating Length/Depth : -
Ingress Protection : -
0
858 in stock

54-00062  54-00062

Tensility International Corporation
Manufacturer : Tensility International Corp
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.70mm ID (0.067"), 4.75mm OD (0.187") EIAJ-3
Actual Diameter : 0.065" (1.65mm ID), 0.195" (4.95mm OD)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Panel Mount
Mounting Feature : Bulkhead - Rear Side Nut
Termination : Solder
Shielding : Unshielded
Features : Mounting Hardware
Insulation Color : -
Voltage - Rated : 48VDC
Current Rating : 6.5A
Mating Length/Depth : -
Ingress Protection : -
0
5790 in stock

54-00063  54-00063

Tensility International Corporation
Manufacturer : Tensility International Corp
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.224" (5.70mm OD)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Panel Mount
Mounting Feature : Bulkhead - Rear Side Nut
Termination : Solder
Shielding : -
Features : Mounting Hardware
Insulation Color : -
Voltage - Rated : 48VDC
Current Rating : 6.5A
Mating Length/Depth : -
Ingress Protection : -
0
12940 in stock

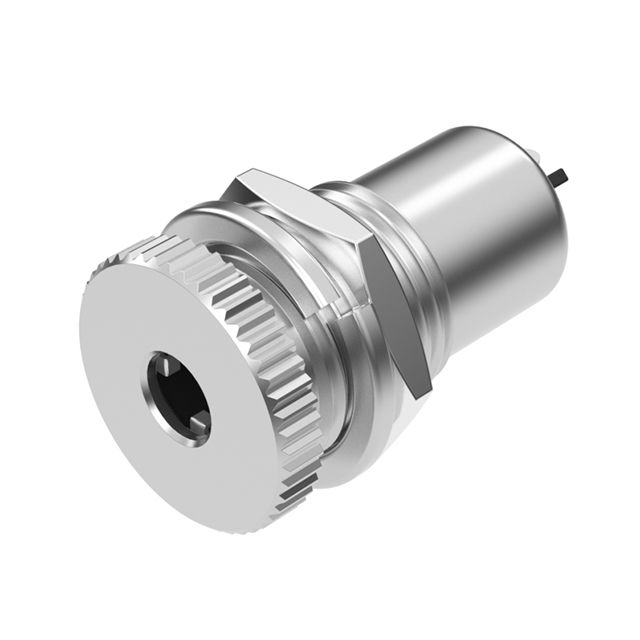

54-00080  54-00080

Tensility International Corporation
Manufacturer : Tensility International Corp
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter : 0.142" (3.60mm)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Panel Mount
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : Mounting Hardware
Insulation Color : Black
0
1374 in stock
