Thomas Research Products
- TRP provides complete component solutions for OEMs using LEDs for lighting: a comprehensive line of LED Drivers and LED Light Engines, a range of cost-effective Surge Protectors that offers a superior level protection for LED lighting from dangerous powerline transients, Step-Down Transformers for lighting and Wireless Lighting Controls. TRP's Norlux brand custom services include design and manufacturing for Light Engines and Fixtures. Electronic lighting components from TRP provide high quality, long life, high efficiency, and are cost-competitive.
Part Number
Manufacturer
Description
Unit Price
In Stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Tray
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 230 lm (Typ)
Current - Test : 266mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12VAC
Lumens/Watt @ Current - Test : 72 lm/W
Current - Max : 360mA
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 9.90mm Diameter
Height : 2.00mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Tray
Series : -
Part Status : Obsolete

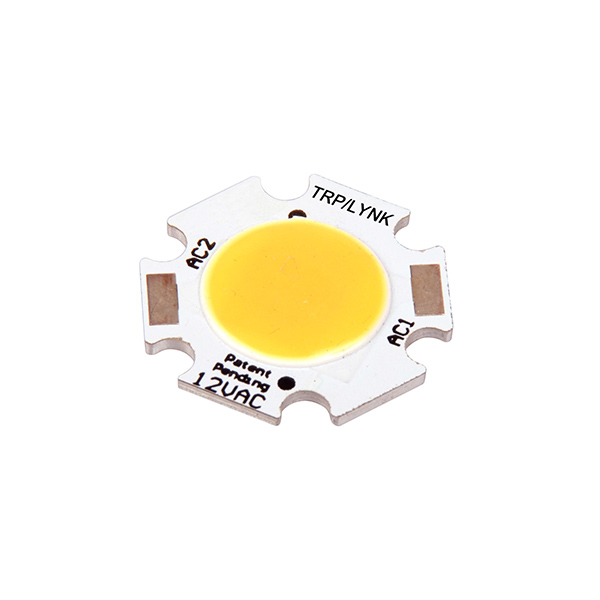

Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 580 lm (Typ)
Current - Test : 832mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12VAC
Lumens/Watt @ Current - Test : 83 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.70mm Diameter
Height : 2.50mm
Light Emitting Surface (LES) : 10.00mm
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Tray
Series : -
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 740 lm (Typ)
Current - Test : 1.3A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12VAC
Lumens/Watt @ Current - Test : 47 lm/W
Current - Max : 1.5A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 19.70mm Diameter
Height : 2.50mm
Light Emitting Surface (LES) : 10.00mm
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Tray
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 1091 lm (Typ)
Current - Test : -
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 120VAC
Lumens/Watt @ Current - Test : -
Current - Max : 120mA
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 99.40mm Diameter
Height : 6.00mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Tray
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Cool
CCT (K) : 5000K
Wavelength : -

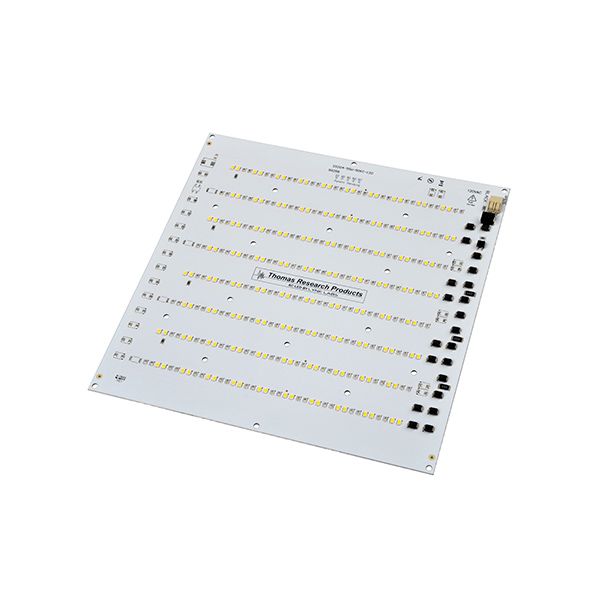

Configuration : Square
Flux @ Current/Temperature - Test : 7736 lm (Typ)
Current - Test : 965mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 120VAC
Lumens/Watt @ Current - Test : 67 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 203.20mm L x 203.20mm W
Height : 6.00mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Tray
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4067 lm (Typ)
Current - Test : 460mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 120VAC
Lumens/Watt @ Current - Test : 74 lm/W
Current - Max : 520mA
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 203.20mm L x 203.20mm W
Height : 6.00mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Tray
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Cool
CCT (K) : 5700K
Wavelength : -

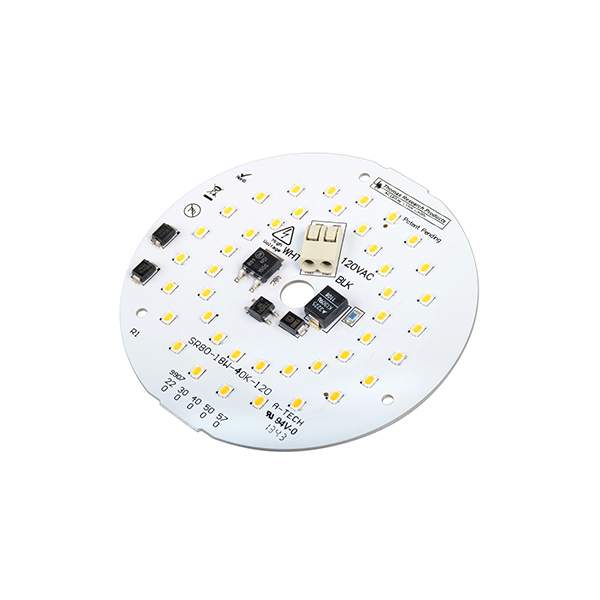

Configuration : Round
Flux @ Current/Temperature - Test : 1380 lm (Typ)
Current - Test : 152mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 120VAC
Lumens/Watt @ Current - Test : 69 lm/W
Current - Max : 170mA
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 80.00mm Diameter
Height : 6.00mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Tray
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Warm
CCT (K) : 2900K
Wavelength : -

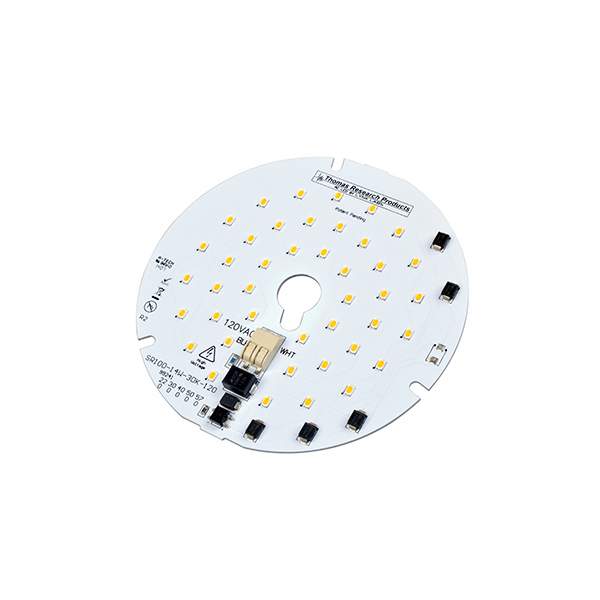

Configuration : Round
Flux @ Current/Temperature - Test : 1079 lm (Typ)
Current - Test : 120mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 120VAC
Lumens/Watt @ Current - Test : 75 lm/W
Current - Max : 120mA
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : Dimming - Warm
Size / Dimension : 100.00mm Diameter
Height : 6.00mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Series : *
Part Status : Obsolete
Accessory Type : -
For Use With/Related Products : -
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Series : -
Part Status : Obsolete

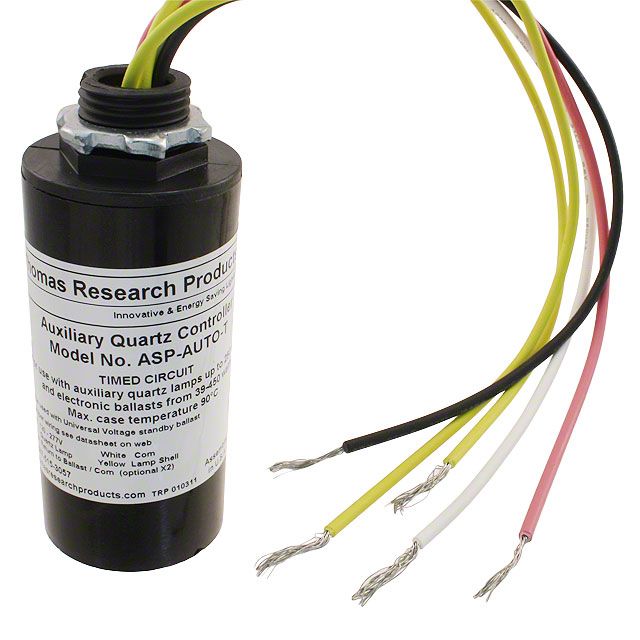

Accessory Type : Lighting Control
For Use With/Related Products : Electronic HID Ballasts
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products

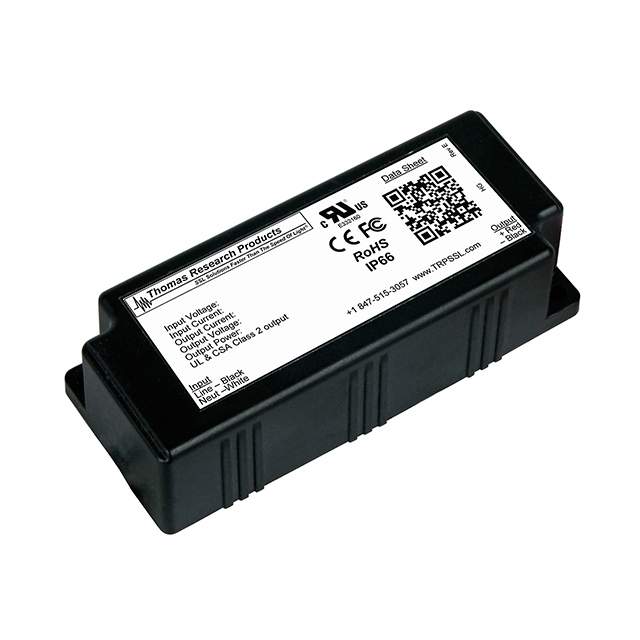

Series : BLED-12W
Part Status : Obsolete
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 12V
Current - Output (Max) : 1A
Power (Watts) : 12W
Voltage - Isolation : -
Dimming : -
Features : -
Ratings : IP64
Operating Temperature : -
Efficiency : 82%
Termination Style : Wire Leads
Size / Dimension : 3.00" L x 1.23" W x 0.98" H (75.9mm x 31.2mm x 25.0mm)
0
8 in stock
Thomas Research Products
Manufacturer : Thomas Research Products

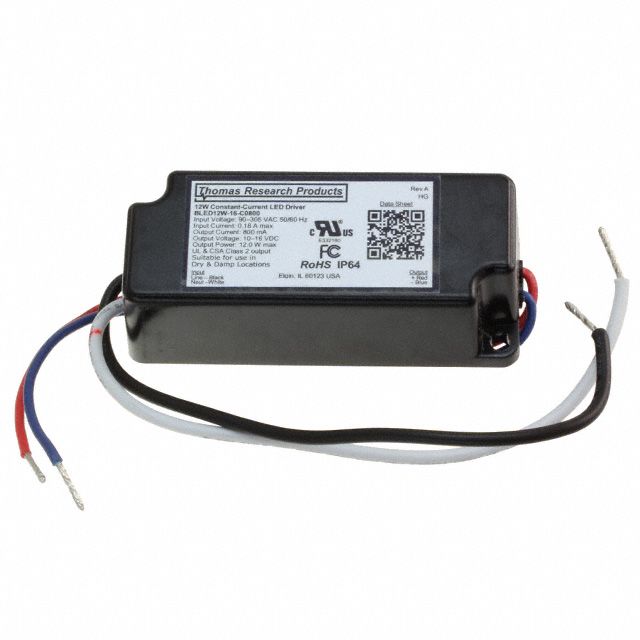

Series : BLED-12W
Part Status : Obsolete
Type : Constant Current
Topology : AC DC Converter
Number of Outputs : 1
Voltage - Input (Min) : 90VAC
Voltage - Input (Max) : 305VAC
Voltage - Output : 16V
Current - Output (Max) : 800mA
Power (Watts) : 12W
Voltage - Isolation : -
Dimming : -
Features : -
Ratings : IP64
Operating Temperature : -
Efficiency : 83%
Termination Style : Wire Leads
Size / Dimension : 3.00" L x 1.23" W x 0.98" H (75.9mm x 31.2mm x 25.0mm)
0
79 in stock
