Torex Semiconductor
- Torex is a leading provider of CMOS power management ICs targeted toward battery powered and energy efficient applications. Torex specializes in CMOS analog technology, with LDO voltage regulators, voltage detectors and DC/DC converters making up our core product offering. Using laser trimming, we are able to offer 1% and 2% accuracy devices. Many of our devices are available in 0.05V increments.
Additional Torex products include charge pump ICs, Multi-Chip Modules, Mosfets, op amps, oscillators, PLL clock generator ICs, Schottky barrier diodes, battery charger ICs, Hall Effect ICs and load switches.
Torex offers a unique GO "Green Operation" energy saving function. Many of our devices are able to automatically or manually switch between high speed mode and power save mode depending upon the load current.
Torex offers some of the smallest packages in the world. All of our devices are RoHS compliant, and our complete product line-up will also be halogen and antimony free by 2Q 2010.
Part Number
Manufacturer
Description
Unit Price
In Stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XCL224
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 2.5V
Voltage - Input (Max) : 5.5V
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 700mA
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, SCP, UVLO
Operating Temperature : -40°C ~ 105°C
Efficiency : 88%
Mounting Type : Surface Mount
Package / Case : 8-SMD Module
Size / Dimension : 0.09" L x 0.06" W x 0.03" H (2.3mm x 1.5mm x 0.8mm)
Supplier Device Package : USP-8B04
Control Features : Enable, Active High
0
2903 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XCL225
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 3V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 1 ~ 15 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, UVLO
Operating Temperature : -40°C ~ 105°C
Efficiency : 82%
Mounting Type : Surface Mount
Package / Case : 10-PowerLFDFN Module
Size / Dimension : 0.12" L x 0.12" W x 0.07" H (3.0mm x 3.0mm x 1.7mm)
Supplier Device Package : DFN3030-10B
Control Features : -
0
3000 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XCL225
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 3V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 1 ~ 15 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, UVLO
Operating Temperature : -40°C ~ 105°C
Efficiency : 82%
Mounting Type : Surface Mount
Package / Case : 10-PowerLFDFN Module
Size / Dimension : 0.12" L x 0.12" W x 0.07" H (3.0mm x 3.0mm x 1.7mm)
Supplier Device Package : DFN3030-10B
Control Features : -
0
3000 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XCL226
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 3V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 1 ~ 15 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, UVLO
Operating Temperature : -40°C ~ 105°C
Efficiency : 82%
Mounting Type : Surface Mount
Package / Case : 10-PowerLFDFN Module
Size / Dimension : 0.12" L x 0.12" W x 0.07" H (3.0mm x 3.0mm x 1.7mm)
Supplier Device Package : DFN3030-10B
Control Features : -
0
3000 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XCL226
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 3V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 1 ~ 15 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA
Power (Watts) : -
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : OCP, OTP, UVLO
Operating Temperature : -40°C ~ 105°C
Efficiency : 82%
Mounting Type : Surface Mount
Package / Case : 10-PowerLFDFN Module
Size / Dimension : 0.12" L x 0.12" W x 0.07" H (3.0mm x 3.0mm x 1.7mm)
Supplier Device Package : DFN3030-10B
Control Features : -
0
3000 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Function : -
Output Configuration : -
Topology : -
Output Type : -
Number of Outputs : -
Voltage - Input (Min) : -
Voltage - Input (Max) : -
Voltage - Output (Min/Fixed) : -
Voltage - Output (Max) : -
Current - Output : -
Frequency - Switching : -
Synchronous Rectifier : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 8-XDFN Exposed Pad
Supplier Device Package : USP-8B10
0
4950 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Function : -
Output Configuration : -
Topology : -
Output Type : -
Number of Outputs : -
Voltage - Input (Min) : -
Voltage - Input (Max) : -
Voltage - Output (Min/Fixed) : -
Voltage - Output (Max) : -
Current - Output : -
Frequency - Switching : -
Synchronous Rectifier : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 8-XDFN Exposed Pad
Supplier Device Package : USP-8B10
0
4830 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 1A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.5V, 4.5V
Rds On (Max) @ Id, Vgs : 100 mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±8V
Input Capacitance (Ciss) (Max) @ Vds : 220pF @ 10V
FET Feature : -
Power Dissipation (Max) : 500mW (Ta)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23
Package / Case : TO-236-3, SC-59, SOT-23-3
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 700mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V
Rds On (Max) @ Id, Vgs : 300 mOhm @ 400mA, 4.5V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±12V
Input Capacitance (Ciss) (Max) @ Vds : 180pF @ 10V
FET Feature : -
Power Dissipation (Max) : 500mW (Ta)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23
Package / Case : TO-236-3, SC-59, SOT-23-3
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V
Rds On (Max) @ Id, Vgs : 55 mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±12V
Input Capacitance (Ciss) (Max) @ Vds : 320pF @ 10V
FET Feature : -
Power Dissipation (Max) : 2W (Ta)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount

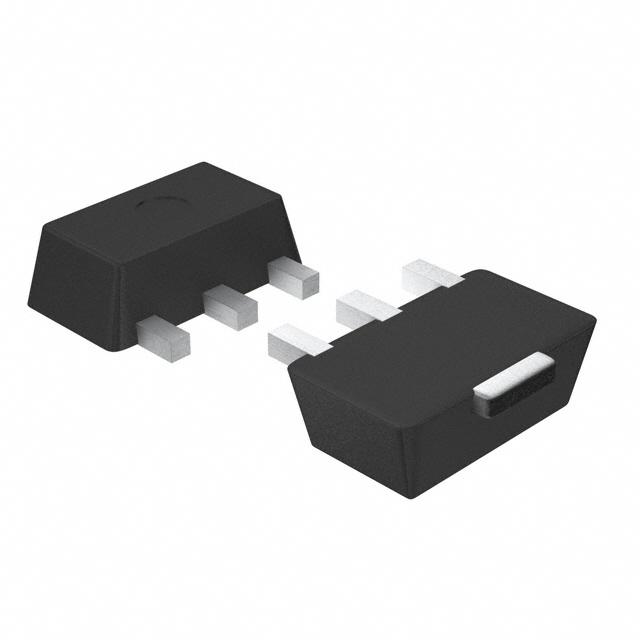

Supplier Device Package : SOT-89
Package / Case : TO-243AA
0
100 in stock
Torex Semiconductor Ltd.
Manufacturer : Torex Semiconductor Ltd
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V
Rds On (Max) @ Id, Vgs : 170 mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±12V
Input Capacitance (Ciss) (Max) @ Vds : 310pF @ 10V
FET Feature : -
Power Dissipation (Max) : 2W (Ta)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-89
Package / Case : TO-243AA
0
1228 in stock
