TRACO Power
- TRACO Power has been a recognized brand name as a power specialist company for over 35 years for their design & manufacturing of high quality DC/DC and AC/DC power conversion products. TRACO Power North America is a wholly owned subsidiary of TRACO Electronic AG with headquarters in Baar, Switzerland and supports the North American distribution network as well as end customers directly for both technical and commercial requirements. Their mission is to provide our customers and distributors with optimal power supply solutions in terms of performance, quality and cost for their individual application.
Part Number
Manufacturer
Description
Unit Price
In Stock

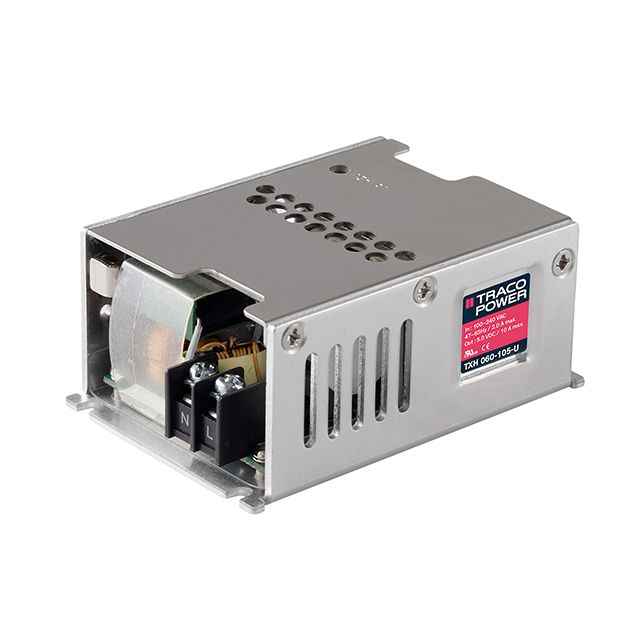

TRACO Power
Manufacturer : Traco Power
Series : TXH 060 (50-60W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 4A
Power (Watts) : 60W
Applications : ITE (Commercial)
Voltage - Isolation : 4.242kV
Efficiency : 87%
Operating Temperature : -30°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.00" L x 1.99" W x 1.50" H (76.3mm x 50.6mm x 38.0mm)
0
8 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXH 060 (50-60W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.5A
Power (Watts) : 60W
Applications : ITE (Commercial)
Voltage - Isolation : 4.242kV
Efficiency : 88%
Operating Temperature : -30°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.00" L x 1.99" W x 1.50" H (76.3mm x 50.6mm x 38.0mm)
0
10 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXH 060 (50-60W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.25A
Power (Watts) : 60W
Applications : ITE (Commercial)
Voltage - Isolation : 4.242kV
Efficiency : 88%
Operating Temperature : -30°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.00" L x 1.99" W x 1.50" H (76.3mm x 50.6mm x 38.0mm)
0
10 in stock

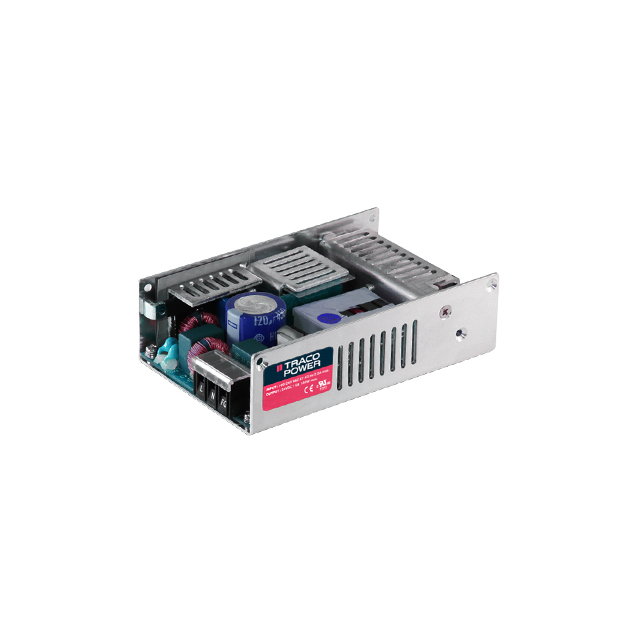

TRACO Power
Manufacturer : Traco Power
Series : TXH (120W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 120W
Applications : ITE (Commercial)
Voltage - Isolation : 4kV
Efficiency : 90%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.39" L x 3.23" W x 1.50" H (136.9mm x 82.0mm x 38.1mm)
0
10 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXH (120W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 120W
Applications : ITE (Commercial)
Voltage - Isolation : 4kV
Efficiency : 91%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Remote On/Off, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.39" L x 3.23" W x 1.50" H (136.9mm x 82.0mm x 38.1mm)
0
50 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXH (120W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.5A
Power (Watts) : 120W
Applications : ITE (Commercial)
Voltage - Isolation : 4kV
Efficiency : 92%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Remote On/Off, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.39" L x 3.23" W x 1.50" H (136.9mm x 82.0mm x 38.1mm)
0
100 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXH
Part Status : Active
Accessory Type : Cover
For Use With/Related Products : TXH 120W Power Supply
0
10 in stock

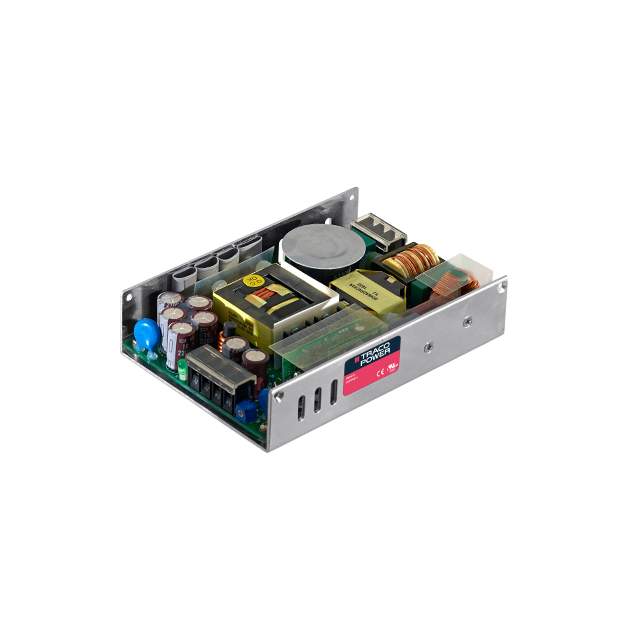

TRACO Power
Manufacturer : Traco Power
Series : TXH (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 240W
Applications : ITE (Commercial)
Voltage - Isolation : 4kV
Efficiency : 90%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Remote On/Off, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.91" L x 4.17" W x 1.38" H (150.1mm x 105.9mm x 35.1mm)
0
9 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXH (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 240W
Applications : ITE (Commercial)
Voltage - Isolation : 4kV
Efficiency : 92%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Remote On/Off, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.91" L x 4.17" W x 1.38" H (150.1mm x 105.9mm x 35.1mm)
0
44 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXH (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 240W
Applications : ITE (Commercial)
Voltage - Isolation : 4kV
Efficiency : 93%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Remote On/Off, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.91" L x 4.17" W x 1.38" H (150.1mm x 105.9mm x 35.1mm)
0
100 in stock

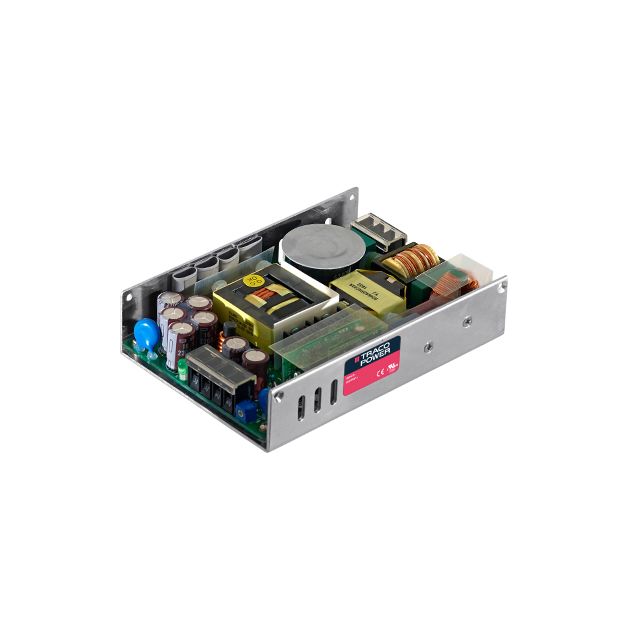

TRACO Power
Manufacturer : Traco Power
Series : TXH
Part Status : Active
Accessory Type : Cover
For Use With/Related Products : TXH 240W Power Supply
0
50 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXH (360W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 30A
Power (Watts) : 360W
Applications : ITE (Commercial)
Voltage - Isolation : 4kV
Efficiency : 89%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Remote On/Off, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 7.78" L x 3.20" W x 1.50" H (197.7mm x 81.3mm x 38.0mm)
0
100 in stock
