TRACO Power
- TRACO Power has been a recognized brand name as a power specialist company for over 35 years for their design & manufacturing of high quality DC/DC and AC/DC power conversion products. TRACO Power North America is a wholly owned subsidiary of TRACO Electronic AG with headquarters in Baar, Switzerland and supports the North American distribution network as well as end customers directly for both technical and commercial requirements. Their mission is to provide our customers and distributors with optimal power supply solutions in terms of performance, quality and cost for their individual application.
Part Number
Manufacturer
Description
Unit Price
In Stock

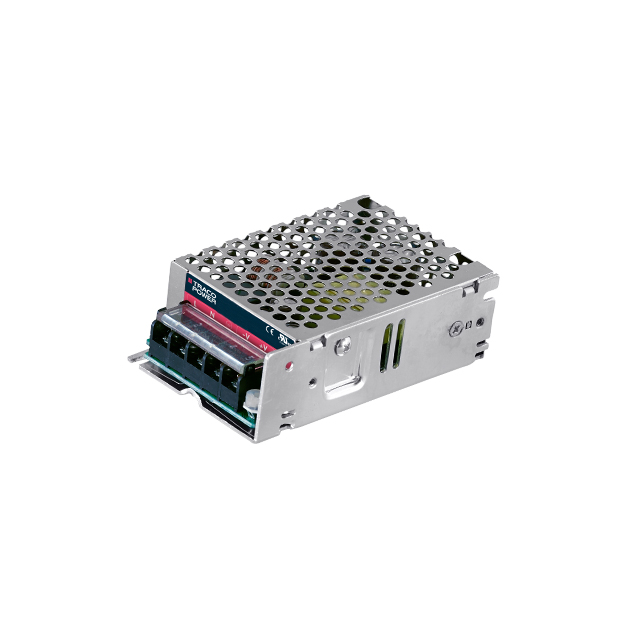

TRACO Power
Manufacturer : Traco Power
Series : TXM
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.4A
Power (Watts) : 36W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 86%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 4.00" L x 2.50" W x 1.30" H (101.6mm x 63.5mm x 33.0mm)
0
100 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXM
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.5A
Power (Watts) : 36W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 87%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 4.00" L x 2.50" W x 1.30" H (101.6mm x 63.5mm x 33.0mm)
0
79 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXM
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 750mA
Power (Watts) : 36W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 88%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 4.00" L x 2.50" W x 1.30" H (101.6mm x 63.5mm x 33.0mm)
0
100 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXM
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 8A
Power (Watts) : 40W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 80%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.90" L x 3.23" W x 1.38" H (99.1mm x 82.0mm x 35.1mm)
0
100 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXM
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 4.2A
Power (Watts) : 50W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 85%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.90" L x 3.23" W x 1.38" H (99.1mm x 82.0mm x 35.1mm)
0
50 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXM
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3.4A
Power (Watts) : 51W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 86%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.90" L x 3.23" W x 1.38" H (99.1mm x 82.0mm x 35.1mm)
0
100 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXM
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.2A
Power (Watts) : 53W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 88%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.90" L x 3.23" W x 1.38" H (99.1mm x 82.0mm x 35.1mm)
0
9 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXM
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.1A
Power (Watts) : 53W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 89%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 3.90" L x 3.23" W x 1.38" H (99.1mm x 82.0mm x 35.1mm)
0
100 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXM
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 12A
Power (Watts) : 60W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 80%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.08" L x 3.90" W x 1.50" H (129.0mm x 99.1mm x 38.1mm)
0
100 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXM
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6A
Power (Watts) : 72W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 85%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.08" L x 3.90" W x 1.50" H (129.0mm x 99.1mm x 38.1mm)
0
9 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXM
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 75W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 86%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.08" L x 3.90" W x 1.50" H (129.0mm x 99.1mm x 38.1mm)
0
100 in stock
TRACO Power
Manufacturer : Traco Power
Series : TXM
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3.2A
Power (Watts) : 77W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 88%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.08" L x 3.90" W x 1.50" H (129.0mm x 99.1mm x 38.1mm)
0
49 in stock
