Trenz Electronic

- Trenz Electronic GmbH operates as a provider of development services in the electronics industry since 1992. Our service includes design-in support as well as turnkey designs which typically covers all steps from product specification, and hardware and software design up to prototyping and production. We are particularly specialized in the design of high-speed data acquisition, high-accuracy measurement, and embedded digital signal processing systems based on FPGA and CPU architectures.

Customers benefit from our engineering expertise focused on embedded systems in industrial environments, as well as PC-based process control and measurement systems. Our development service is supplemented by FPGA-and MCU-based development boards and tools. In the event that an off-the-shelf FPGA board won't fit customers' requirements, the design can easily be adapted by our comprehensive engineering design services. The production and supply of OEM FPGA modules completes the portfolio. Trenz Electronic helps companies benefit from FPGA technology in industrial applications to achieve key business objectives.

Part Number
Manufacturer
Description
Unit Price
In Stock

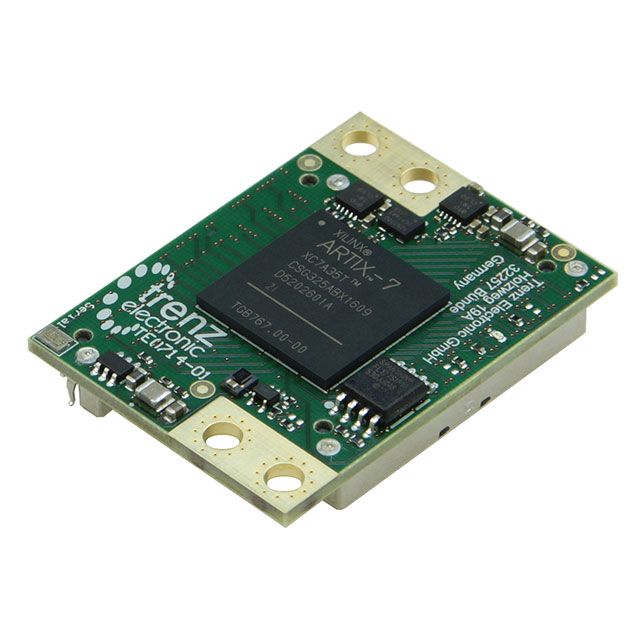

TE0714-01-35-2I TE0714-01-35-2I

Trenz Electronic
Manufacturer : Trenz Electronic GmbH
Series : TE0714
Part Status : Discontinued at
Module/Board Type : FPGA Core
Core Processor : Artix-7 A35T
Co-Processor : -
Speed : -
Flash Size : 16MB
RAM Size : -
Connector Type : Samtec LSHM
Size / Dimension : 1.57" x 1.18" (40mm x 30mm)
Operating Temperature : -40°C ~ 85°C
0
100 in stock

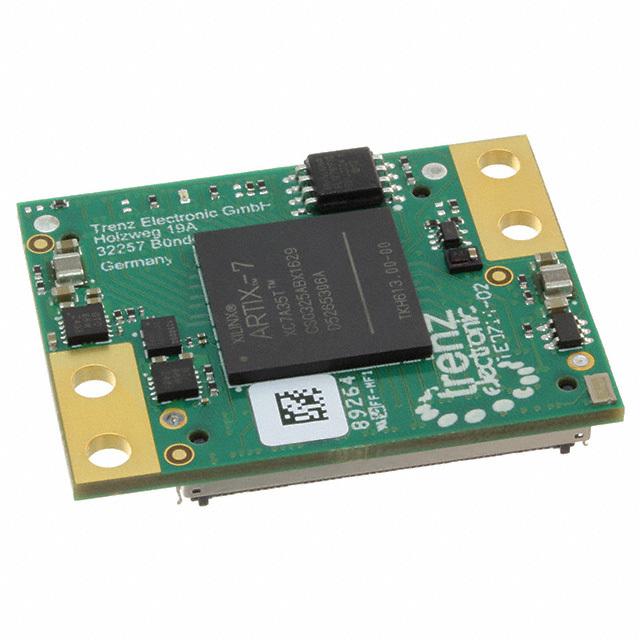

TE0714-02-35-2I TE0714-02-35-2I

Trenz Electronic
Manufacturer : Trenz Electronic GmbH
Series : TE0714
Part Status : Active
Module/Board Type : FPGA Core
Core Processor : Artix-7 A35T
Co-Processor : -
Speed : -
Flash Size : 16MB
RAM Size : -
Connector Type : Samtec LSHM
Size / Dimension : 1.57" x 1.18" (40mm x 30mm)
Operating Temperature : -40°C ~ 85°C
0
83 in stock

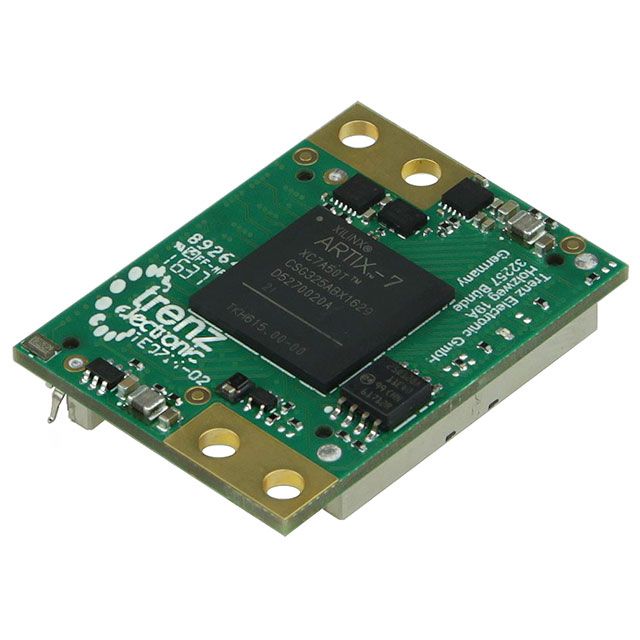

TE0714-02-50-2I TE0714-02-50-2I

Trenz Electronic
Manufacturer : Trenz Electronic GmbH
Series : TE0714
Part Status : Active
Module/Board Type : FPGA Core
Core Processor : Artix-7 A50T
Co-Processor : -
Speed : -
Flash Size : 16MB
RAM Size : -
Connector Type : Samtec LSHM
Size / Dimension : 1.57" x 1.18" (40mm x 30mm)
Operating Temperature : -40°C ~ 85°C
0
26 in stock

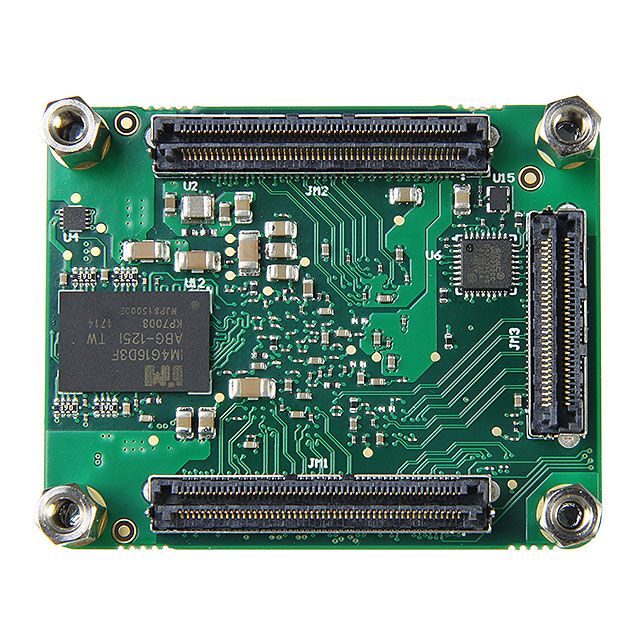

TE0715-04-12S-1C TE0715-04-12S-1C

Trenz Electronic
Manufacturer : Trenz Electronic GmbH
Series : TE0715
Part Status : Active
Module/Board Type : MCU, FPGA
Core Processor : ARM Cortex-A9
Co-Processor : Zynq-7000 (Z-7012S)
Speed : 766MHz
Flash Size : 32MB
RAM Size : 1GB
Connector Type : Samtec LSHM
Size / Dimension : 1.97" x 1.57" (50mm x 40mm)
Operating Temperature : 0°C ~ 70°C
0
11 in stock

TE0715-04-15-1I TE0715-04-15-1I

Trenz Electronic
Manufacturer : Trenz Electronic GmbH
Series : TE0715
Part Status : Active
Module/Board Type : MCU, FPGA
Core Processor : ARM Cortex-A9
Co-Processor : Zynq-7000 (Z-7015)
Speed : 125MHz
Flash Size : 32MB
RAM Size : 1GB
Connector Type : Samtec LSHM
Size / Dimension : 1.97" x 1.57" (50mm x 40mm)
Operating Temperature : -40°C ~ 85°C
0
34 in stock

TE0715-04-15-1I3 TE0715-04-15-1I3

Trenz Electronic
Manufacturer : Trenz Electronic GmbH
Series : TE0715
Part Status : Active
Module/Board Type : MCU, FPGA
Core Processor : ARM Cortex-A9
Co-Processor : Zynq-7000 (Z-7015)
Speed : 125MHz
Flash Size : 32MB
RAM Size : 1GB
Connector Type : Samtec LSHM
Size / Dimension : 1.97" x 1.57" (50mm x 40mm)
Operating Temperature : -40°C ~ 85°C
0
1 in stock

TE0715-04-15-2I TE0715-04-15-2I

Trenz Electronic
Manufacturer : Trenz Electronic GmbH
Series : TE0715
Part Status : Active
Module/Board Type : MCU, FPGA
Core Processor : ARM Cortex-A9
Co-Processor : Zynq-7000 (Z-7015)
Speed : 125MHz
Flash Size : 32MB
RAM Size : 1GB
Connector Type : Samtec LSHM
Size / Dimension : 1.97" x 1.57" (50mm x 40mm)
Operating Temperature : -40°C ~ 85°C
0
6 in stock

TE0715-04-30-1C TE0715-04-30-1C

Trenz Electronic
Manufacturer : Trenz Electronic GmbH
Series : TE0715
Part Status : Active
Module/Board Type : MCU, FPGA
Core Processor : ARM Cortex-A9
Co-Processor : Zynq-7000 (Z-7030)
Speed : 125MHz
Flash Size : 32MB
RAM Size : 1GB
Connector Type : Samtec LSHM
Size / Dimension : 1.97" x 1.57" (50mm x 40mm)
Operating Temperature : 0°C ~ 70°C
0
16 in stock

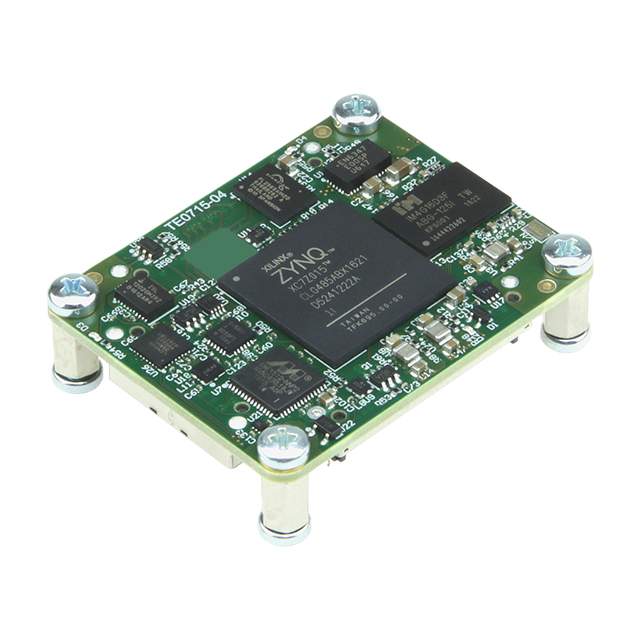

TE0715-04-30-1I TE0715-04-30-1I

Trenz Electronic
Manufacturer : Trenz Electronic GmbH
Series : TE0715
Part Status : Active
Module/Board Type : MCU, FPGA
Core Processor : ARM Cortex-A9
Co-Processor : Zynq-7000 (Z-7030)
Speed : 125MHz
Flash Size : 32MB
RAM Size : 1GB
Connector Type : Samtec LSHM
Size / Dimension : 1.97" x 1.57" (50mm x 40mm)
Operating Temperature : -40°C ~ 85°C
0
167 in stock

TE0715-04-30-1I3 TE0715-04-30-1I3

Trenz Electronic
Manufacturer : Trenz Electronic GmbH
Series : TE0715
Part Status : Active
Module/Board Type : MCU, FPGA
Core Processor : ARM Cortex-A9
Co-Processor : Zynq-7000 (Z-7030)
Speed : 125MHz
Flash Size : 32MB
RAM Size : 1GB
Connector Type : Samtec LSHM
Size / Dimension : 1.97" x 1.57" (50mm x 40mm)
Operating Temperature : -40°C ~ 85°C
0
8 in stock

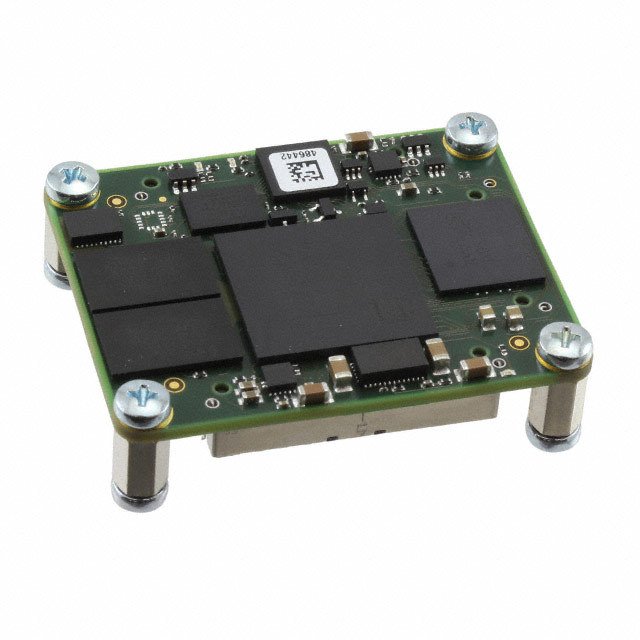

TE0720-03-14S-1C TE0720-03-14S-1C

Trenz Electronic
Manufacturer : Trenz Electronic GmbH
Series : TE0720
Part Status : Active
Module/Board Type : MCU, FPGA
Core Processor : ARM Cortex-A9
Co-Processor : Zynq-7000 (Z-7014S)
Speed : 766MHz
Flash Size : 32MB
RAM Size : 1GB
Connector Type : Samtec LSHM
Size / Dimension : 1.97" x 1.57" (50mm x 40mm)
Operating Temperature : 0°C ~ 70°C
0
16 in stock

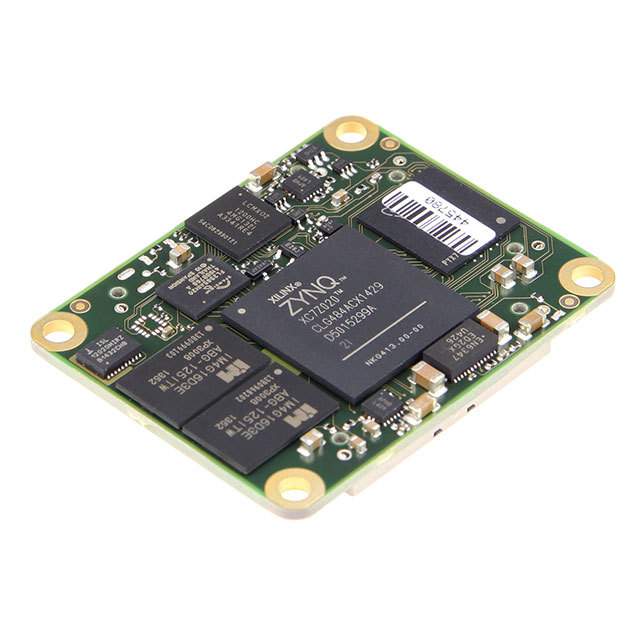

TE0720-03-1CF TE0720-03-1CF

Trenz Electronic
Manufacturer : Trenz Electronic GmbH
Series : TE0720
Part Status : Discontinued at
Module/Board Type : MCU, FPGA
Core Processor : ARM Cortex-A9
Co-Processor : Zynq-7000 (Z-7020)
Speed : -
Flash Size : 32MB
RAM Size : 1GB
Connector Type : Samtec LSHM
Size / Dimension : 1.97" x 1.57" (50mm x 40mm)
Operating Temperature : 0°C ~ 70°C
0
100 in stock
