Triad Magnetics

- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.

Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.


Part Number

Manufacturer

Description

Unit Price

In Stock

WDU75-300

Triad Magnetics

Manufacturer : Triad Magnetics
Series : WDU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 120VAC
Voltage - Output : 7.5V
Current - Output (Max) : 300mA
Power (Watts) : -
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.36" L x 1.69" W x 1.54" H (60.0mm x 43.0mm x 39.0mm
Approvals : cUL, UL

86 in stock

WDU75-800

Triad Magnetics

Manufacturer : Triad Magnetics
Series : WDU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 120VAC
Voltage - Output : 7.5V
Current - Output (Max) : 800mA
Power (Watts) : -
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.76" L x 1.97" W x 1.61" H (70.0mm x 50.0mm x 41.0mm)
Approvals : cUL, UL

91 in stock

WDU9-100

Triad Magnetics

Manufacturer : Triad Magnetics
Series : WDU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 120VAC
Voltage - Output : 9V
Current - Output (Max) : 100mA
Power (Watts) : -
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.36" L x 1.69" W x 1.54" H (60.0mm x 43.0mm x 39.0mm
Approvals : cUL, UL

93 in stock

WDU9-1000

Triad Magnetics

Manufacturer : Triad Magnetics
Series : WDU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 120VAC
Voltage - Output : 9V
Current - Output (Max) : 1A
Power (Watts) : -
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.15" L x 2.36" W x 1.89" H (80.0mm x 60.0mm x 48.0mm)
Approvals : cUL, UL

193 in stock

WDU9-1200

Triad Magnetics

Manufacturer : Triad Magnetics
Series : WDU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 120VAC
Voltage - Output : 9V
Current - Output (Max) : 1.2A
Power (Watts) : 18.5W
No Load Power Consumption : -
Polarization : Positive Center
Applications : -
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.15" L x 2.36" W x 1.89" H (80.0mm x 60.0mm x 48.0mm)
Approvals : cUL, UL

31 in stock

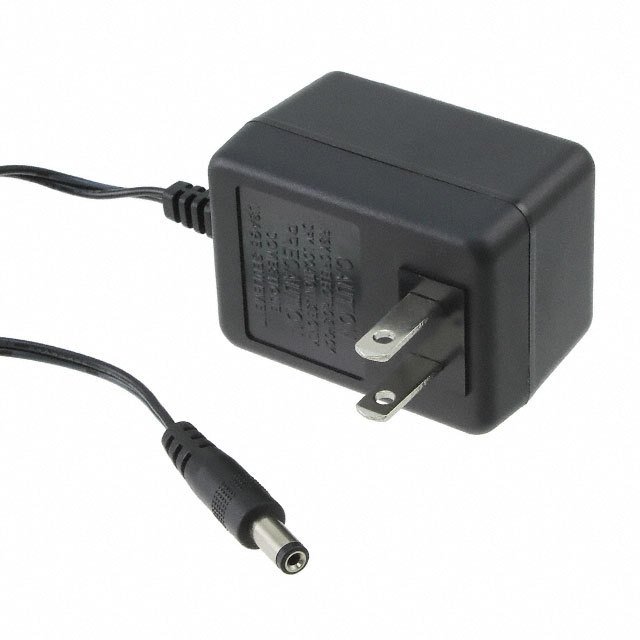

WDU9-2300

Triad Magnetics

Manufacturer : Triad Magnetics
Series : WDU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 120VAC
Voltage - Output : 9V
Current - Output (Max) : 2.3A
Power (Watts) : -
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.35" L x 2.68" W x 2.17" H (85.0mm x 68.0mm x 55.0mm)
Approvals : cUL, UL

39 in stock

WDU9-300

Triad Magnetics

Manufacturer : Triad Magnetics
Series : WDU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 120VAC
Voltage - Output : 9V
Current - Output (Max) : 300mA
Power (Watts) : -
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.36" L x 1.69" W x 1.54" H (60.0mm x 43.0mm x 39.0mm
Approvals : cUL, UL

246 in stock

WDU9-500

Triad Magnetics

Manufacturer : Triad Magnetics
Series : WDU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 120VAC
Voltage - Output : 9V
Current - Output (Max) : 500mA
Power (Watts) : -
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : -
Operating Temperature : -10°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.36" L x 1.69" W x 1.54" H (60.0mm x 43.0mm x 39.0mm
Approvals : cUL, UL

80 in stock

WSU045-1500

Triad Magnetics

Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 4.5V
Current - Output (Max) : 1.5A
Power (Watts) : 6.8W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 42.8mm x 30.0mm)
Approvals : cETLus

169 in stock

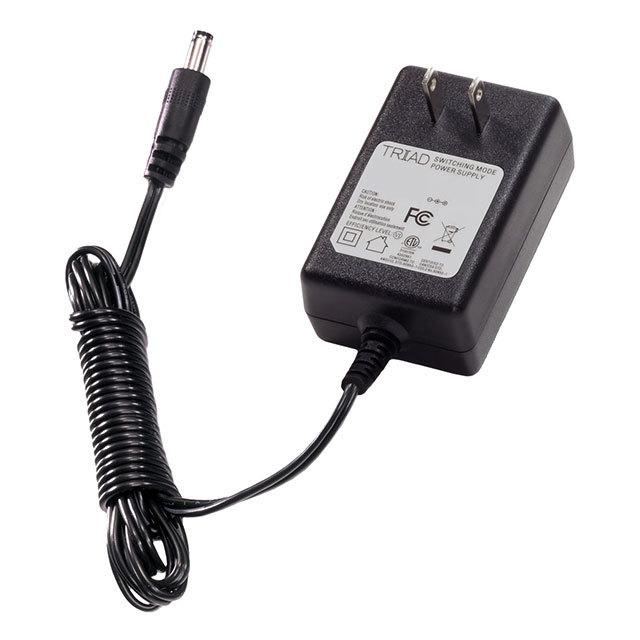

WSU045-1500-13

Triad Magnetics

Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 4.5V
Current - Output (Max) : 1.5A
Power (Watts) : 6.8W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 42.8mm x 30.0mm)
Approvals : cETLus

90 in stock

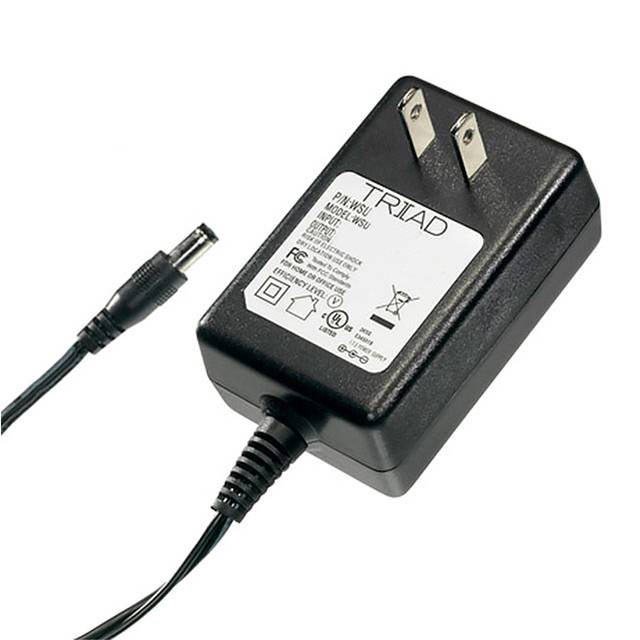

WSU045-1500-R

Triad Magnetics

Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 4.5V
Current - Output (Max) : 1.5A
Power (Watts) : 6.8W
No Load Power Consumption : 100mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 42.8mm x 30.0mm)
Approvals : cETLus

86 in stock

WSU045-1500-R13

Triad Magnetics

Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 4.5V
Current - Output (Max) : 1.5A
Power (Watts) : 6.8W
No Load Power Consumption : 100mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 42.8mm x 30.0mm)
Approvals : cETLus

147 in stock
