Triad Magnetics
- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.
Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.
Part Number
Manufacturer
Description
Unit Price
In Stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 38V, Series 76V
Current - Output (Max) : Parallel 120mA, Series 60mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 4.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 60.33mm L x 31.75mm W
Height - Seated (Max) : 36.50mm
Voltage - Isolation : 1500Vrms
Weight : 0.469 lb (212.73g)
0
171 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 58V, Series 116V
Current - Output (Max) : Parallel 66mA, Series 33mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 4.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 60.33mm L x 31.75mm W
Height - Seated (Max) : 36.50mm
Voltage - Isolation : 1500Vrms
Weight : 0.469 lb (212.73g)
0
152 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 20V, Series 40V
Current - Output (Max) : Parallel 224mA, Series 112mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 4.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 60.33mm L x 31.75mm W
Height - Seated (Max) : 36.50mm
Voltage - Isolation : 1500Vrms
Weight : 0.469 lb (212.73g)
0
174 in stock

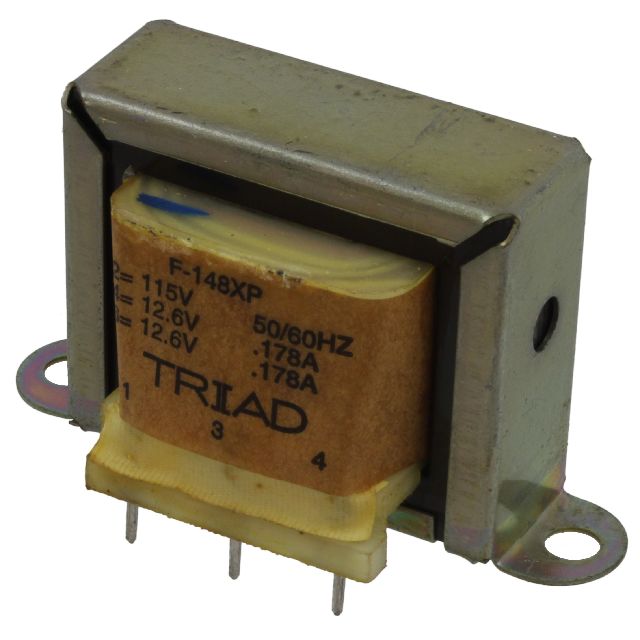

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Primary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12.6V, Series 25.2V
Current - Output (Max) : Parallel 356mA, Series 178mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 4.5 VA
Mounting Type : User Defined
Termination Style : PC Pin
Size / Dimension : 60.32mm L x 31.75mm W
Height - Seated (Max) : 36.50mm
Voltage - Isolation : 1500Vrms
Weight : 0.469 lb (212.73g)
0
8 in stock

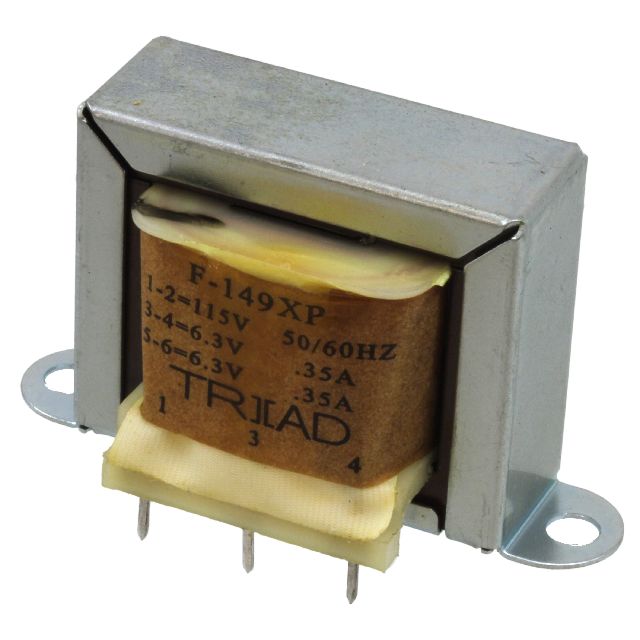

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Primary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 700mA, Series 350mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 4.5 VA
Mounting Type : User Defined
Termination Style : PC Pin
Size / Dimension : 60.32mm L x 31.75mm W
Height - Seated (Max) : 36.50mm
Voltage - Isolation : 1500Vrms
Weight : 0.469 lb (212.73g)
0
26 in stock

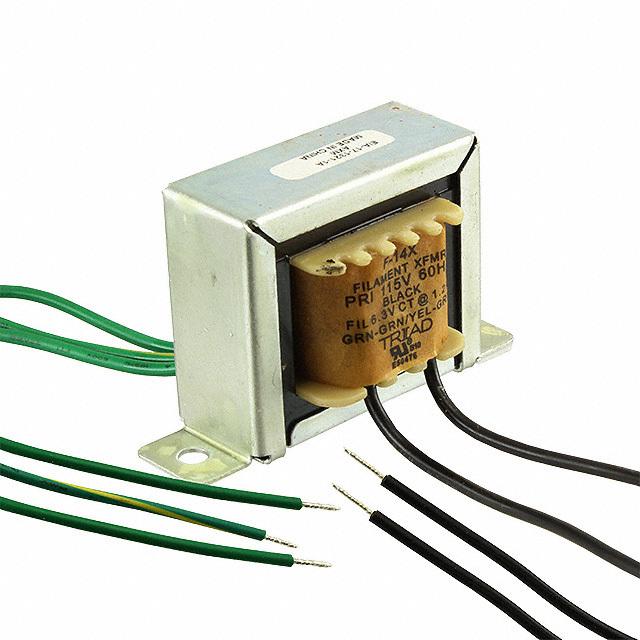

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 6.3V
Current - Output (Max) : 1.2A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 7.56 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.42mm L x 41.28mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 2500Vrms
Weight : 0.7 lb (317.51g)
0
4 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 8.5V, Series 17V
Current - Output (Max) : Parallel 170mA, Series 85mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.31mm L x 39.67mm W
Height - Seated (Max) : 30.15mm
Voltage - Isolation : 1500Vrms
Weight : 0.219 lb (99.34g)
0
133 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 4V, Series 8V
Current - Output (Max) : Parallel 1.88A, Series 940mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 7.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 71.42mm L x 37.29mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 1500Vrms
Weight : 0.657 lb (298.01g)
0
100 in stock

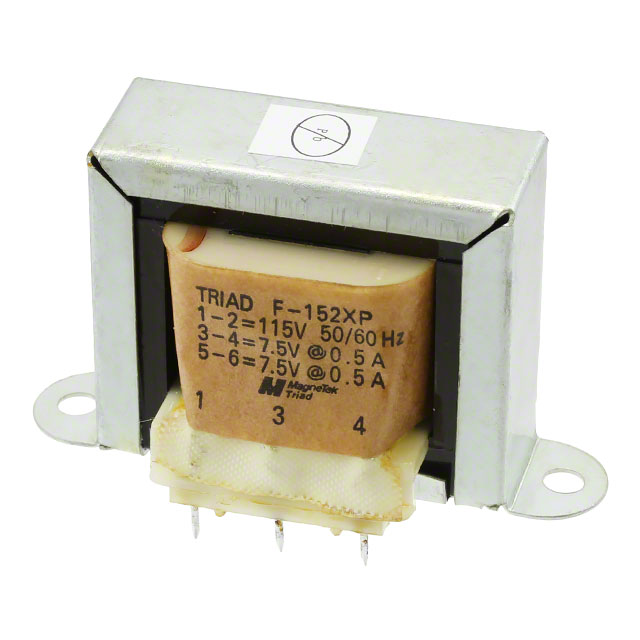

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Primary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 7.5V, Series 15V
Current - Output (Max) : Parallel 1A, Series 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 7.5 VA
Mounting Type : User Defined
Termination Style : PC Pin
Size / Dimension : 71.42mm L x 37.29mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 1500Vrms
Weight : 0.657 lb (298.01g)
0
18 in stock

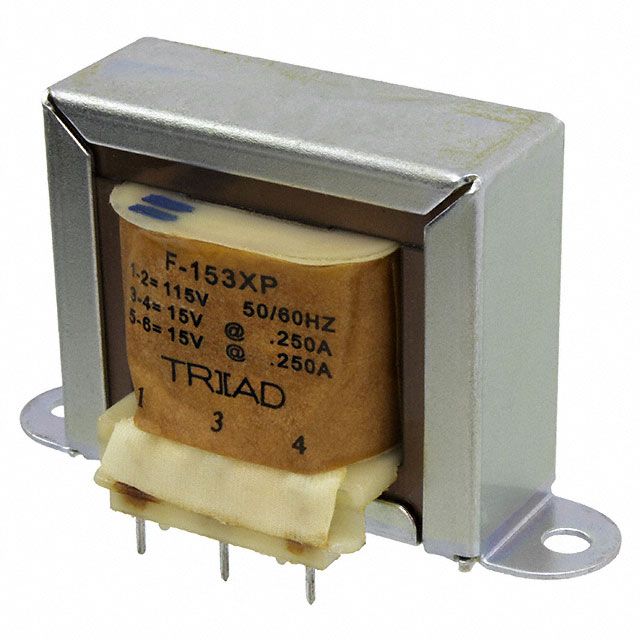

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Primary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 7.5 VA
Mounting Type : User Defined
Termination Style : PC Pin
Size / Dimension : 71.42mm L x 37.29mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 1500Vrms
Weight : 0.657 lb (298.01g)
0
19 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 27V, Series 54V
Current - Output (Max) : Parallel 280mA, Series 140mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 7.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 71.42mm L x 37.29mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 1500Vrms
Weight : 0.657 lb (298.01g)
0
12 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 38V, Series 76V
Current - Output (Max) : Parallel 200mA, Series 100mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 7.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 71.42mm L x 37.29mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 1500Vrms
Weight : 0.657 lb (298.01g)
0
28 in stock
