Triad Magnetics
- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.
Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.
Part Number
Manufacturer
Description
Unit Price
In Stock

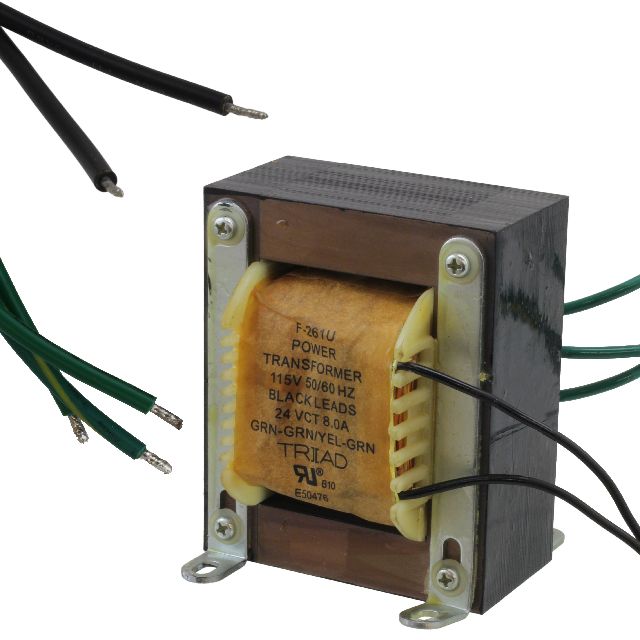

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 24V
Current - Output (Max) : 8A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 192 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 87.30mm L x 88.90mm W
Height - Seated (Max) : 104.77mm
Voltage - Isolation : 1500Vrms
Weight : 7.4 lbs (3.4kg)
0
261 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 35V
Current - Output (Max) : 8A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 280 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 107.95mm L x 95.25mm W
Height - Seated (Max) : 114.30mm
Voltage - Isolation : 1500Vrms
Weight : 11 lbs (5kg)
0
9 in stock

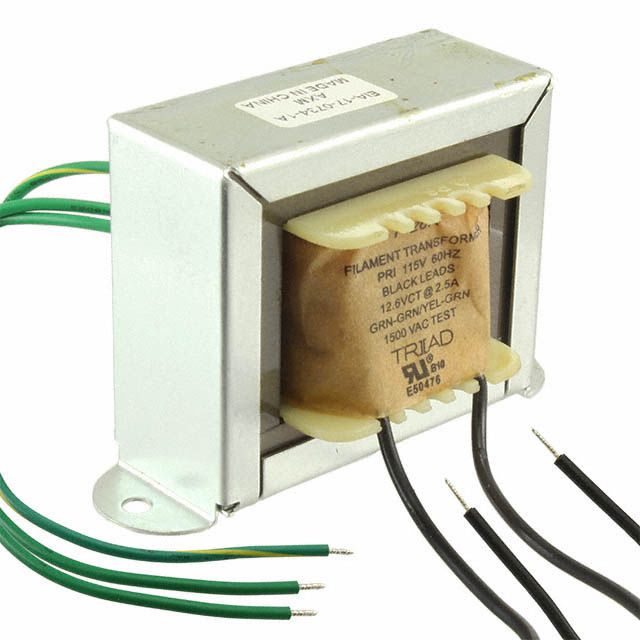

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12.6V
Current - Output (Max) : 2.5A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 31.5 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 93.65mm L x 50.80mm W
Height - Seated (Max) : 57.94mm
Voltage - Isolation : 1500Vrms
Weight : 1.6 lbs (725.7g)
0
32 in stock

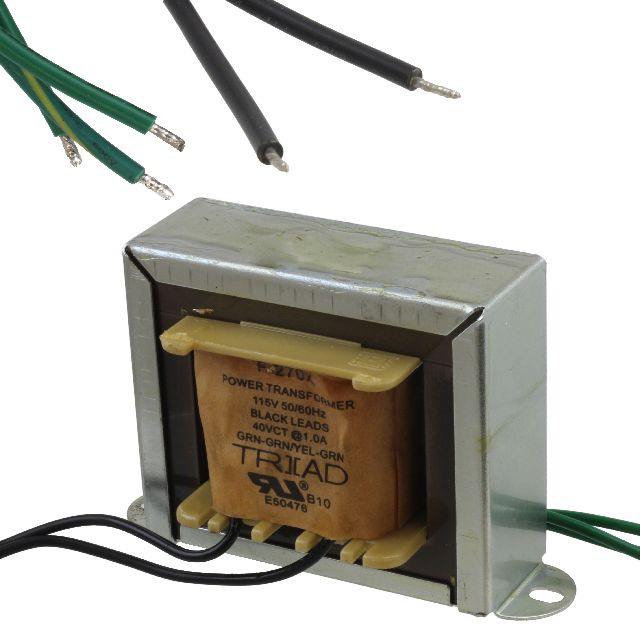

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 40V
Current - Output (Max) : 1A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 40 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 101.60mm L x 57.15mm W
Height - Seated (Max) : 65.07mm
Voltage - Isolation : 1500Vrms
Weight : 2.6 lbs (1.2kg)
0
23 in stock

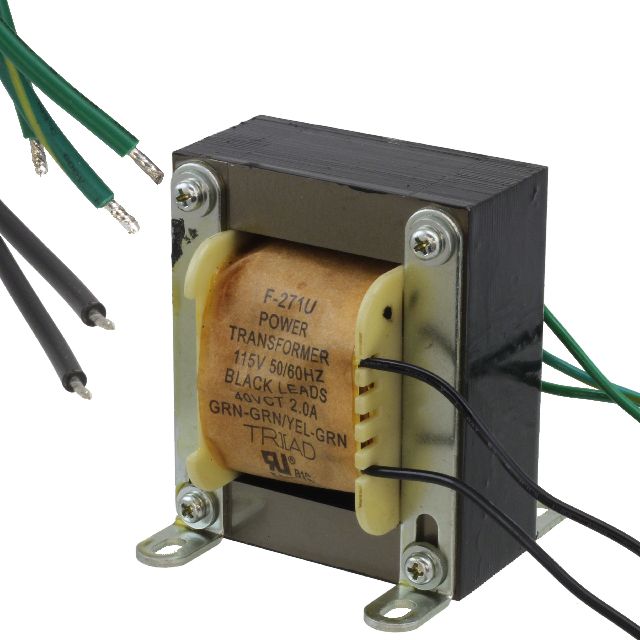

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 40V
Current - Output (Max) : 2A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.42mm L x 73.02mm W
Height - Seated (Max) : 85.73mm
Voltage - Isolation : 1500Vrms
Weight : 4 lbs (1.8kg)
0
7 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 40V
Current - Output (Max) : 4A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 88.90mm L x 79.38mm W
Height - Seated (Max) : 95.25mm
Voltage - Isolation : 1500Vrms
Weight : 6.4 lbs (2.9kg)
0
240 in stock

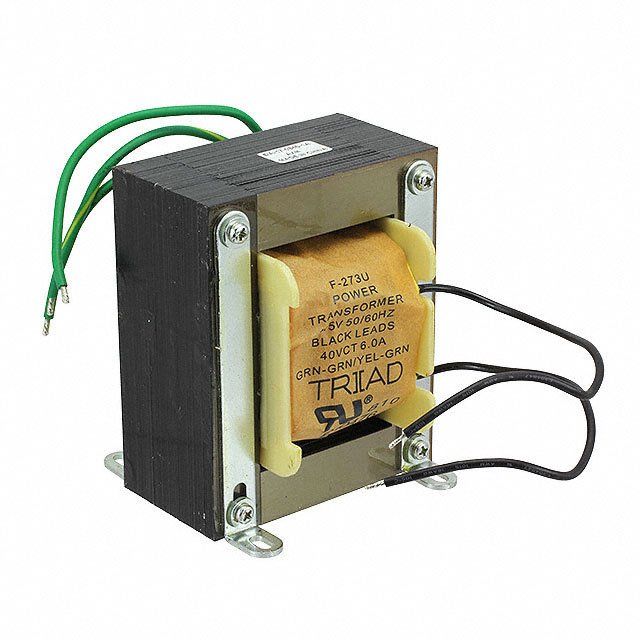

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 40V
Current - Output (Max) : 6A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 240 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 95.25mm L x 101.60mm W
Height - Seated (Max) : 114.30mm
Voltage - Isolation : 1500Vrms
Weight : 10 lbs (4.5kg)
0
9 in stock

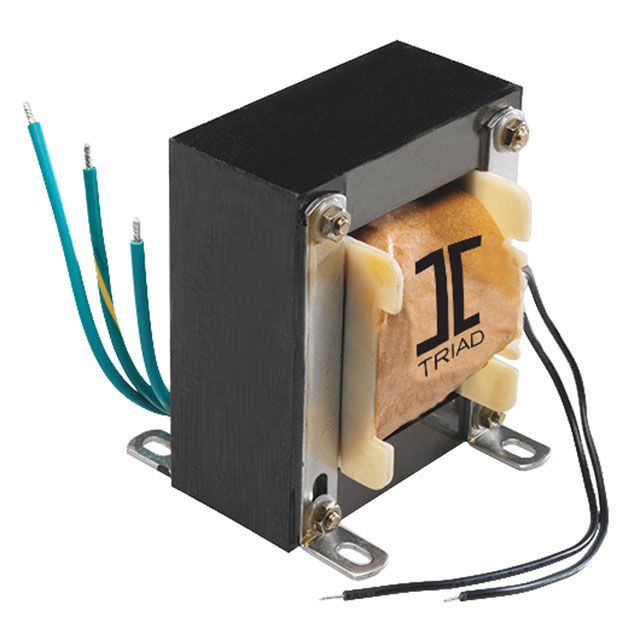

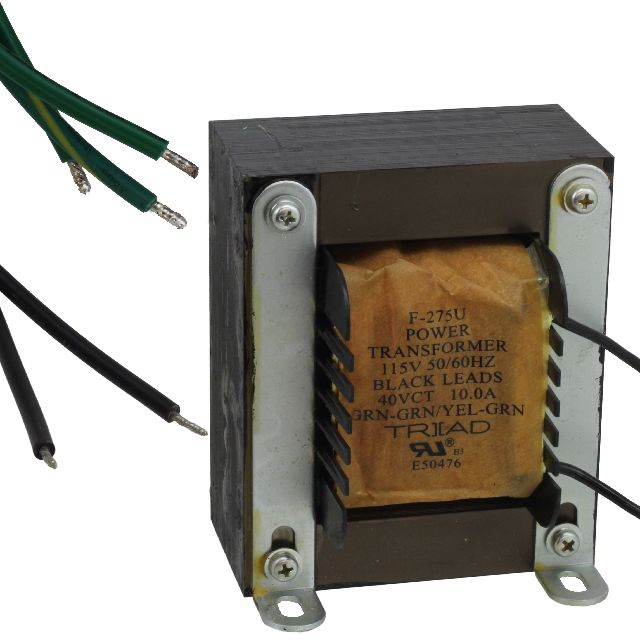

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 40V
Current - Output (Max) : 10A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 400 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 111.13mm L x 114.30mm W
Height - Seated (Max) : 136.53mm
Voltage - Isolation : 1500Vrms
Weight : 15 lbs (6.8kg)
0
100 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 60V
Current - Output (Max) : 1A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 60 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 66.68mm L x 63.50mm W
Height - Seated (Max) : 76.20mm
Voltage - Isolation : 1500Vrms
Weight : 3.4 lbs (1.5kg)
0
100 in stock

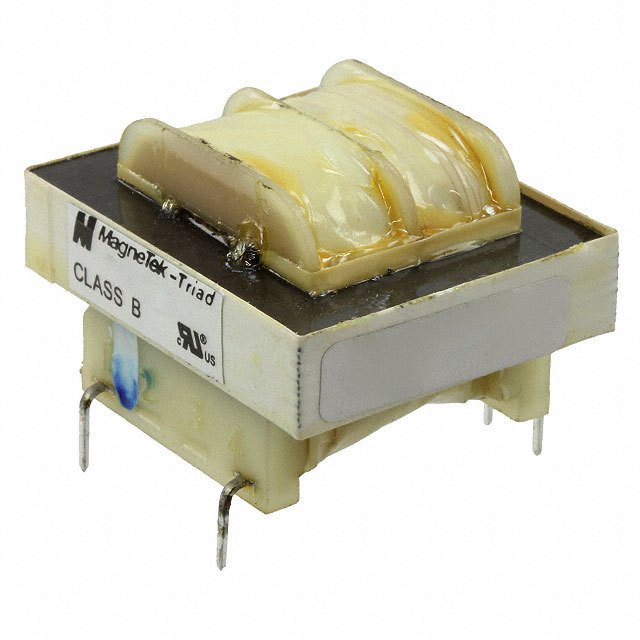

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 80mA, Series 40mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 34.93mm L x 28.58mm W
Height - Seated (Max) : 23.80mm
Voltage - Isolation : 2500Vrms
Weight : 0.17 lb (77.11g)
0
380 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 80mA, Series 40mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 34.93mm L x 28.58mm W
Height - Seated (Max) : 23.80mm
Voltage - Isolation : 2500Vrms
Weight : 0.17 lb (77.11g)
0
78 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 170mA, Series 85mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 34.93mm L x 28.58mm W
Height - Seated (Max) : 30.15mm
Voltage - Isolation : 4200Vrms
Weight : 0.25 lb (113.4g)
0
408 in stock
