Triad Magnetics
- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.
Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.
Part Number
Manufacturer
Description
Unit Price
In Stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 100mH @ 10kHz
Current Rating (Max) : 450mA
DC Resistance (DCR) (Max) : 3.22 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.965" L x 0.571" W (24.50mm x 14.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Vertical, 4 PC Pin
0
224 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 10kHz
Current Rating (Max) : 1.3A
DC Resistance (DCR) (Max) : 470 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.965" L x 0.571" W (24.50mm x 14.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Vertical, 4 PC Pin
0
359 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 10kHz
Current Rating (Max) : 900mA
DC Resistance (DCR) (Max) : 850 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.965" L x 0.571" W (24.50mm x 14.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Vertical, 4 PC Pin
0
230 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 39mH @ 10kHz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 1.21 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.965" L x 0.571" W (24.50mm x 14.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 47mH @ 10kHz
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : 1.39 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.965" L x 0.571" W (24.50mm x 14.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Vertical, 4 PC Pin
0
868 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 68mH @ 10kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 2.17 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.965" L x 0.571" W (24.50mm x 14.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Vertical, 4 PC Pin
0
375 in stock

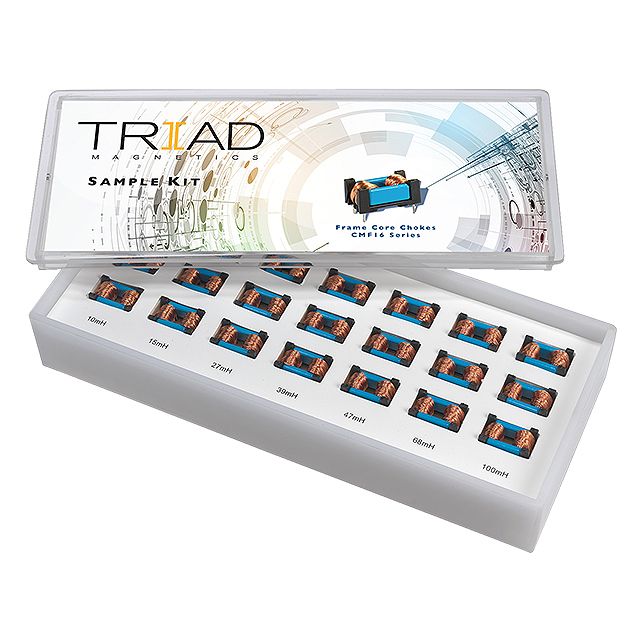

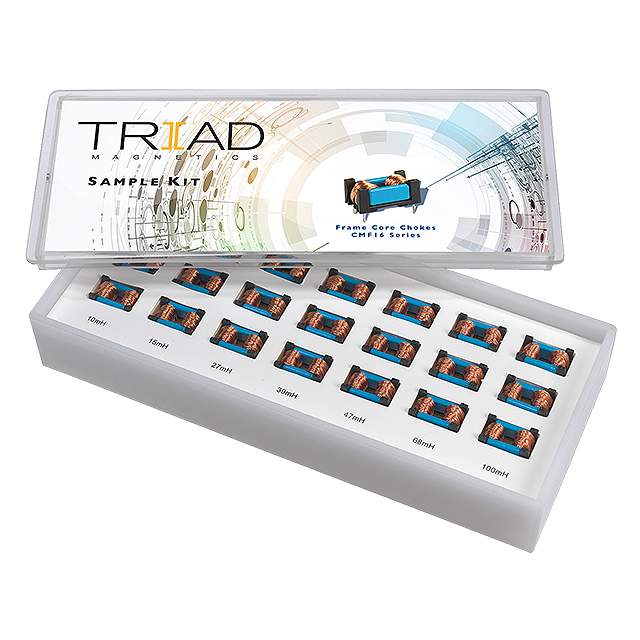

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Plastic Box with Bin Guide
Series : CMF
Part Status : Active
Kit Type : Common Mode Chokes
Quantity : 21 Pieces (7 Values - 3 Each)
Mounting Type : Through Hole
Packages Included : Horizontal, 4 PC Pin
Features : -
0
9 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 2.3A
DC Resistance (DCR) (Max) : 210 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.043" L x 0.976" W (26.50mm x 24.80mm)
Height (Max) : 0.551" (14.00mm)
Package / Case : Vertical, 4 PC Pin
0
880 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 100mH @ 10kHz
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : 1.99 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.043" L x 0.976" W (26.50mm x 24.80mm)
Height (Max) : 0.551" (14.00mm)
Package / Case : Vertical, 4 PC Pin
0
190 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 10kHz
Current Rating (Max) : 1.9A
DC Resistance (DCR) (Max) : 310 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.043" L x 0.976" W (26.50mm x 24.80mm)
Height (Max) : 0.551" (14.00mm)
Package / Case : Vertical, 4 PC Pin
0
188 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 10kHz
Current Rating (Max) : 1.4A
DC Resistance (DCR) (Max) : 484 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.043" L x 0.976" W (26.50mm x 24.80mm)
Height (Max) : 0.551" (14.00mm)
Package / Case : Vertical, 4 PC Pin
0
1040 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 39mH @ 10kHz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 766 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.043" L x 0.976" W (26.50mm x 24.80mm)
Height (Max) : 0.551" (14.00mm)
Package / Case : Vertical, 4 PC Pin
0
525 in stock
