TRINAMIC Motion Control GmbH
- TRINAMIC Motion Control GmbH provides integrated circuits and modules for motor and motion control to customers all over the world, most of them leaders in their industry. TRINAMIC products are used in leading-edge industries such as biotechnology, lab automation, semiconductor handling equipment, CCTV, factory automation, and control all kinds of embedded motion control systems.
Part Number
Manufacturer
Description
Unit Price
In Stock

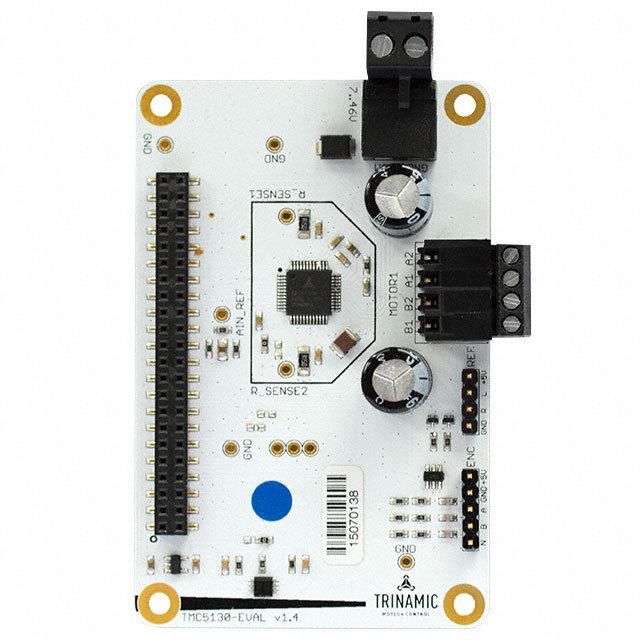

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : -
Part Status : Active
Type : Power Management
Function : Motor Controller/Driver, Stepper
Embedded : -

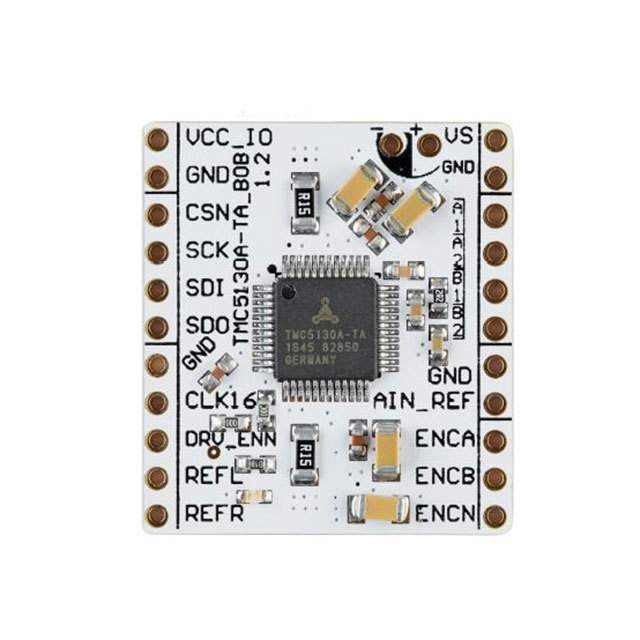

Utilized IC / Part : TMC5130A
Primary Attributes : Motors (Stepper)
Supplied Contents : Board(s)
0
198 in stock

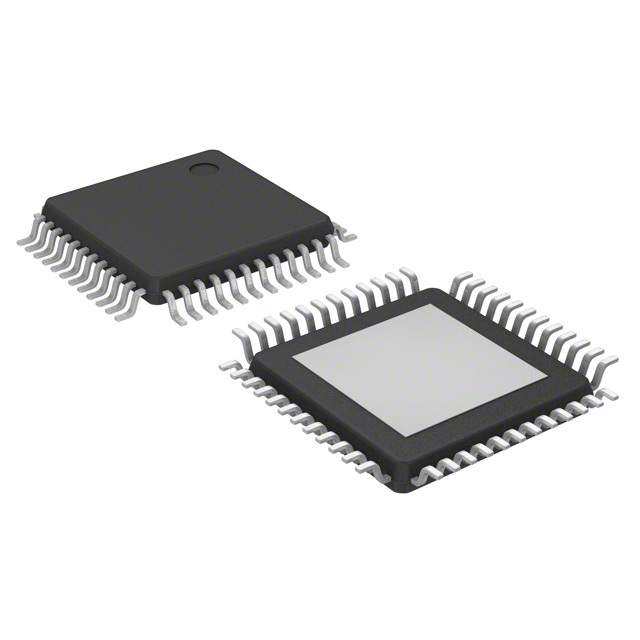

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Packaging : Tray
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : SPI, Step/Direction, RS-232
Technology : Power MOSFET
Step Resolution : 1 ~ 1/256
Applications : General Purpose
Current - Output : 1.4A
Voltage - Supply : 5.5 V ~ 46 V
Voltage - Load : 4.75 V ~ 46 V
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 48-TQFP Exposed Pad
Supplier Device Package : 48-TQFP-EP (7x7)
0
11644 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : SPI, Step/Direction, RS-232
Technology : Power MOSFET
Step Resolution : 1 ~ 1/256
Applications : General Purpose
Current - Output : 1.4A
Voltage - Supply : 5.5 V ~ 46 V
Voltage - Load : 4.75 V ~ 46 V
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 48-TQFP Exposed Pad
Supplier Device Package : 48-TQFP-EP (7x7)
0
3285 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : Landungsbr眉cke, Startrampe
Part Status : Active
Type : Power Management
Function : Motor Controller/Driver, Stepper
Embedded : No

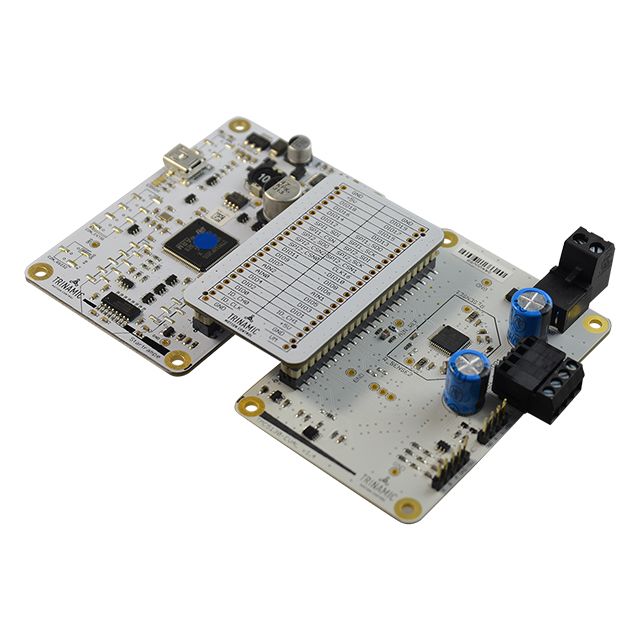

Utilized IC / Part : TMC5130
Primary Attributes : -
Supplied Contents : Board(s)
0
73 in stock

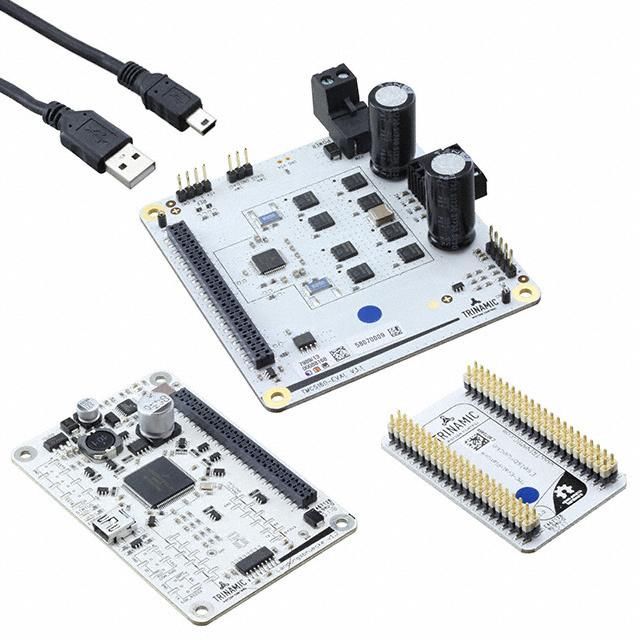

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : Landungsbr眉cke, Startrampe
Part Status : Active
Type : Power Management
Function : Motor Controller/Driver, Stepper
Embedded : Yes, MCU, 32-Bit
Utilized IC / Part : TMC5130
Primary Attributes : -
Supplied Contents : Board(s)
0
59 in stock

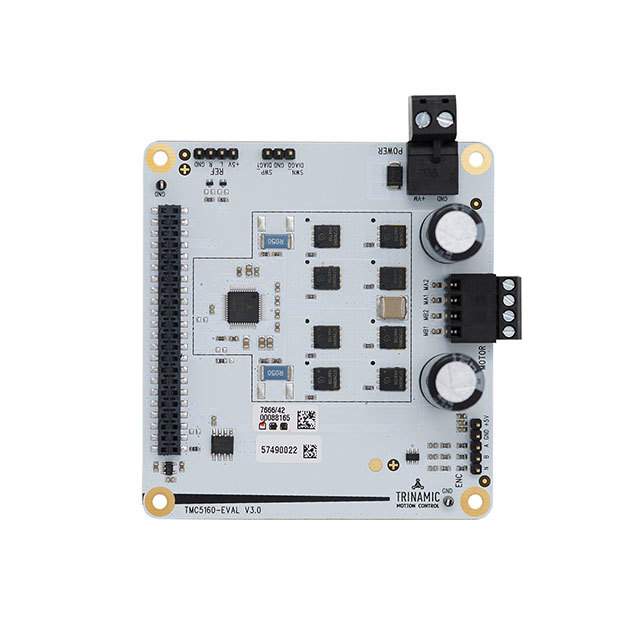

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : -
Part Status : Active
Type : Power Management
Function : Motor Controller/Driver, Stepper
Embedded : -

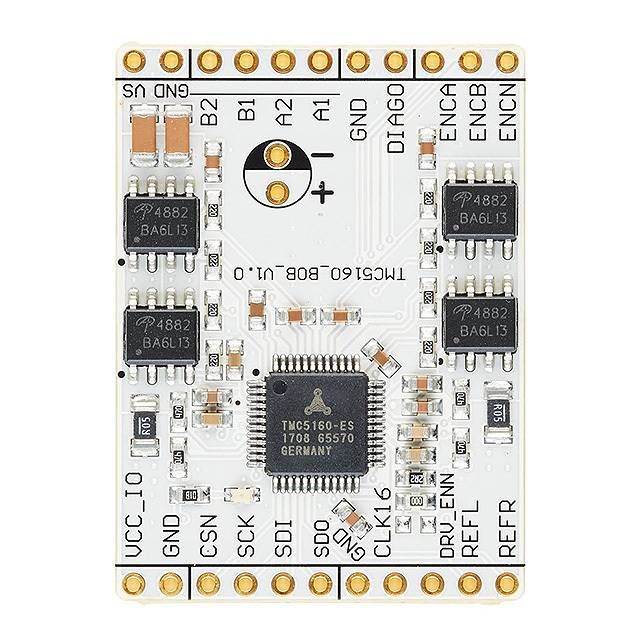

Utilized IC / Part : TMC5160
Primary Attributes : Motors (Stepper)
Supplied Contents : Board(s)
0
222 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : -
Part Status : Active
Type : Power Management
Function : Motor Controller/Driver, Stepper
Embedded : -
Utilized IC / Part : TMC5160
Primary Attributes : Motors (Stepper)
Supplied Contents : Board(s)
0
22 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : -
Part Status : Active
Type : Power Management
Function : Motor Controller/Driver, Stepper
Embedded : -
Utilized IC / Part : TMC5160
Primary Attributes : Motors (Stepper)
Supplied Contents : Board(s)
0
22 in stock

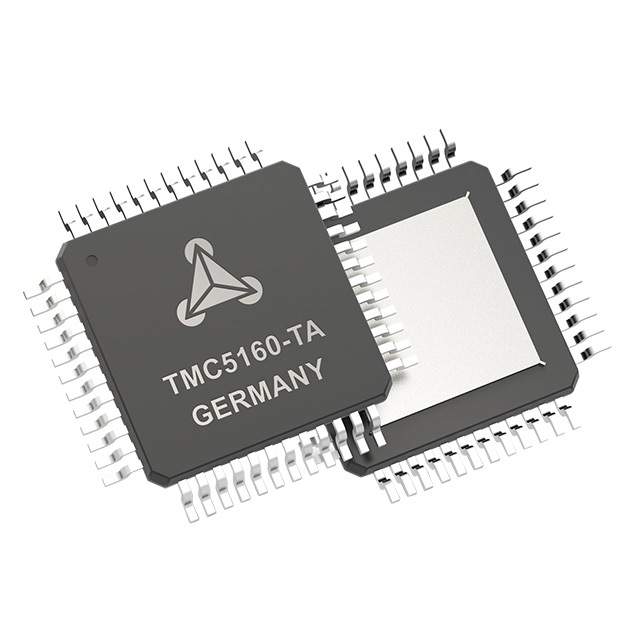

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Packaging : Tray
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : SPI, Step/Direction
Technology : BCD MOS External Power MOSFETs
Step Resolution : 1 ~ 1/256
Applications : Industrial
Current - Output : 20A
Voltage - Supply : 8 V ~ 60 V
Voltage - Load : 8 V ~ 60 V
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 48-TQFP Exposed Pad
Supplier Device Package : 48-TQFP (7x7)
0
1477 in stock

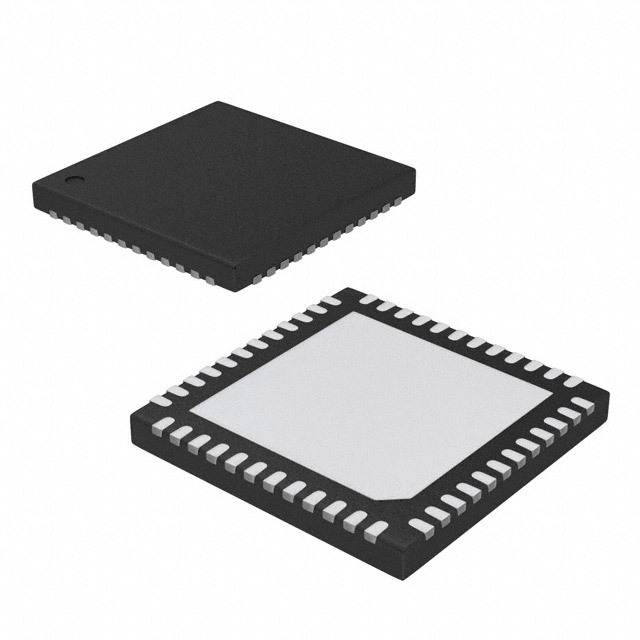

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Packaging : Tray
Series : *
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : SPI, Step/Direction
Technology : BCD MOS External Power MOSFETs
Step Resolution : 1 ~ 1/256
Applications : Industrial
Current - Output : 20A
Voltage - Supply : 8 V ~ 60 V
Voltage - Load : 8 V ~ 60 V
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 48-VFQFN Exposed Pad
Supplier Device Package : 48-QFN (8x8)
0
1025 in stock

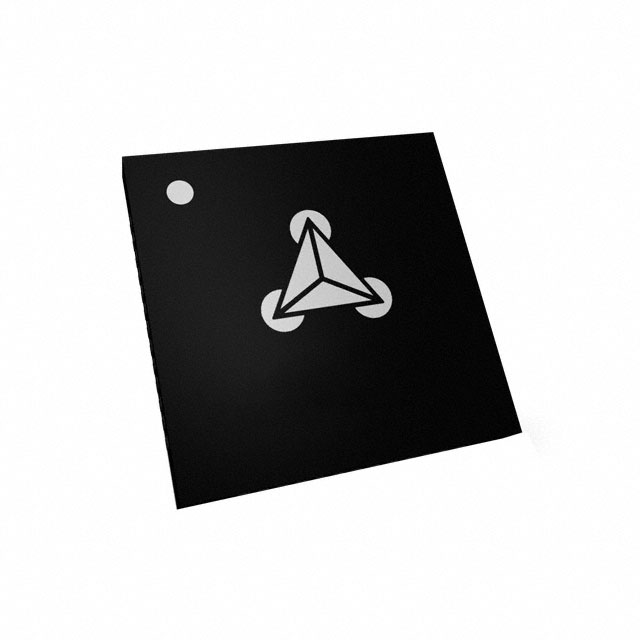

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Packaging : Tray
Series : -
Part Status : Active
Motor Type - Stepper : -
Motor Type - AC, DC : Brushless DC (BLDC)
Function : Controller - Commutation, Direction Management
Output Configuration : Pre-Driver - Half Bridge (3)
Interface : PWM
Technology : Power MOSFET
Step Resolution : -
Applications : General Purpose
Current - Output : -
Voltage - Supply : 3.3 V ~ 5 V
Voltage - Load : 12 V ~ 50 V
Operating Temperature : -40°C ~ 125°C (TA)
Mounting Type : Surface Mount
Package / Case : 52-VFQFN Exposed Pad
Supplier Device Package : 52-QFN (8x8)
0
3683 in stock

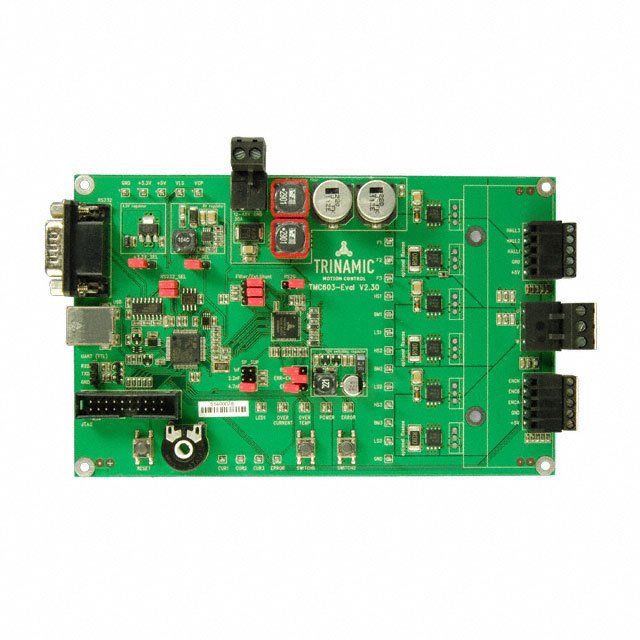

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : -
Part Status : Active
Type : Power Management
Function : Motor Controller/Driver
Embedded : -
Utilized IC / Part : TMC603
Primary Attributes : Motors (BLDC)
Supplied Contents : Board(s)
0
8 in stock
