VersaLogic Corporation

VersaLogic Corporation is the trusted name in embedded computer products. Featuring 5 to 10 year availability, -40 to +85° C operating temperature, Mil Standard 202G shock and vibration testing, and outstanding US-based support, VersaLogic products are ideal for critical applications that value ruggedness, reliability and long life.


Part Number

Manufacturer

Description

Unit Price

In Stock

VL-EPME-42SBP-08

VersaLogic Corporation

Manufacturer : VersaLogic Corporation
Series : Lion
Part Status : Active
Core Processor : Intel Core i5
Speed : 3.5GHz
Number of Cores : 2
Power (Watts) : 12.5W
Cooling Type : Heat plate
Size / Dimension : 4.23" x 3.77" (108mm x 96mm)
Form Factor : PC/104
Expansion Site/Bus : PCIe/104
RAM Capacity/Installed : 8GB/8GB
Storage Interface : SATA, mSATA, MicroSD
Video Outputs : Mini Display Port
Ethernet : 10/100/1000 Mbps (2)
USB : USB 2.0 (4), USB 3.0 (2)
RS-232 (422, 485) : 4
Digital I/O Lines : 8
Analog Input:Output : -
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

100 in stock

VL-EPME-42SCP-00

VersaLogic Corporation

Manufacturer : VersaLogic Corporation
Series : Lion
Part Status : Active
Core Processor : Intel Core i7
Speed : 3.9GHz
Number of Cores : 2
Power (Watts) : 12.5W
Cooling Type : Heat plate
Size / Dimension : 4.23" x 3.77" (108mm x 96mm)
Form Factor : PC/104
Expansion Site/Bus : PCIe/104
RAM Capacity/Installed : 0GB/0GB
Storage Interface : SATA, mSATA, MicroSD
Video Outputs : Mini Display Port
Ethernet : 10/100/1000 Mbps (2)
USB : USB 2.0 (4), USB 3.0 (2)
RS-232 (422, 485) : 4
Digital I/O Lines : 8
Analog Input:Output : -
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

2 in stock

VL-EPME-42SCP-04

VersaLogic Corporation

Manufacturer : VersaLogic Corporation
Series : Lion
Part Status : Active
Core Processor : Intel Core i7
Speed : 3.9GHz
Number of Cores : 2
Power (Watts) : 13.3W
Cooling Type : Heat plate
Size / Dimension : 4.23" x 3.77" (108mm x 96mm)
Form Factor : PC/104
Expansion Site/Bus : PCIe/104
RAM Capacity/Installed : 4GB/4GB
Storage Interface : SATA, mSATA, MicroSD
Video Outputs : Mini Display Port
Ethernet : 10/100/1000 Mbps (2)
USB : USB 2.0 (4), USB 3.0 (2)
RS-232 (422, 485) : 4
Digital I/O Lines : 8
Analog Input:Output : -
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

100 in stock

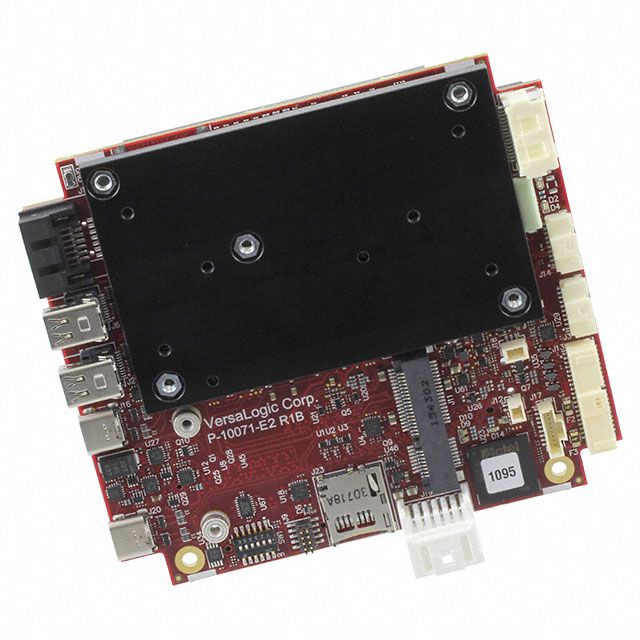

VL-EPME-42SCP-08

VersaLogic Corporation

Manufacturer : VersaLogic Corporation
Series : Lion
Part Status : Active
Core Processor : Intel Core i7
Speed : 3.9GHz
Number of Cores : 2
Power (Watts) : 13.3W
Cooling Type : Heat plate
Size / Dimension : 4.23" x 3.77" (108mm x 96mm)
Form Factor : PC/104
Expansion Site/Bus : PCIe/104
RAM Capacity/Installed : 8GB/8GB
Storage Interface : SATA, mSATA, MicroSD
Video Outputs : Mini Display Port
Ethernet : 10/100/1000 Mbps (2)
USB : USB 2.0 (4), USB 3.0 (2)
RS-232 (422, 485) : 4
Digital I/O Lines : 8
Analog Input:Output : -
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

2 in stock

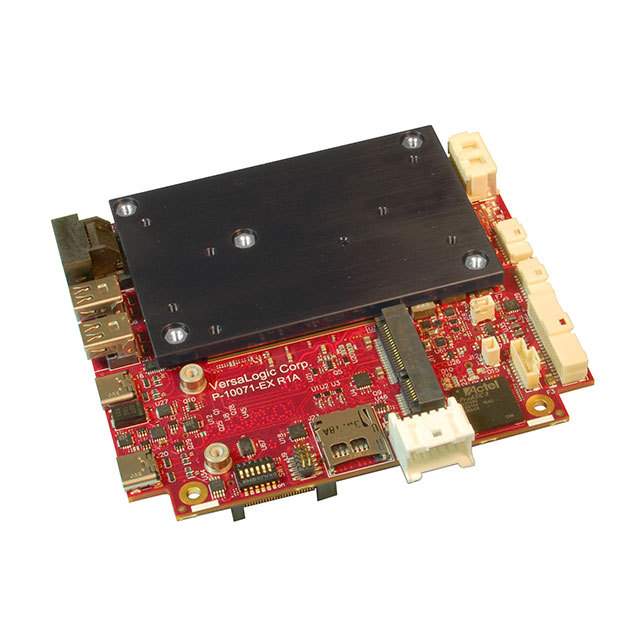

VL-EPME-42SCP-16

VersaLogic Corporation

Manufacturer : VersaLogic Corporation
Series : Lion
Part Status : Active
Core Processor : Intel Core i7
Speed : 3.9GHz
Number of Cores : 2
Power (Watts) : 13.5W
Cooling Type : Heat plate
Size / Dimension : 4.23" x 3.77" (108mm x 96mm)
Form Factor : PC/104
Expansion Site/Bus : PCIe/104
RAM Capacity/Installed : 16GB/16GB
Storage Interface : SATA, mSATA, MicroSD
Video Outputs : Mini Display Port
Ethernet : 10/100/1000 Mbps (2)
USB : USB 2.0 (4), USB 3.0 (2)
RS-232 (422, 485) : 4
Digital I/O Lines : 8
Analog Input:Output : -
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

100 in stock

VL-EPM-NET100

VersaLogic Corporation

Manufacturer : VersaLogic Corporation
Series : *
Part Status : Active
Function : -
Power (Watts) : -
Cooling Type : -
Size / Dimension : -
Form Factor : -
Expansion Site/Bus : -
Video Outputs : -
Ethernet : -
USB : -
RS-232 (422, 485) : -
Digital I/O Lines : -
Analog Input:Output : -
Operating Temperature : -

35 in stock

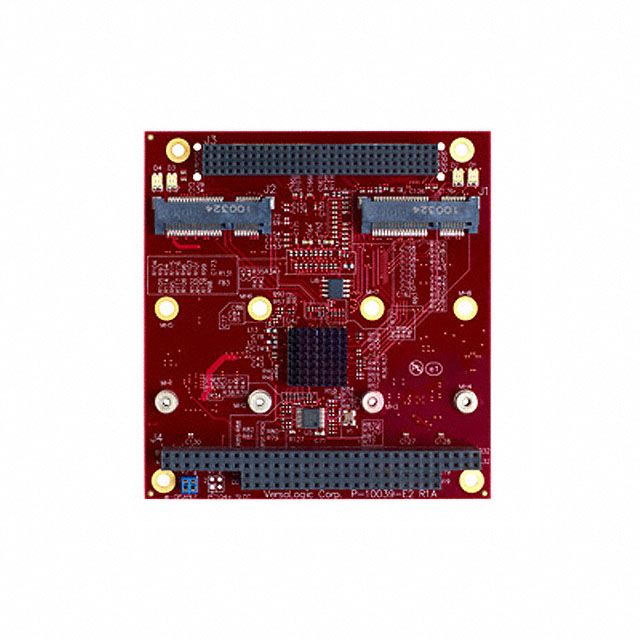

VL-EPM-P2E

VersaLogic Corporation

Manufacturer : VersaLogic Corporation
Series : -
Part Status : Active
Function : miniPCIe
Power (Watts) : -
Cooling Type : -
Size / Dimension : 3.6" x 3.8" (90mm x 96mm)
Form Factor : PC/104
Expansion Site/Bus : PC/104-Plus
Video Outputs : -
Ethernet : -
USB : -
RS-232 (422, 485) : -
Digital I/O Lines : -
Analog Input:Output : -
Operating Temperature : -40°C ~ 85°C

100 in stock

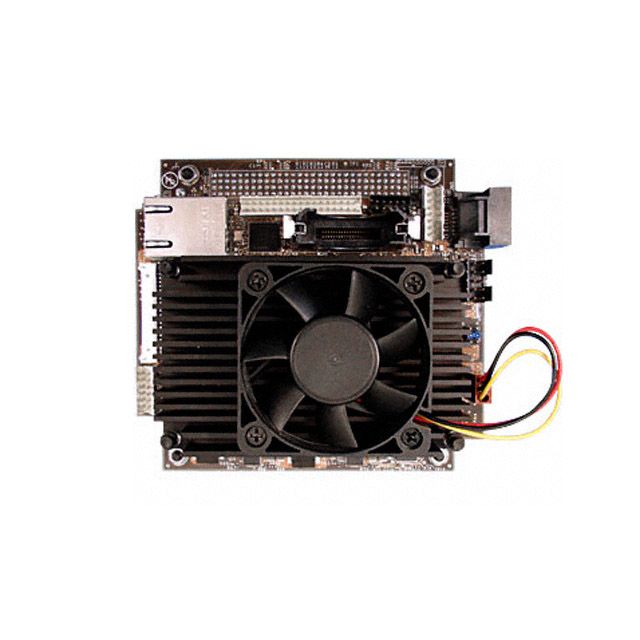

VL-EPMP-34E

VersaLogic Corporation

Manufacturer : VersaLogic Corporation
Series : Wildcat
Part Status : Obsolete
Core Processor : Core 2 Duo SP9300
Speed : 1.2GHz
Number of Cores : 2
Power (Watts) : 12.8W
Cooling Type : Fan
Size / Dimension : 4.2" x 3.8" (107mm x 96mm)
Form Factor : PC/104
Expansion Site/Bus : PC/104
RAM Capacity/Installed : 4GB/0GB
Storage Interface : SATA2 (2), MiniBlade
Video Outputs : VGA, LVDS
Ethernet : GbE
USB : USB 2.0 (4)
RS-232 (422, 485) : 1
Digital I/O Lines : 0
Analog Input:Output : 0:0
Watchdog Timer : Yes
Operating Temperature : -40°C ~ 85°C

100 in stock

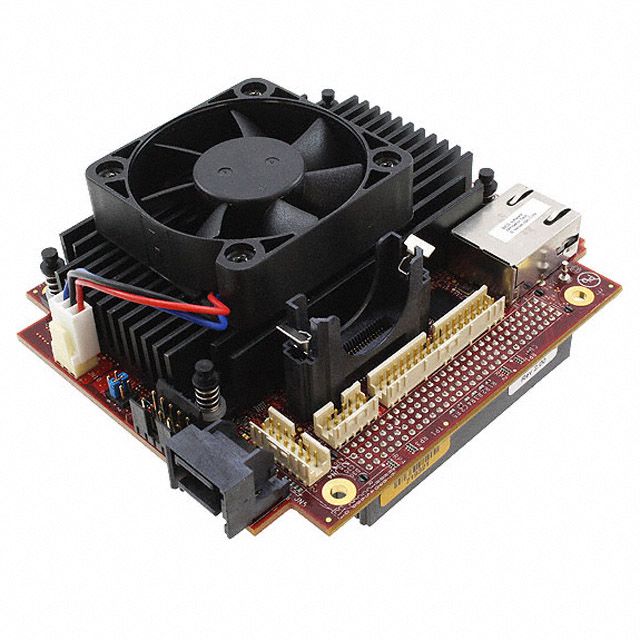

VL-EPMP-34ER

VersaLogic Corporation

100 in stock

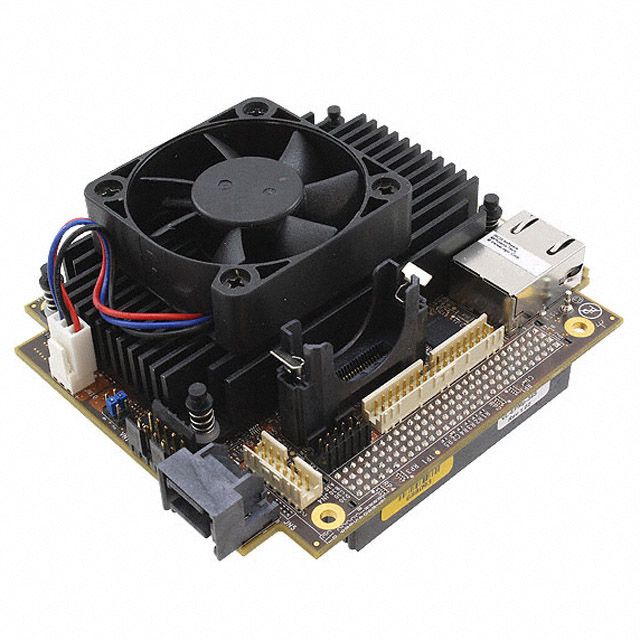

VL-EPMP-34S

VersaLogic Corporation

Manufacturer : VersaLogic Corporation
Series : Wildcat
Part Status : Obsolete
Core Processor : Core 2 Duo SP9300
Speed : 2.26GHz
Number of Cores : 2
Power (Watts) : 19.5W
Cooling Type : Fan
Size / Dimension : 4.2" x 3.8" (107mm x 96mm)
Form Factor : PC/104
Expansion Site/Bus : PC/104
RAM Capacity/Installed : 4GB/0GB
Storage Interface : SATA2 (2), MiniBlade
Video Outputs : VGA, LVDS
Ethernet : GbE
USB : USB 2.0 (4)
RS-232 (422, 485) : 1
Digital I/O Lines : 0
Analog Input:Output : 0:0
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

100 in stock

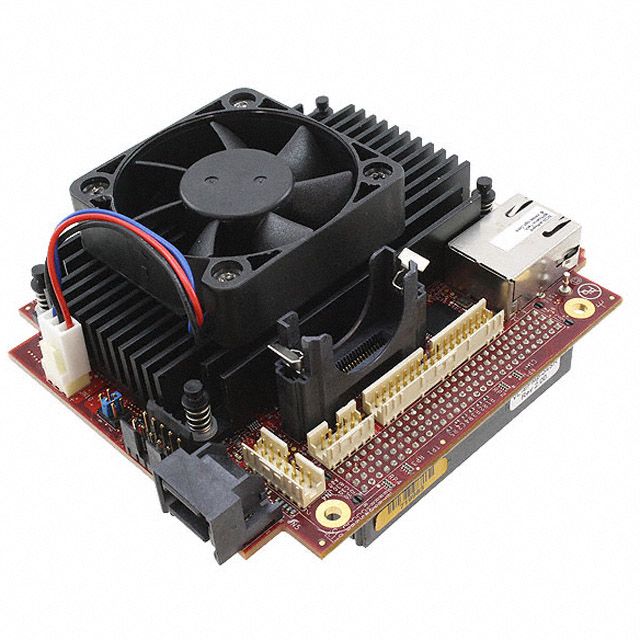

VL-EPMP-34SR

VersaLogic Corporation

100 in stock

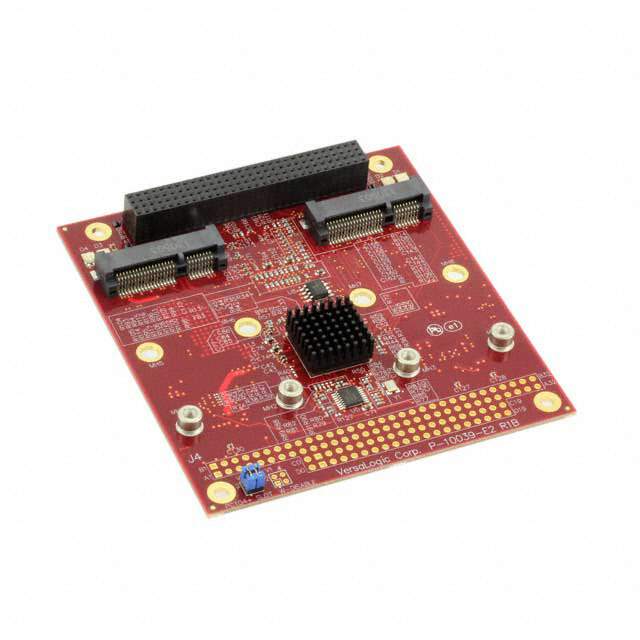

VL-EPMP-P2E

VersaLogic Corporation

Manufacturer : VersaLogic Corporation
Series : -
Part Status : Active
Function : miniPCIe
Power (Watts) : -
Cooling Type : -
Size / Dimension : 3.6" x 3.8" (90mm x 96mm)
Form Factor : PC/104
Expansion Site/Bus : PC/104
Video Outputs : -
Ethernet : -
USB : -
RS-232 (422, 485) : -
Digital I/O Lines : -
Analog Input:Output : -
Operating Temperature : -40°C ~ 85°C

5 in stock
