Vishay
- Vishay’s product portfolio is an unmatched collection of discrete semiconductors (diodes, MOSFETs, and optoelectronics) and passive components (resistors, inductors, and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, and medical markets. Vishay is proud to be a major partner with Digi-Key.
Part Number
Manufacturer
Description
Unit Price
In Stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 20% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
0
1300 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 600% @ 1mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : -, 250µs
Rise / Fall Time (Typ) : 300µs, -
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 35V
Current - Output / Channel : 80mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 100mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
0
813 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
0
1182 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 35µs, 90µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 15V
Current - Output / Channel : 1µA
Voltage - Forward (Vf) (Typ) : 1.26V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD
Supplier Device Package : 8-SMD
0
27 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 35µs, 90µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 15V
Current - Output / Channel : 1µA
Voltage - Forward (Vf) (Typ) : 1.26V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
100 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 35µs, 90µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 15V
Current - Output / Channel : 1µA
Voltage - Forward (Vf) (Typ) : 1.26V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
1131 in stock

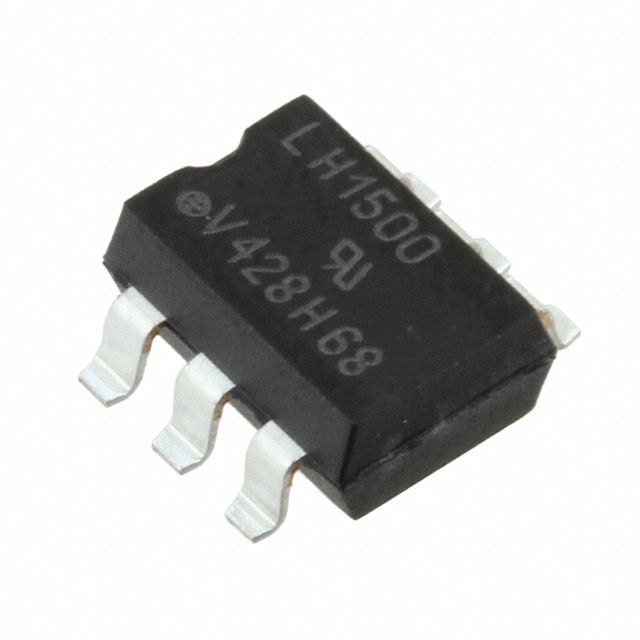

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Alternate Packaging
Series : LH1500
Part Status : Active
Mounting Type : Surface Mount
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.25VDC
Voltage - Load : 0V ~ 350V
Load Current : 150mA
On-State Resistance (Max) : 20 Ohms
Termination Style : Gull Wing
Package / Case : 6-SMD (0.300", 7.62mm)
Supplier Device Package : 6-SMD
0
671 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LH1500
Part Status : Active
Mounting Type : Surface Mount
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.25VDC
Voltage - Load : 0V ~ 350V
Load Current : 150mA
On-State Resistance (Max) : 20 Ohms
Termination Style : Gull Wing
Package / Case : 6-SMD (0.300", 7.62mm)
Supplier Device Package : 6-SMD
0
100 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : LH1500
Part Status : Active
Mounting Type : Through Hole
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.25VDC
Voltage - Load : 0V ~ 350V
Load Current : 150mA
On-State Resistance (Max) : 20 Ohms
Termination Style : PC Pin
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
10 in stock

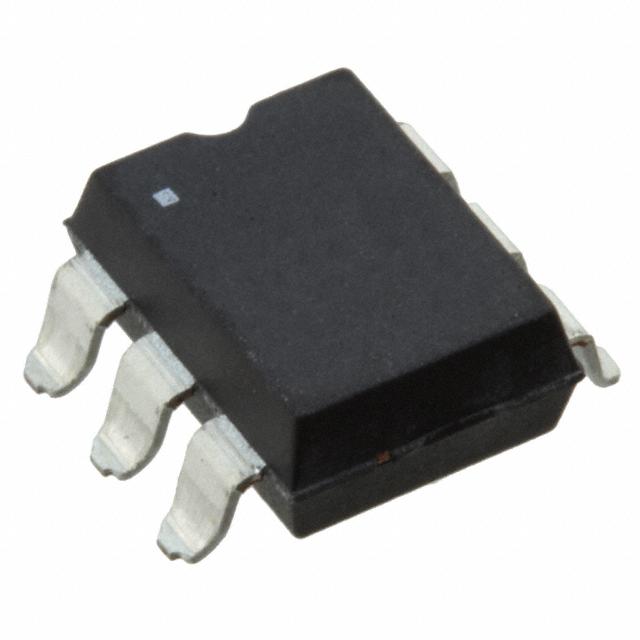

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Alternate Packaging
Series : LH1501
Part Status : Active
Mounting Type : Surface Mount
Circuit : SPST-NC (1 Form B)
Output Type : AC, DC
Voltage - Input : 1.26VDC
Voltage - Load : 0V ~ 350V
Load Current : 150mA
On-State Resistance (Max) : 20 Ohms
Termination Style : Gull Wing
Package / Case : 6-SMD (0.300", 7.62mm)
Supplier Device Package : 6-SMD
0
1494 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LH1501
Part Status : Active
Mounting Type : Surface Mount
Circuit : SPST-NC (1 Form B)
Output Type : AC, DC
Voltage - Input : 1.26VDC
Voltage - Load : 0V ~ 350V
Load Current : 150mA
On-State Resistance (Max) : 20 Ohms
Termination Style : Gull Wing
Package / Case : 6-SMD (0.300", 7.62mm)
Supplier Device Package : 6-SMD
0
926 in stock

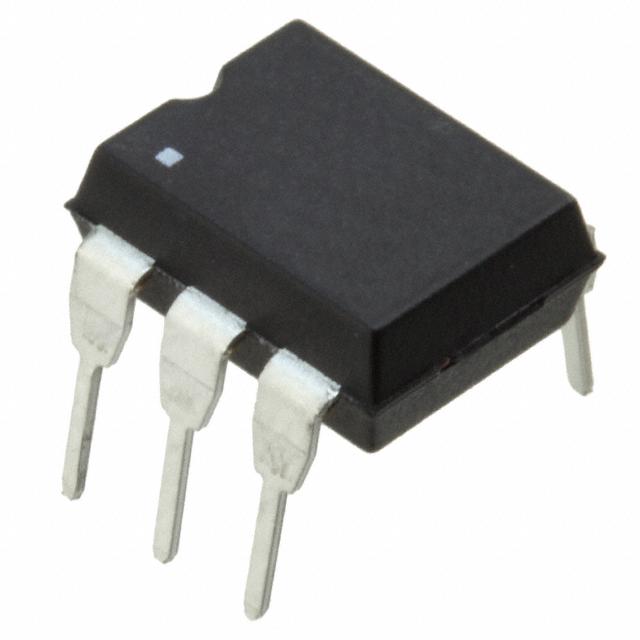

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : LH1501
Part Status : Active
Mounting Type : Through Hole
Circuit : SPST-NC (1 Form B)
Output Type : AC, DC
Voltage - Input : 1.26VDC
Voltage - Load : 0V ~ 350V
Load Current : 150mA
On-State Resistance (Max) : 20 Ohms
Termination Style : PC Pin
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
1285 in stock
