Vishay
- Vishay’s product portfolio is an unmatched collection of discrete semiconductors (diodes, MOSFETs, and optoelectronics) and passive components (resistors, inductors, and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, and medical markets. Vishay is proud to be a major partner with Digi-Key.
Part Number
Manufacturer
Description
Unit Price
In Stock
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : FRED Pt®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) (per Diode) : 510A
Voltage - Forward (Vf) (Max) @ If : 1.5V @ 360A
Speed : -
Reverse Recovery Time (trr) : 74ns
Current - Reverse Leakage @ Vr : 1.28mA @ 400V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Chassis Mount
Package / Case : TO-244AB
Supplier Device Package : TO-244AB
0
92 in stock

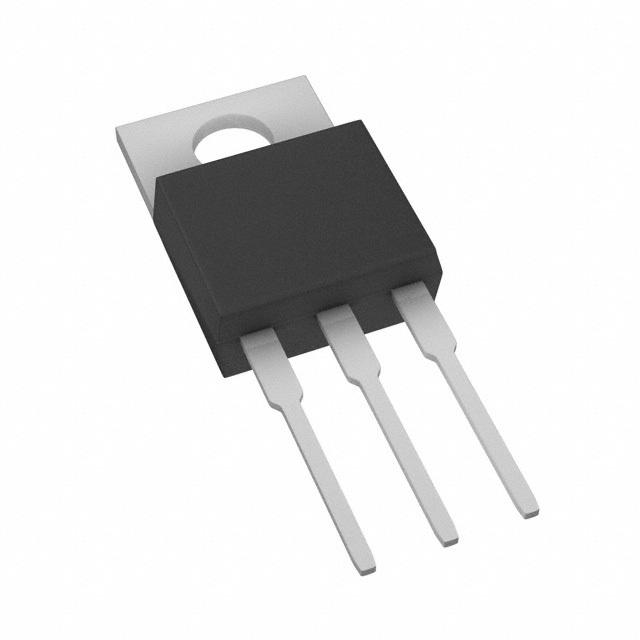

Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 5A
Voltage - Forward (Vf) (Max) @ If : 1.6V @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 150µA @ 200V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
990 in stock
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) : 20A (DC)
Voltage - Forward (Vf) (Max) @ If : 660mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 45V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : 200°C (Max)
0
100 in stock

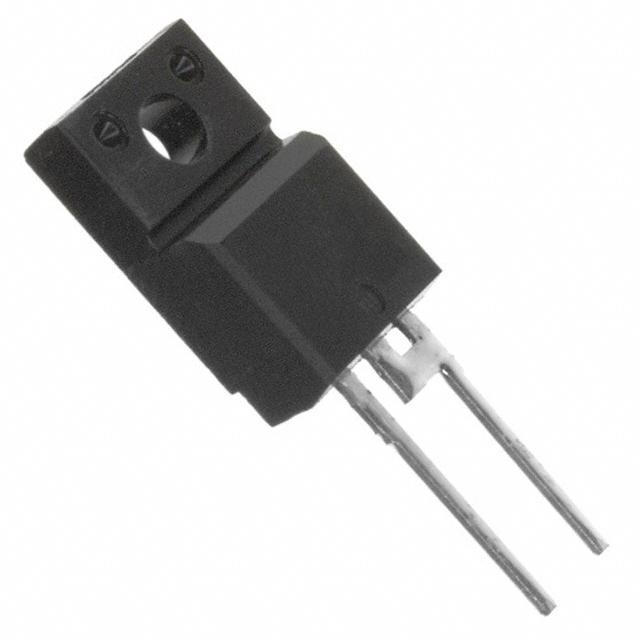

Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) : 30A (DC)
Voltage - Forward (Vf) (Max) @ If : 700mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 45V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : 200°C (Max)
0
100 in stock
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 570mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 45V
Operating Temperature - Junction : 200°C (Max)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 570mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 45V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 570mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 45V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 80V
Current - Average Rectified (Io) : 30A
Voltage - Forward (Vf) (Max) @ If : 950mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 80V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Operating Temperature - Junction : -55°C ~ 150°C
0
100 in stock

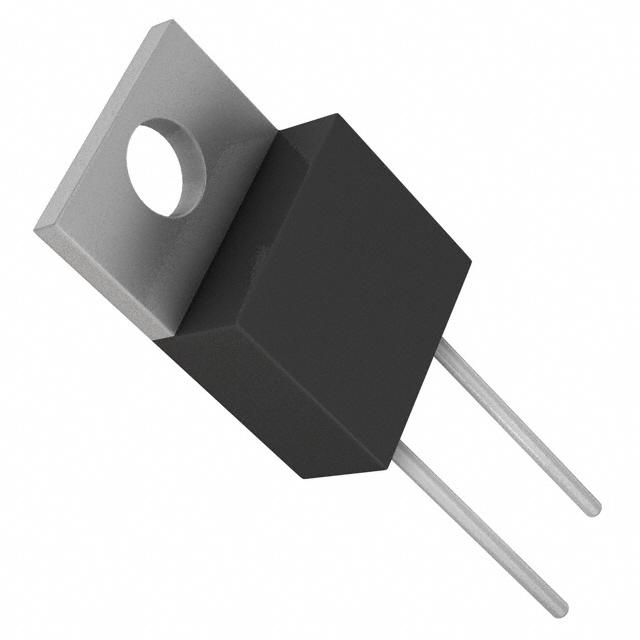

Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) : 40A (DC)
Voltage - Forward (Vf) (Max) @ If : 670mV @ 40A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 3mA @ 45V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : 200°C (Max)
0
100 in stock
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 880mV @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 150µA @ 200V
Capacitance @ Vr, F : 1216pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -40°C ~ 175°C
0
374 in stock
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TransZorb®
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 10.3V
Voltage - Breakdown (Min) : 11.4V
Voltage - Clamping (Max) @ Ipp : 16.3V
Current - Peak Pulse (10/1000µs) : 23.2A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 988pF @ 1MHz
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-219AB
Supplier Device Package : DO-219AB (SMF)
0
5725 in stock

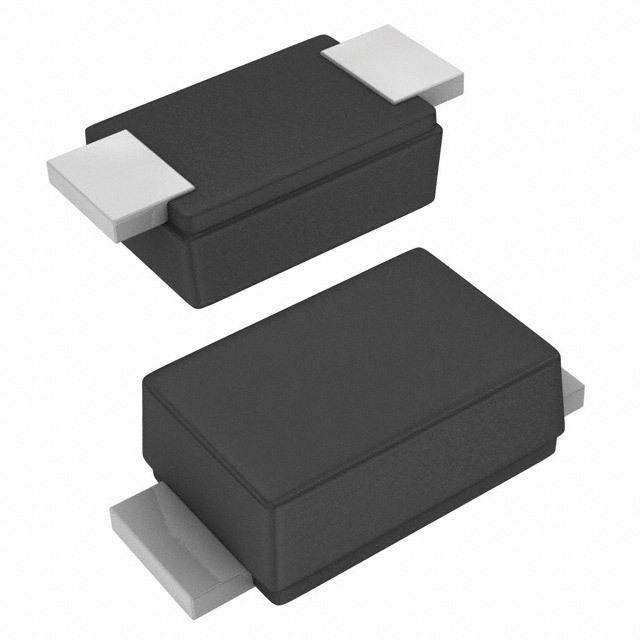

Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TransZorb®
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 11.2V
Voltage - Breakdown (Min) : 12.99V
Voltage - Clamping (Max) @ Ipp : 18V
Current - Peak Pulse (10/1000µs) : 21.75A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : Automotive
Capacitance @ Frequency : 910pF @ 1MHz
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-219AB
Supplier Device Package : DO-219AB (SMF)
0
100 in stock
