- Walsin Technology Corporation, part of the Passive Systems Alliance Taiwan, is a leading supplier of RF passive devices. The Walsin offering includes Bluetooth® , GPS and WiMAX® chip antennas, high frequency band pass, balanced and low pass filters, balun transformers, diplexers, and common-mode filters.

Walsin's customer base spans the globe with products used in automotive, consumer, industrial or medical applications, the PSA family of RF Devices provides a broad lineup to cover your design needs.

Part Number
Manufacturer
Description
Unit Price
In Stock

RGCMF1210350U0T RGCMF1210350U0T

Walsin Technology
Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : RGCMF
Part Status : Discontinued at
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 35 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 800 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.035" (0.90mm)
Package / Case : 0504 (1210 Metric), 4 Lead
0
1594 in stock

RGCMF1210900H3T RGCMF1210900H3T

Walsin Technology
Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : RGCMF
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 1 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) : 0.035" (0.90mm)
Package / Case : 0504 (1210 Metric), 4 Lead
0
1465 in stock

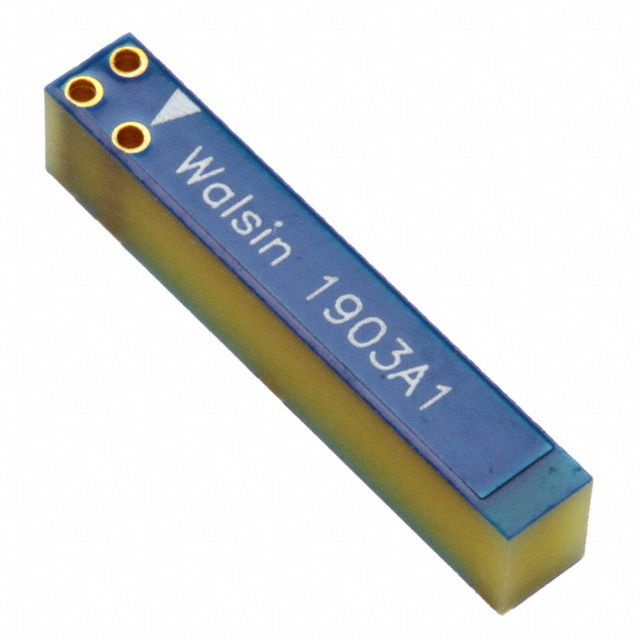

RGFRA1903041A1T RGFRA1903041A1T

Walsin Technology
Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 2
Return Loss : -
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.150" (3.80mm)
Applications : -
0
34 in stock

RGTCM0806350H0T RGTCM0806350H0T

Walsin Technology
Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Discontinued at
Frequency : -
Bandwidth : -
Filter Type : -
Ripple : -
Insertion Loss : -
Mounting Type : Surface Mount
Package / Case : 0302 (0806 Metric), 4 Lead
Size / Dimension : 0.035" L x 0.027" W (0.88mm x 0.68mm)
Height (Max) : 0.022" (0.55mm)
0
100 in stock

RGTCM0806650H0T RGTCM0806650H0T

Walsin Technology
Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Discontinued at
Frequency : -
Bandwidth : -
Filter Type : -
Ripple : -
Insertion Loss : -
Mounting Type : Surface Mount
Package / Case : 0302 (0806 Metric), 4 Lead
Size / Dimension : 0.035" L x 0.027" W (0.88mm x 0.68mm)
Height (Max) : 0.022" (0.55mm)
0
100 in stock

RGTCM0806900H0T RGTCM0806900H0T

Walsin Technology
Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Discontinued at
Frequency : -
Bandwidth : -
Filter Type : -
Ripple : -
Insertion Loss : -
Mounting Type : Surface Mount
Package / Case : 0302 (0806 Metric), 4 Lead
Size / Dimension : 0.035" L x 0.027" W (0.88mm x 0.68mm)
Height (Max) : 0.022" (0.55mm)
0
7572 in stock

WA04P000XPTL WA04P000XPTL

Walsin Technology
Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Attenuation Value : 0dB
Frequency Range : 0Hz ~ 3GHz
Power (Watts) : 100mW
Impedance : 50 Ohms
Package / Case : 0404 (1010 Metric), Concave
0
3112 in stock

WA04P001XBTL WA04P001XBTL

Walsin Technology
Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Attenuation Value : 1dB
Frequency Range : 0Hz ~ 3GHz
Power (Watts) : 100mW
Impedance : 50 Ohms
Package / Case : 0404 (1010 Metric), Concave
0
9769 in stock

WA04P002XBTL WA04P002XBTL

Walsin Technology
Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Attenuation Value : 2dB
Frequency Range : 0Hz ~ 3GHz
Power (Watts) : 100mW
Impedance : 50 Ohms
Package / Case : 0404 (1010 Metric), Concave
0
100 in stock

WA04P003XBTL WA04P003XBTL

Walsin Technology
Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Attenuation Value : 3dB
Frequency Range : 0Hz ~ 3GHz
Power (Watts) : 100mW
Impedance : 50 Ohms
Package / Case : 0404 (1010 Metric), Concave
0
3640 in stock

WA04P004XBTL WA04P004XBTL

Walsin Technology
Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Attenuation Value : 4dB
Frequency Range : 0Hz ~ 3GHz
Power (Watts) : 100mW
Impedance : 50 Ohms
Package / Case : 0404 (1010 Metric), Concave
0
3953 in stock

WA04P005XBTL WA04P005XBTL

Walsin Technology
Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Attenuation Value : 5dB
Frequency Range : 0Hz ~ 3GHz
Power (Watts) : 100mW
Impedance : 50 Ohms
Package / Case : 0404 (1010 Metric), Concave
0
20012 in stock
