Walsin Technology

- Walsin Technology Corporation, part of the Passive Systems Alliance Taiwan, is a leading supplier of RF passive devices. The Walsin offering includes Bluetooth® , GPS and WiMAX® chip antennas, high frequency band pass, balanced and low pass filters, balun transformers, diplexers, and common-mode filters.

Walsin's customer base spans the globe with products used in automotive, consumer, industrial or medical applications, the PSA family of RF Devices provides a broad lineup to cover your design needs.


Part Number

Manufacturer

Description

Unit Price

In Stock

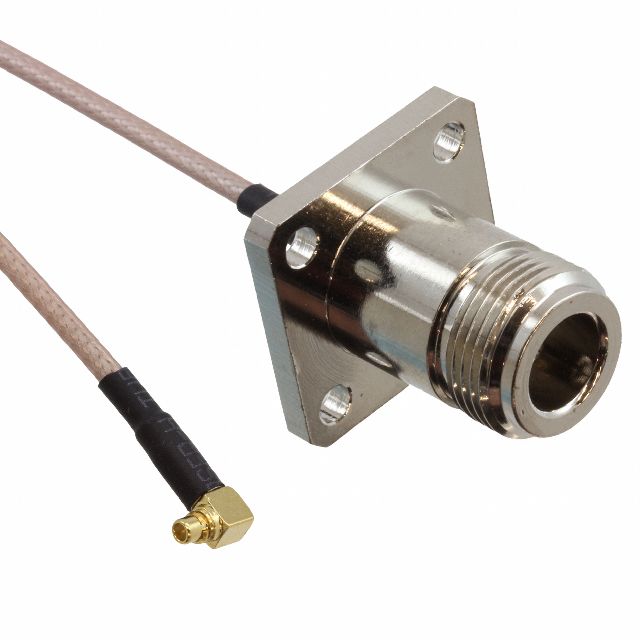

RFCBA241530AF6B601

Walsin Technology

Manufacturer : Walsin Technology Corporation
Series : -
Part Status : Active
Gender : Female to Female
Style : MMCX to N-Type
1st Connector : N Female Jack
2nd Connector : -
Length : 11.811" (300.00mm)
Cable Type : RG-316
Impedance : -
Frequency - Max : 6GHz
Color : -
Features : -
Operating Temperature : -

181 in stock

RFCMF1220100M3T

Walsin Technology

Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : RFCMF
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 80 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 1.5 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.047" L x 0.079" W (1.20mm x 2.00mm)
Height (Max) : 0.047" (1.20mm)
Package / Case : 0508 (1220 Metric), 4 Lead

20258 in stock

RFCMF1220100M4T

Walsin Technology

Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : RFCMF
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 120 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 200mA
DC Resistance (DCR) (Max) : 2.5 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.047" L x 0.079" W (1.20mm x 2.00mm)
Height (Max) : 0.047" (1.20mm)
Package / Case : 0508 (1220 Metric), 4 Lead

10038 in stock

RFDIP1608060L0T

Walsin Technology

Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : RFDIP
Part Status : Discontinued at
Frequency Bands (Low / High) : 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz
Low Band Attenuation (min / max dB) : 18.00dB / -
High Band Attenuation (min / max dB) : 20.00dB / -
Return Loss (Low Band / High Band) : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), 6 PC Pad

2114 in stock

RFDIP1608060L3T

Walsin Technology

3610 in stock

RFDIP2012050L7T

Walsin Technology

Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : RFDIP
Part Status : Discontinued at
Frequency Bands (Low / High) : 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz
Low Band Attenuation (min / max dB) : 18.00dB / -
High Band Attenuation (min / max dB) : 19.00dB / -
Return Loss (Low Band / High Band) : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 6 PC Pad

895 in stock

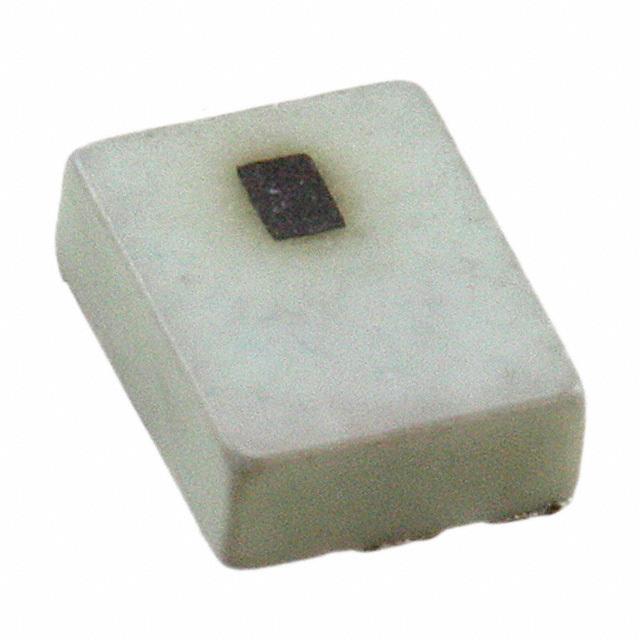

RFDIP2520080TM0T62

Walsin Technology

Manufacturer : Walsin Technology Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : RFDIP
Part Status : Discontinued at
Frequency Bands (Low / High) : 1.565GHz ~ 1.585GHz / 2.4GHz ~ 2.5GHz
Low Band Attenuation (min / max dB) : -
High Band Attenuation (min / max dB) : 30.00dB / -
Return Loss (Low Band / High Band) : 10dB / 10dB
Mounting Type : Surface Mount
Package / Case : 1008 (2520 Metric), 9 PC Pad

1989 in stock

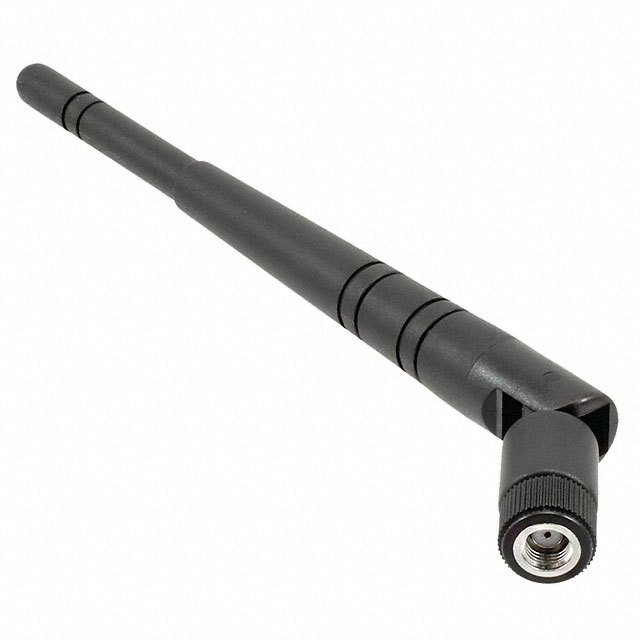

RFDPA151300SBAB8G1

Walsin Technology

Manufacturer : Walsin Technology Corporation
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Whip, Tilt
Number of Bands : 1
VSWR : 2
Return Loss : -10dB
Gain : 3dBi
Power - Max : -
Features : -
Termination : Connector, RP-SMA Male
Ingress Protection : -
Mounting Type : Connector Mount
Height (Max) : 6.201" (157.50mm)
Applications : -

562 in stock

RFDPA151300SBLB8G1

Walsin Technology

Manufacturer : Walsin Technology Corporation
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 5.2GHz, 5.8GHz
Frequency Range : 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz
Antenna Type : Whip, Tilt
Number of Bands : 3
VSWR : 2
Return Loss : -10dB
Gain : 3dBi
Power - Max : -
Features : -
Termination : Connector, RP-SMA Male
Ingress Protection : -
Mounting Type : Connector Mount
Height (Max) : 6.201" (157.50mm)
Applications : -

561 in stock

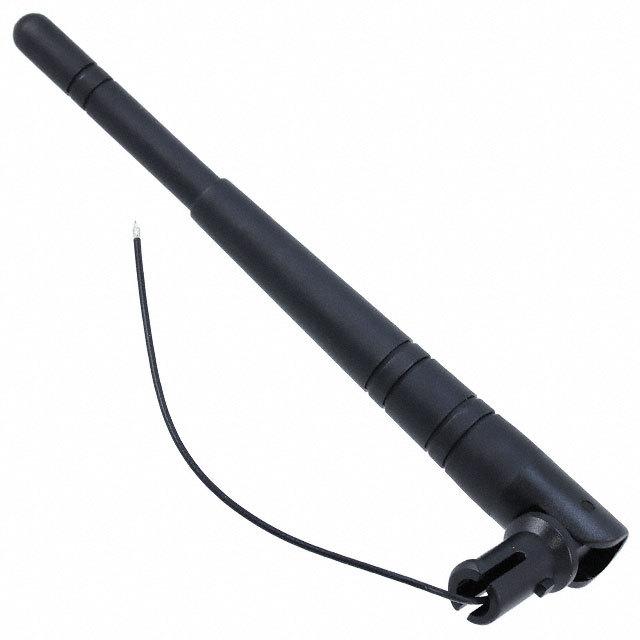

RFDPA151310NNAB3G1

Walsin Technology

Manufacturer : Walsin Technology Corporation
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Whip, Tilt
Number of Bands : 1
VSWR : 2
Return Loss : -10dB
Gain : 3dBi
Power - Max : -
Features : -
Termination : Cable
Ingress Protection : -
Mounting Type : Connector Mount
Height (Max) : 6.201" (157.50mm)
Applications : -

593 in stock

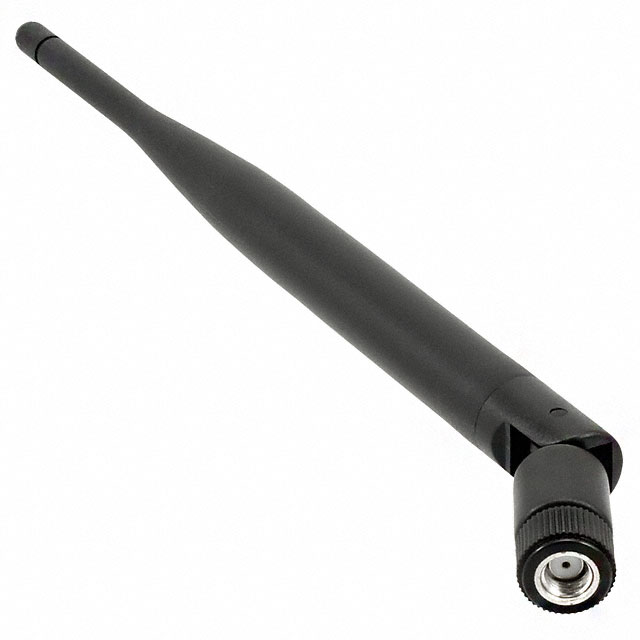

RFDPA171300SBAB8G1

Walsin Technology

287 in stock

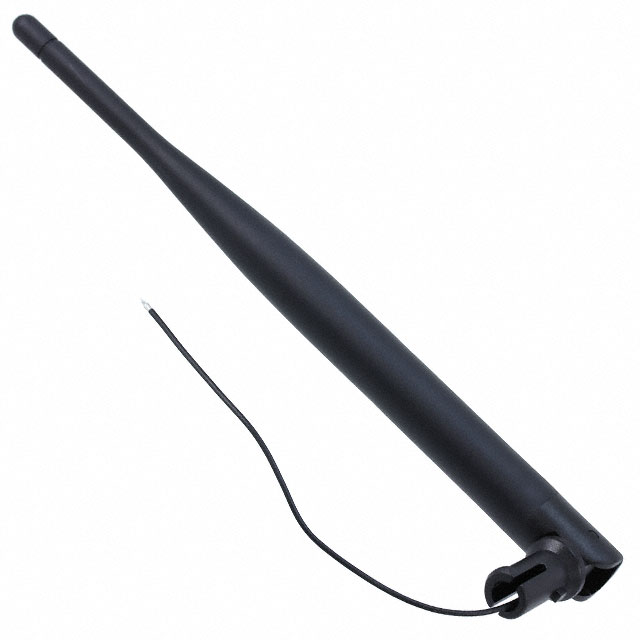

RFDPA171310NNAB3G1

Walsin Technology

Manufacturer : Walsin Technology Corporation
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Whip, Tilt
Number of Bands : 1
VSWR : 2
Return Loss : -10dB
Gain : 3dBi
Power - Max : -
Features : -
Termination : Cable
Ingress Protection : -
Mounting Type : Connector Mount
Height (Max) : 6.791" (172.50mm)
Applications : -

577 in stock
