Wolfspeed
- Cree’s power and RF division is now known as Wolfspeed, A Cree Company. Wolfspeed is liberating power and wireless systems from the limitations of silicon by leading the innovation and commercialization of next-generation systems based on silicon carbide and gallium nitride.
Part Number
Manufacturer
Description
Unit Price
In Stock
C3M0120090J-TR
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C3M™
Part Status : Active
FET Type : N-Channel
Technology : SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 22A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 15V
Rds On (Max) @ Id, Vgs : 155 mOhm @ 15A, 15V
Vgs(th) (Max) @ Id : 3.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs : 17.3nC @ 15V
Vgs (Max) : +18V, -8V
Input Capacitance (Ciss) (Max) @ Vds : 350pF @ 600V
FET Feature : -
Power Dissipation (Max) : 83W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D2PAK-7
Package / Case : TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C3M™
Part Status : Active
FET Type : N-Channel
Technology : SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 22A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 15V
Rds On (Max) @ Id, Vgs : 155 mOhm @ 15A, 15V
Vgs(th) (Max) @ Id : 3.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs : 17.3nC @ 15V
Vgs (Max) : +18V, -8V
Input Capacitance (Ciss) (Max) @ Vds : 350pF @ 600V
FET Feature : -
Power Dissipation (Max) : 83W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D2PAK-7
Package / Case : TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
0
100 in stock
C3M0120100J
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Tube
Series : C3M™
Part Status : Active
FET Type : N-Channel
Technology : SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) : 1000V
Current - Continuous Drain (Id) @ 25°C : 22A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 15V
Rds On (Max) @ Id, Vgs : 155 mOhm @ 15A, 15V
Vgs(th) (Max) @ Id : 3.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs : 21.5nC @ 15V
Vgs (Max) : +15V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 350pF @ 600V
FET Feature : -
Power Dissipation (Max) : 83W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D2PAK-7
Package / Case : TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Packaging : Tube
Series : C3M™
Part Status : Active
FET Type : N-Channel
Technology : SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) : 1000V
Current - Continuous Drain (Id) @ 25°C : 22A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 15V
Rds On (Max) @ Id, Vgs : 155 mOhm @ 15A, 15V
Vgs(th) (Max) @ Id : 3.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs : 21.5nC @ 15V
Vgs (Max) : +15V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 350pF @ 600V
FET Feature : -
Power Dissipation (Max) : 83W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D2PAK-7
Package / Case : TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
0
100 in stock

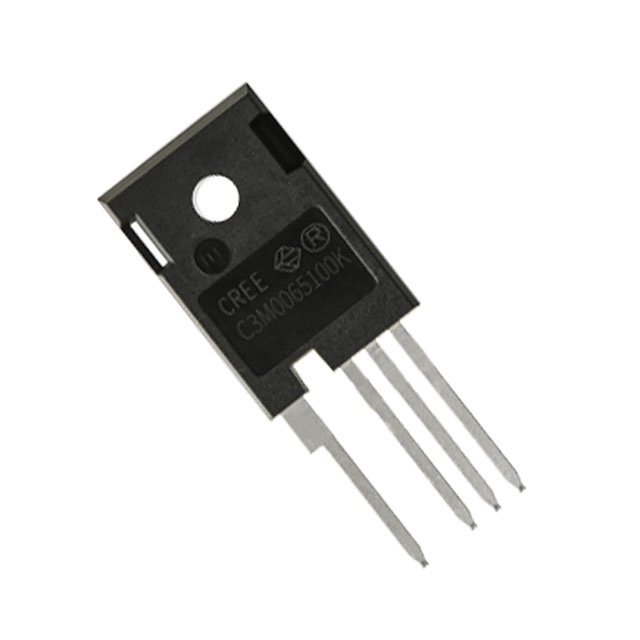

C3M0120100K
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Tube
Series : C3M™
Part Status : Active
FET Type : N-Channel
Technology : SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) : 1000V
Current - Continuous Drain (Id) @ 25°C : 22A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 15V
Rds On (Max) @ Id, Vgs : 155 mOhm @ 15A, 15V
Vgs(th) (Max) @ Id : 3.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs : 21.5nC @ 15V
Vgs (Max) : ±15V
Input Capacitance (Ciss) (Max) @ Vds : 350pF @ 600V
FET Feature : -
Power Dissipation (Max) : 83W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-247-4L
Package / Case : TO-247-4
Packaging : Tube
Series : C3M™
Part Status : Active
FET Type : N-Channel
Technology : SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) : 1000V
Current - Continuous Drain (Id) @ 25°C : 22A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 15V
Rds On (Max) @ Id, Vgs : 155 mOhm @ 15A, 15V
Vgs(th) (Max) @ Id : 3.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs : 21.5nC @ 15V
Vgs (Max) : ±15V
Input Capacitance (Ciss) (Max) @ Vds : 350pF @ 600V
FET Feature : -
Power Dissipation (Max) : 83W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-247-4L
Package / Case : TO-247-4
0
100 in stock

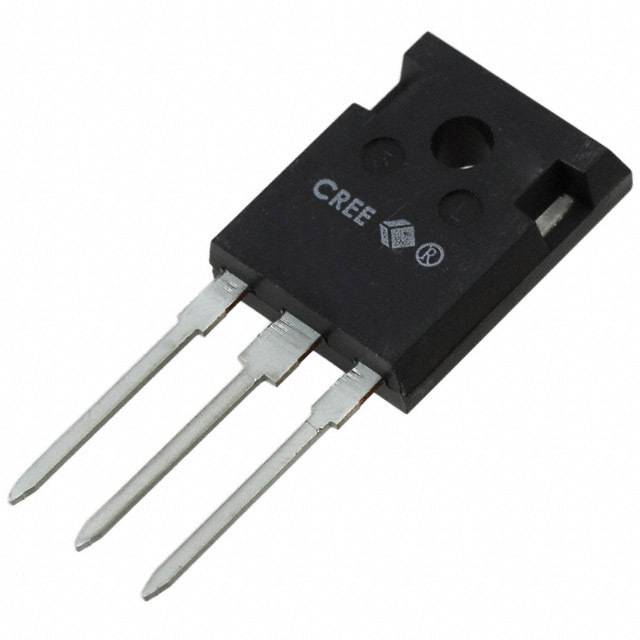

C3M0280090D
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Tube
Series : C3M™
Part Status : Active
FET Type : N-Channel
Technology : SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 11.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 15V
Rds On (Max) @ Id, Vgs : 360 mOhm @ 7.5A, 15V
Vgs(th) (Max) @ Id : 3.5V @ 1.2mA
Gate Charge (Qg) (Max) @ Vgs : 9.5nC @ 15V
Vgs (Max) : +18V, -8V
Input Capacitance (Ciss) (Max) @ Vds : 150pF @ 600V
FET Feature : -
Power Dissipation (Max) : 54W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-247-3
Package / Case : TO-247-3
Packaging : Tube
Series : C3M™
Part Status : Active
FET Type : N-Channel
Technology : SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 11.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 15V
Rds On (Max) @ Id, Vgs : 360 mOhm @ 7.5A, 15V
Vgs(th) (Max) @ Id : 3.5V @ 1.2mA
Gate Charge (Qg) (Max) @ Vgs : 9.5nC @ 15V
Vgs (Max) : +18V, -8V
Input Capacitance (Ciss) (Max) @ Vds : 150pF @ 600V
FET Feature : -
Power Dissipation (Max) : 54W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-247-3
Package / Case : TO-247-3
0
100 in stock
C3M0280090J
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Tube
Alternate Packaging
Series : C3M™
Part Status : Active
FET Type : N-Channel
Technology : SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 15V
Rds On (Max) @ Id, Vgs : 360 mOhm @ 7.5A, 15V
Vgs(th) (Max) @ Id : 3.5V @ 1.2mA
Gate Charge (Qg) (Max) @ Vgs : 9.5nC @ 15V
Vgs (Max) : +18V, -8V
Input Capacitance (Ciss) (Max) @ Vds : 150pF @ 600V
FET Feature : -
Power Dissipation (Max) : 50W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D2PAK-7
Package / Case : TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Packaging : Tube
Alternate Packaging
Series : C3M™
Part Status : Active
FET Type : N-Channel
Technology : SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 15V
Rds On (Max) @ Id, Vgs : 360 mOhm @ 7.5A, 15V
Vgs(th) (Max) @ Id : 3.5V @ 1.2mA
Gate Charge (Qg) (Max) @ Vgs : 9.5nC @ 15V
Vgs (Max) : +18V, -8V
Input Capacitance (Ciss) (Max) @ Vds : 150pF @ 600V
FET Feature : -
Power Dissipation (Max) : 50W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D2PAK-7
Package / Case : TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
0
100 in stock

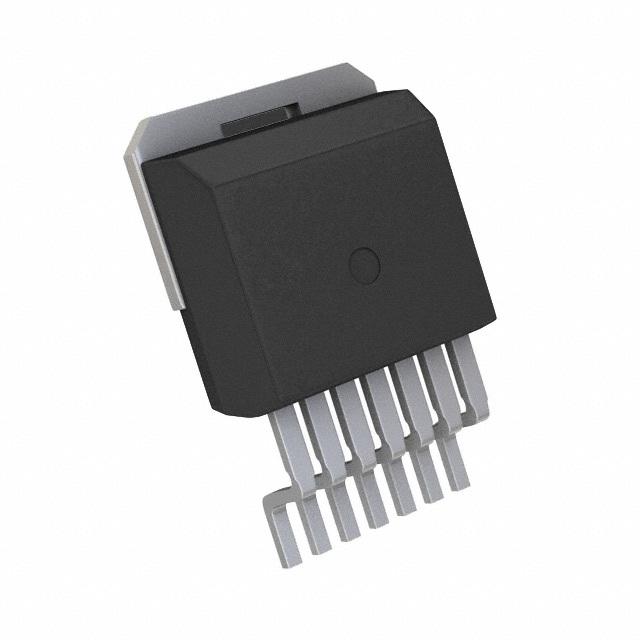

C3M0280090J-TR
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C3M™
Part Status : Active
FET Type : N-Channel
Technology : SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 15V
Rds On (Max) @ Id, Vgs : 360 mOhm @ 7.5A, 15V
Vgs(th) (Max) @ Id : 3.5V @ 1.2mA
Gate Charge (Qg) (Max) @ Vgs : 9.5nC @ 15V
Vgs (Max) : +18V, -8V
Input Capacitance (Ciss) (Max) @ Vds : 150pF @ 600V
FET Feature : -
Power Dissipation (Max) : 50W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D2PAK-7
Package / Case : TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C3M™
Part Status : Active
FET Type : N-Channel
Technology : SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 15V
Rds On (Max) @ Id, Vgs : 360 mOhm @ 7.5A, 15V
Vgs(th) (Max) @ Id : 3.5V @ 1.2mA
Gate Charge (Qg) (Max) @ Vgs : 9.5nC @ 15V
Vgs (Max) : +18V, -8V
Input Capacitance (Ciss) (Max) @ Vds : 150pF @ 600V
FET Feature : -
Power Dissipation (Max) : 50W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : D2PAK-7
Package / Case : TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
0
100 in stock

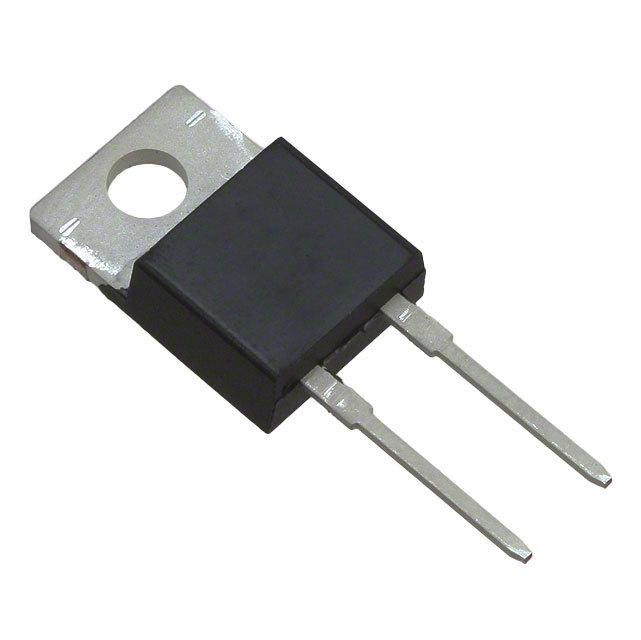

C4D02120A
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Tube
Series : Z-Rec®
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 10A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 2A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 50µA @ 1200V
Capacitance @ Vr, F : 167pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220-2
Operating Temperature - Junction : -55°C ~ 175°C
Packaging : Tube
Series : Z-Rec®
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 10A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 2A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 50µA @ 1200V
Capacitance @ Vr, F : 167pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220-2
Operating Temperature - Junction : -55°C ~ 175°C
0
100 in stock

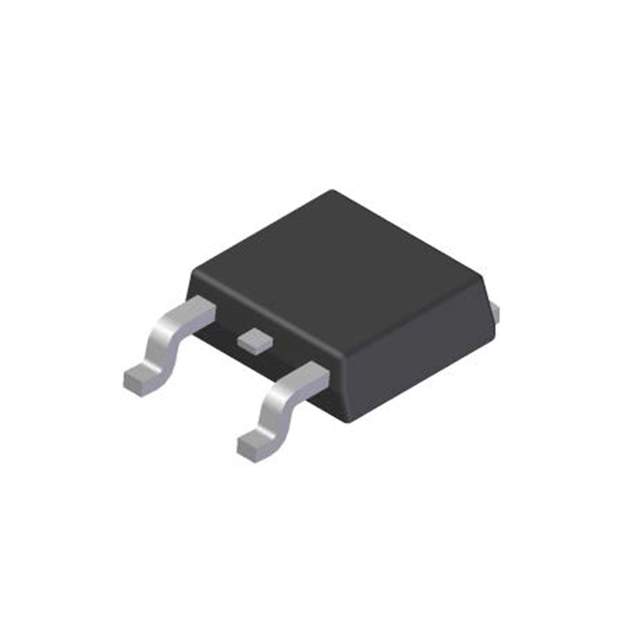

C4D02120E
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Tube
Alternate Packaging
Series : Z-Rec®
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 10A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 2A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 50µA @ 1200V
Capacitance @ Vr, F : 167pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252-2
Operating Temperature - Junction : -55°C ~ 175°C
Packaging : Tube
Alternate Packaging
Series : Z-Rec®
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 10A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 2A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 50µA @ 1200V
Capacitance @ Vr, F : 167pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252-2
Operating Temperature - Junction : -55°C ~ 175°C
0
100 in stock
C4D02120E-TR
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Z-Rec®
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 10A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 2A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 50µA @ 1200V
Capacitance @ Vr, F : 167pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252-2
Operating Temperature - Junction : -55°C ~ 175°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Z-Rec®
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 10A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 2A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 50µA @ 1200V
Capacitance @ Vr, F : 167pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252-2
Operating Temperature - Junction : -55°C ~ 175°C
0
100 in stock
C4D05120A
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Tube
Series : Z-Rec®
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 19A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 5A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 150µA @ 1200V
Capacitance @ Vr, F : 390pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220-2
Operating Temperature - Junction : -55°C ~ 175°C
Packaging : Tube
Series : Z-Rec®
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 19A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 5A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 150µA @ 1200V
Capacitance @ Vr, F : 390pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220-2
Operating Temperature - Junction : -55°C ~ 175°C
0
100 in stock
C4D05120E
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Tube
Alternate Packaging
Series : Z-Rec®
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 19A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 5A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 150µA @ 1200V
Capacitance @ Vr, F : 390pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252-2
Operating Temperature - Junction : -55°C ~ 175°C
Packaging : Tube
Alternate Packaging
Series : Z-Rec®
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 19A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 5A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 150µA @ 1200V
Capacitance @ Vr, F : 390pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252-2
Operating Temperature - Junction : -55°C ~ 175°C
0
3220 in stock
C4D08120A
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Tube
Series : Z-Rec®
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 24.5A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 7.5A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 250µA @ 1200V
Capacitance @ Vr, F : 560pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220-2
Operating Temperature - Junction : -55°C ~ 175°C
Packaging : Tube
Series : Z-Rec®
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 24.5A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 7.5A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 250µA @ 1200V
Capacitance @ Vr, F : 560pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220-2
Operating Temperature - Junction : -55°C ~ 175°C
0
619 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
