XP Power
- XP Power is committed to being a leading provider of power solutions, including AC-DC power supplies, DC-DC converters and DC to High Voltage DC converters. XP offers total quality, from in-house design in North America, Europe and Asia, through to manufacturing facilities around the world. The company offers the widest range of power products available from one source, including solutions for the industrial, healthcare, railway, defense and technology markets.
Part Number
Manufacturer
Description
Unit Price
In Stock
XP Power
Manufacturer : XP Power

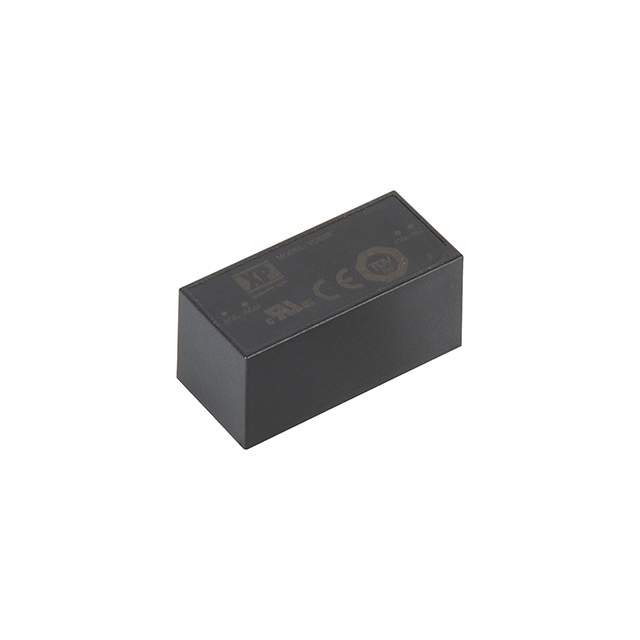

Series : VCE03
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 305 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 63mA
Power (Watts) : 3W
Applications : Household Appliances, ITE (Commercial)
Features : -
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : 80%
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 1.60" L x 0.75" W x 0.75" H (40.6mm x 19.1mm x 19.1mm)
0
18 in stock
XP Power
Manufacturer : XP Power

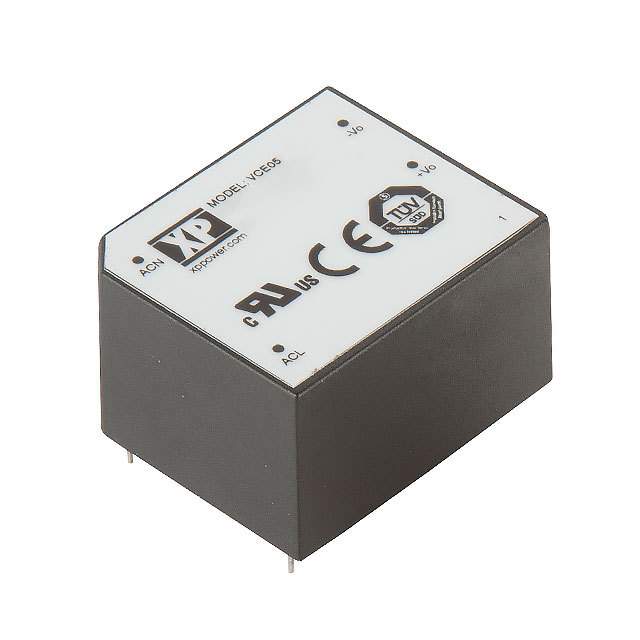

Series : VCE05
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 1.21A
Power (Watts) : 5W
Applications : ITE (Commercial)
Features : Universal Input
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : -
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 1.30" L x 1.10" W x 0.75" H (33.0mm x 27.9mm x 19.1mm)
0
76 in stock
XP Power
Manufacturer : XP Power
Series : VCE05
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 1.21A
Power (Watts) : 5W
Applications : ITE (Commercial)
Features : Universal Input
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : -
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 1.20" L x 1.00" W x 0.70" H (30.5mm x 25.4mm x 17.9mm)
0
10 in stock
XP Power
Manufacturer : XP Power
Series : VCE05
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 1A
Power (Watts) : 5W
Applications : ITE (Commercial)
Features : Universal Input
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : -
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 1.30" L x 1.10" W x 0.75" H (33.0mm x 27.9mm x 19.1mm)
0
975 in stock
XP Power
Manufacturer : XP Power
Series : VCE05
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 1A
Power (Watts) : 5W
Applications : ITE (Commercial)
Features : Universal Input
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : -
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 1.20" L x 1.00" W x 0.70" H (30.5mm x 25.4mm x 17.9mm)
0
138 in stock
XP Power
Manufacturer : XP Power
Series : VCE05
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 9V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 550mA
Power (Watts) : 5W
Applications : ITE (Commercial)
Features : Universal Input
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : -
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 1.30" L x 1.10" W x 0.75" H (33.0mm x 27.9mm x 19.1mm)
0
115 in stock
XP Power
Manufacturer : XP Power
Series : VCE05
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 9V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 550mA
Power (Watts) : 5W
Applications : ITE (Commercial)
Features : Universal Input
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : -
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 1.20" L x 1.00" W x 0.70" H (30.5mm x 25.4mm x 17.9mm)
0
31 in stock
XP Power
Manufacturer : XP Power
Series : VCE05
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 410mA
Power (Watts) : 5W
Applications : ITE (Commercial)
Features : Universal Input
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : -
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 1.30" L x 1.10" W x 0.75" H (33.0mm x 27.9mm x 19.1mm)
0
82 in stock
XP Power
Manufacturer : XP Power

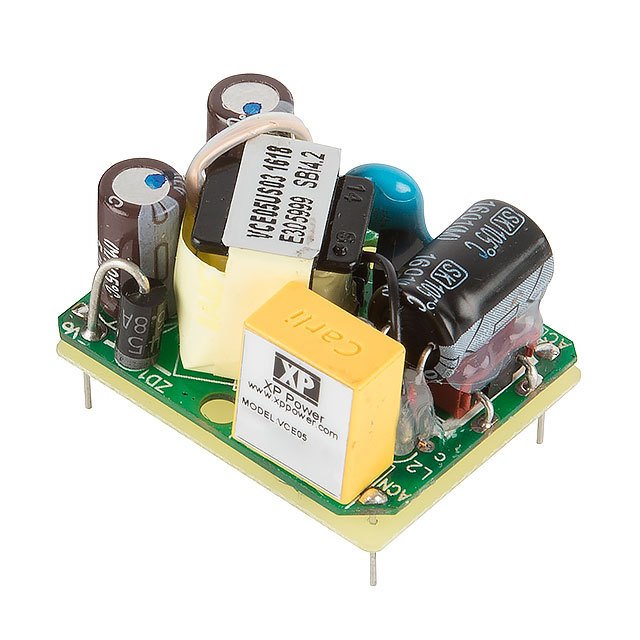

Series : VCE05
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 410mA
Power (Watts) : 5W
Applications : ITE (Commercial)
Features : Universal Input
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : -
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 1.20" L x 1.00" W x 0.70" H (30.5mm x 25.4mm x 17.9mm)
0
100 in stock
XP Power
Manufacturer : XP Power
Series : VCE05
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 330mA
Power (Watts) : 5W
Applications : ITE (Commercial)
Features : Universal Input
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : -
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 1.30" L x 1.10" W x 0.75" H (33.0mm x 27.9mm x 19.1mm)
0
59 in stock
XP Power
Manufacturer : XP Power
Series : VCE05
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 330mA
Power (Watts) : 5W
Applications : ITE (Commercial)
Features : Universal Input
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : -
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 1.20" L x 1.00" W x 0.70" H (30.5mm x 25.4mm x 17.9mm)
0
24 in stock
XP Power
Manufacturer : XP Power
Series : VCE05
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 210mA
Power (Watts) : 5W
Applications : ITE (Commercial)
Features : Universal Input
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : -
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 1.30" L x 1.10" W x 0.75" H (33.0mm x 27.9mm x 19.1mm)
0
175 in stock
