- Capacitors
- Aluminum Electrolytic Capacitors
Part Number
Manufacturer
Description
Unit Price
In Stock

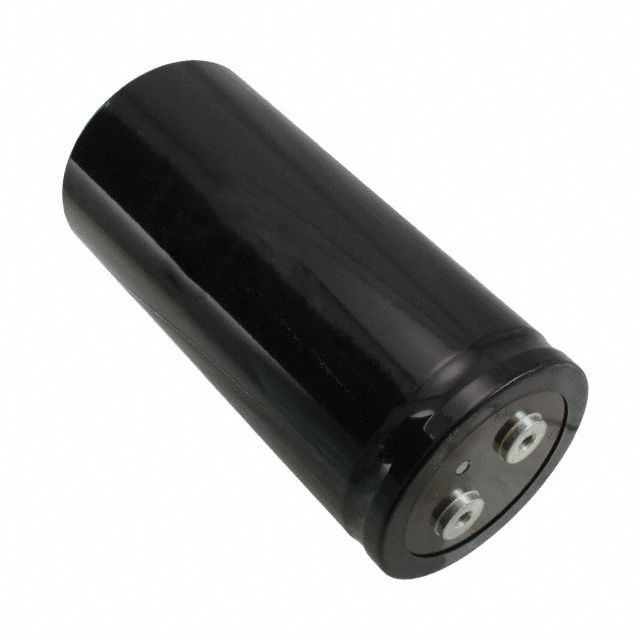

E37F451CPN153MFK0M
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : U37F
Part Status : Active
Capacitance : 15000µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : 6 mOhm @ 120Hz
Lifetime @ Temp. : 5000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 36.5A @ 120Hz
Ripple Current @ High Frequency : 51.465A @ 10kHz
Impedance : -
Lead Spacing : 1.250" (31.75mm)
Size / Dimension : 3.504" Dia (89.00mm)
Height - Seated (Max) : 7.520" (191.00mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Packaging : Bulk
Series : U37F
Part Status : Active
Capacitance : 15000µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : 6 mOhm @ 120Hz
Lifetime @ Temp. : 5000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 36.5A @ 120Hz
Ripple Current @ High Frequency : 51.465A @ 10kHz
Impedance : -
Lead Spacing : 1.250" (31.75mm)
Size / Dimension : 3.504" Dia (89.00mm)
Height - Seated (Max) : 7.520" (191.00mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
0
133 in stock

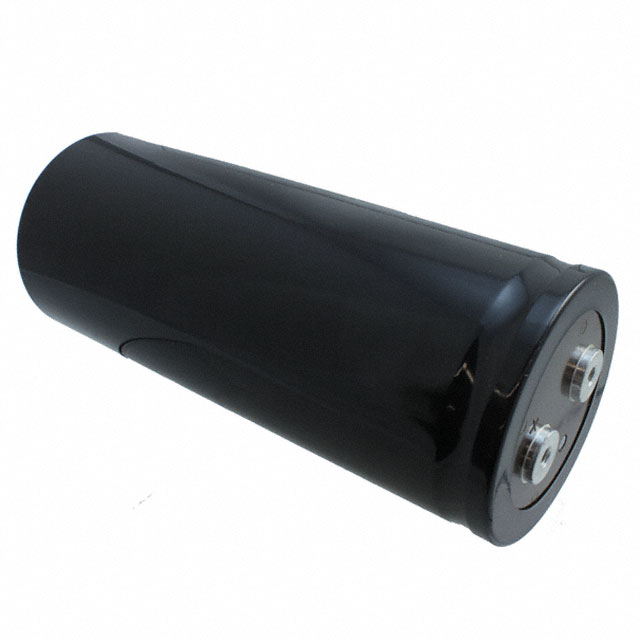

E37F501CPN123MFM9M
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : U37F
Part Status : Active
Capacitance : 12000µF
Tolerance : ±20%
Voltage - Rated : 500V
ESR (Equivalent Series Resistance) : 8 mOhm @ 120Hz
Lifetime @ Temp. : 5000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 33.5A @ 120Hz
Ripple Current @ High Frequency : 23.124A @ 10kHz
Impedance : -
Lead Spacing : 1.252" (31.80mm)
Size / Dimension : 3.504" Dia (89.00mm)
Height - Seated (Max) : 8.661" (220.00mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Packaging : Bulk
Series : U37F
Part Status : Active
Capacitance : 12000µF
Tolerance : ±20%
Voltage - Rated : 500V
ESR (Equivalent Series Resistance) : 8 mOhm @ 120Hz
Lifetime @ Temp. : 5000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 33.5A @ 120Hz
Ripple Current @ High Frequency : 23.124A @ 10kHz
Impedance : -
Lead Spacing : 1.252" (31.80mm)
Size / Dimension : 3.504" Dia (89.00mm)
Height - Seated (Max) : 8.661" (220.00mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
0
50 in stock

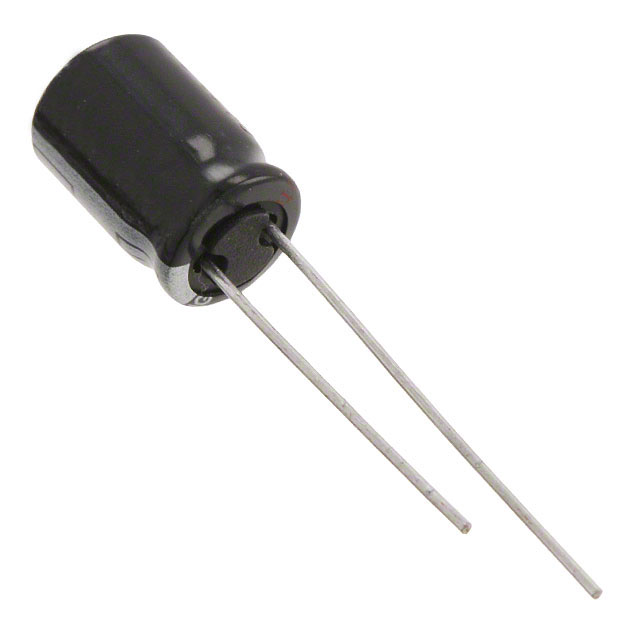

ECA-0JHG102
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : NHG
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 380mA @ 120Hz
Ripple Current @ High Frequency : 437mA @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : NHG
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 380mA @ 120Hz
Ripple Current @ High Frequency : 437mA @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
906732 in stock

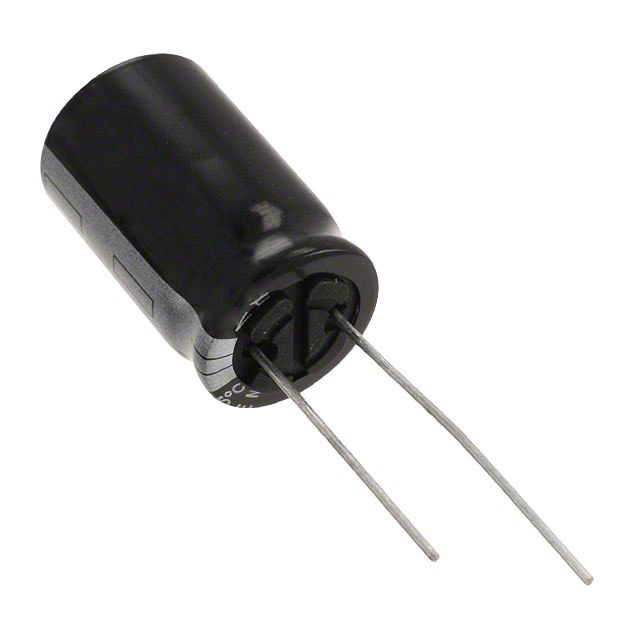

ECA-0JHG103
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : NHG
Part Status : Active
Capacitance : 10000µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.65A @ 120Hz
Ripple Current @ High Frequency : 1.898A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.063" (27.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : NHG
Part Status : Active
Capacitance : 10000µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.65A @ 120Hz
Ripple Current @ High Frequency : 1.898A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.063" (27.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
4998 in stock

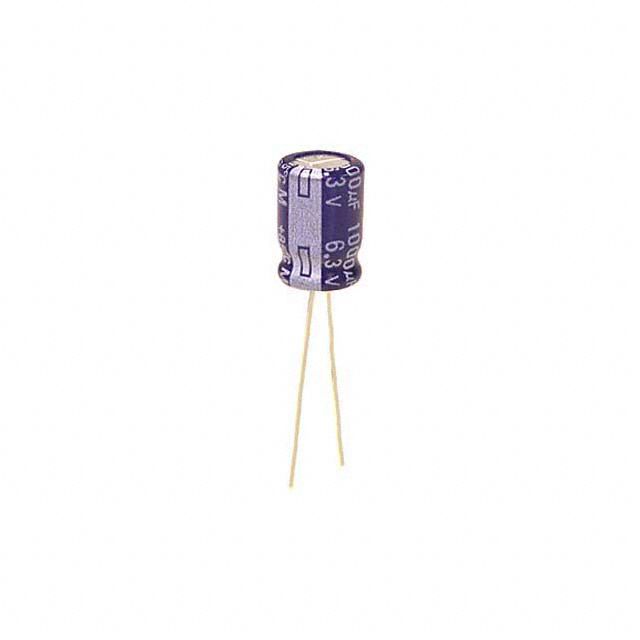

ECA-0JM102
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : M
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 580mA @ 120Hz
Ripple Current @ High Frequency : 986mA @ 10kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : M
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 580mA @ 120Hz
Ripple Current @ High Frequency : 986mA @ 10kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
121633 in stock
ECA-1CHG102
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : NHG
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 560mA @ 120Hz
Ripple Current @ High Frequency : 644mA @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.669" (17.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : NHG
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 560mA @ 120Hz
Ripple Current @ High Frequency : 644mA @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.669" (17.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
37400 in stock

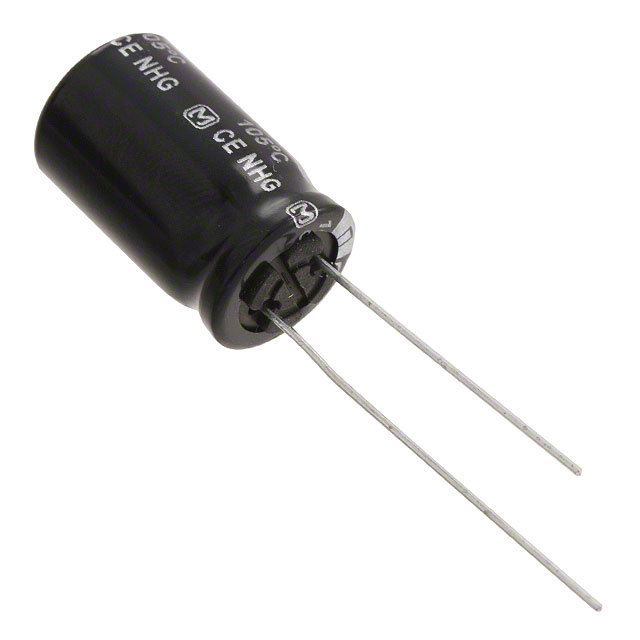

ECA-1CHG222
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : NHG
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 920mA @ 120Hz
Ripple Current @ High Frequency : 1.058A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.866" (22.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : NHG
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 920mA @ 120Hz
Ripple Current @ High Frequency : 1.058A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.866" (22.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
6340 in stock

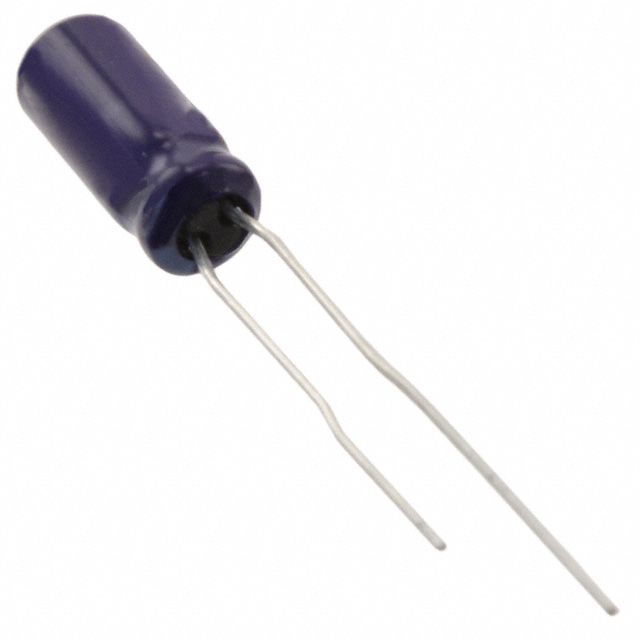

ECA-1CM100I
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 30mA @ 120Hz
Ripple Current @ High Frequency : 51mA @ 10kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 30mA @ 120Hz
Ripple Current @ High Frequency : 51mA @ 10kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
11597 in stock
ECA-1CM470I
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 130mA @ 120Hz
Ripple Current @ High Frequency : 221mA @ 10kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : M
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 130mA @ 120Hz
Ripple Current @ High Frequency : 221mA @ 10kHz
Impedance : -
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
14730 in stock
ECA-1CM472
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : M
Part Status : Active
Capacitance : 4700µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.36A @ 120Hz
Ripple Current @ High Frequency : 2.312A @ 10kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.063" (27.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : M
Part Status : Active
Capacitance : 4700µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.36A @ 120Hz
Ripple Current @ High Frequency : 2.312A @ 10kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.063" (27.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
6583 in stock
ECA-1EHG102
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : NHG
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 680mA @ 120Hz
Ripple Current @ High Frequency : 782mA @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.866" (22.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : NHG
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 680mA @ 120Hz
Ripple Current @ High Frequency : 782mA @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.866" (22.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
24170 in stock
ECA-1EHG682
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : NHG
Part Status : Active
Capacitance : 6800µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.04A @ 120Hz
Ripple Current @ High Frequency : 2.346A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.476" (37.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : NHG
Part Status : Active
Capacitance : 6800µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.04A @ 120Hz
Ripple Current @ High Frequency : 2.346A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.476" (37.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
2233 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
