- Capacitors
- Aluminum Electrolytic Capacitors
Part Number
Manufacturer
Description
Unit Price
In Stock
EEE-FK1A102GP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 637.5mA @ 120Hz
Ripple Current @ High Frequency : 850mA @ 100kHz
Impedance : 80 mOhms
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 637.5mA @ 120Hz
Ripple Current @ High Frequency : 850mA @ 100kHz
Impedance : 80 mOhms
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
3019 in stock

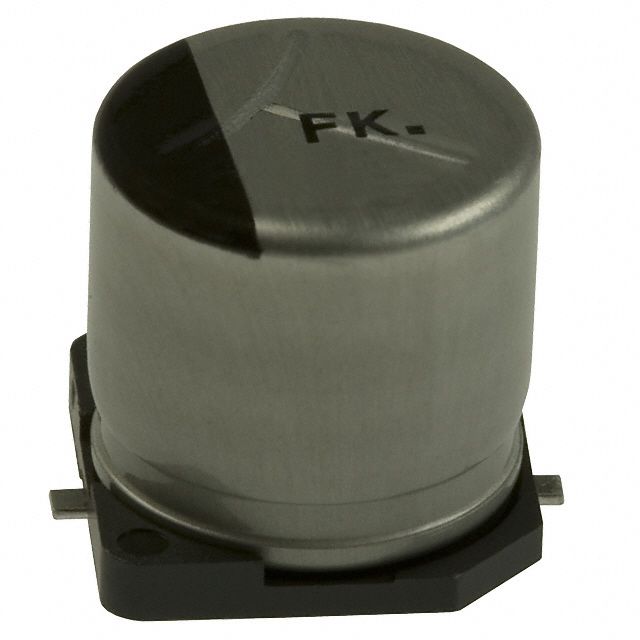

EEE-FK1A102P
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 637.5mA @ 120Hz
Ripple Current @ High Frequency : 850mA @ 100kHz
Impedance : 80 mOhms
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 637.5mA @ 120Hz
Ripple Current @ High Frequency : 850mA @ 100kHz
Impedance : 80 mOhms
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
38493 in stock
EEE-FK1A151P
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 180mA @ 120Hz
Ripple Current @ High Frequency : 240mA @ 100kHz
Impedance : 360 mOhms
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 180mA @ 120Hz
Ripple Current @ High Frequency : 240mA @ 100kHz
Impedance : 360 mOhms
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
132624 in stock

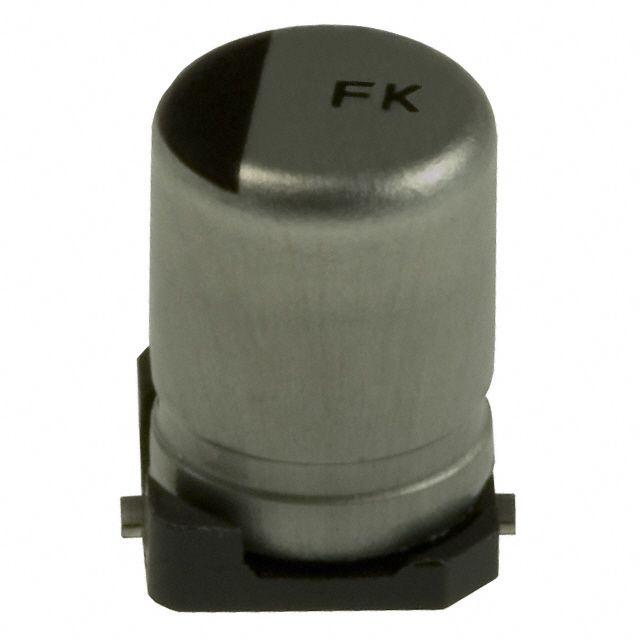

EEE-FK1A220R
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 67.5mA @ 120Hz
Ripple Current @ High Frequency : 90mA @ 100kHz
Impedance : 1.35 Ohms
Lead Spacing : -
Size / Dimension : 0.157" Dia (4.00mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 67.5mA @ 120Hz
Ripple Current @ High Frequency : 90mA @ 100kHz
Impedance : 1.35 Ohms
Lead Spacing : -
Size / Dimension : 0.157" Dia (4.00mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
71461 in stock
EEE-FK1A221P
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 225mA @ 120Hz
Ripple Current @ High Frequency : 300mA @ 100kHz
Impedance : 260 mOhms
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.256" (6.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 225mA @ 120Hz
Ripple Current @ High Frequency : 300mA @ 100kHz
Impedance : 260 mOhms
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.256" (6.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
95200 in stock

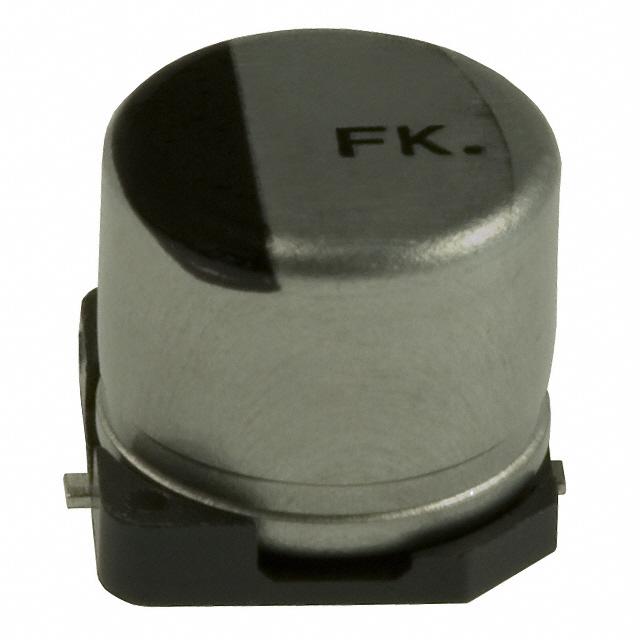

EEE-FK1A221XP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 210mA @ 120Hz
Ripple Current @ High Frequency : 280mA @ 100kHz
Impedance : 340 mOhms
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 210mA @ 120Hz
Ripple Current @ High Frequency : 280mA @ 100kHz
Impedance : 340 mOhms
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
58929 in stock
EEE-FK1A471P
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 450mA @ 120Hz
Ripple Current @ High Frequency : 600mA @ 100kHz
Impedance : 160 mOhms
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 450mA @ 120Hz
Ripple Current @ High Frequency : 600mA @ 100kHz
Impedance : 160 mOhms
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
25064 in stock

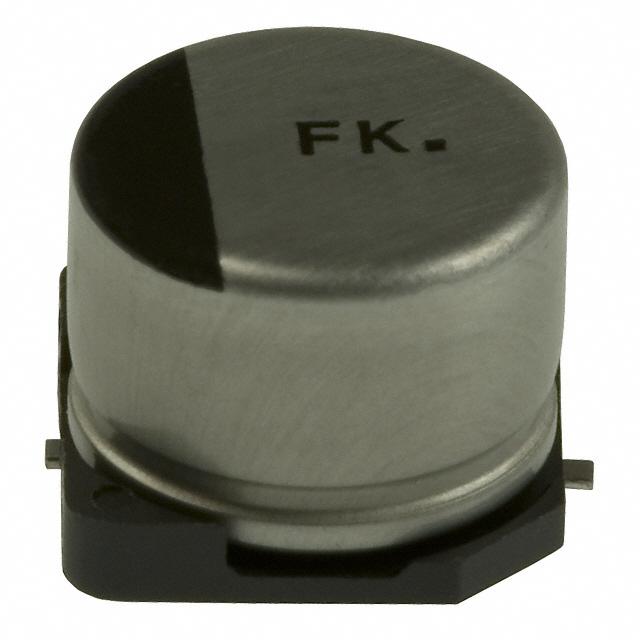

EEE-FK1A681P
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 680µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 450mA @ 120Hz
Ripple Current @ High Frequency : 600mA @ 100kHz
Impedance : 160 mOhms
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 680µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 450mA @ 120Hz
Ripple Current @ High Frequency : 600mA @ 100kHz
Impedance : 160 mOhms
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
52293 in stock

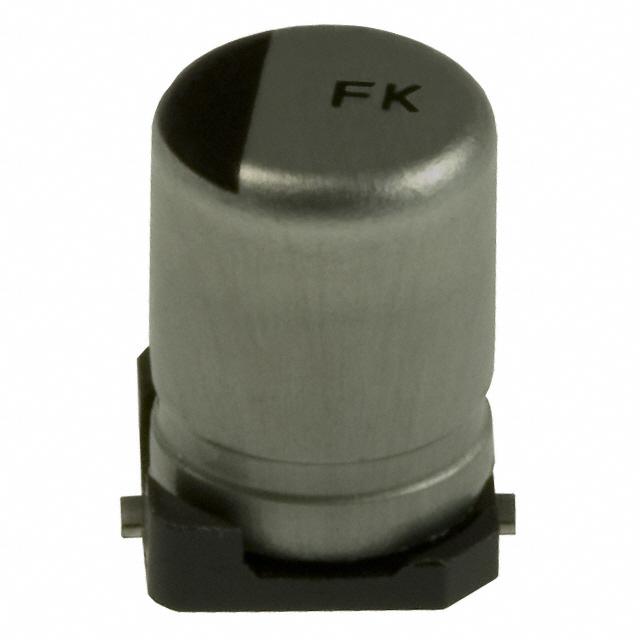

EEE-FK1C100R
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 67.5mA @ 120Hz
Ripple Current @ High Frequency : 90mA @ 100kHz
Impedance : 1.35 Ohms
Lead Spacing : -
Size / Dimension : 0.157" Dia (4.00mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 67.5mA @ 120Hz
Ripple Current @ High Frequency : 90mA @ 100kHz
Impedance : 1.35 Ohms
Lead Spacing : -
Size / Dimension : 0.157" Dia (4.00mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
171133 in stock
EEE-FK1C101AP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 156mA @ 120Hz
Ripple Current @ High Frequency : 240mA @ 100kHz
Impedance : 360 mOhms
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 156mA @ 120Hz
Ripple Current @ High Frequency : 240mA @ 100kHz
Impedance : 360 mOhms
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
22217 in stock
EEE-FK1C101P
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 180mA @ 120Hz
Ripple Current @ High Frequency : 240mA @ 100kHz
Impedance : 360 mOhms
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 180mA @ 120Hz
Ripple Current @ High Frequency : 240mA @ 100kHz
Impedance : 360 mOhms
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
241371 in stock
EEE-FK1C151XP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 210mA @ 120Hz
Ripple Current @ High Frequency : 280mA @ 100kHz
Impedance : 340 mOhms
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 210mA @ 120Hz
Ripple Current @ High Frequency : 280mA @ 100kHz
Impedance : 340 mOhms
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
38948 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
