- Capacitors
- Aluminum Electrolytic Capacitors
Part Number
Manufacturer
Description
Unit Price
In Stock

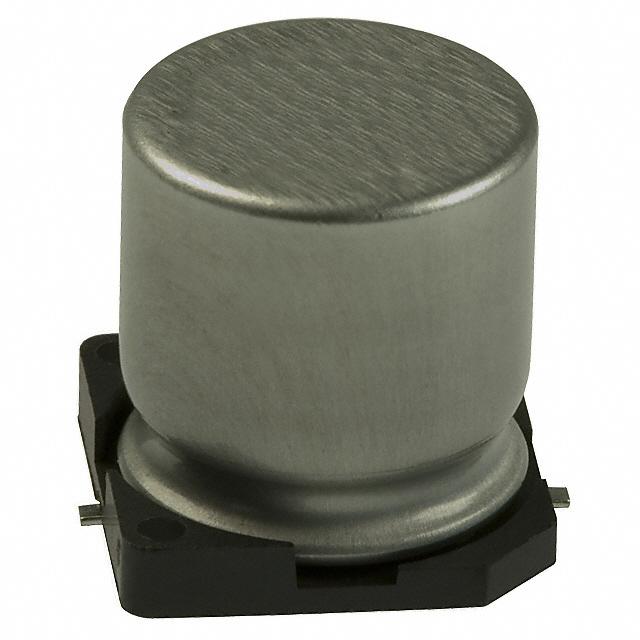

EEE-FK2A470AQ
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 375mA @ 120Hz
Ripple Current @ High Frequency : 500mA @ 100kHz
Impedance : 320 mOhms
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 375mA @ 120Hz
Ripple Current @ High Frequency : 500mA @ 100kHz
Impedance : 320 mOhms
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
27330 in stock
EEE-FK2A680AQ
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 68µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 375mA @ 120Hz
Ripple Current @ High Frequency : 500mA @ 100kHz
Impedance : 320 mOhms
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 68µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 375mA @ 120Hz
Ripple Current @ High Frequency : 500mA @ 100kHz
Impedance : 320 mOhms
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
15793 in stock

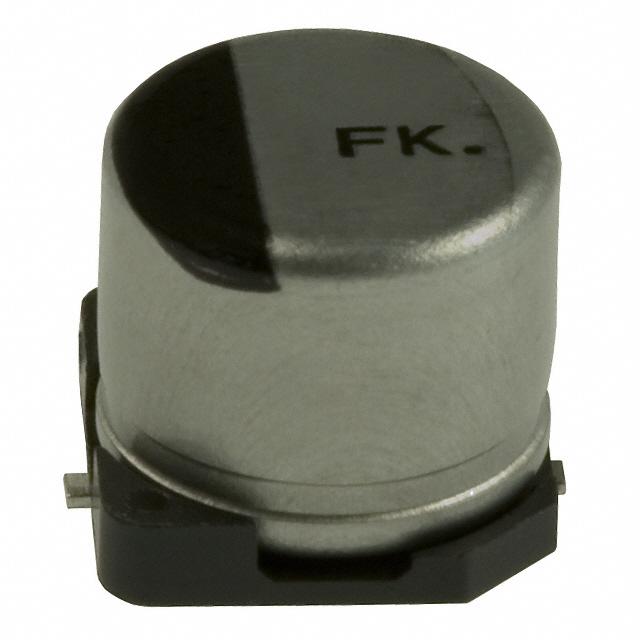

EEE-FKC151XAP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 182mA @ 120Hz
Ripple Current @ High Frequency : 280mA @ 100kHz
Impedance : 340 mOhms
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 182mA @ 120Hz
Ripple Current @ High Frequency : 280mA @ 100kHz
Impedance : 340 mOhms
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
29595 in stock

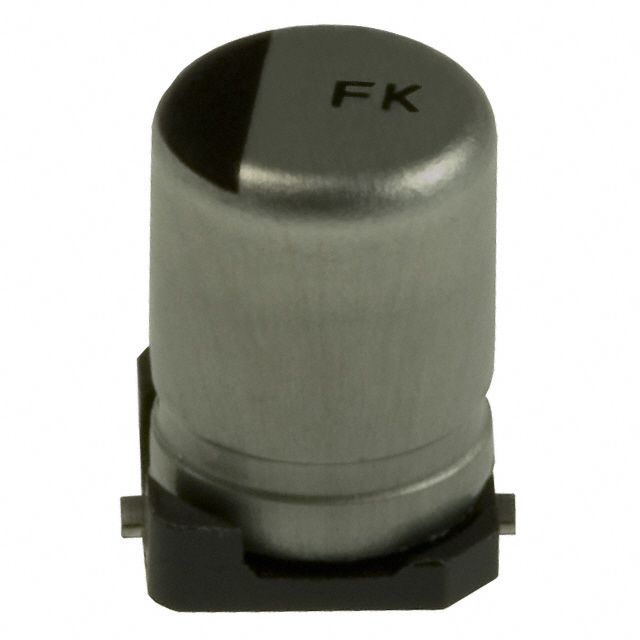

EEE-FKJ470UAR
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 58.5mA @ 120Hz
Ripple Current @ High Frequency : 90mA @ 100kHz
Impedance : 1.35 Ohms
Lead Spacing : -
Size / Dimension : 0.157" Dia (4.00mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 58.5mA @ 120Hz
Ripple Current @ High Frequency : 90mA @ 100kHz
Impedance : 1.35 Ohms
Lead Spacing : -
Size / Dimension : 0.157" Dia (4.00mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
43368 in stock
EEE-FP1C101AP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 260 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 195mA @ 120Hz
Ripple Current @ High Frequency : 300mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.228" (5.80mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 260 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 195mA @ 120Hz
Ripple Current @ High Frequency : 300mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.228" (5.80mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
24012 in stock
EEE-FP1C471AP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 80 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 552.5mA @ 120Hz
Ripple Current @ High Frequency : 850mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 80 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 552.5mA @ 120Hz
Ripple Current @ High Frequency : 850mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
9414 in stock
EEE-FP1E221AP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 80 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 552.5mA @ 120Hz
Ripple Current @ High Frequency : 850mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 80 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 552.5mA @ 120Hz
Ripple Current @ High Frequency : 850mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
5754 in stock
EEE-FP1E471AP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 60 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 773.5mA @ 120Hz
Ripple Current @ High Frequency : 1.19A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 60 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 773.5mA @ 120Hz
Ripple Current @ High Frequency : 1.19A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
26604 in stock

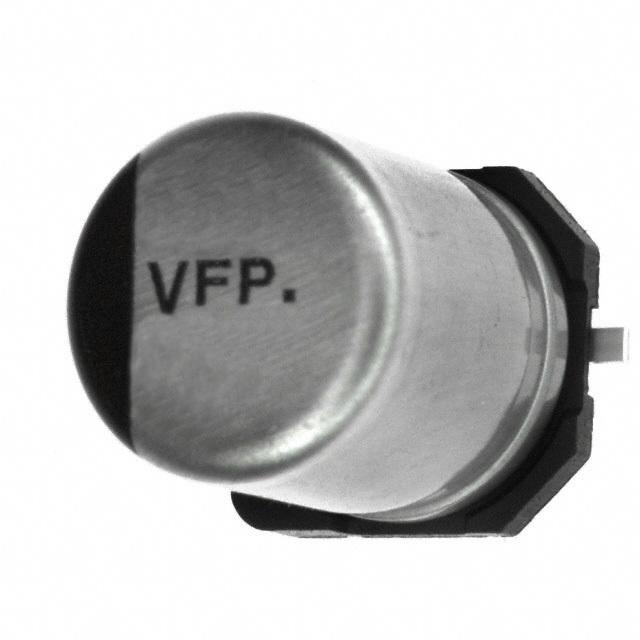

EEE-FP1V101AP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 80 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 552.5mA @ 120Hz
Ripple Current @ High Frequency : 850mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 80 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 552.5mA @ 120Hz
Ripple Current @ High Frequency : 850mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
64327 in stock
EEE-FP1V151AP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 80 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 552.5mA @ 120Hz
Ripple Current @ High Frequency : 850mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 80 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 552.5mA @ 120Hz
Ripple Current @ High Frequency : 850mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1956 in stock
EEE-FP1V221AP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 80 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 552.5mA @ 120Hz
Ripple Current @ High Frequency : 850mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 80 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 552.5mA @ 120Hz
Ripple Current @ High Frequency : 850mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
40973 in stock
EEE-FP1V331AP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 60 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 773.5mA @ 120Hz
Ripple Current @ High Frequency : 1.19A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FP
Part Status : Active
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 60 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 773.5mA @ 120Hz
Ripple Current @ High Frequency : 1.19A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
71841 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
