- Capacitors
- Aluminum Electrolytic Capacitors
Part Number
Manufacturer
Description
Unit Price
In Stock
EEE-TG1H101UP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 500 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 187.9mA @ 120Hz
Ripple Current @ High Frequency : 221mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 500 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 187.9mA @ 120Hz
Ripple Current @ High Frequency : 221mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
33553 in stock
EEE-TG1J101UP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 800 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 97.5mA @ 120Hz
Ripple Current @ High Frequency : 150mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 800 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 97.5mA @ 120Hz
Ripple Current @ High Frequency : 150mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
38615 in stock
EEE-TG1J470P
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 800 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 97.5mA @ 120Hz
Ripple Current @ High Frequency : 150mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 800 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 97.5mA @ 120Hz
Ripple Current @ High Frequency : 150mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
18507 in stock

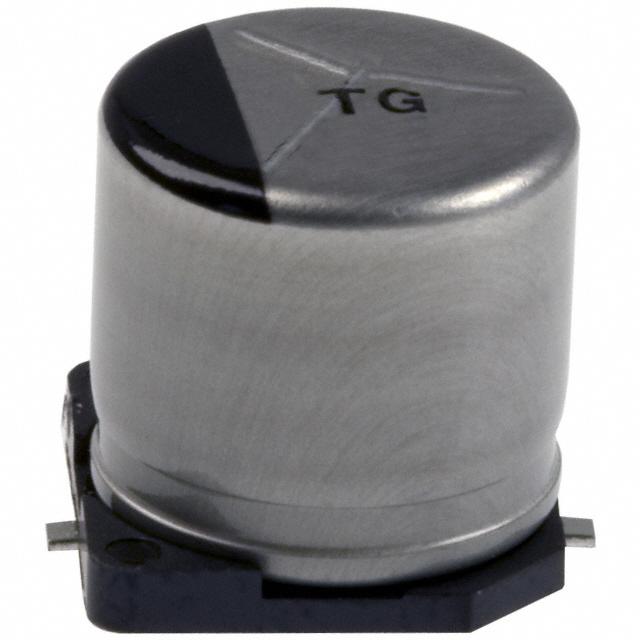

EEE-TG1K470UP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 80V
ESR (Equivalent Series Resistance) : 1 Ohm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 58.5mA @ 120Hz
Ripple Current @ High Frequency : 90mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 80V
ESR (Equivalent Series Resistance) : 1 Ohm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 58.5mA @ 120Hz
Ripple Current @ High Frequency : 90mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
4376 in stock
EEE-TG1V101P
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 300 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 175.5mA @ 120Hz
Ripple Current @ High Frequency : 270mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 300 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 175.5mA @ 120Hz
Ripple Current @ High Frequency : 270mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
21788 in stock
EEE-TG1V470P
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 500 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 128.1mA @ 120Hz
Ripple Current @ High Frequency : 197mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 500 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 128.1mA @ 120Hz
Ripple Current @ High Frequency : 197mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
14227 in stock

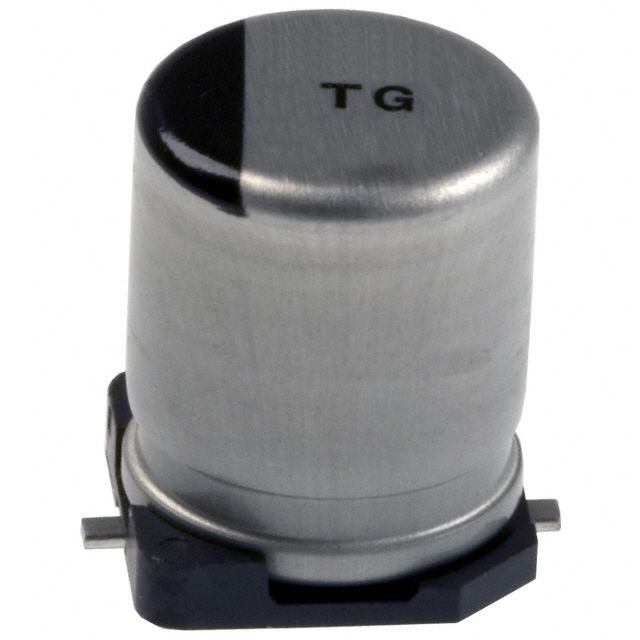

EEE-TG2A220UP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : 1.3 Ohm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 45.5mA @ 120Hz
Ripple Current @ High Frequency : 70mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : 1.3 Ohm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 45.5mA @ 120Hz
Ripple Current @ High Frequency : 70mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
33177 in stock
EEE-TG2A330P
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : 1 Ohm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 58.5mA @ 120Hz
Ripple Current @ High Frequency : 90mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : 1 Ohm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 58.5mA @ 120Hz
Ripple Current @ High Frequency : 90mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
18761 in stock
EEE-TK1E101P
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TK
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 300 mOhm @ 100kHz
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 128.1mA @ 120Hz
Ripple Current @ High Frequency : 197mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TK
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 300 mOhm @ 100kHz
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 128.1mA @ 120Hz
Ripple Current @ High Frequency : 197mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.402" (10.20mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
11580 in stock
EEE-TK1E471AQ
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TK
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 120 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 600mA @ 120Hz
Ripple Current @ High Frequency : 800mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TK
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 120 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 600mA @ 120Hz
Ripple Current @ High Frequency : 800mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
6489 in stock
EEE-TK1H221AQ
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TK
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 230 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 450mA @ 120Hz
Ripple Current @ High Frequency : 600mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TK
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 230 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 450mA @ 120Hz
Ripple Current @ High Frequency : 600mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
9098 in stock
EEE-TK1H331AQ
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TK
Part Status : Active
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 230 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 450mA @ 120Hz
Ripple Current @ High Frequency : 600mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TK
Part Status : Active
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 230 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 450mA @ 120Hz
Ripple Current @ High Frequency : 600mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
156767 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
