Part Number
Manufacturer
Description
Unit Price
In Stock

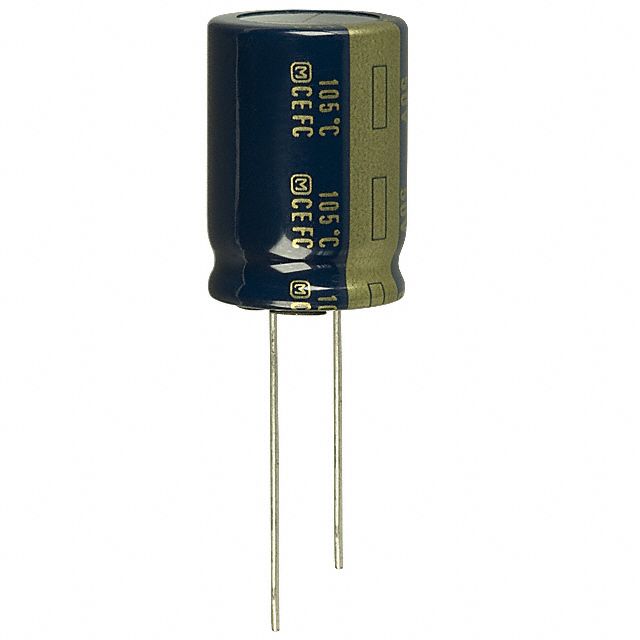

EEU-FC1H102
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.676A @ 120Hz
Ripple Current @ High Frequency : 2.235A @ 100kHz
Impedance : 34 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.984" (25.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.676A @ 120Hz
Ripple Current @ High Frequency : 2.235A @ 100kHz
Impedance : 34 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.984" (25.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
23057 in stock
EEU-FC1H122
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 1200µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 2.16A @ 120Hz
Ripple Current @ High Frequency : 2.7A @ 100kHz
Impedance : 28 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.240" (31.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 1200µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 2.16A @ 120Hz
Ripple Current @ High Frequency : 2.7A @ 100kHz
Impedance : 28 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.240" (31.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
7330 in stock
EEU-FC1H152L
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 1500µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 2.232A @ 120Hz
Ripple Current @ High Frequency : 2.79A @ 100kHz
Impedance : 25 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.398" (35.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 1500µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 2.232A @ 120Hz
Ripple Current @ High Frequency : 2.79A @ 100kHz
Impedance : 25 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.398" (35.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
4611 in stock

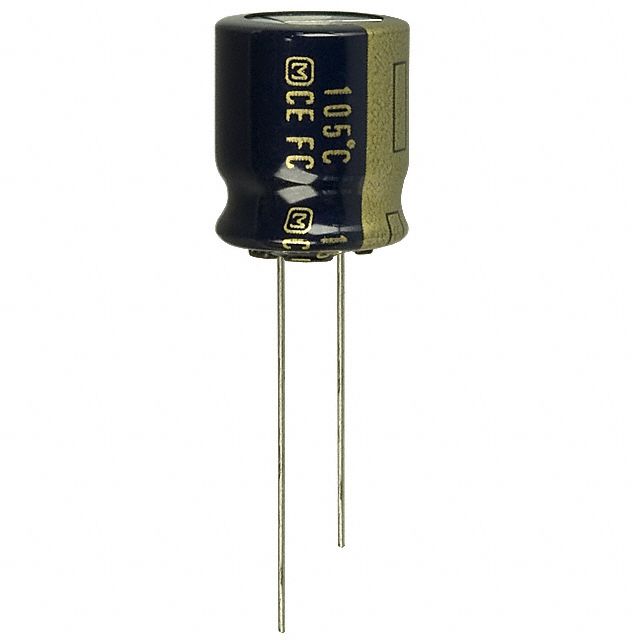

EEU-FC1H221S
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 747.5mA @ 120Hz
Ripple Current @ High Frequency : 1.15A @ 100kHz
Impedance : 110 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.591" (15.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 747.5mA @ 120Hz
Ripple Current @ High Frequency : 1.15A @ 100kHz
Impedance : 110 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.591" (15.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
40164 in stock

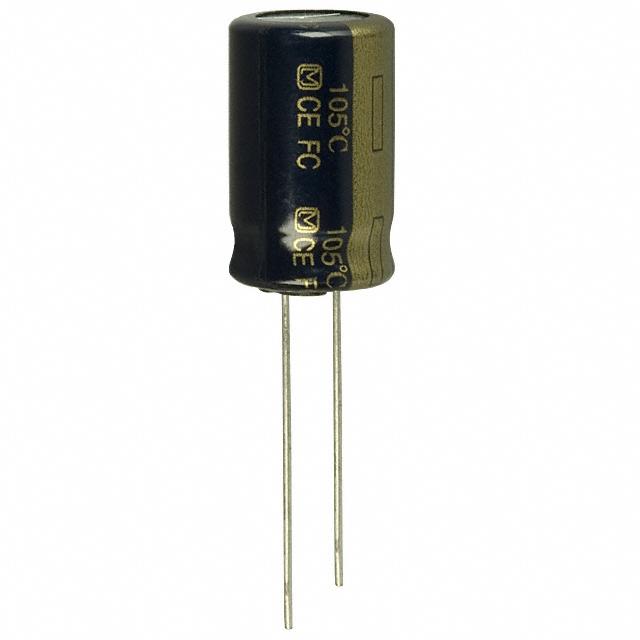

EEU-FC1H391
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 390µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.11A @ 120Hz
Ripple Current @ High Frequency : 1.48A @ 100kHz
Impedance : 63 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.787" (20.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 390µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.11A @ 120Hz
Ripple Current @ High Frequency : 1.48A @ 100kHz
Impedance : 63 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.787" (20.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
16673 in stock

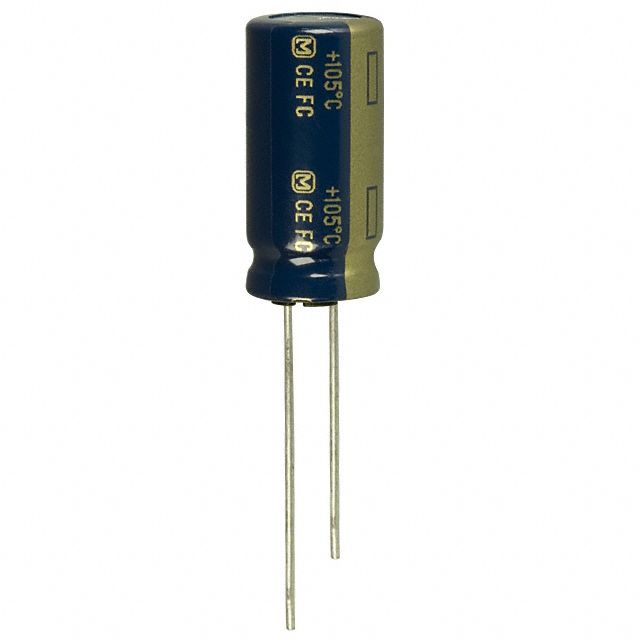

EEU-FC1H471
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.374A @ 120Hz
Ripple Current @ High Frequency : 1.832A @ 100kHz
Impedance : 50 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.984" (25.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.374A @ 120Hz
Ripple Current @ High Frequency : 1.832A @ 100kHz
Impedance : 50 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.984" (25.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
23442 in stock
EEU-FC1H471L
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.208A @ 120Hz
Ripple Current @ High Frequency : 1.61A @ 100kHz
Impedance : 60 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.208A @ 120Hz
Ripple Current @ High Frequency : 1.61A @ 100kHz
Impedance : 60 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
28960 in stock

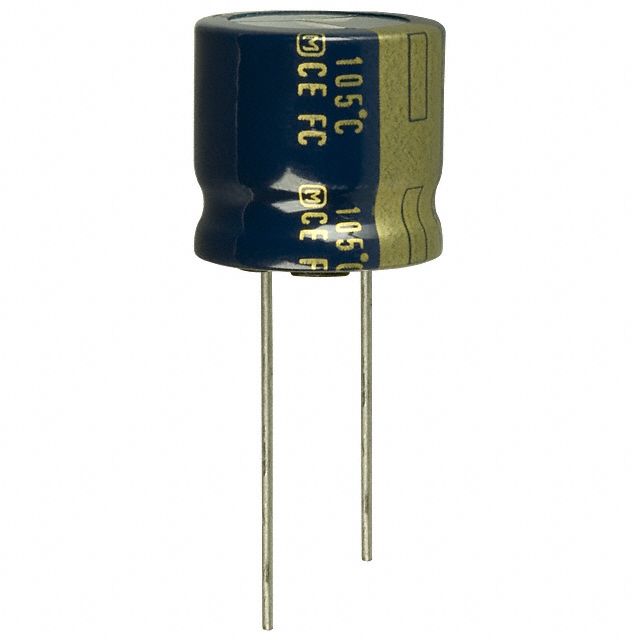

EEU-FC1H561S
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 560µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.425A @ 120Hz
Ripple Current @ High Frequency : 1.9A @ 100kHz
Impedance : 68 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 0.591" (15.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 560µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.425A @ 120Hz
Ripple Current @ High Frequency : 1.9A @ 100kHz
Impedance : 68 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 0.591" (15.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
31119 in stock

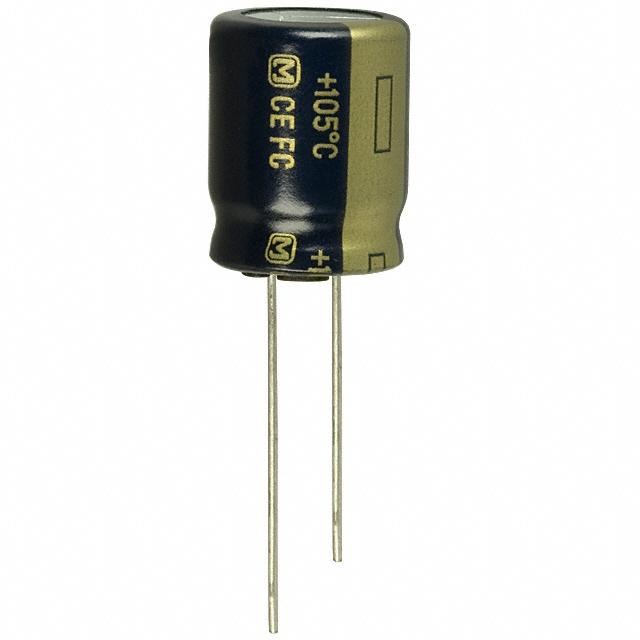

EEU-FC1H821
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 820µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.815A @ 120Hz
Ripple Current @ High Frequency : 2.42A @ 100kHz
Impedance : 42 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 0.787" (20.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 820µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.815A @ 120Hz
Ripple Current @ High Frequency : 2.42A @ 100kHz
Impedance : 42 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 0.787" (20.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
7293 in stock

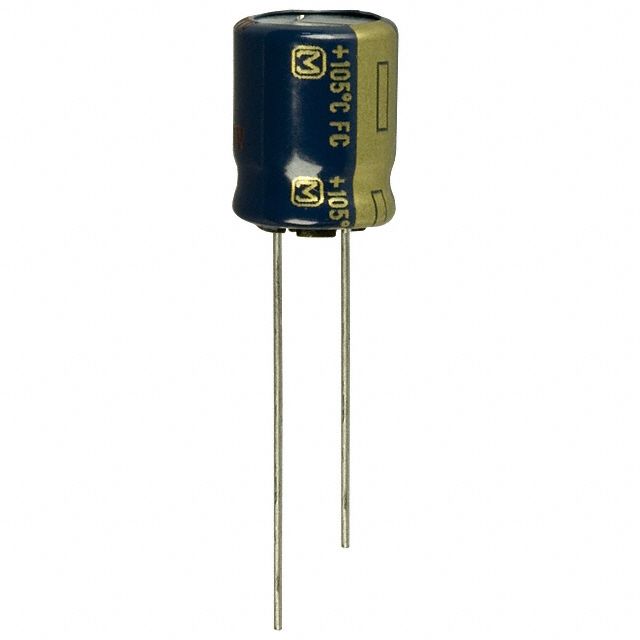

EEU-FC1J101
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 347.8mA @ 120Hz
Ripple Current @ High Frequency : 535mA @ 100kHz
Impedance : 256 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 347.8mA @ 120Hz
Ripple Current @ High Frequency : 535mA @ 100kHz
Impedance : 256 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
52706 in stock
EEU-FC1J102
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 2.078A @ 120Hz
Ripple Current @ High Frequency : 2.77A @ 100kHz
Impedance : 36 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.398" (35.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 2.078A @ 120Hz
Ripple Current @ High Frequency : 2.77A @ 100kHz
Impedance : 36 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.398" (35.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
8804 in stock

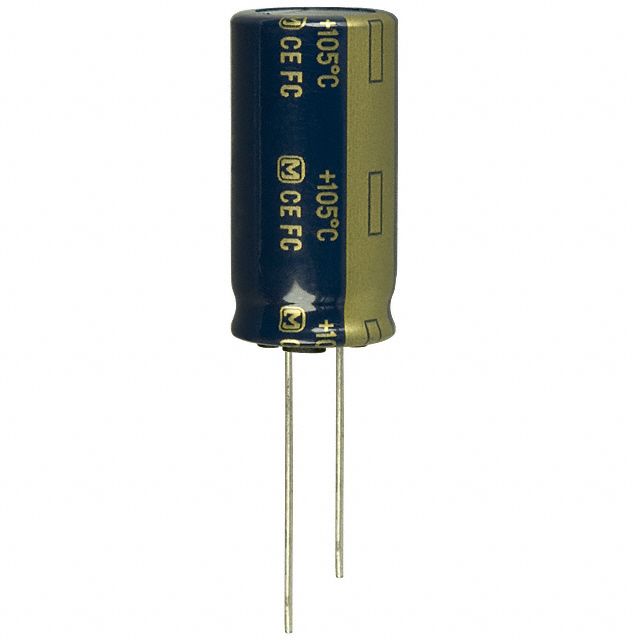

EEU-FC1J102U
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 2.003A @ 120Hz
Ripple Current @ High Frequency : 2.67A @ 100kHz
Impedance : 43 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.240" (31.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : FC
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 2.003A @ 120Hz
Ripple Current @ High Frequency : 2.67A @ 100kHz
Impedance : 43 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.240" (31.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
21969 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
