- Capacitors
- Aluminum Electrolytic Capacitors
Part Number
Manufacturer
Description
Unit Price
In Stock
EEU-FR1V222L
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : FR
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 3A @ 120Hz
Ripple Current @ High Frequency : 3.75A @ 100kHz
Impedance : 12 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.457" (37.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : FR
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 3A @ 120Hz
Ripple Current @ High Frequency : 3.75A @ 100kHz
Impedance : 12 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.457" (37.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
5957 in stock

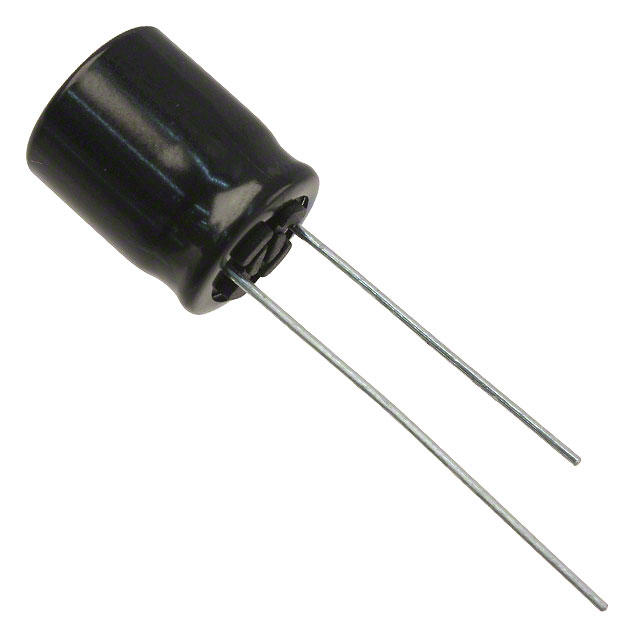

EEU-FR1V471B
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FR
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 8000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.343A @ 120Hz
Ripple Current @ High Frequency : 1.79A @ 100kHz
Impedance : 28 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.689" (17.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FR
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 8000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.343A @ 120Hz
Ripple Current @ High Frequency : 1.79A @ 100kHz
Impedance : 28 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.689" (17.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
6059 in stock

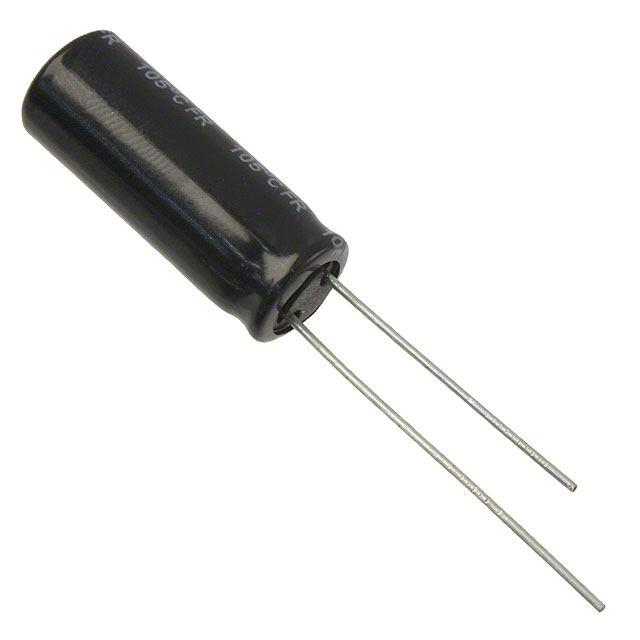

EEU-FR1V561
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : FR
Part Status : Active
Capacitance : 560µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.635A @ 120Hz
Ripple Current @ High Frequency : 2.18A @ 100kHz
Impedance : 20 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.866" (22.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : FR
Part Status : Active
Capacitance : 560µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.635A @ 120Hz
Ripple Current @ High Frequency : 2.18A @ 100kHz
Impedance : 20 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.866" (22.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
7577 in stock

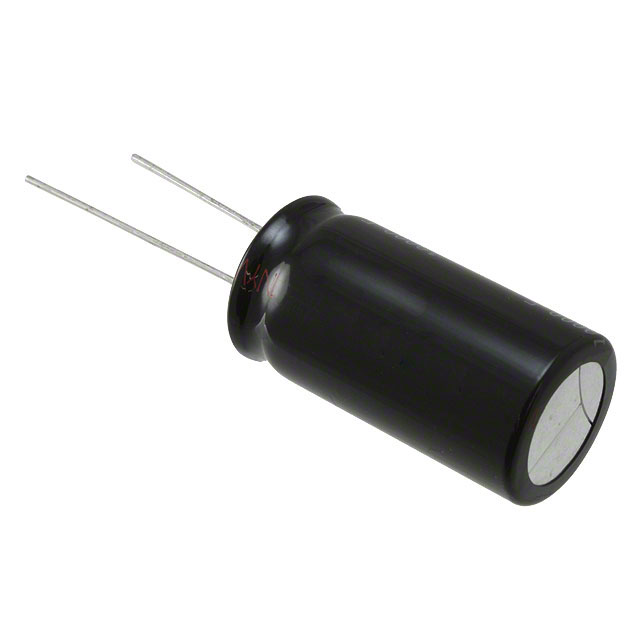

EEU-HD1E103
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : HD
Part Status : Active
Capacitance : 10000µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.2A @ 120Hz
Ripple Current @ High Frequency : 2.53A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.476" (37.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : HD
Part Status : Active
Capacitance : 10000µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.2A @ 120Hz
Ripple Current @ High Frequency : 2.53A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.476" (37.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
2132 in stock

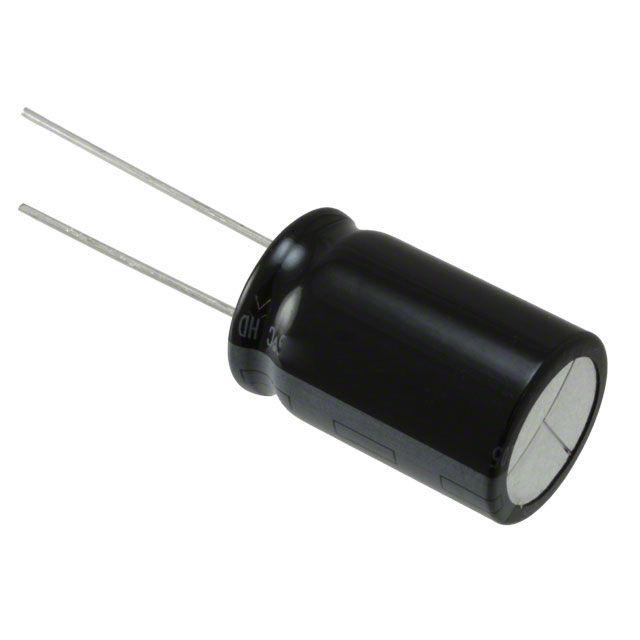

EEU-HD1V472
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : HD
Part Status : Active
Capacitance : 4700µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.91A @ 120Hz
Ripple Current @ High Frequency : 2.196A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.319" (33.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : HD
Part Status : Active
Capacitance : 4700µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.91A @ 120Hz
Ripple Current @ High Frequency : 2.196A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.319" (33.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
1063 in stock
EEU-HD1V682
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : HD
Part Status : Active
Capacitance : 6800µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.05A @ 120Hz
Ripple Current @ High Frequency : 2.358A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.476" (37.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : HD
Part Status : Active
Capacitance : 6800µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.05A @ 120Hz
Ripple Current @ High Frequency : 2.358A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.476" (37.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
2617 in stock

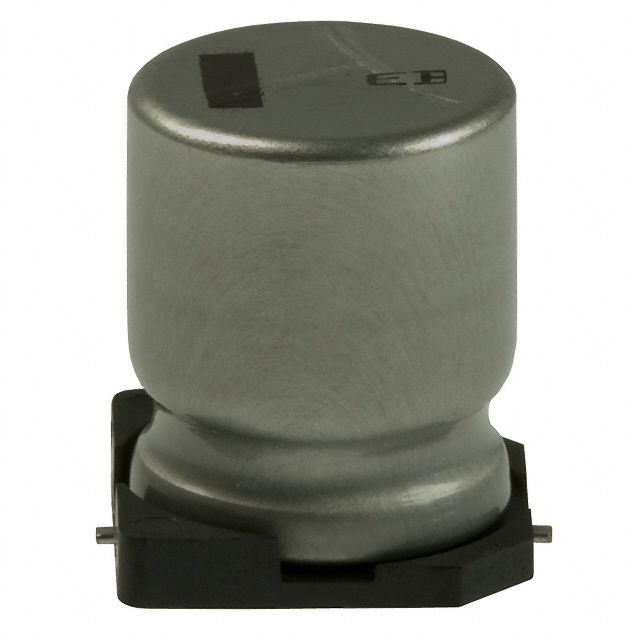

EEV-EB2C330SQ
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EB
Part Status : Active
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 160V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 258.5mA @ 120Hz
Ripple Current @ High Frequency : 470mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EB
Part Status : Active
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 160V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 258.5mA @ 120Hz
Ripple Current @ High Frequency : 470mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
22172 in stock

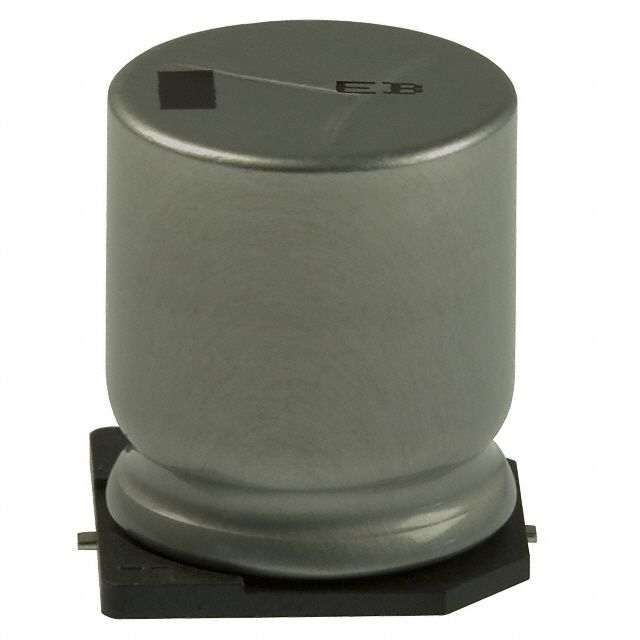

EEV-EB2D101M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EB
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 583mA @ 120Hz
Ripple Current @ High Frequency : 1.06A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 0.846" (21.50mm)
Surface Mount Land Size : 0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EB
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 583mA @ 120Hz
Ripple Current @ High Frequency : 1.06A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 0.846" (21.50mm)
Surface Mount Land Size : 0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
4003 in stock
EEV-EB2D220SQ
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EB
Part Status : Active
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 258.5mA @ 120Hz
Ripple Current @ High Frequency : 470mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EB
Part Status : Active
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 258.5mA @ 120Hz
Ripple Current @ High Frequency : 470mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
28546 in stock
EEV-EB2D470SM
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EB
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 330mA @ 120Hz
Ripple Current @ High Frequency : 600mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EB
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 330mA @ 120Hz
Ripple Current @ High Frequency : 600mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
10144 in stock
EEV-EB2E330SM
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EB
Part Status : Active
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 250V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 308mA @ 120Hz
Ripple Current @ High Frequency : 560mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EB
Part Status : Active
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 250V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 308mA @ 120Hz
Ripple Current @ High Frequency : 560mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
7701 in stock
EEV-EB2W2R2Q
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EB
Part Status : Active
Capacitance : 2.2µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 14.5mA @ 120Hz
Ripple Current @ High Frequency : 29mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EB
Part Status : Active
Capacitance : 2.2µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 14.5mA @ 120Hz
Ripple Current @ High Frequency : 29mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
16464 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
