- Capacitors
- Aluminum Electrolytic Capacitors
Part Number
Manufacturer
Description
Unit Price
In Stock

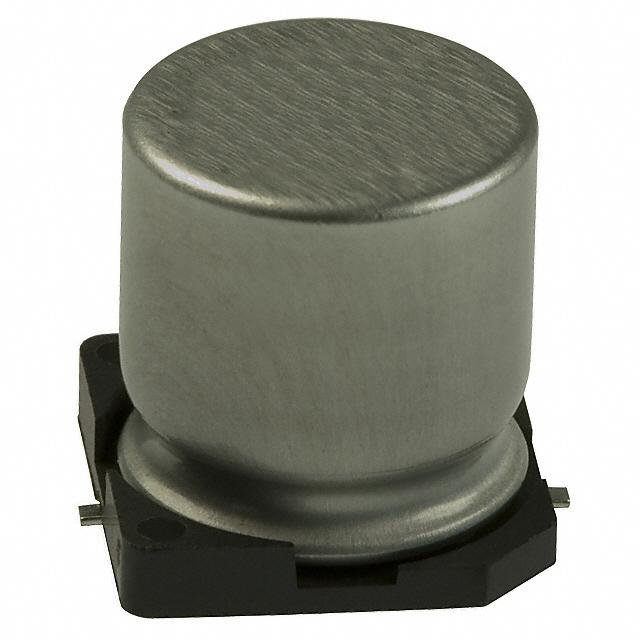

EEV-FK2A680Q
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 68µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 375mA @ 120Hz
Ripple Current @ High Frequency : 500mA @ 100kHz
Impedance : 320 mOhms
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FK
Part Status : Active
Capacitance : 68µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 375mA @ 120Hz
Ripple Current @ High Frequency : 500mA @ 100kHz
Impedance : 320 mOhms
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.551" (14.00mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
18796 in stock
EEV-TG1C222UM
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 80 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 715mA @ 120Hz
Ripple Current @ High Frequency : 1.1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.669" L x 0.669" W (17.00mm x 17.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 80 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 715mA @ 120Hz
Ripple Current @ High Frequency : 1.1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.669" L x 0.669" W (17.00mm x 17.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
4203 in stock

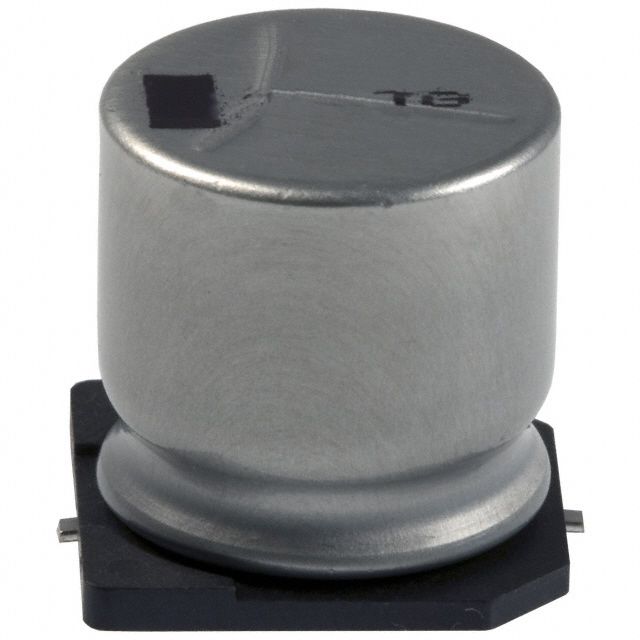

EEV-TG1H471M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 150 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 585mA @ 120Hz
Ripple Current @ High Frequency : 900mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.669" L x 0.669" W (17.00mm x 17.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 150 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 585mA @ 120Hz
Ripple Current @ High Frequency : 900mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.669" L x 0.669" W (17.00mm x 17.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
11175 in stock

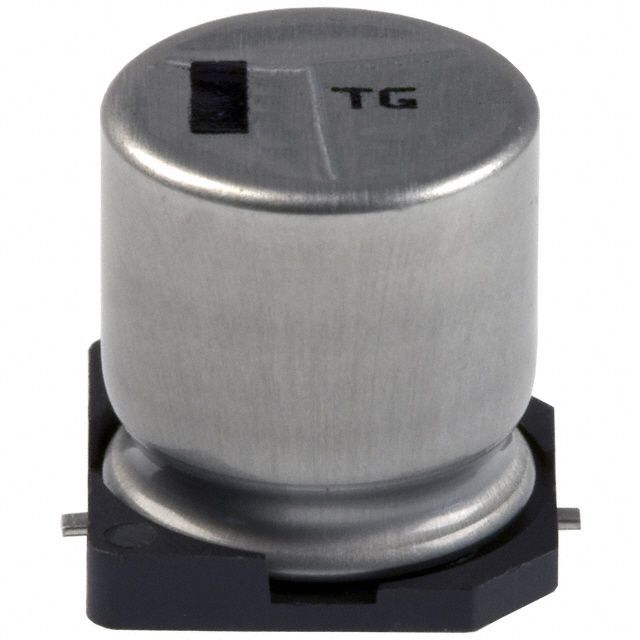

EEV-TG1J221Q
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 260 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 227.5mA @ 120Hz
Ripple Current @ High Frequency : 350mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 260 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 227.5mA @ 120Hz
Ripple Current @ High Frequency : 350mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
7966 in stock

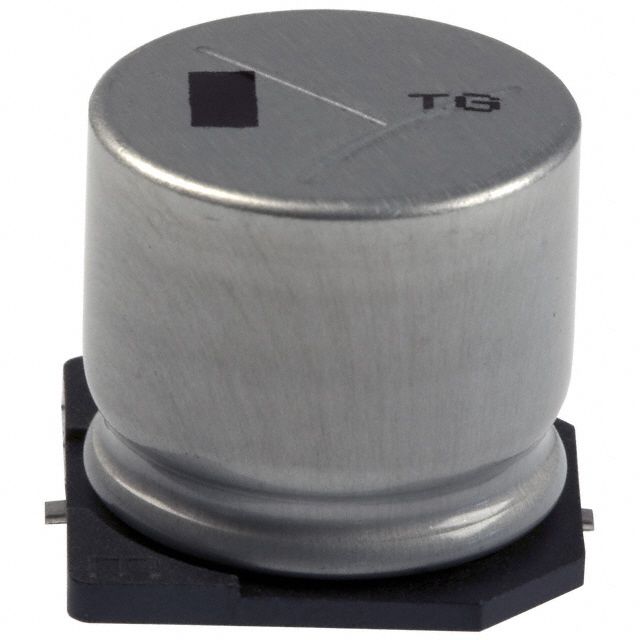

EEV-TG1V102M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 75 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 845mA @ 120Hz
Ripple Current @ High Frequency : 1.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 75 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 845mA @ 120Hz
Ripple Current @ High Frequency : 1.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
18730 in stock
EEV-TG2A101M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : 300 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 227.5mA @ 120Hz
Ripple Current @ High Frequency : 350mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.669" L x 0.669" W (17.00mm x 17.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TG
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : 300 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 227.5mA @ 120Hz
Ripple Current @ High Frequency : 350mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : 0.669" L x 0.669" W (17.00mm x 17.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
6400 in stock

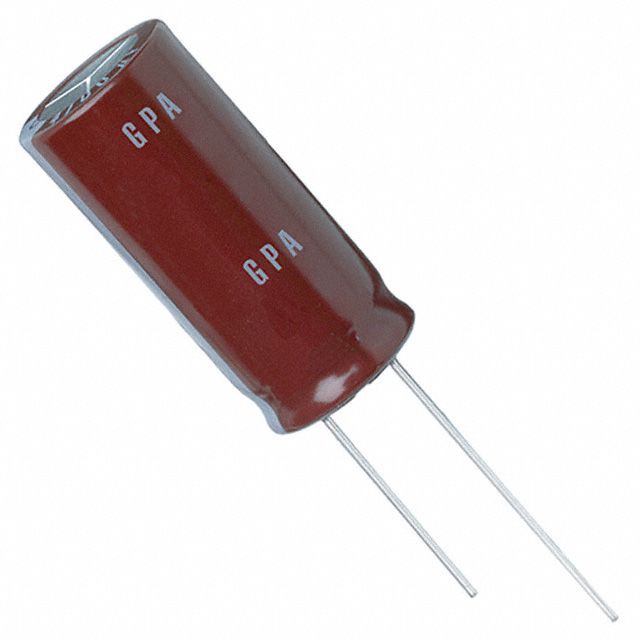

EGPA630ELL102ML35S
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : GPA
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 44 mOhm @ 100kHz
Lifetime @ Temp. : 5000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.548A @ 120Hz
Ripple Current @ High Frequency : 2.58A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.437" (36.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : GPA
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 44 mOhm @ 100kHz
Lifetime @ Temp. : 5000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.548A @ 120Hz
Ripple Current @ High Frequency : 2.58A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.437" (36.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
3368 in stock

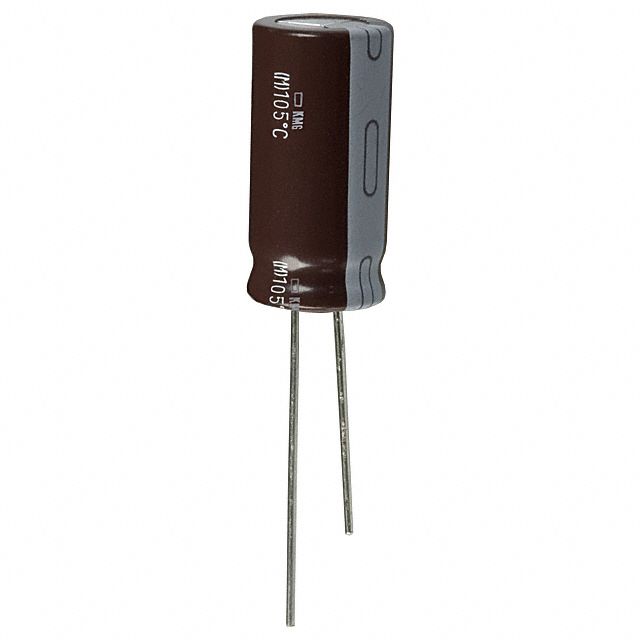

EKMG500ELL102MK25S
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMG
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 950mA @ 120Hz
Ripple Current @ High Frequency : 1.425A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.043" (26.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : KMG
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 950mA @ 120Hz
Ripple Current @ High Frequency : 1.425A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.043" (26.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
9103 in stock
EKMH500VSN472MR30T
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMH
Part Status : Active
Capacitance : 4700µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 71 mOhm @ 120Hz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.25A @ 120Hz
Ripple Current @ High Frequency : 2.43A @ 100kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
Packaging : Bulk
Series : KMH
Part Status : Active
Capacitance : 4700µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 71 mOhm @ 120Hz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.25A @ 120Hz
Ripple Current @ High Frequency : 2.43A @ 100kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1979 in stock
EKMH630VSN472MR40T
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMH
Part Status : Active
Capacitance : 4700µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 53 mOhm @ 120Hz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.86A @ 120Hz
Ripple Current @ High Frequency : 3.432A @ 100kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.575" (40.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
Packaging : Bulk
Series : KMH
Part Status : Active
Capacitance : 4700µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 53 mOhm @ 120Hz
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.86A @ 120Hz
Ripple Current @ High Frequency : 3.432A @ 100kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.575" (40.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
2859 in stock
EKMQ161VSN222MR45S
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMQ
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 160V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.9A @ 120Hz
Ripple Current @ High Frequency : 4.35A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.772" (45.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
Packaging : Bulk
Series : KMQ
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 160V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.9A @ 120Hz
Ripple Current @ High Frequency : 4.35A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.772" (45.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
2358 in stock
EKMQ201VSN102MR30S
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KMQ
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.3A @ 120Hz
Ripple Current @ High Frequency : 3.45A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
Packaging : Bulk
Series : KMQ
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.3A @ 120Hz
Ripple Current @ High Frequency : 3.45A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
2379 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
