Part Number
Manufacturer
Description
Unit Price
In Stock

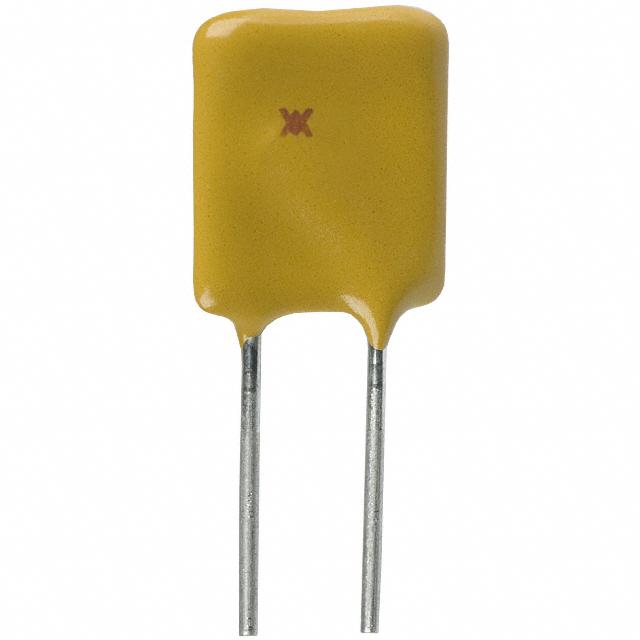

RGEF300K
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 5.1A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 38 mOhms
Resistance - Post Trip (R1) (Max) : 97.5 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.260" L x 0.098" W (6.60mm x 2.50mm)
Height - Seated (Max) : 0.535" (13.60mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 5.1A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 38 mOhms
Resistance - Post Trip (R1) (Max) : 97.5 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.260" L x 0.098" W (6.60mm x 2.50mm)
Height - Seated (Max) : 0.535" (13.60mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
858 in stock
RGEF400
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 6.8A
Time to Trip : 1.7s
Resistance - Initial (Ri) (Min) : 21 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.331" L x 0.098" W (8.40mm x 2.50mm)
Height - Seated (Max) : 0.504" (12.80mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 6.8A
Time to Trip : 1.7s
Resistance - Initial (Ri) (Min) : 21 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.331" L x 0.098" W (8.40mm x 2.50mm)
Height - Seated (Max) : 0.504" (12.80mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
21257 in stock
RGEF400-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 6.8A
Time to Trip : 1.7s
Resistance - Initial (Ri) (Min) : 21 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.331" L x 0.098" W (8.40mm x 2.50mm)
Height - Seated (Max) : 0.504" (12.80mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 6.8A
Time to Trip : 1.7s
Resistance - Initial (Ri) (Min) : 21 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.331" L x 0.098" W (8.40mm x 2.50mm)
Height - Seated (Max) : 0.504" (12.80mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
3304 in stock
RGEF400-AP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 6.8A
Time to Trip : 1.7s
Resistance - Initial (Ri) (Min) : 21 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.331" L x 0.098" W (8.40mm x 2.50mm)
Height - Seated (Max) : 0.504" (12.80mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 6.8A
Time to Trip : 1.7s
Resistance - Initial (Ri) (Min) : 21 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.331" L x 0.098" W (8.40mm x 2.50mm)
Height - Seated (Max) : 0.504" (12.80mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
3086 in stock

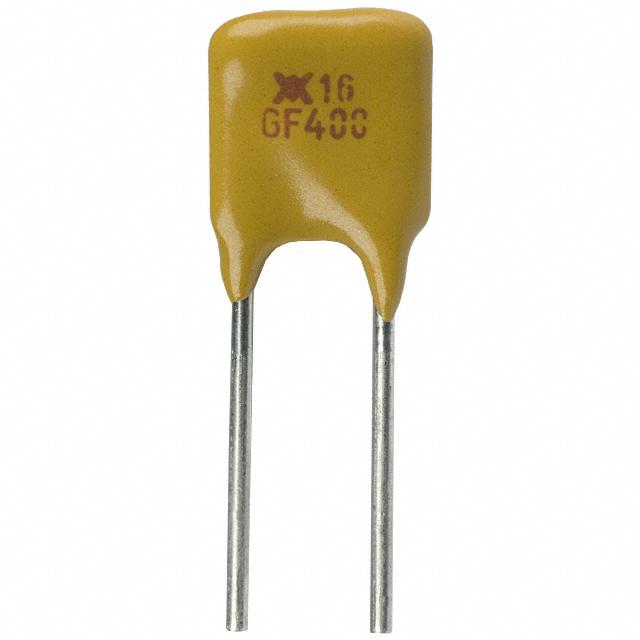

RGEF400K
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 6.8A
Time to Trip : 1.7s
Resistance - Initial (Ri) (Min) : 21 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.331" L x 0.098" W (8.40mm x 2.50mm)
Height - Seated (Max) : 0.504" (12.80mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 6.8A
Time to Trip : 1.7s
Resistance - Initial (Ri) (Min) : 21 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.331" L x 0.098" W (8.40mm x 2.50mm)
Height - Seated (Max) : 0.504" (12.80mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
1924 in stock
RGEF400K-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 6.8A
Time to Trip : 1.7s
Resistance - Initial (Ri) (Min) : 21 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.331" L x 0.098" W (8.40mm x 2.50mm)
Height - Seated (Max) : 0.504" (12.80mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 6.8A
Time to Trip : 1.7s
Resistance - Initial (Ri) (Min) : 21 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.331" L x 0.098" W (8.40mm x 2.50mm)
Height - Seated (Max) : 0.504" (12.80mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
3830 in stock
RGEF400K-AP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 6.8A
Time to Trip : 1.7s
Resistance - Initial (Ri) (Min) : 21 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.331" L x 0.098" W (8.40mm x 2.50mm)
Height - Seated (Max) : 0.504" (12.80mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 6.8A
Time to Trip : 1.7s
Resistance - Initial (Ri) (Min) : 21 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.331" L x 0.098" W (8.40mm x 2.50mm)
Height - Seated (Max) : 0.504" (12.80mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
2000 in stock

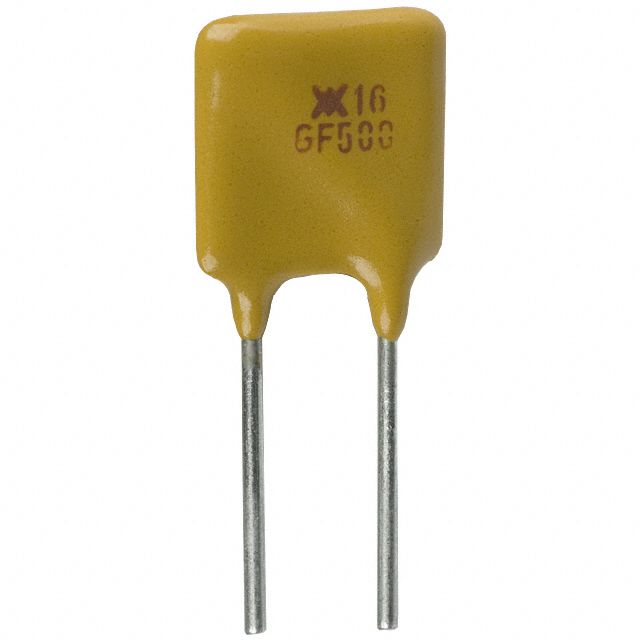

RGEF500
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 8.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 34 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.390" L x 0.098" W (9.90mm x 2.50mm)
Height - Seated (Max) : 0.563" (14.30mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 8.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 34 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.390" L x 0.098" W (9.90mm x 2.50mm)
Height - Seated (Max) : 0.563" (14.30mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
4081 in stock
RGEF500-1
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 8.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 34 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.390" L x 0.098" W (9.90mm x 2.50mm)
Height - Seated (Max) : 0.563" (14.30mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 8.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 34 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.390" L x 0.098" W (9.90mm x 2.50mm)
Height - Seated (Max) : 0.563" (14.30mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
100 in stock
RGEF500-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 8.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 34 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.390" L x 0.098" W (9.90mm x 2.50mm)
Height - Seated (Max) : 0.563" (14.30mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 8.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 34 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.390" L x 0.098" W (9.90mm x 2.50mm)
Height - Seated (Max) : 0.563" (14.30mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
14057 in stock
RGEF500-AP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 8.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 34 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.390" L x 0.098" W (9.90mm x 2.50mm)
Height - Seated (Max) : 0.563" (14.30mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 8.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 34 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.390" L x 0.098" W (9.90mm x 2.50mm)
Height - Seated (Max) : 0.563" (14.30mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
1945 in stock

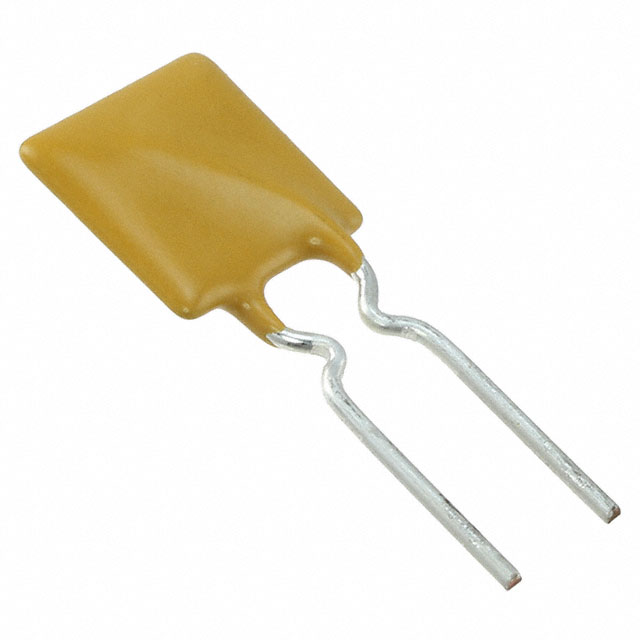

RGEF500K
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 8.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 34 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.390" L x 0.098" W (9.90mm x 2.50mm)
Height - Seated (Max) : 0.563" (14.30mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RGEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 8.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 34 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.390" L x 0.098" W (9.90mm x 2.50mm)
Height - Seated (Max) : 0.563" (14.30mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
1970 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
