Welcome to Weijie Semiconductor
- Circuit Protection
- PTC Resettable Fuses
Part Number
Manufacturer
Description
Unit Price
In Stock

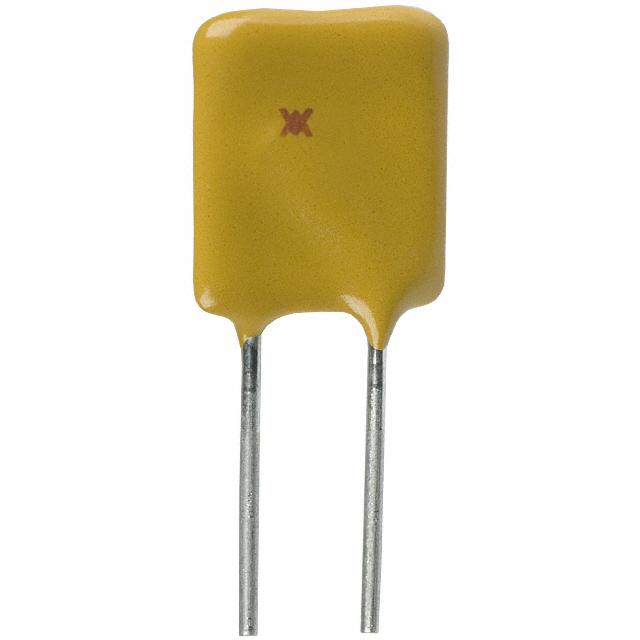

RHEF900
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, RHEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 9A
Current - Trip (It) : 16.5A
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 7.4 mOhms
Resistance - Post Trip (R1) (Max) : 17 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.650" L x 0.118" W (16.50mm x 3.00mm)
Height - Seated (Max) : 1.012" (25.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Series : PolySwitch®, RHEF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 9A
Current - Trip (It) : 16.5A
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 7.4 mOhms
Resistance - Post Trip (R1) (Max) : 17 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.650" L x 0.118" W (16.50mm x 3.00mm)
Height - Seated (Max) : 1.012" (25.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
1000 in stock
RKEF050
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 800ms
Resistance - Initial (Ri) (Min) : 320 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.280" L x 0.140" W (7.10mm x 3.56mm)
Height - Seated (Max) : 0.450" (11.43mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 800ms
Resistance - Initial (Ri) (Min) : 320 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.280" L x 0.140" W (7.10mm x 3.56mm)
Height - Seated (Max) : 0.450" (11.43mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
511 in stock
RKEF050-AP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 800ms
Resistance - Initial (Ri) (Min) : 320 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.280" L x 0.140" W (7.10mm x 3.56mm)
Height - Seated (Max) : 0.450" (11.43mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 800ms
Resistance - Initial (Ri) (Min) : 320 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.280" L x 0.140" W (7.10mm x 3.56mm)
Height - Seated (Max) : 0.450" (11.43mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
1599 in stock
RKEF065
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 650mA
Current - Trip (It) : 1.3A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 250 mOhms
Resistance - Post Trip (R1) (Max) : 720 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.280" L x 0.140" W (7.10mm x 3.56mm)
Height - Seated (Max) : 0.480" (12.20mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 650mA
Current - Trip (It) : 1.3A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 250 mOhms
Resistance - Post Trip (R1) (Max) : 720 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.280" L x 0.140" W (7.10mm x 3.56mm)
Height - Seated (Max) : 0.480" (12.20mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
7879 in stock
RKEF065-AP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 650mA
Current - Trip (It) : 1.3A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 250 mOhms
Resistance - Post Trip (R1) (Max) : 720 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.280" L x 0.140" W (7.10mm x 3.56mm)
Height - Seated (Max) : 0.480" (12.20mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 650mA
Current - Trip (It) : 1.3A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 250 mOhms
Resistance - Post Trip (R1) (Max) : 720 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.280" L x 0.140" W (7.10mm x 3.56mm)
Height - Seated (Max) : 0.480" (12.20mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
1787 in stock
RKEF075
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : 640 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.310" L x 0.140" W (7.87mm x 3.56mm)
Height - Seated (Max) : 0.480" (12.20mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : 640 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.310" L x 0.140" W (7.87mm x 3.56mm)
Height - Seated (Max) : 0.480" (12.20mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
4000 in stock

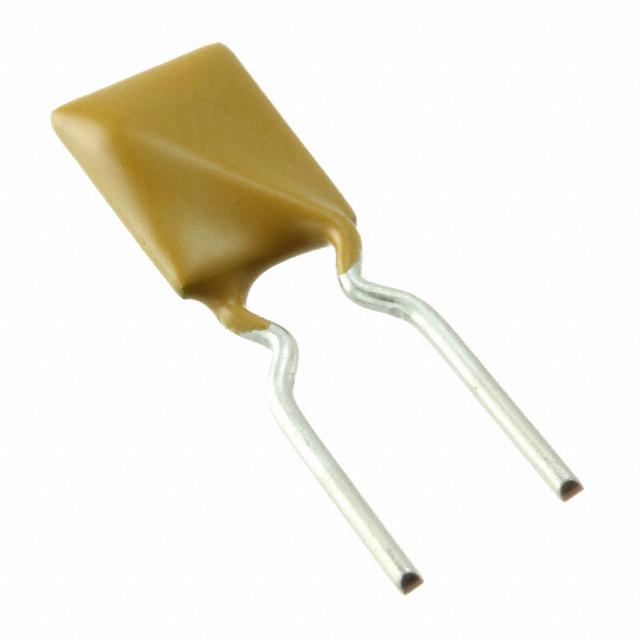

RKEF090
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 1.8A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 190 mOhms
Resistance - Post Trip (R1) (Max) : 520 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.310" L x 0.140" W (7.87mm x 3.56mm)
Height - Seated (Max) : 0.550" (13.97mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 1.8A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 190 mOhms
Resistance - Post Trip (R1) (Max) : 520 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.310" L x 0.140" W (7.87mm x 3.56mm)
Height - Seated (Max) : 0.550" (13.97mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
2028 in stock
RKEF110
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 170 mOhms
Resistance - Post Trip (R1) (Max) : 470 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.299" L x 0.161" W (7.60mm x 4.10mm)
Height - Seated (Max) : 0.591" (15.00mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 170 mOhms
Resistance - Post Trip (R1) (Max) : 470 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.299" L x 0.161" W (7.60mm x 4.10mm)
Height - Seated (Max) : 0.591" (15.00mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
1658 in stock
RKEF135
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 4.5s
Resistance - Initial (Ri) (Min) : 110 mOhms
Resistance - Post Trip (R1) (Max) : 370 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.402" L x 0.150" W (10.20mm x 3.80mm)
Height - Seated (Max) : 0.669" (17.00mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 4.5s
Resistance - Initial (Ri) (Min) : 110 mOhms
Resistance - Post Trip (R1) (Max) : 370 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.402" L x 0.150" W (10.20mm x 3.80mm)
Height - Seated (Max) : 0.669" (17.00mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
5748 in stock
RKEF160
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 9s
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 320 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.480" L x 0.150" W (12.20mm x 3.81mm)
Height - Seated (Max) : 0.720" (18.30mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 9s
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 320 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.480" L x 0.150" W (12.20mm x 3.81mm)
Height - Seated (Max) : 0.720" (18.30mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
47 in stock
RKEF185
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 12.6s
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.512" L x 0.150" W (13.00mm x 3.81mm)
Height - Seated (Max) : 0.740" (18.80mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 12.6s
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.512" L x 0.150" W (13.00mm x 3.81mm)
Height - Seated (Max) : 0.740" (18.80mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
12679 in stock

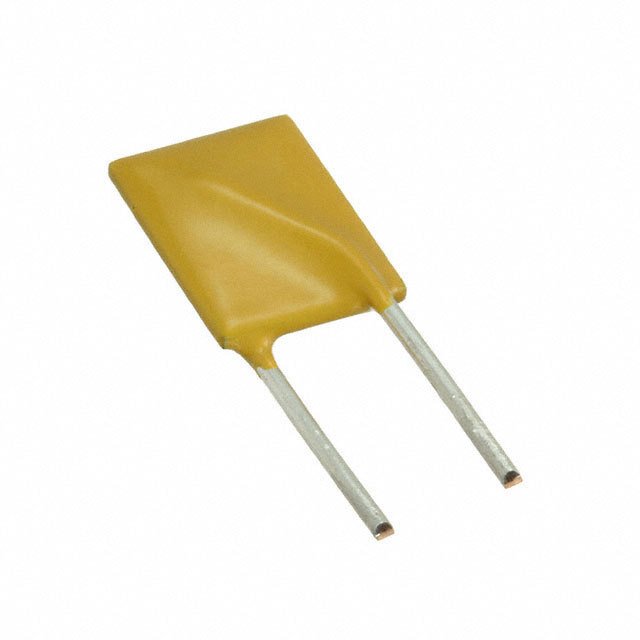

RKEF250
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2.5A
Current - Trip (It) : 5A
Time to Trip : 15.6s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 140 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.512" L x 0.150" W (13.00mm x 3.81mm)
Height - Seated (Max) : 0.740" (18.80mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Series : PolySwitch®, RKEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2.5A
Current - Trip (It) : 5A
Time to Trip : 15.6s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 140 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.512" L x 0.150" W (13.00mm x 3.81mm)
Height - Seated (Max) : 0.740" (18.80mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
15615 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
