Part Number
Manufacturer
Description
Unit Price
In Stock

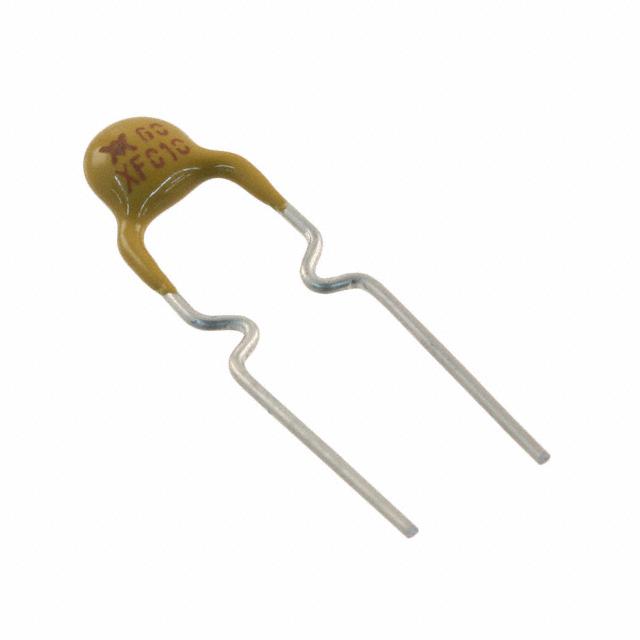

RXEF010S
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 200mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 2.5 Ohms
Resistance - Post Trip (R1) (Max) : 7.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.457" (11.60mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 200mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 2.5 Ohms
Resistance - Post Trip (R1) (Max) : 7.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.457" (11.60mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
4555 in stock
RXEF017
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 170mA
Current - Trip (It) : 340mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 3.3 Ohms
Resistance - Post Trip (R1) (Max) : 8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 170mA
Current - Trip (It) : 340mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 3.3 Ohms
Resistance - Post Trip (R1) (Max) : 8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
5890 in stock

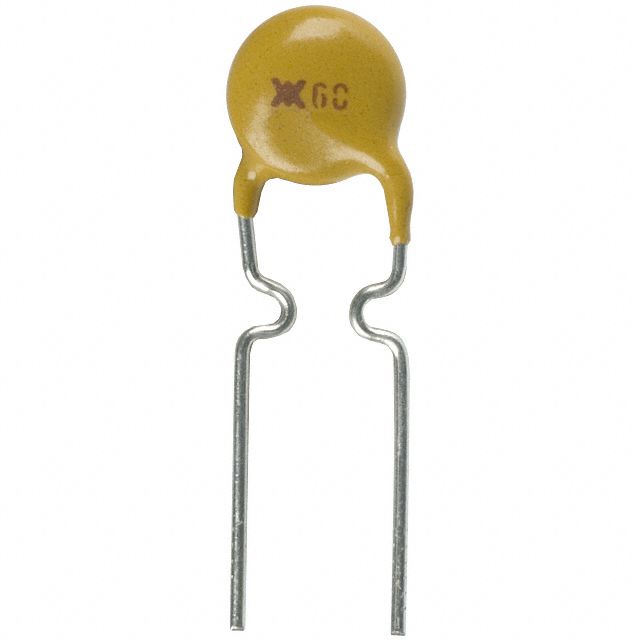

RXEF017-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 170mA
Current - Trip (It) : 340mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 3.3 Ohms
Resistance - Post Trip (R1) (Max) : 8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 170mA
Current - Trip (It) : 340mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 3.3 Ohms
Resistance - Post Trip (R1) (Max) : 8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
10606 in stock
RXEF017-AP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 170mA
Current - Trip (It) : 340mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 3.3 Ohms
Resistance - Post Trip (R1) (Max) : 8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 170mA
Current - Trip (It) : 340mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 3.3 Ohms
Resistance - Post Trip (R1) (Max) : 8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
1878 in stock

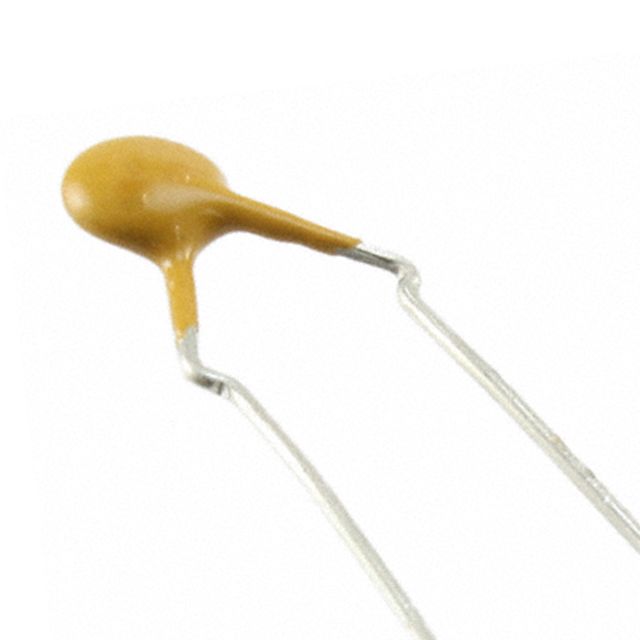

RXEF017S
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 170mA
Current - Trip (It) : 340mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 3.3 Ohms
Resistance - Post Trip (R1) (Max) : 8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 170mA
Current - Trip (It) : 340mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 3.3 Ohms
Resistance - Post Trip (R1) (Max) : 8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
45402 in stock
RXEF020
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : 1.83 Ohms
Resistance - Post Trip (R1) (Max) : 4.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.461" (11.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : 1.83 Ohms
Resistance - Post Trip (R1) (Max) : 4.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.461" (11.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
26747 in stock
RXEF020-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RXEF
Part Status : Active
Type : -
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.461" (11.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RXEF
Part Status : Active
Type : -
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.461" (11.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
2967 in stock

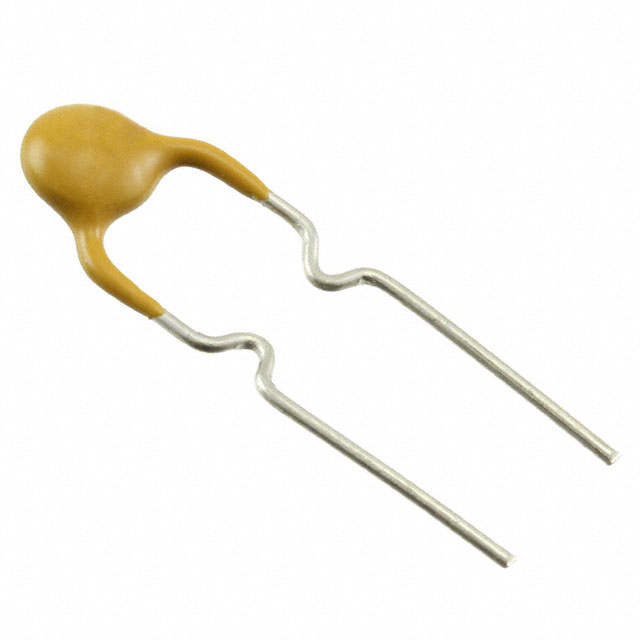

RXEF020-AP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : 1.83 Ohms
Resistance - Post Trip (R1) (Max) : 4.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.461" (11.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : 1.83 Ohms
Resistance - Post Trip (R1) (Max) : 4.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.461" (11.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
1759 in stock

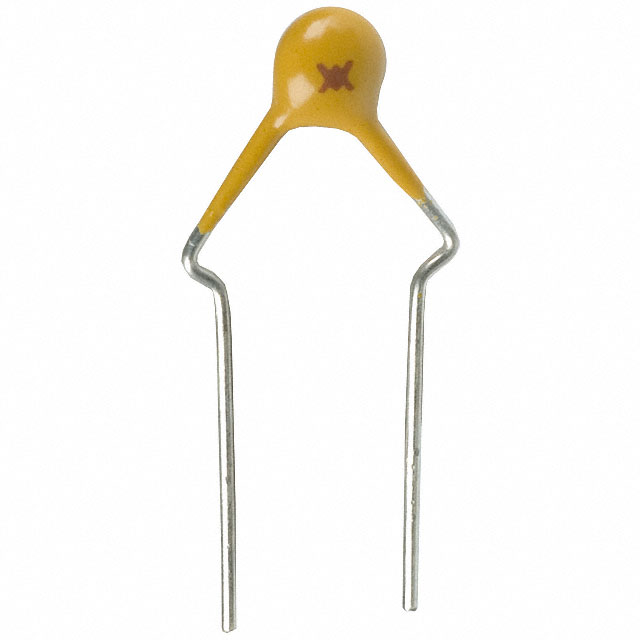

RXEF020S
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : 1.83 Ohms
Resistance - Post Trip (R1) (Max) : 4.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.461" (11.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : 1.83 Ohms
Resistance - Post Trip (R1) (Max) : 4.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.461" (11.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
2233 in stock
RXEF020S-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : 1.83 Ohms
Resistance - Post Trip (R1) (Max) : 4.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.461" (11.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : 1.83 Ohms
Resistance - Post Trip (R1) (Max) : 4.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.461" (11.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
2323 in stock
RXEF025
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 250mA
Current - Trip (It) : 500mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 1.25 Ohms
Resistance - Post Trip (R1) (Max) : 3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Bulk
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 250mA
Current - Trip (It) : 500mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 1.25 Ohms
Resistance - Post Trip (R1) (Max) : 3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
17296 in stock
RXEF025-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 250mA
Current - Trip (It) : 500mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 1.25 Ohms
Resistance - Post Trip (R1) (Max) : 3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, RXEF
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 250mA
Current - Trip (It) : 500mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 1.25 Ohms
Resistance - Post Trip (R1) (Max) : 3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
3979 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
